96x32 OLED Graphic Display 0.68 inch
Model No. WEO009632B
►Type: Graphic
►Structure: COG
►Size: 0.68 inch
►96 x 32 Dot Matrix
►IC：SSD1305
►3V Power supply
►1/32 duty
►Interface: 6800, 8080, SPI, I2C
►Display Color: White / Yellow
►Other FPC options available in below table
Description
WEO009632B is a mini OLED display which is made of 96x32 pixels, diagonal size 0.68 inch. WEO009632B is built in with SSD1305 driver IC; it supports 6800/8080 8-bit parallel, I2C and 4-wire SPI interface, The supply voltage for logic of WEO009632B-ZIF is 3V, 1/32 driver duty, display with 50% check board current is 3.6mA@12Vcc (typical value). This OLED module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃. Winstar provides ZIF FPC and Hotbar versions for customers to choose the suitable module for your application.
WEO009632B mini COG PMOLED module is ultra thin only 1.21 mm; lightweight and low power consumption. It is suitable for wearable device, smart home application, portable device, meter device, personal care appliance, voice recorder pen, health device, etc.
FPC Options
DRAWING

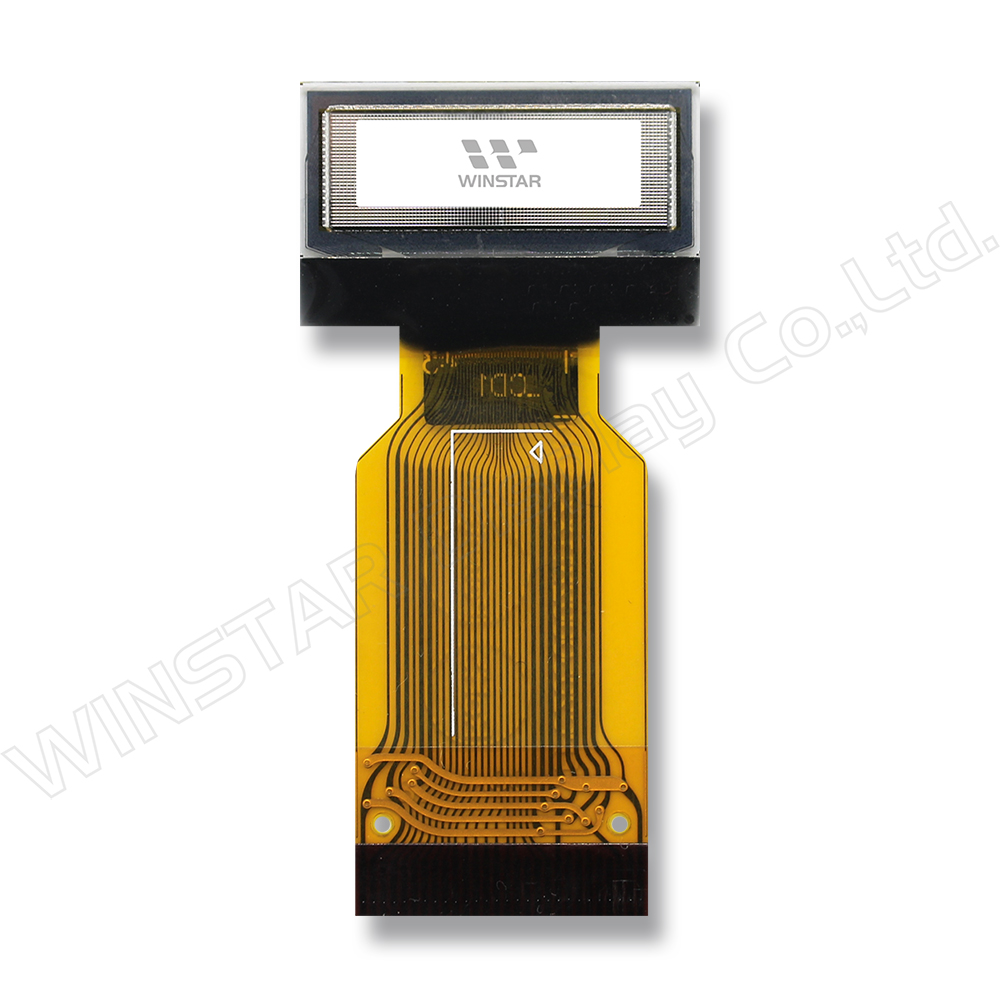

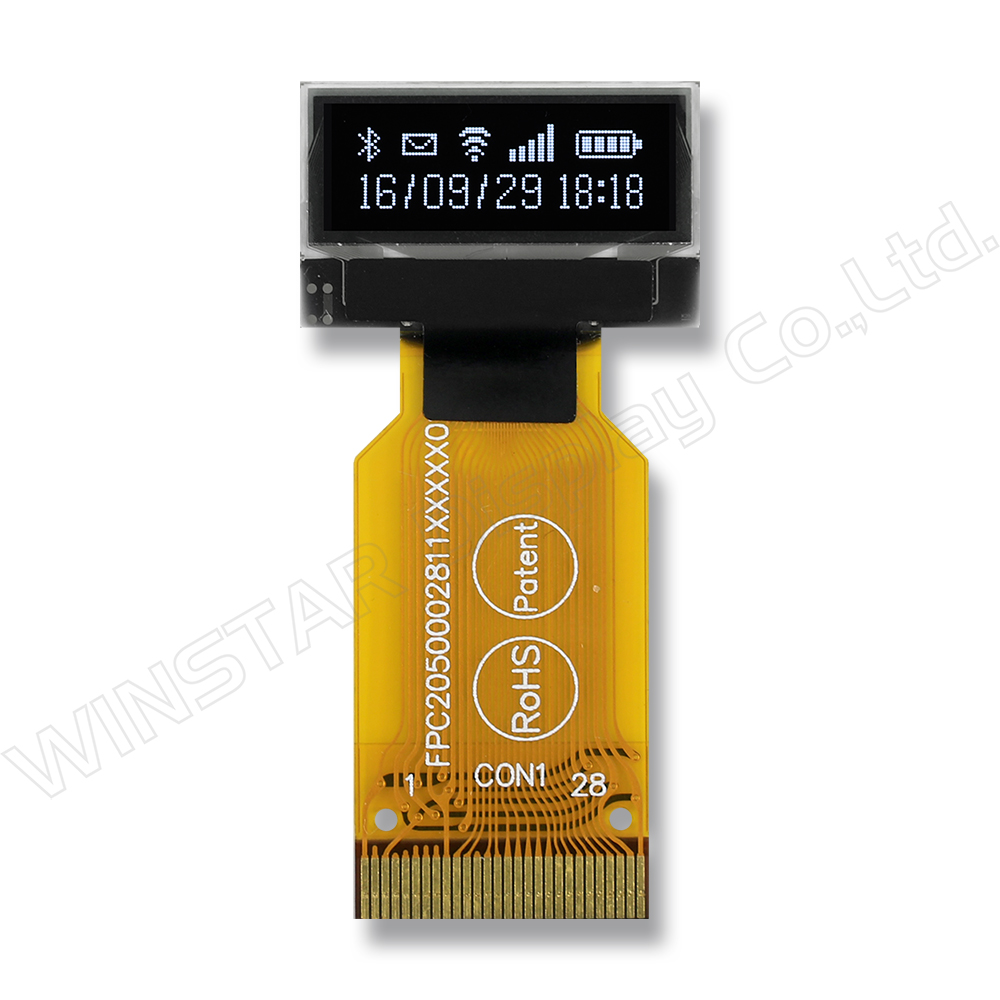

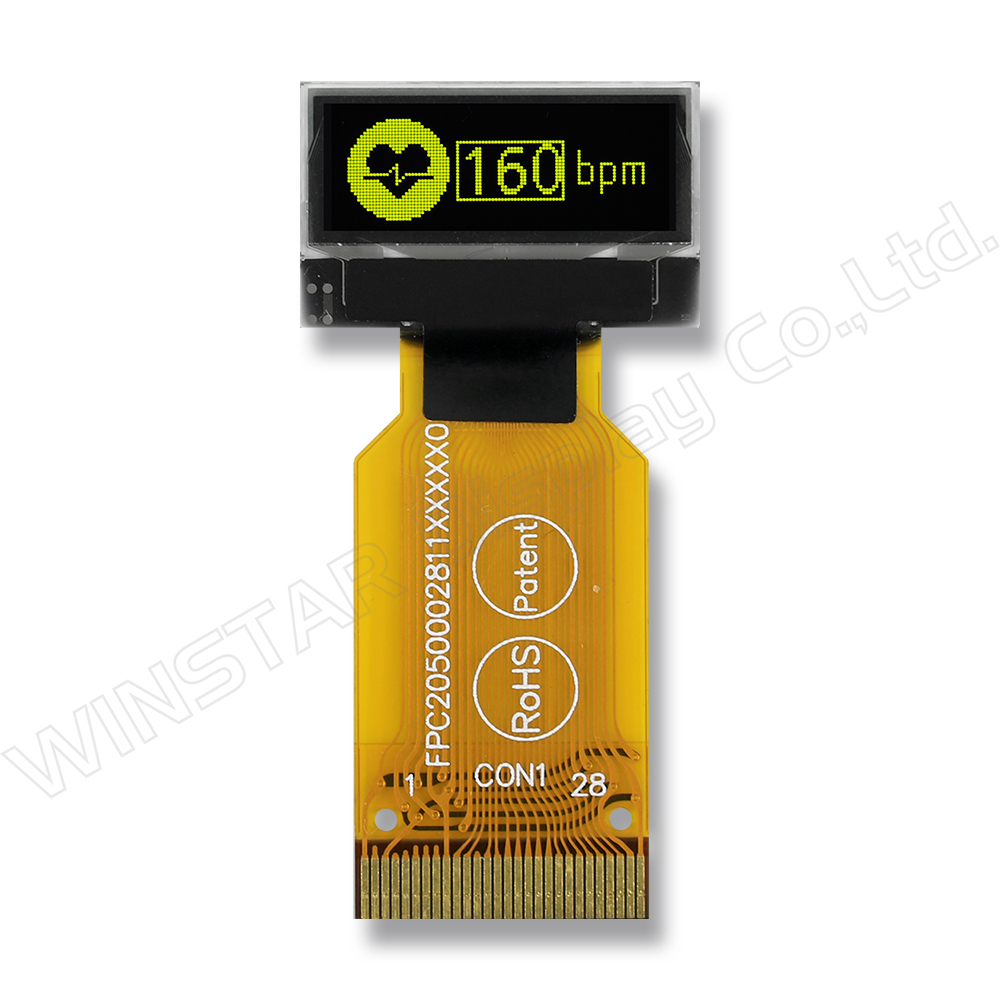

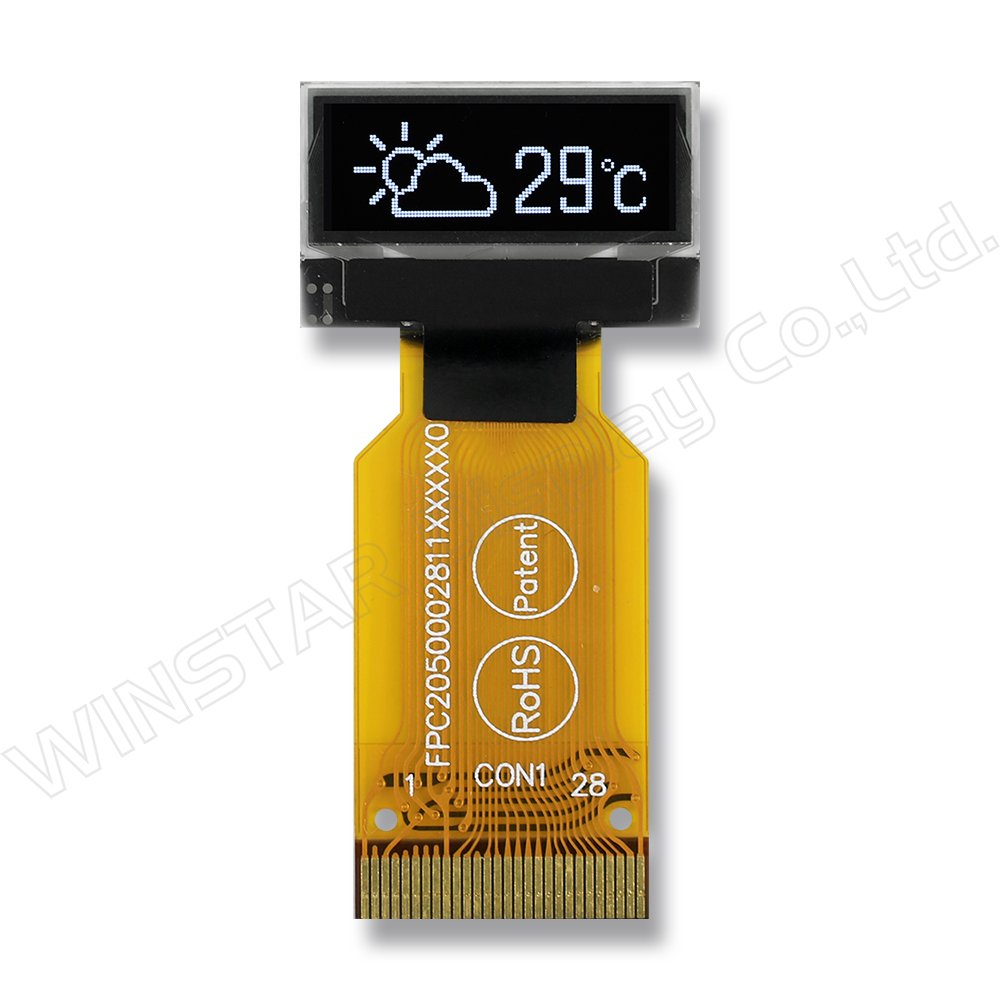

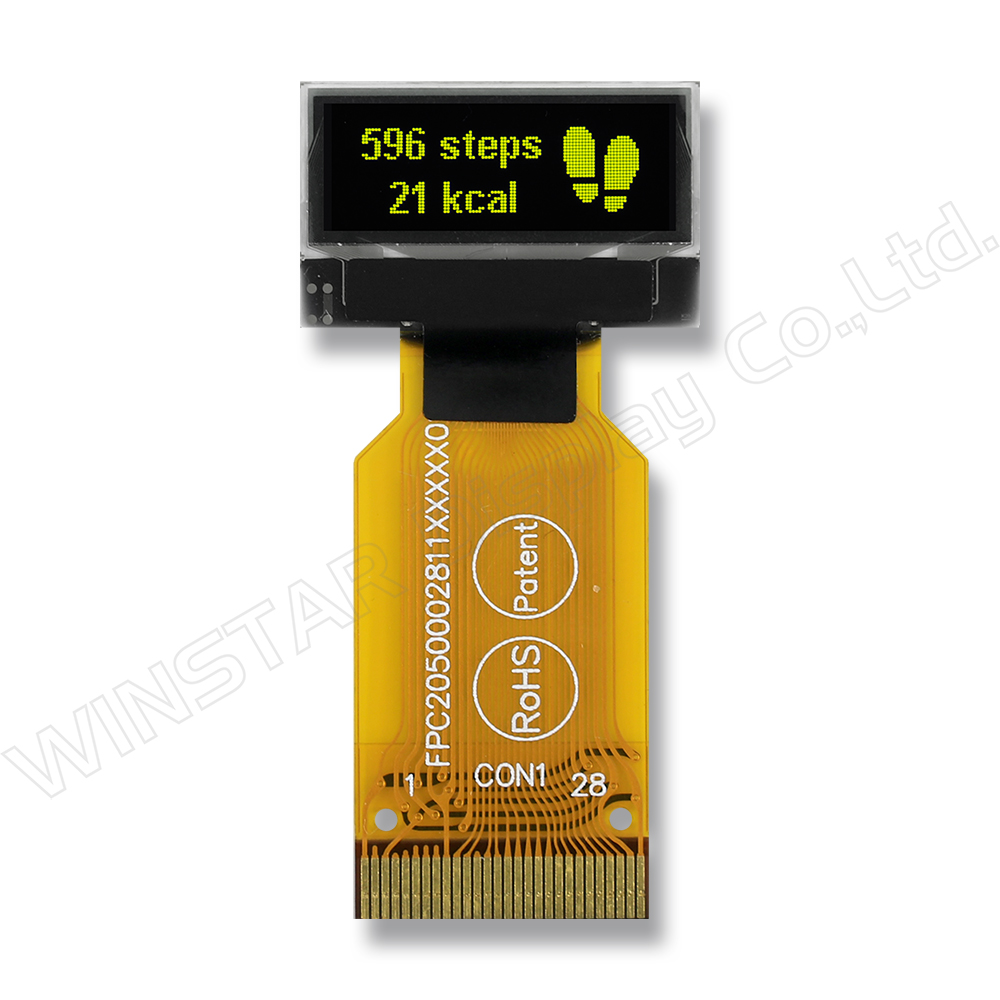

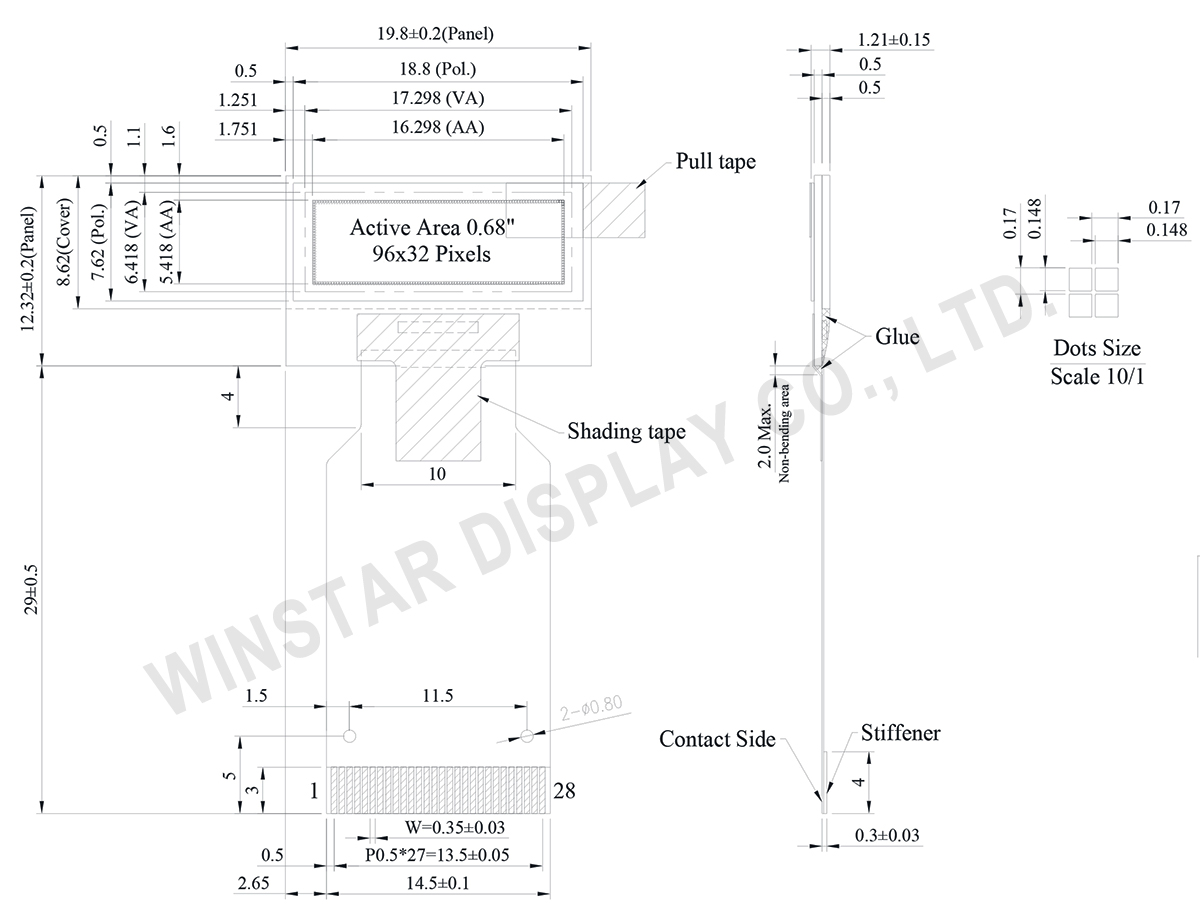

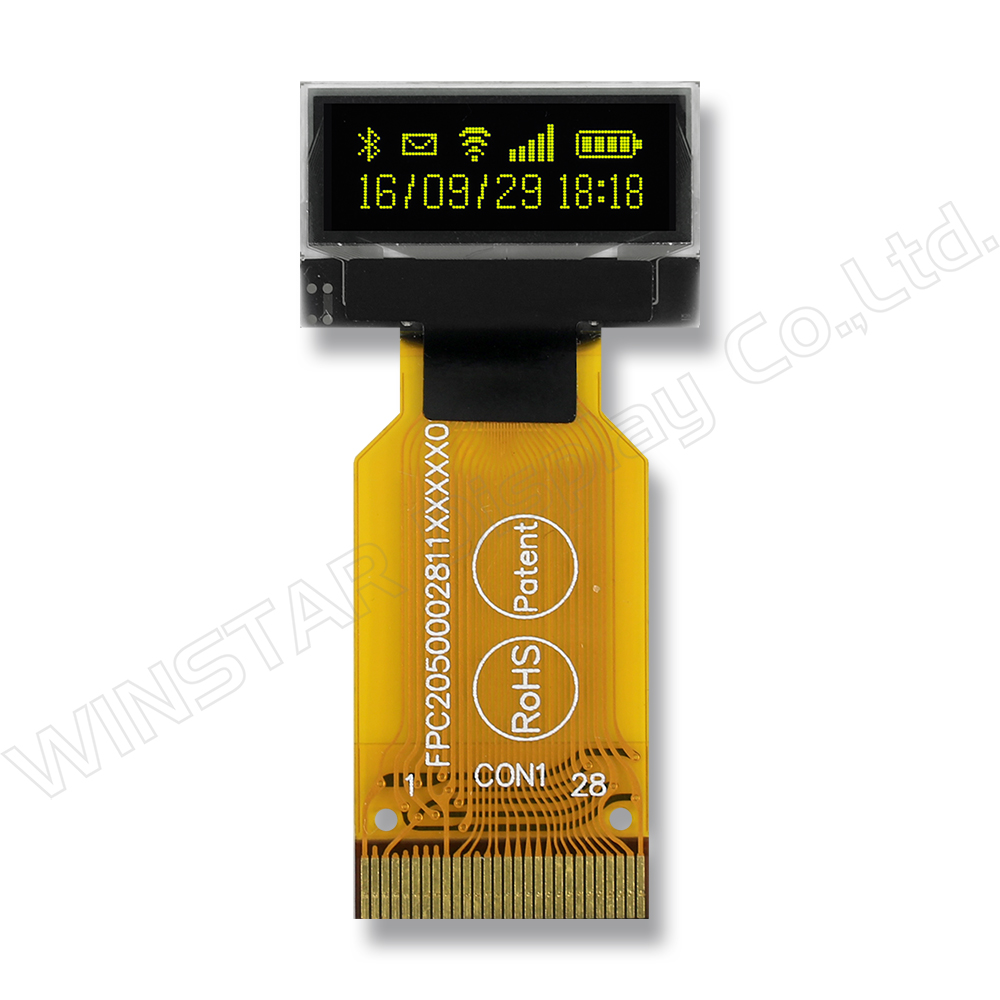

WEO009632B with ZIF FPC
Data source ref: WEO009632BLAP3N00000

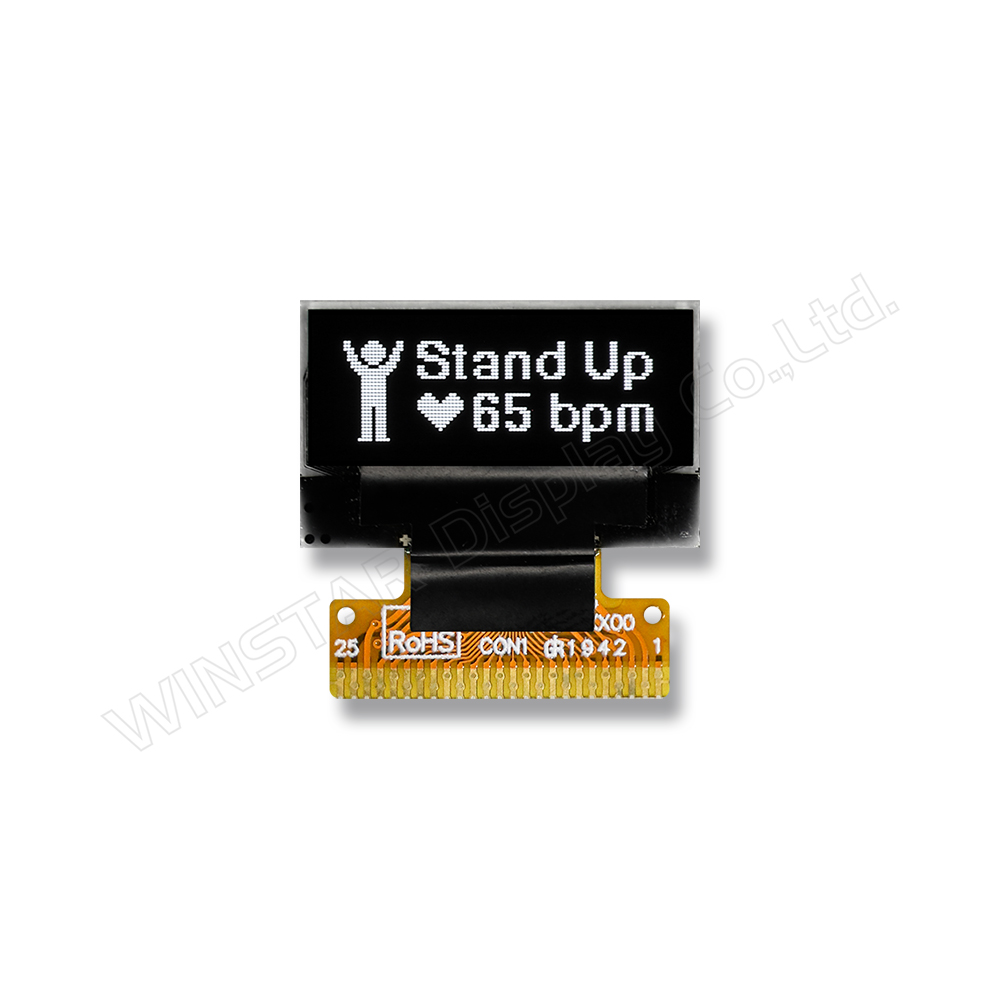

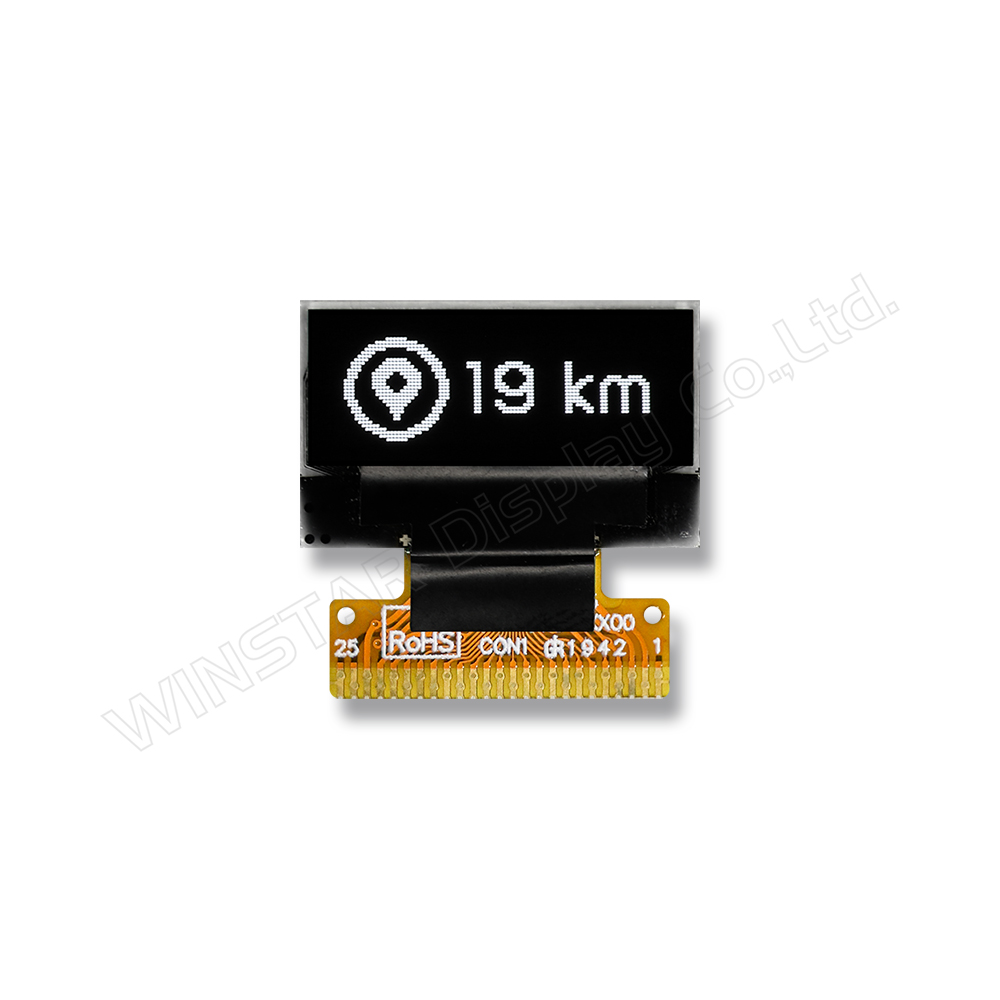

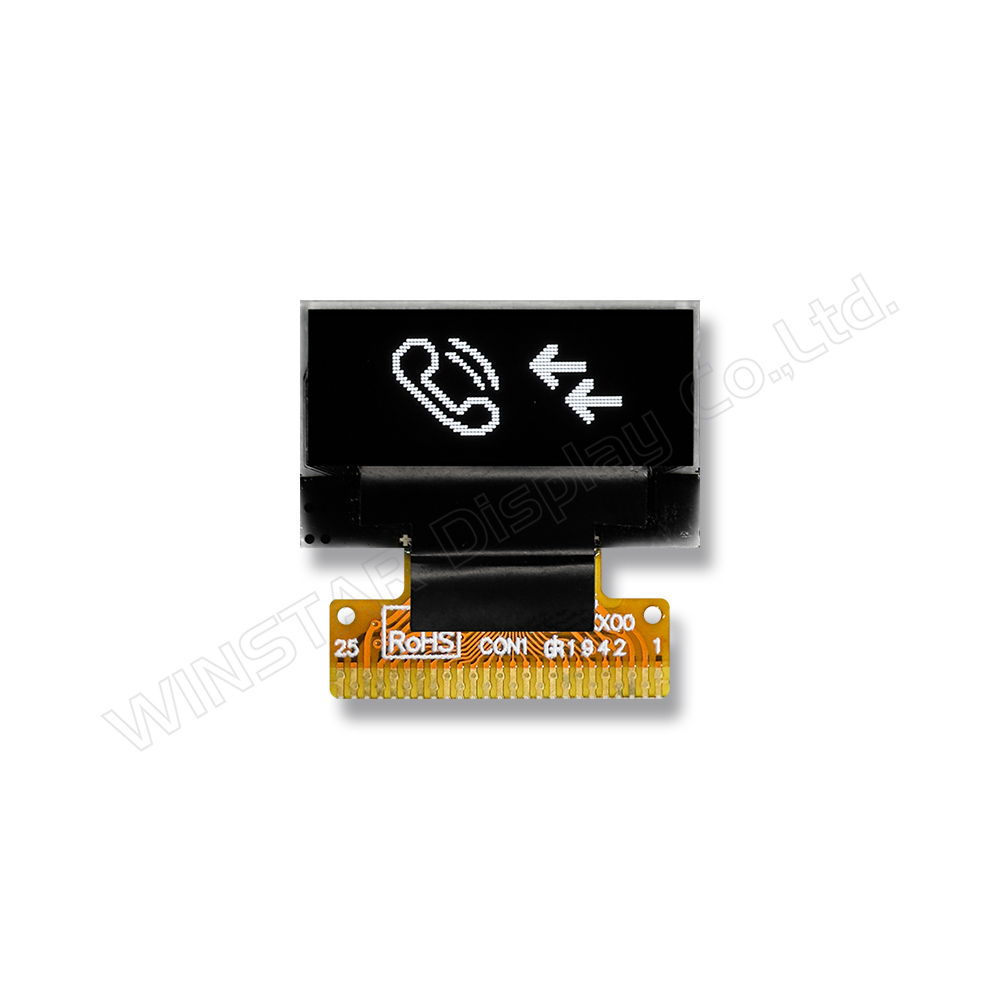

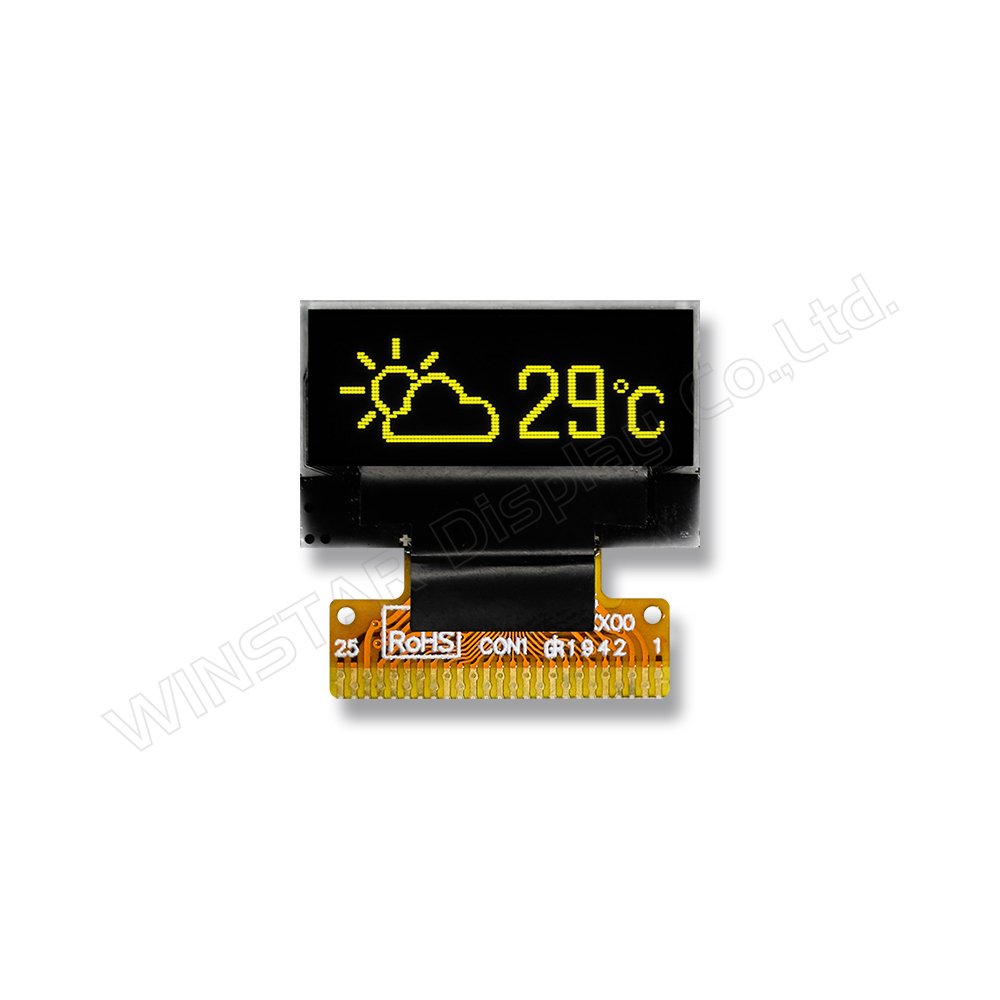

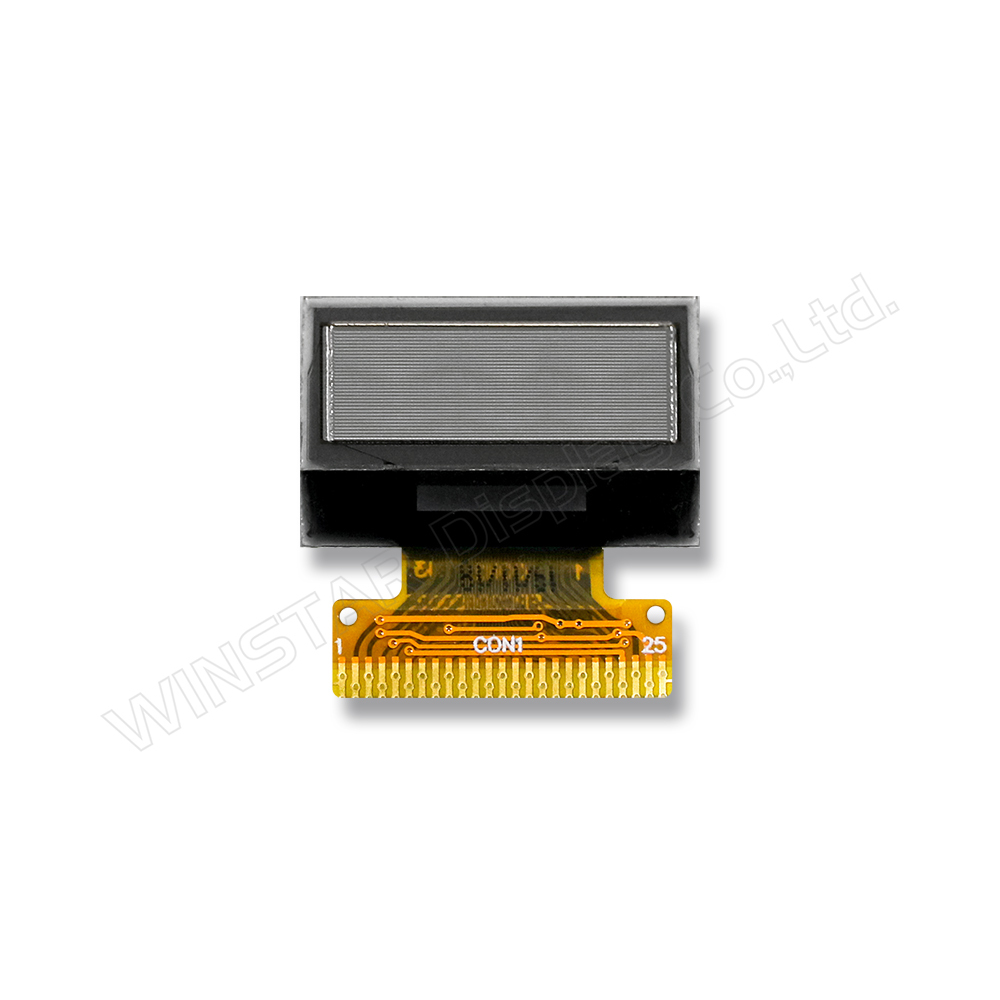

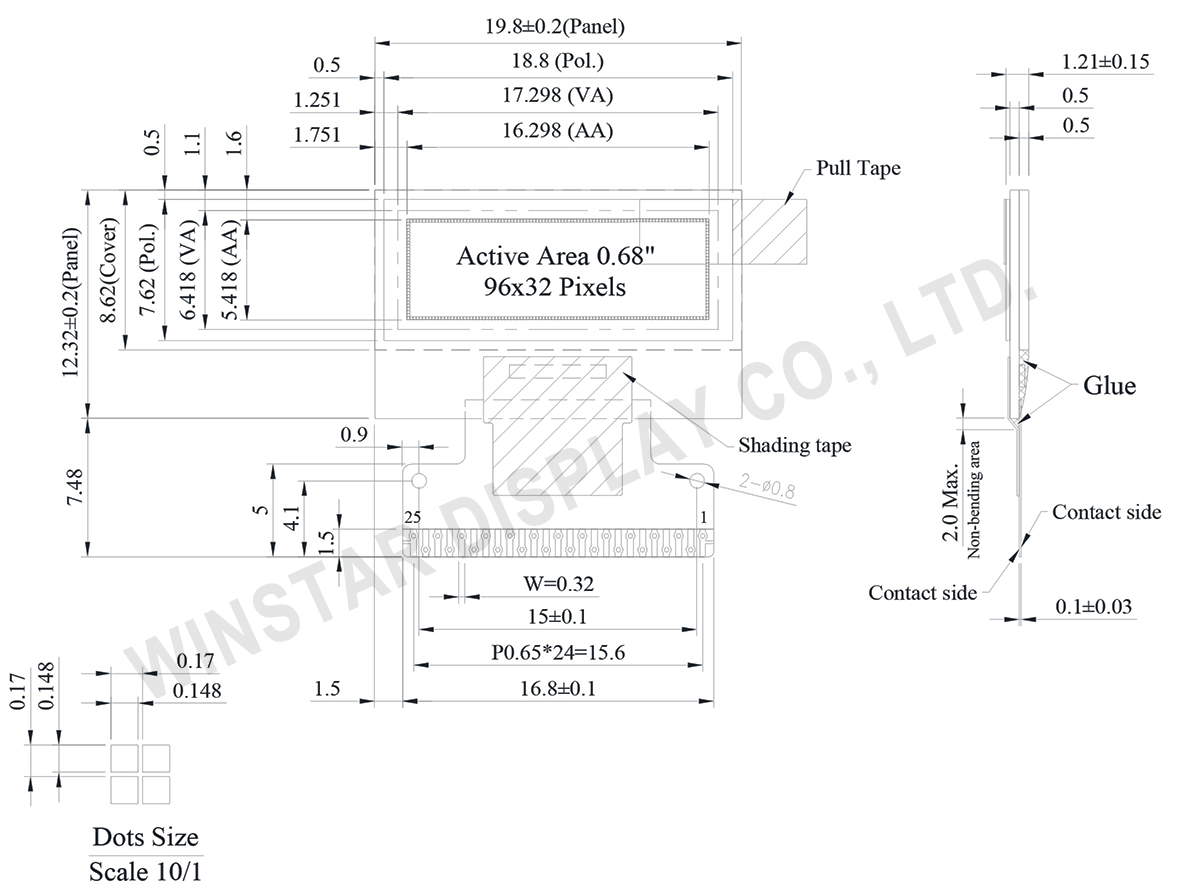

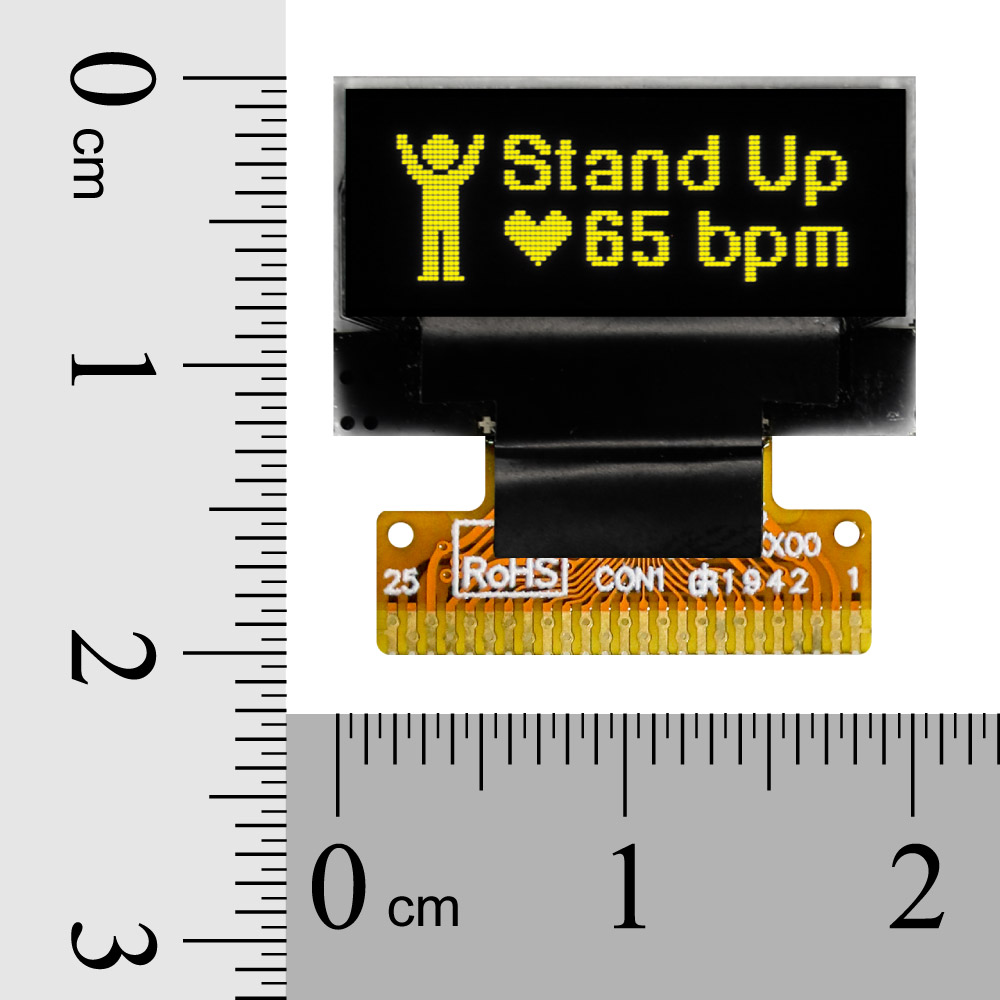

WEO009632B with Hotbar FPC
Data source ref: WEO009632BWPP3N00H00
SPECIFICATIONS
Interface Pin Function
| Pin | Symbol | I/O | Function | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | VSS | - | Reserved Pin(Supporting Pin) The supporting pins can reduce the influences from stresses on the function pins. These pins must be connected to external ground. |
|||||||||||||||
| 2 | GDR | - | Reserved pin, not connected. | |||||||||||||||
| 3 | VDDB | P | Reserved pin, not connected. | |||||||||||||||
| 4 | FB | - | Reserved pin, not connected. | |||||||||||||||
| 5 | NC | - | Not connected. | |||||||||||||||
| 6 | VBREF | - | Reserved pin, not connected. | |||||||||||||||
| 7 | NC | - | Not connected. | |||||||||||||||
| 8 | NC | - | Not connected. | |||||||||||||||
| 9 | VDD | P | Power supply pin for core logic operation. | |||||||||||||||
| 10 | BS1 | I | MCU bus interface selection pins. Select appropriate logic setting as described in the following table. BS2, and BS1 are pin select.
|
|||||||||||||||
| 11 | BS2 | I | ||||||||||||||||
| 12 | NC | - | Not connected. | |||||||||||||||
| 13 | CS# | I | This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW). |
|||||||||||||||
| 14 | RES# | I | This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin HIGH (i.e. connect to VDD) during normal operation. | |||||||||||||||
| 15 | D/C# | I | This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data. When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register. In I2C mode, this pin acts as SA0 for slave address selection. |
|||||||||||||||
| 16 | WR# | I | This is read / write control input pin connecting to the MCU interface. When interfacing to a 6800-series microprocessor, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH (i.e. connect to VDD) and write mode when LOW. When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS. |
|||||||||||||||
| 17 | E/RD# | I | This pin is MCU interface input. When 6800 interface mode is selected, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled HIGH and the chip is selected. When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS. |
|||||||||||||||
| 18~25 | D0~D7 | - | These are 8-bit bi-directional data bus to be connected to the microprocessor’s data bus. When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN. When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL. |
|||||||||||||||
| 26 | IREF | - | This is segment output current reference pin. When external IREF is used, a resistor should be connected between this pin and VSS to maintain the IREF current at 30uA. |
|||||||||||||||
| 27 | VCOMH | - | COM signal deselected voltage level. A capacitor should be connected between this pin and VSS. |
|||||||||||||||
| 28 | VCC | - | Power supply for panel driving voltage. This is also the most positive power voltage supply pin. When charge pump is enabled, a capacitor should be connected between this pin and VSS. |
Mechanical Data
| Item | Dimension | Unit |
|---|---|---|
| Dot Matrix | 96 × 32 | Dots |
| Module dimension | 19.80 × 12.32 × 1.21 (mm) | mm |
| Active Area | 16.298 × 5.418 (mm) | mm |
| Pixel Size | 0.148 × 0.148 (mm) | mm |
| Pixel Pitch | 0.17 × 0.17 (mm) | mm |
| Display Mode | Passive Matrix | |
| Display Color | Monochrome | |
| Drive Duty | 1/32 Duty | |
| IC | SSD1305 | |
| Interface | 6800, 8080, SPI, I2C | |
| Size | 0.68 inch | |
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Supply Voltage for Logic | VDD | -0.3 | 4 | V |
| Supply Voltage for Display | VCC | 0 | 16 | V |
| Operating Temperature | TOP | -40 | +80 | °C |
| Storage Temperature | TSTG | -40 | +85 | °C |
Electronical Characteristics
DC Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage for Logic | VDD | － | 2.8 | 3.0 | 3.3 | V |
| Supply Voltage for Display | VCC | － | 11.5 | 12 | 12.5 | V |
| High Level Input | VIH | － | 0.8×VDD | － | VDD | V |
| Low Level Input | VIL | － | 0 | － | 0.2×VDD | V |
| High Level Output | VOH | Iout = 100uA | 0.9×VDD | － | VDD | V |
| Low Level Output | VOL | Iout = 100uA | 0 | － | 0.1×VDD | V |
| Symbol | Parameter | Min. | Typ. | Max. | Unit | Condition |
|---|---|---|---|---|---|---|
| ICC | VCC Supply Current | - | 5.0 | 7.5 | mA | VDD =3.0V , Display 100% ON |
FPC Options:
| Drawing | FPC Length | PIN | pitch | ZIF FPC or HOTBAR FPC | Interface | FPC No. | Create Date |
|---|---|---|---|---|---|---|---|
 |
30 | 28 | 0.5 | ZIF FPC | 6800, 8080,4-Wire SPI, I2C | FPC2050002811XXXXX01 | 20180131 |
 |
8.479 | 25 | 0.65 | HOTBAR FPC | 6800, 8080,4-Wire SPI, I2C | FPC2065002501XXXXX00 | 20190906 |
