Home Products Smart Display CAN Smart Display
CAN Open Display, CAN Bus Display, Display CAN Bus, CANopen Display, CANbus Display

CANopen Display, CAN Bus Display, Display CAN Bus

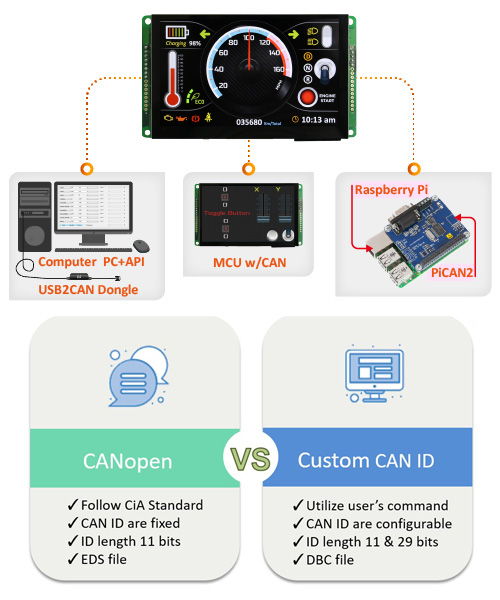

WINSTAR released an innovative new product “WINSTAR Smart Display CAN Series”. For CAN bus communication Interface, Winstar provides CANopen & Custom CAN ID protocols. It offers an out-of-the-box CANopen & Custom CAN ID development experience that will lower your development costs and speed your time-to-market expectations. We can provide LCD/TFT to communicate reliably in a hundred feet rather inches and come with daisy chain topology capabilities. WINSTAR CAN TFT offers IPS TFT display with wider viewing angle for option as well.

Why Choose CAN Bus Interface

The CAN (Controller Area Network) communication interface was first developed by Bosch in the 1980s in order to respond to the increasing number of electronic devices used in new cars. The CAN bus can connect and control the entire control system through the simple serial interface. It is common used in passenger vehicles, industrial automation, mechanical control, elevator, escalator, electronic equipment for aviation and navigation, etc. WINSTAR Smart Display CAN TFT series already built in object dictionary on module. We optimized the communication protocol of the CAN Display series to CAN 2.0 A/B, called Custom CAN ID. This generation of products support the reading of DBC files and the binding of CAN Messages, which means that customer can define their own CAN IDs. It’s no problem even if customer needs to integrate Custom CAN ID into his existing CAN bus system. It increases the design flexibility of use. Customer can edit the DBC file in the standard Custom CAN ID display product and bind the CAN Message and Signal to join the system.

Speed time-to-market by using Smart Display CAN TFT Series

Customers can take the advantage of using WINSTAR Smart Display CAN Series products. Below is the comparison of adopting our Smart Display CAN TFT series.

W/O Using Smart Display CAN TFT:
  • The user interface (widgets) & functions need to design coding by users.
  • Users need advanced coding skills.
  • Customers develop products will take a longer time.
Using Smart Display CAN TFT :
  • The user interface are well defined as objects.
  • Get started quickly, suitable for fast and easy integration of a HMI into any application.
  • Just adopt scripts to control on/off or give a value for objects.
  • Design the UI without writing a line of code by WINSTAR GUI builder! (Link to GUI Builder Introduction)

Try before you buy! Contact us to download WINSTAR GUI Builder application.

Designed with STM32F series MCU and Support STMicroelectronics’ (ST) software development tools

WINSTAR Smart Display products are designed with ST controller which supports ST development tools like TouchGFX and STM32CubeIDE. You can also use ST tools to design WINSTAR Smart Display modules besides GUI Builder.

Filter Results

Filter Results

√ Select Display Format Picture Model No. Size
(inch)
Outline Dimension
(mm)
Viewing Area
(mm)
Active Area
(mm)
View Direction Power Supply Interface (System) Control-Board Brightness
(cd/m²)
Touch Screen Detect Points
(Finger)
Temperature
(°C)
Products Protocol GPIO
320×240
Smart Display 3.5 inch CAN Bus TFT with Projected Capacitive Touch (CANopen), CAN Open Display - WL0F00035000XGAAASA00
WL0F00035000XGAAASA00 3.5 100×82 71×53.51 70.08×52.56 IPS 5V CAN Yes 400 PCAP 1 -20~70 TFT CANopen No
320×240
Smart Display 3.5 inch CAN Bus TFT with Projected Capacitive Touch (Custom CAN ID), CANbus Display - WL0F00035000XGAABSA00
WL0F00035000XGAABSA00 3.5 100×82 71×53.51 70.08×52.56 IPS 5V CAN Yes 400 PCAP 1 -20~70 TFT Custom CAN ID No
320×240
Smart Display 3.5 inch CAN Bus TFT with Projected Capacitive Touch (Custom CAN ID + GPIO), CAN Display - WL0F00035000XGAACSA00
WL0F00035000XGAACSA00 3.5 100×82 71×53.51 70.08×52.56 IPS 12V CAN Yes 400 PCAP 1 -30~80 TFT Custom CAN ID Yes
480×128
Smart Display 3.9 inch CAN Bus TFT with Projected Capacitive Touch (CANopen) - WL0F00039000QGAAASA00
WL0F00039000QGAAASA00 3.9 105.5×37 96.04×26.34 95.04×25.34 6H 5V CAN Yes 400 PCAP 1 -10~70 TFT CANopen No
480×272
Smart Display 4.3 inch CAN Bus TFT with Projected Capacitive Touch (CANopen), CAN Open Display - WL0F00043000WGAAASA00
WL0F00043000WGAAASA00 4.3 119.3×67.2 98.16×56.856 95.04×53.856 IPS 5V CAN Yes 400 PCAP 1 -30~80 TFT CANopen No
480×272
Smart Display 4.3 inch CAN Bus TFT with Projected Capacitive Touch (Custom CAN ID), Canbus Display - WL0F00043000WGAABSA00
WL0F00043000WGAABSA00 4.3 119.3×67.2 98.16×56.856 95.04×53.856 IPS 5V CAN Yes 400 PCAP 1 -30~80 TFT Custom CAN ID No
480×272
Smart Display 4.3 inch CAN Bus TFT with Projected Capacitive Touch (Custom CAN ID + GPIO), CAN Display - WL0F00043000WGAACSA00
WL0F00043000WGAACSA00 4.3 119.3×67.2 98.16×56.856 95.04×53.856 IPS 12V CAN Yes 400 PCAP 1 -30~80 TFT Custom CAN ID Yes
800×480
5 inch CAN Bus TFT Display with Projected Capacitive Touch - WL0F00050000FGAAASA00
WL0F00050000FGAAASA00 5 132.7×75.8 109×65.6 108×64.8 IPS 5V CAN Yes 400 PCAP 1 -30~70 TFT CANopen No
800×480
Smart Display 5 inch CAN Bus TFT with Projected Capacitive Touch (CANopen), CAN Open Display - WL0F00050000FGAACSA00
WL0F00050000FGAACSA00 5 132.7×75.8 109×65.6 108×64.8 IPS 5V CAN Yes 400 PCAP 1 -30~80 TFT CANopen No
800×480
Smart Display 5 inch High Brightness CAN Bus TFT with Projected Capacitive Touch (CANopen), CAN Open Display - WL0F00050000FGAACSA01
WL0F00050000FGAACSA01 5 132.7×75.8 109×65.6 108×64.8 IPS 5V CAN Yes 750 PCAP 1 -30~80 TFT CANopen No
800×480
Smart Display 5 inch CAN Bus TFT with Projected Capacitive Touch (Custom CAN ID), CANbus Display - WL0F00050000FGAADSA00
WL0F00050000FGAADSA00 5 132.7×75.8 109×65.6 108×64.8 IPS 5V CAN Yes 400 PCAP 1 -30~80 TFT Custom CAN ID No
800×480
Smart Display 5 inch CAN Bus TFT with Projected Capacitive Touch (Custom CAN ID + GPIO) - WL0F00050000FGAAESA00
WL0F00050000FGAAESA00 5 132.7×75.8 109×65.6 108×64.8 IPS 12V CAN Yes 400 PCAP 1 -30~80 TFT Custom CAN ID Yes
1024×600
Smart Display 7 inch CAN Bus TFT with Projected Capacitive Touch (CANopen), CAN Open Display - WL0F0007000A8GAAASA00
WL0F0007000A8GAAASA00 7 169.9×103.4 155.22×87.19 154.2144×85.92 IPS 12V CAN Yes 450 PCAP 1 -20~70 TFT CANopen No
1024×600
Smart Display 7 inch High Brightness CAN Bus TFT with Projected Capacitive Touch (CANopen), CAN Open Display - WL0F0007000A8GAAASA01
WL0F0007000A8GAAASA01 7 169.9×103.4 155.22×87.19 154.2144×85.92 IPS 12V CAN Yes 850 PCAP 1 -20~70 TFT CANopen No
1024×600
Smart Display 7 inch CAN Bus TFT with Projected Capacitive Touch (Custom CAN ID), CAN Bus Display - WL0F0007000A8GAACSA00
WL0F0007000A8GAACSA00 7 169.9×103.4 155.22×87.19 154.2144×85.92 IPS 12V CAN Yes 450 PCAP 1 -20~70 TFT Custom CAN ID No

Showing 1 to 15 of 19 (2 Pages)
