4.3 inch CAN Bus Smart Display

Model No. WL0F00043000WGAABSA00

►TFT Size: 4.3"
►TFT Resolution: 480×272 dots
►TFT View Direction: 80/80/80/80(IPS)
►Communication Interface: CAN bus
►Protocol: Custom CAN ID
►TFT Touch Screen: Capacitive Touch Panel
►Brightness(cd/m²): 400


WL0F00043000WGAABSA00 model is a 4.3 inch Smart Display CAN series TFT display which is running Custom CAN ID protocol via CAN bus command to render display content on the screen and return touch event data with protocol objects. WL0F00043000WGAABSA00 model is integrated with a standard 4.3-inch IPS TFT module WF43WTWAEDNGA and and a 4-layers PCBA with built-in firmware code which is developed by WINSTAR RD team. This 4.3" Smart Display CAN series TFT is an easy-to-use product which allows customers to their own UI without writing a line of code in cost-effective way. This 4.3" Smart Display can use computer with USB2CAN dongle or Raspberry Pi (+PiCAN2) or even MCU scale like Arduino(+CAN adaptor) as HOST platform. WINSTAR already developed Windows Apps (GUI & GUI Builder) for Smart Display GUI design. WINSTAR GUI builder software is designed for customers to simulate their UI design in advance by using the drag-and-drop Widget preview function; furthermore, customers can create their ideal UI objects by themselves using this software then go simulation to check UI design without hardware module. WINSTAR GUI builder software is supporting Windows system only; it can fulfill What You See Is What You Get (WYSIWYG).

Smart Display products are designed with STMicroelectronics' (ST) controller which supports ST development tools like TouchGFX and STM32CubeIDE. You can also use ST tools to design WINSTAR Smart Display modules besides GUI builder.

  • TouchGFX: An advanced free-of-charge graphic software framework optimized for STM32 microcontrollers.
  • STM32CubeIDE: An advanced C/C++ development platform with peripheral configuration, code generation, code compilation, and debug features for STM32 microcontrollers and microprocessors.
  • STM32CubeMX: A graphical tool that allows a very easy configuration of STM32 microcontrollers, as well as the generation of the corresponding initialization C code for the Arm® Cortex®-M core or a partial Linux® Device Tree for Arm® Cortex®-A core, through a step-by-step process.
  • STM32CubeProg: An all-in-one multi-OS software tool for programming STM32 products. It provides an easy-to-use and efficient environment for reading, writing and verifying device memory through both the debug interface (JTAG and SWD) and the bootloader interface (UART, USB DFU, I2C, SPI, and CAN).

We’ve also pushed the sample code on Github for your ST platform design reference: ► Link to Github

WINSTAR Smart Display CAN Series is really a "smart" choice for customers. There are many important features and functions for this new released 4.3" smart display CAN TFT as below:

  • DC 5-24V working voltage.
  • Self-testing after booting function.
  • CAN bus communication interface.
  • Supports Custom CAN ID protocol, default baud rate at 250Kbps.
  • Built in flash memory, store the fonts and pictures.
  • Support capacitive touch panel (CTP).
  • Embedded buzzer controlled by Master Device.
  • Demo set HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
  • Design the UI without writing a line of code by WINSTAR GUI builder! (Link to GUI Builder Introduction)
  • Designed with STM32F series MCU and Support STMicroelectronics' (ST) software development tools.

Try before you buy! Contact us to download WINSTAR GUI Builder application.

We also provide demo set with all needed accessories for you to realize your GUI design on smart displays.
We also provide demo set with all needed accessories for you to realize your GUI design on displays.


4.3 inch CAN Bus Smart Display - WL0F00043000WGAABSA00


General Specifications

Item Standard Value Unit
Operating voltage 5-24 Vdc
Communication Interface CAN bus N/A
Flash Memory 16 MB
SDRAM Frequency 108 MHz
Size 4.3 inch
Dot Matrix 480 × RGB × 272(TFT) dots
Module dimension 119.3(W) × 67.2(H) × 12.45(D) mm
Active area 95.04(W) × 53.856 (H) mm
Pixel pitch 0.198(H) × 0.198(V) mm
Brightness Min: 300; Typ: 400 cd/m2
Backlight Type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80
Aspect Ratio 16:9
With /Without TP With Projected Capacitive Touch Panel (PCAP)
Surface Glare

Absolute Maximum Ratings

Item Symbol Min Typ Max Unit
Operating Temperature TOP -30 +80
Storage Temperature TST -30 +80

Electrical Characteristics

Item Symbol Min Typ Max Unit
Supply Voltage VCC 5 12 24 V
Supply Current ICC - 170   mA


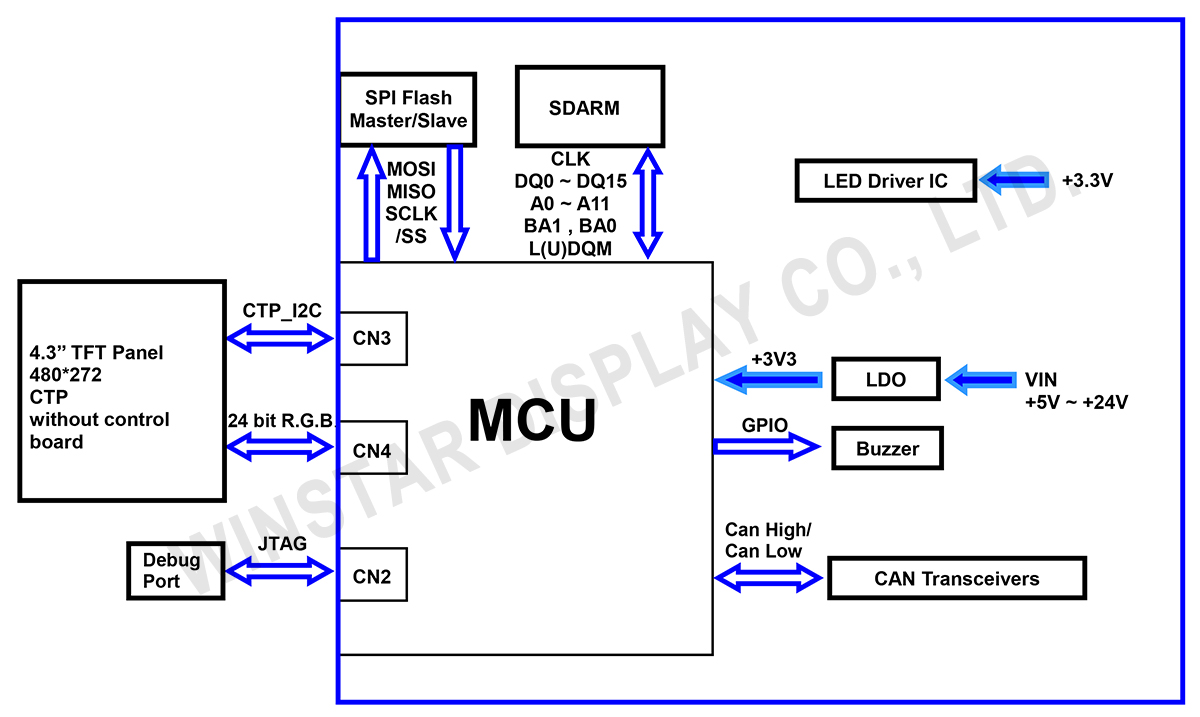

Item Description
PCBA SV10004R300WA00N0109

Interface Pin Function

CN1 definition

Pin Symbol Function Remark
1 GND GND Output
2-3 NC -- --
4 +5V VIN Input
5 GND GND Output
6-7 NC -- --
8 +5V VIN Input
9-10 NC -- --
11-12 GND GND Output
13 CAN_Low CAN bus D- I/O
14 CAN_High CAN bus D+ I/O
15 GND Power GND Input
16 +5V Power +5V ~ +24V Input

CN2 definition

Pin Symbol Function Remark
1-9 NC -- --
10 GND GND Output
11 JTAG_SWDO Data pin for JTAG interface I/O
12 NRST Reset pin for JTAG interface Input
13 JTAG_SWDI Data pin for JTAG interface I/O
14 GND GND for JTAG interface Output
15 JTAG_SWCLK CLK pin for JTAG interface Input
16 VDD3V 3.3V power for JTAG interface Output
