E-paper Display, Electronic Paper Display, Epaper Screen

E-paper Display, Electronic Paper Display

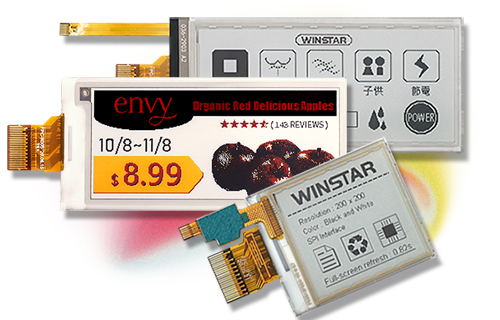

Winstar's Electronic Paper Display (EPD) incorporates "bistable" technology, allowing images to persist even when the power source is removed, consuming power only during E-paper screen updates. This E-paper display technology offers the following advantages:

  • Ultra-low power consumption: Power is utilized only during image updates, achieving energy-saving and power-efficient results.
  • No backlight required: Slim and energy-efficient, suitable for extended use.
  • Wide viewing angle: Provides an enhanced visual experience.
  • Multiple color options: Available in black and white, or in four-color configuration (black, white, red, and yellow).
  • Sunlight readability: Suitable for outdoor applications.
  • Touch options: Available with touch panel models.
  • Front light options: Adapt to various lighting conditions.
  • Customization options: Tailored solutions to meet specific requirements, including flexible printed circuit (FPC) configurations, front light integration, touch panel features, and other mechanical components.

Filter Results

Filter Results

√ Select Display Format Picture Model No. Size
(inch)		 Outline Dimension
(mm)		 Viewing Area
(mm)		 Active Area
(mm)		 Interface Touch Screen Temperature
(°C)		 Front Light
200×200
1.54 E-paper Display, 1.54 inch E-paper Module, 1.54 inch Epaper with Front Front Light - WAA0154A2AAA4NXXX000
WAA0154A2AAA4NXXX000 1.54 31.8×37.32 30.4×39.6 27×27 SPI,MCU No 0-50 Yes
200×200
1.54-inch 200x200 E-Paper Display with Capacitive Touch - WAA0154A2ABA4NXXX000
WAA0154A2ABA4NXXX000 1.54 31.8×37.32 30.4×39.6 27×27 SPI,MCU PCAP 0-50 No
122×250
Color Electronic Paper Display, Color Epaper Display, Epaper Display Color, Electronic Paper Color - WAA0213A2CNA6NXXX000
WAA0213A2CNA6NXXX000 2.13 29.2×59.2 -- 23.7046×48.55 SPI,MCU No 0-40 No
122×250
2.13 inch E-Paper Display, 2.13 E-paper Display122x250 with Front Light- WAA0213A2AAA6NXXX000
WAA0213A2AAA6NXXX000 2.13 29.2×59.2 28.41×57.1 23.7×48.5 SPI,MCU No 0-50 Yes
264×176
2.7 inch E-paper Display, 2.7 E-paper Display, 264x176 E-paper Display with Front Light - WAA0270A2AAA7NXXX000
WAA0270A2AAA7NXXX000 2.7 45.8×70.42 -- 38.19×57.29 SPI,MCU No 0-50 Yes
128×296
2.9 inch E-paper Module, 2.9-inch Four-Color E-paper Display - WAA0290A2CNA8NXXX000
WAA0290A2CNA8NXXX000 2.9 36.7×79 -- 29.056×66.896 SPI No 0-40 No
296×128
2.9-inch 296x128 E-paper Display with Capacitive Touch - WAA0290A2ABA8NXXX000
WAA0290A2ABA8NXXX000 2.9 36.7×79 35.5×75.4 29.056×66.896 SPI,MCU PCAP 0-50 No
296×128
2.9-inch 296x128 EPD with Front Light Panel - WAA0290A2AAA8NXXX000
WAA0290A2AAA8NXXX000 2.9 36.7×79 35.1×76.5 29.056×66.896 SPI,MCU No 0-50 Yes
296×128
2.9-inch E-paper Display with Capacitive Touch & Front Light (296x128) - WAA0290A2ADA8NXXX000
WAA0290A2ADA8NXXX000 2.9 36.7×79 35.1×76.5 29.056×66.896 SPI,MCU PCAP 0-50 Yes
400×300
4.2 inch E paper Display, 4.2 inch E paper Module, 4.2 Epaper Display - WAA0420A2AAB5NXXX000
WAA0420A2AAB5NXXX000 4.2 91×77 89×70.3 84.8×63.6 SPI,MCU No 0-50 Yes
400×300
4.2-inch Electronic Paper Display with Front Light and Capacitive Touch - WAA0420A2ADB5NXXX000
WAA0420A2ADB5NXXX000 4.2 91×77 89×70.3 84.8×63.6 SPI,MCU PCAP 0-50 Yes
