For Small HDMI Signal TFT LCD Display Panel, Mini TFT For HDMI Signal (For Raspberry Use)

For Small HDMI Signal TFT LCD Display Panel, Mini TFT For HDMI Signal (For Raspberry Use)

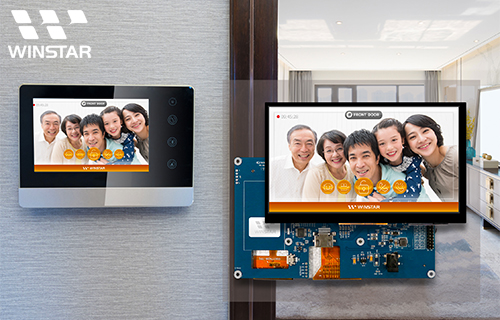

Winstar Released for Mini / Small HDMI Signal TFT LCD Display Panel:

Winstar released for HDMI signal Displays are designed to work with the Raspberry Pi or embedded system, single board computers (or desktop/laptops) which support HDMI  signal output. This series display modules come with a control board with a HDMI signal interface output; it is designed to make Raspberry Pi usage become easily. These displays are featured below advantages:

Features:
  • Designed to make Raspberry Pi usage becomes easily (Support Rasberry Pi use)
  • Support HDMI signal output
  • Good touch response
  • Fast response time
  • Support Raspberry Pi GPIO
  • Support mini-PCs, it can work as a computer monitor
  • Support RTP with USB interface
  • Support PCAP option
  • Without Touch panel option is available

Capacitive Touch Screen USB Firmware

Filter Results

Filter Results

√ Select Display Format Picture Model No. Size
(inch)
Outline Dimension
(mm)
Viewing Area
(mm)
Active Area
(mm)
View Direction Interface IC Part No. Control-Board Brightness
(cd/m²)
Recommended Touch Screen Detect Points
(Finger)
Temperature
(°C)
480×272
4.3 inch 480x272 For HDMI Signal High Brightness TFT Display - WF43WSYFEDHNV
WF43WSYFEDHNV 4.3 105.5×84.2 98.160×56.856 95.04×53.856 IPS HDMI (CN) TFP401 Yes 1000 ★★ No -20~70
480×272
4.3 inch 480x272 For HDMI Signal High Brightness TFT Display with PCAP - WF43WSYFEDHGV
WF43WSYFEDHGV 4.3 105.5×84.2 96.24×54.66 95.04×53.856 IPS HDMI (CN) TFP401 Yes 800 ★★ PCAP 1,2,option -20~70
480×272
4.3 inch 480x272 For HDMI Signal High Brightness TFT Display with RTP - WF43WSYFEDHTV
WF43WSYFEDHTV 4.3 105.5×84.2 98.7×57.3 95.04×53.856 IPS HDMI (CN) TFP401 Yes 700 ★★ RTP -20~70
800×480
 LCD 5 inch 800x480 for HDMI Signal Touchscreen, 5 Display HDMI, 5 HDMI Display (For Raspberry Use)
WF50BTIFGDHTV 5 120.7×75.8 111.7×65.91 108.0×64.8 12H HDMI (CN) TFP401 Yes 350 ★★★ RTP -20~70
800×480
5 inch For HDMI Signal Touchscreen TFT Display (For Raspberry Use) - WF50BTIFGDHGV
WF50BTIFGDHGV 5 120.7×75.8 109×65.6 108×64.8 12H HDMI (CN) TFP401 Yes 400 ★★★ PCAP 1,2,option -20~70
800×480
5” For HDMI Signal Touchscreen IPS TFT Display (For Raspberry Use) - WF50FSYFGDHGV
WF50FSYFGDHGV 5 120.7×75.8 109×65.6 108×64.8 IPS HDMI (CN) TFP401 Yes 750 ★★ PCAP 1,2,option -20~70
480×128
5.2” For HDMI Signal PCAP Bar TFT (For Raspberry PI Series Use)
WF52ASZFSDHGV 5.2 180×75.8 129.2×35.9 127.152×33.9072 O-TFT HDMI (CN) TFP401 Yes 700 ★★★ PCAP 1,2,option -20~70
800×480
TFT Display For HDMI Signal 7 with RTP Touchscreen (For Raspberry Use) - WF70GTIFGDHTV
WF70GTIFGDHTV 7 165×100 156.6×89.1 154.08×85.92 12H HDMI (CN) TFP401 Yes 320 ★★ RTP -20~70
800×480
7 Display For HDMI Signal with PCAP Touchscreen (For Raspberry Use) - WF70GTIFGDHGV
WF70GTIFGDHGV 7 165×100 155.22×87.19 154.08×85.92 12H HDMI (CN) TFP401 Yes 350 ★★ PCAP 1,2,option -20~70
800×480
For Small HDMI Signal 7
WF70A2TIFGDHTV 7 165×100 156.6×89.1 154.08×85.92 12H HDMI (CN) TFP401 Yes 250 ★★★ RTP -20~70
800×480
For Small HDMI Signal 7
WF70A2TIFGDHGV 7 165×100 155.22×87.19 154.08×85.92 12H HDMI (CN) TFP401 Yes 350 ★★★ PCAP 1,2,option -20~70
1024×600
7 HDMI Display, 7 inch For HDMI Signal TFT Display With Resistive Touch Screen (For Raspberry Use)
WF70A7TIFHLHTV 7 165×99.8 156.6×89.1 154.2114×85.92 12H HDMI (CN) TFP401 Yes 400 ★★ RTP -20~70
1024×600
7 inch For HDMI Signal TFT Display with Capacitive Touch Screen (For Raspberry Use) - WF70A7TIFHLHGV
WF70A7TIFHLHGV 7 164.8×99.8 155.22×87.19 154.2114×85.92 12H HDMI (CN) TFP401 Yes 450 ★★ PCAP 1,2,option -20~70
1024×600
7 inch For HDMI Signal TFT Display with Capacitive Touch Screen (For Raspberry Use) - WF70A8TYFHLHGV
WF70A8TYFHLHGV 7 169.9×103.4 155.22×87.19 154.2144×85.92 IPS HDMI (CN) TFP401 Yes 450 PCAP 1,2,option -20~70
1280×800
10.1 for HDMI signal Interface IPS TFT LCD, 10.1 TFT Display, 10 TFT Display, LCD Display 10.1 (For Raspberry Use) - WF101FSYFPLHTV
WF101FSYFPLHTV 10.1 230.56×155.01 218×137 216.96×135.6 IPS HDMI (CN) TFP401 Yes 750 ★★★ RTP -20~70

Showing 1 to 15 of 16 (2 Pages)
