RS485 Modbus Smart LCD Display, Display RS485, Modbus

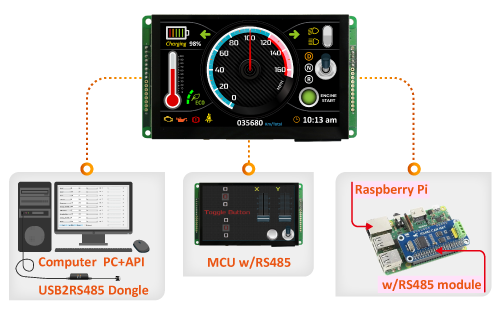

WINSTAR Smart Display RS485 Series offers an out-of-the-box Modbus development experience to you, providing below benefits to lower your development costs and speed up your time-to-market expectations.

1.The 485TFT is pre-loaded with standard UI objects to enable speedy design.
2.Communication ranges up to a hundred feet rather than just a few inches!
3.You can add more displays into the daisy chain which increases the product extendibility.
4.IPS TFT display with wider viewing angle optional.

Speed time-to-market by using Smart Display 485 TFT Series
And what happens when you don't?


  W/O Using Smart Display RS485:
  • You have to design UI widgets and functions ALL by yourself.
  • You will need advanced coding skills.
  • Development will be very time consuming
Using Smart Display RS485:
  • Design the UI without writing a line of code using WINSTAR GUI builder!
    (►Link to GUI Builder Introduction ►GUI Builder User Guide)
  • Coding skill is NOT A MUST since the user interface is well defined as objects
  • Get started quickly! Perfect for fast and easy integration of a HMI for literally any application.

Try before you buy! Contact us to download WINSTAR GUI Builder application.
GUI builder latest version: v0.8.0_WS

Designed with STM32F series MCU and Support STMicroelectronics' (ST) software development tools


  • WINSTAR Smart Display products are designed with ST controller which supports ST development tools like TouchGFX and STM32CubeIDE. You can also use ST tools to design WINSTAR Smart Display modules besides GUI Builder.
  • Supports TouchGFX, LVGL, QT and Embedded Wizard GUI frameworks for flexible HMI development

Filter Results

Filter Results

√ Select Display Format Picture Model No. Size
(inch)		 Outline Dimension
(mm)		 Viewing Area
(mm)		 Active Area
(mm)		 View Direction Power Supply Interface (System) Control-Board Brightness
(cd/m²)		 Touch Screen Touch Points Temperature
(°C)		 Products Protocol GPIO
320×240
3.5-inch RS485 Modbus Smart Display with Projected Capacitive Touch Panel - WL0F00035000XGDAASA00
WL0F00035000XGDAASA00 3.5 100×82 71×53.51 70.08×52.56 IPS 5V RS485 Yes 400 PCAP 1 -30~85 TFT Modbus No
480×128
3.9-inch RS485 Smart TFT Display with PCAP Touch Panel with Modbus and GPIO Support - WL0F00039000FGDAASA00
WL0F00039000FGDAASA00 3.9 157×42 96.06×26.34 95.04×25.34 IPS 5V RS485 Yes 800 PCAP 1 -30~80 TFT Modbus Yes
480×272
4.3inch RS485 Modbus Smart TFT Display with Projected Capacitive Touch - WL0F00043000WGDAASA00
WL0F00043000WGDAASA00 4.3 119.3×67.2 98.16×56.856 95.04×53.856 IPS 5V RS485 Yes 400 PCAP 1 -30~80 TFT Modbus No
480×272
4.3-inch RS485 Smart TFT Display with PCAP Touch, Modbus & GPIO - WL0F00043000WGDACSA00
WL0F00043000WGDACSA00 4.3 119.3×67.2 96.24×54.66 95.04×53.856 IPS 12V RS485 Yes 400 PCAP 1 -30~80 TFT Modbus Yes
800×480
5 inch RS485 Modbus TFT Smart Display with Projected Capacitive Touch - WL0F00050000FGDAASA00
WL0F00050000FGDAASA00 5 132.7×75.8 109×65.6 108×64.8 IPS 5V RS485 Yes 400 PCAP 1 -30~80 TFT Modbus No
800×480
5 inch RS485 Modbus TFT Smart Display with Projected Capacitive Touch - WL0F00050000FGDABSA00
WL0F00050000FGDABSA00 5 132.7×75.8 109×65.6 108×64.8 IPS 5V RS485 Yes 400 PCAP 1 -30~80 TFT Modbus No
800×480
5-inch RS485 Smart TFT Display with PCAP Touch, Modbus & GPIO - WL0F00050000FGDADSA00
WL0F00050000FGDADSA00 5 132.7×75.8 109×65.6 108×64.8 IPS 12V RS485 Yes 400 PCAP 1 -30~80 TFT Modbus Yes
1024×600
7 inch RS485 (Modbus) Smart Display with Projected Capacitive Touch - WL0F0007000A8GDAASA00
WL0F0007000A8GDAASA00 7 184.1×103.8 155.22×87.19 154.2144×85.92 IPS 12V RS485 Yes 450 PCAP 1 -20~70 TFT Modbus No
1024×600
10.1 inch RS485 (Modbus) Smart Display with Projected Capacitive Touch - WL0F00101000JGDADSA00
WL0F00101000JGDADSA00 10.1 248.8×143 223.72×126.28 222.72×125.28 IPS 12V RS485 Yes 400 PCAP 1 -20~70 TFT Modbus No
1024×600
10.1-inch RS485 Smart Display with Capacitive Touch and GUI Builder Support - WL0F00101000JGDAASA00
WL0F00101000JGDAASA00 10.1 248.8×143 223.72×126.28 222.72×125.28 IPS 12V RS485 Yes 400 PCAP 1 -20~70 TFT Modbus No
