Round LCD Display Module, Round LCD Module, Round TFT Display, Round TFT LCD Display

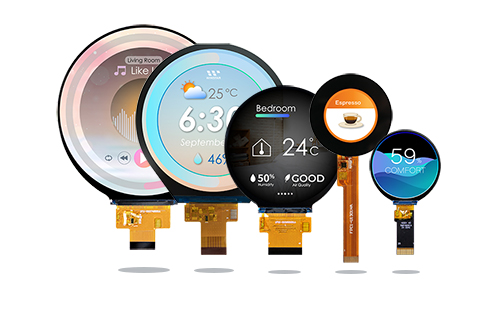

Round TFT LCD Display Module

WINSTAR offers a comprehensive range of round TFT LCD display modules, available in sizes from 1.28" to 4", featuring advanced IPS wide viewing angle technology. With both capacitive touch and non-touch options, these round displays provide exceptional visual clarity and stability. The resolution ranges from 240x240 to 720x720 dots, making them suitable for a wide array of applications. These round TFT modules support multiple interfaces, including SPI, RGB, and MIPI, ensuring seamless integration into a variety of systems.

Applications

Our round TFT displays are highly versatile and can be used in diverse fields such as smart home devices, wearables, automation equipment, and precision instruments. Whether you're designing for coffee machines, air purifiers, smartwatches, or industrial control systems, these round LCD display modules deliver clear, vibrant, and reliable visuals to enhance your products.

Why Choose WINSTAR Round TFT Displays?

WINSTAR's round TFT LCD display modules offer exceptional versatility with high-resolution visuals, a range of interface options (SPI, RGB, MIPI), and the flexibility to fit into diverse applications. Engineered for performance and ease of integration, these round display modules bring your innovative designs to life. With WINSTAR, you get reliable quality, robust technical support, and the ability to customize displays to meet the unique needs of your projects.

Filter Results

Filter Results

√ Select Display Format Picture Model No. Size
(inch)
Outline Dimension
(mm)
Viewing Area
(mm)
Active Area
(mm)
View Direction Interface IC Control-Board Power Board Brightness
(cd/m²)
Recommended Touch Screen Detect Points
(Finger)
Temperature
(°C)
High Resolution
240×240
1.28 inch TFT LCD, 1.28 TFT Display, 1.28 inch LCD Module, 1.28 inch Round LCD - WF0128BTYAA4DNN0
WF0128BTYAA4DNN0 1.28 35.6×37.74 -- 32.4×32.4 IPS SPI GC9A01 No No 400 No -20~70
240×240
IPS 240x240 TFT Display, 240x240 IPS GC9A01 Display with PCAP - WF0128BTYAA4DNF10
WF0128BTYAA4DNF10 1.28 50.2×50.2 32.8×32.8 32.4×32.4 IPS SPI GC9A01 No No 320 PCAP,Optical Bonding 1 -20~70
400×400
1.6-inch 400x400 ST7797 IPS TFT LCD Display Module - Circular - WFN0160A2T0YAMNN000
WFN0160A2T0YAMNN000 1.6 42.94×45.89 42.04×42.04 39.84×39.84 IPS MIPI DSI ST7797 No No 350 No -20~70
480×480
2.76-inch Round TFT LCD Display Module with 480x480 Resolution - WFN0276A2T0YADNN000
WFN0276A2T0YADNN000 2.76 73.03× 76.48 -- 70.128×70.128 IPS SPI,RGB ST7701 No No 420 No -20~70
800×800
Circular Display Screen, Display Circular, Circular Screen, Circular TFT Display, Circular TFT LCD Display, 3.4 LCD - WF0340ATYAB7MNN0
WF0340ATYAB7MNN0 3.4 94.9×96.95 91.25×93.23 87.6×87.6 IPS MIPI DSI ILI9881C No No 300 No -20~70
720×720
720x720 Display, Round 720x720 TFT LCD Display Module - WFN0400A2T0YAMNN000
WFN0400A2T0YAMNN000 4 105.3×109.62 -- 101.52×101.52 IPS MIPI DSI FL7703 No No 350 No -20~70
720×720
4 inch Screen, 4 inch LCD Screen, 4 inch Touch Screen Display with Optical Bonding - WFN0400A2T0YAMNA000
WFN0400A2T0YAMNA000 4 125×125 102.12×102.12 101.52×101.52 IPS MIPI DSI FL7703 No No 320 PCAP,Optical Bonding 4 -20~70
