Home Products OLED Module OLED Knob
OLED Knob

OLED Knob

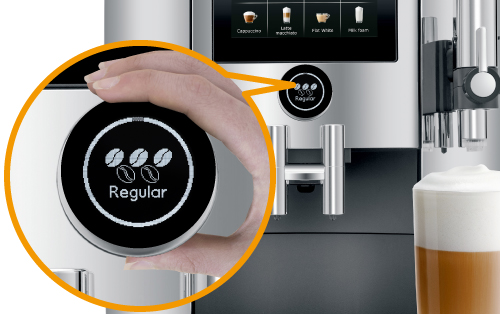

The OLED display with knob is very suitable for applications or products required a control knob which can show the information on it, such as coffee machine, audio system applications. Since the OLED display is self-emitting, very thin, no need of backlight, high contrast, it is an ideal display solution to use OLED display with control knob for smart home or industrial control applications.

Filter Results

Filter Results

√ Select Display Format Picture Model No. Structure Size
(inch)
Outline Dimension
(mm)
Viewing Area
(mm)
Active Area
(mm)
Dot Size
(mm)
Dot Pitch
(mm)
Duty Power Supply Interface IC Grayscale FPC options Touch Screen Detect Points
(Finger)
128×64
Ø 0.96
WEO012864Z COG 0.96 Ø39.4×24.8 22.74×11.86 21.74×10.86 0.148×0.148 0.17×0.17 1/64 3V SPI,I2C SSD1306 No No
128×128
Ø1.18
WEO128128D-CTP-Knob COG 1.18 Ø56 Ø31 Ø30 0.21×0.21 0.235×0.235 1/128 3V SPI,I2C SSD1327 Support PCAP 1
