UART TFT Display Module, Smart Display with UART Interface

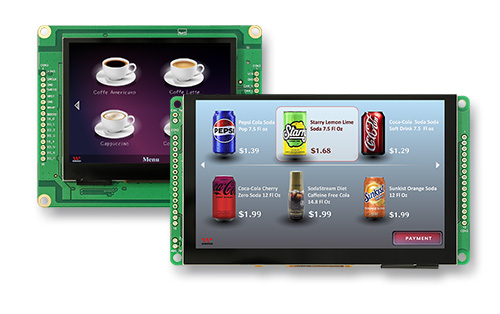

The WINSTAR UART Smart Display is a high-performance solution designed for engineers and developers, allowing you to easily create various UI widgets. This UART TFT display integrates advanced technology for seamless communication and visual output.

Key Features:

  • Real-Time Simulation: Use the Smart Display GUI Builder for direct simulation on your computer, eliminating the need for programming to the device. Experience the convenience of testing your designs in real-time with GUI Builder. (►Link to GUI Builder IntroductionGUI Builder User GuideSmart Display UART Protocol Introduction)
  • Convenient Design: Zero code UI design, with a drag-and-drop operation, you can create stunning UI/UX designs without programming knowledge. This feature makes it perfect for beginners looking to utilize a UART TFT solution.
  • Rich Widgets: Access a variety of customizable widgets that meet different application needs, enhancing your UART display experience.
  • UART Smart Display is designed with STM32F series MCU and Support STMicroelectronics’ (ST) software development tools: WINSTAR Smart Display products are designed with ST controller which supports ST development tools like TouchGFX and STM32CubeIDE. You can also use ST tools to design WINSTAR Smart Display modules besides GUI Builder.
  • The Smart UART utilizes an IC from STMicroelectronics, a globally recognized leader in the industry. With abundant online documentation and technical support available, it offers superior resources compared to other brands, effectively meeting the development and design needs of engineers.
  • Diverse Size Options: Multiple display sizes available to meet various requirements.

Try before you buy! Contact us to download WINSTAR GUI Builder application.

Application Scenarios:Ideal for industrial short-distance applications such as coffee machines, vending machines, and audio digital mixers

Competitive Advantages:

  • The WINSTAR UART Smart Display eliminates the need to separate design from functionality, saving time and effort.
  • Provides real-time simulation and a user-friendly design interface, making it accessible for users without programming backgrounds.
  • Easy start and speed up the development for programmers by built in STM32 MCU on Smart UART module.

Filter Results

Filter Results

√ Select Display Format Picture Model No. Size
(inch)
Outline Dimension
(mm)
Viewing Area
(mm)
Active Area
(mm)
View Direction Power Supply Interface (System) Control-Board Brightness
(cd/m²)
Touch Screen Detect Points
(Finger)
Temperature
(°C)
Products Protocol GPIO
320×240
3.5 Inch IPS TFT UART Smart Display with GPIO and Touch Support - WL0F00035000XGFAASA00
WL0F00035000XGFAASA00 3.5 100×82 71×53.51 70.08×52.56 IPS 12V UART Yes 400 PCAP 1 -30~80 TFT Proprietary UART Yes
480×272
4.3 Inch IPS TFT UART Smart Display with GPIO and Touch Support - WL0F00043000WGFAASA00
WL0F00043000WGFAASA00 4.3 119.3×67.2 96.24×54.66 95.04×53.856 IPS 12V UART Yes 400 PCAP 1 -30~80 TFT Proprietary UART Yes
800×480
5 Inch IPS TFT UART Smart Display with GPIO and Touch Support - WL0F00050000FGFAASA00
WL0F00050000FGFAASA00 5 132.7×75.8 109×65.6 108×64.8 IPS 12V UART Yes 400 PCAP 1 -30~80 TFT Proprietary UART Yes
1024×600
7 Inch IPS TFT UART Smart Display with GPIO and Touch Support - WL0F0007000A8GFAASA00
WL0F0007000A8GFAASA00 7 184.1×103.8 155.22×87.19 154.2144×85.92 IPS 12V UART Yes 450 PCAP 1 -20~70 TFT Proprietary UART Yes
1024×600
10.1 Inch IPS TFT UART Smart Display with GPIO and Touch Support - WL0F00101000JGFAASA00
WL0F00101000JGFAASA00 10.1 235×143 223.72×126.28 222.72×125.28 IPS 12V UART Yes 400 PCAP 1 -20~70 TFT Proprietary UART Yes
