The WINSTAR 5" UART Smart Display (Model: WL0F00050000FGFAASA00) is designed for engineers and developers, combining advanced display technology with user-friendly development tools, allowing you to easily create various UI widgets.

This smart display is equipped with the standard WINSTAR 5" TFT LCD module WF50FTWAGDNG0. It features IPS panel technology with a wide viewing angle (80/80/80/80 degrees) and a resolution of 800×480 pixels, along with a capacitive touch panel. This configuration not only provides excellent display quality but also enhances the user interaction experience, making your applications more flexible and convenient.

Whether you are developing embedded systems or designing custom interfaces, the WINSTAR 5" UART Smart Display offers reliable support to help you quickly realize your ideas and functionalities.

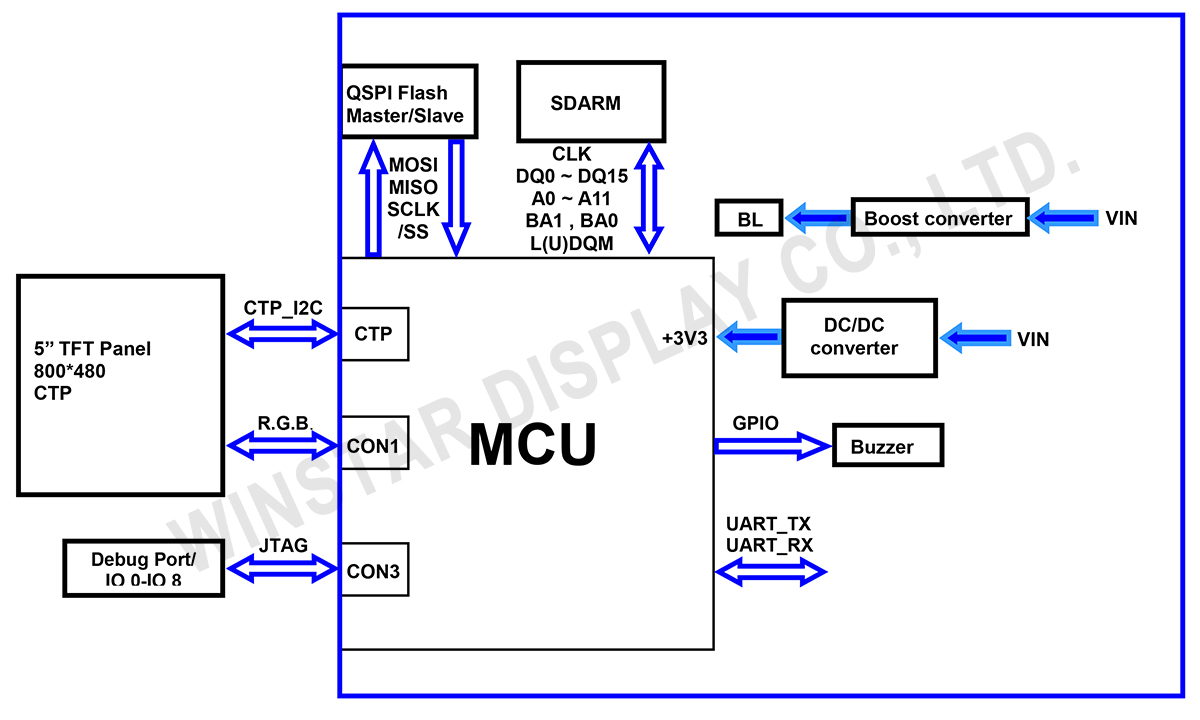

Product Features:

• Input Voltage Range: 5V to 28V, typical voltage 12V.
• Self-Testing Boot Function.
• UART Communication Interface.
• Supports Proprietary UART Protocol: Default baud rate at 115200 Kbps.
• Designed with STMicroelectronics' (ST) controller which supports ST development tools
• Built-in 16MB External Flash Memory for storing fonts and object dictionary data.
• Supports Capacitive Touch Panel (CTP).
• Built-in Buzzer that can be controlled by the master device.
• Demo Set HOST compatible with multiple platforms, such as computers (with USB to UART dongle), MCUs, Raspberry Pi (with PiCAN2).
• GPIO PIN Support for the usage of physical switches and indicators.

Software Features_GUI builder:

• Real-Time Simulation: With the WINSTAR GUI Builder, you can directly simulate your design on a computer without the need to program it to the device first, simplifying adjustments and testing.
• Convenient Design Process: No programming is required; you can create beautiful interfaces with simple drag-and-drop operations. Images and functions are linked, making it especially suitable for users unfamiliar with programming.
• Rich Functionality and Widgets: Offers a variety of customizable widgets that integrate graphics and functions, easily handling both simple displays and complex functionalities.

Try before you buy! Contact us to download WINSTAR GUI Builder application.

Software Features_ST development tools:

Smart Display UART series is designed with STMicroelectronics' (ST) controller which supports ST development tools like TouchGFX and STM32CubeIDE. You can also use ST tools to design WINSTAR Smart Display modules besides GUI builder.

• TouchGFX: An advanced free-of-charge graphic software framework optimized for STM32 microcontrollers.
• STM32CubeIDE: An advanced C/C++ development platform with peripheral configuration, code generation, code compilation, and debug features for STM32 microcontrollers and microprocessors.
• STM32CubeMX: A graphical tool that allows a very easy configuration of STM32 microcontrollers, as well as the generation of the corresponding initialization C code for the Arm® Cortex®-M core or a partial Linux® Device Tree for Arm® Cortex®-A core, through a step-by-step process.
• STM32CubeProg: An all-in-one multi-OS software tool for programming STM32 products. It provides an easy-to-use and efficient environment for reading, writing and verifying device memory through both the debug interface (JTAG and SWD) and the bootloader interface (UART, USB DFU, I2C, SPI, and CAN).

If you have purchased a WINSTAR Smart Display and wish to develop it by TouchGFX, please contact us through our website to obtain the initial code.

Networking and Communication Features:

• Network Type: Peer-to-peer for short distance usage
• Protocol: Proprietary UART

Application Scenarios:

Suitable for industrial short-distance applications, such as coffee machines, smart appliances, audio mixers, and vending machines.

Competitive Advantages:

• The WINSTAR UART Smart Display eliminates the need to separate design from functionality, saving time and effort.
• Provides real-time simulation and a user-friendly design interface, making it accessible for users without programming backgrounds.
• Easy start and speed up the development for programmers by built in STM32 MCU on Smart UART module.
