2.42 inch 128x64 Graphic CTP Touch OLED

Model No. WEO012864G-CTP

►Type: Graphic
►Structure: COG
►Size: 2.42"
►128 x 64 Dot Matrix
►IC:SSD1309
►3V Power supply
►1/64 duty
►Interface: 6800, 8080, SPI, I2C
►Capacitive Touch Screen (CTP)
►Detect Point : 1 Finger

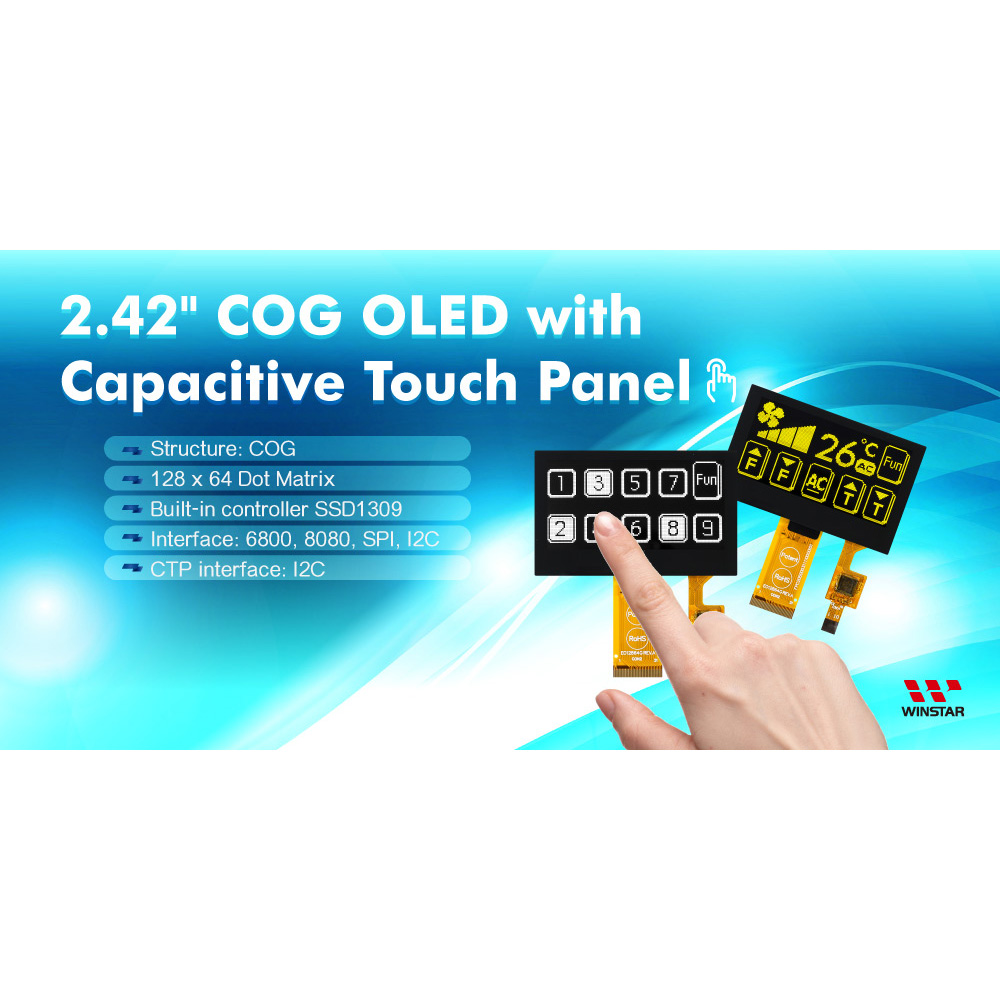

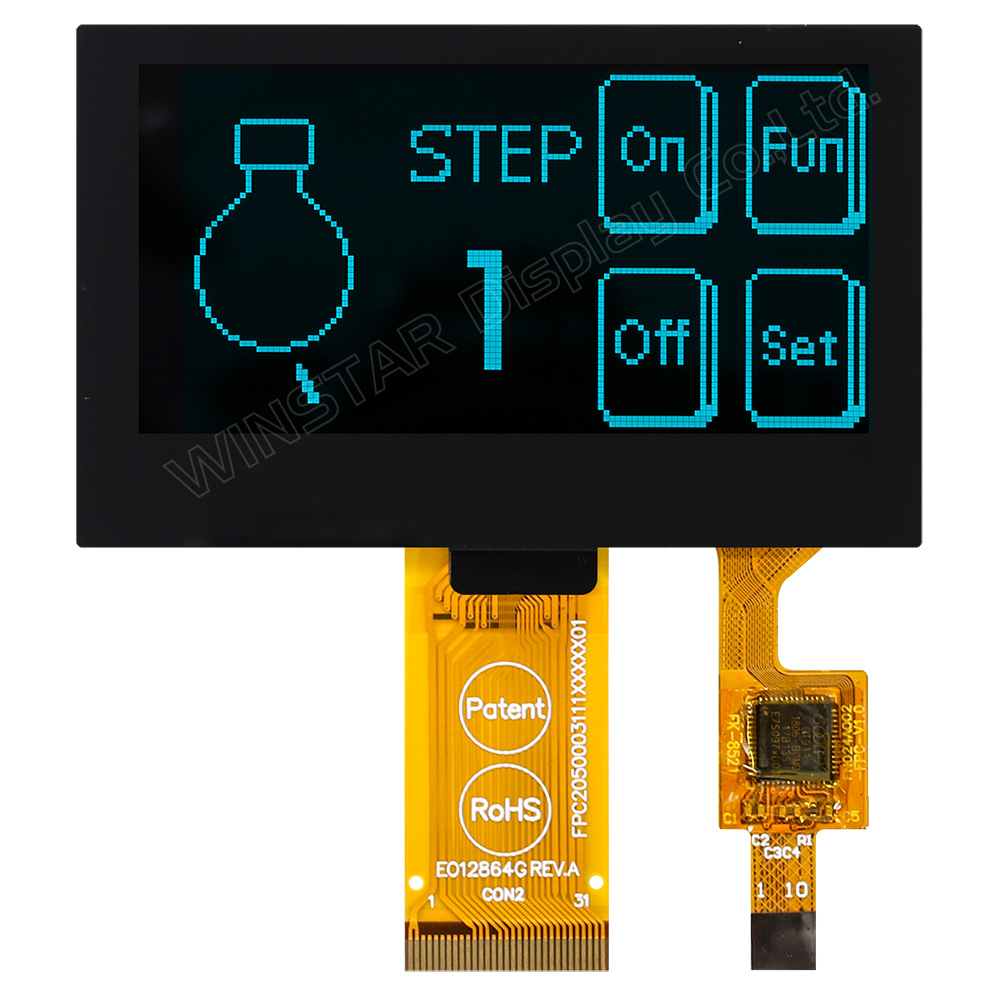

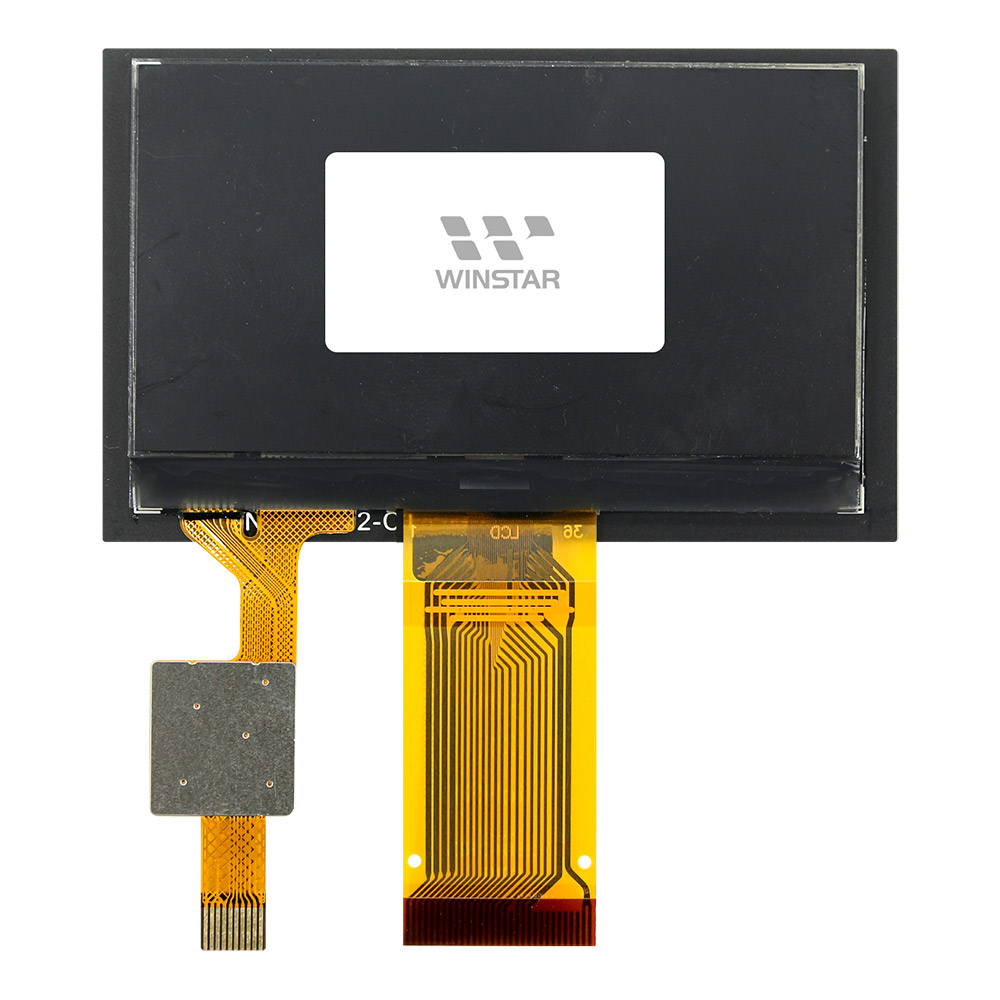

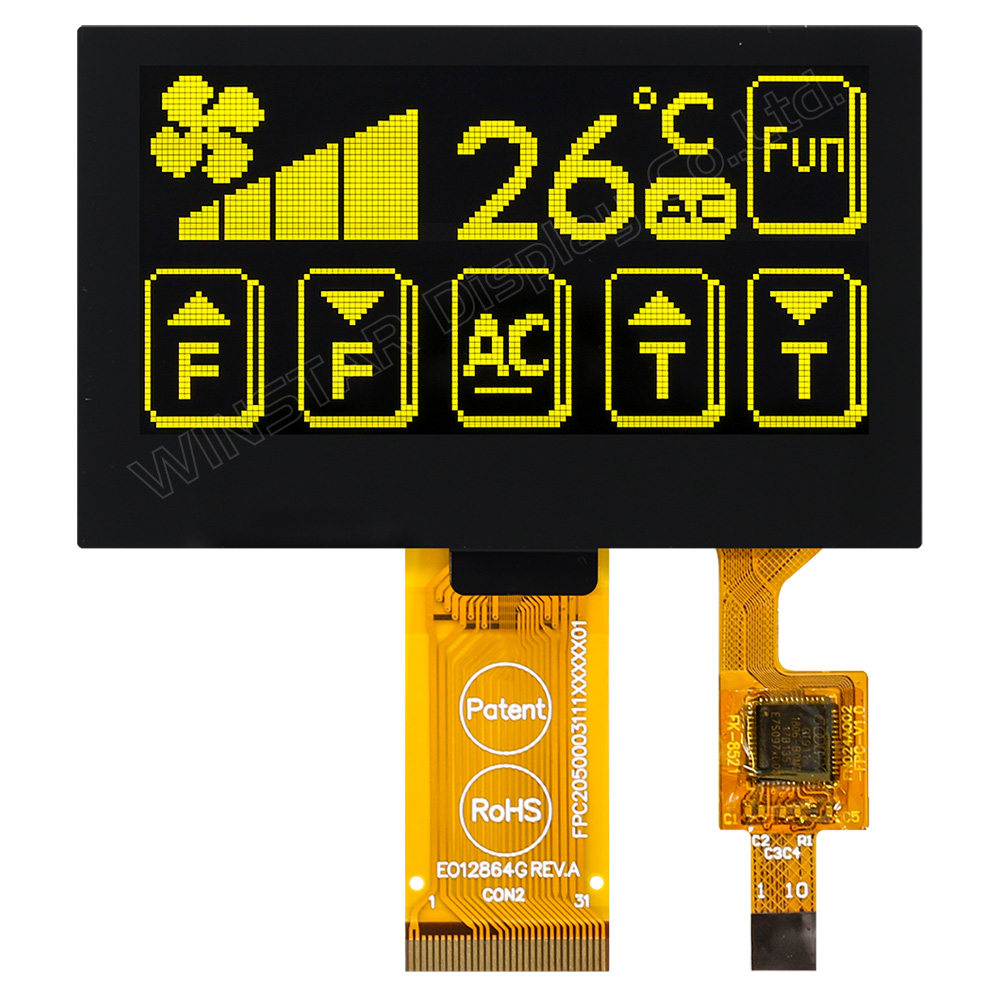

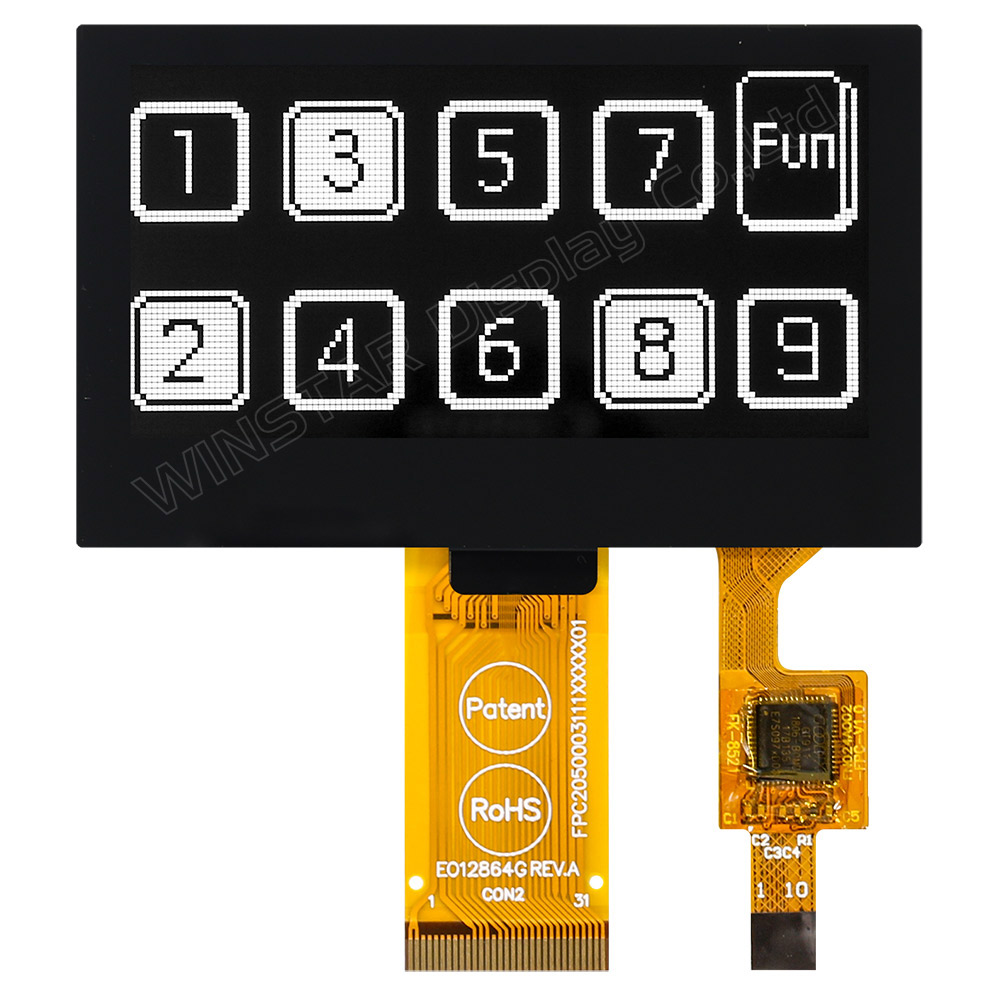

►Display Color: White / Yellow / Sky Blue / Green

Description

WEO012864G is the most popular 2.42 inch Graphic OLED display with Capacitive Touch Panel on module; which is made of resolution 128x64 dots. This module is built in with SSD1309 IC, it supports 6800/8080 8-bit parallel, I2C, and 4-Wire SPI interface, supply voltage for Logic 3V, supply voltage for display 13V, 1/64 duty cycle. This WEO012864G model is also built in with GT911 touch panel IC on module, which supports I2C interface, one Detect Point for CTP. This OLED module features a high contrast ratio of 10,000:1, resulting in clearer display images.

This 2.42"WEO012864G with CTP model is ideal for smart home applications, intelligent technology devices, energy systems, meter devices, communication systems, medical instrument, etc. This module can be operating at temperatures from -20℃ to 70℃; its storage temperatures range from -30℃ to 80℃.

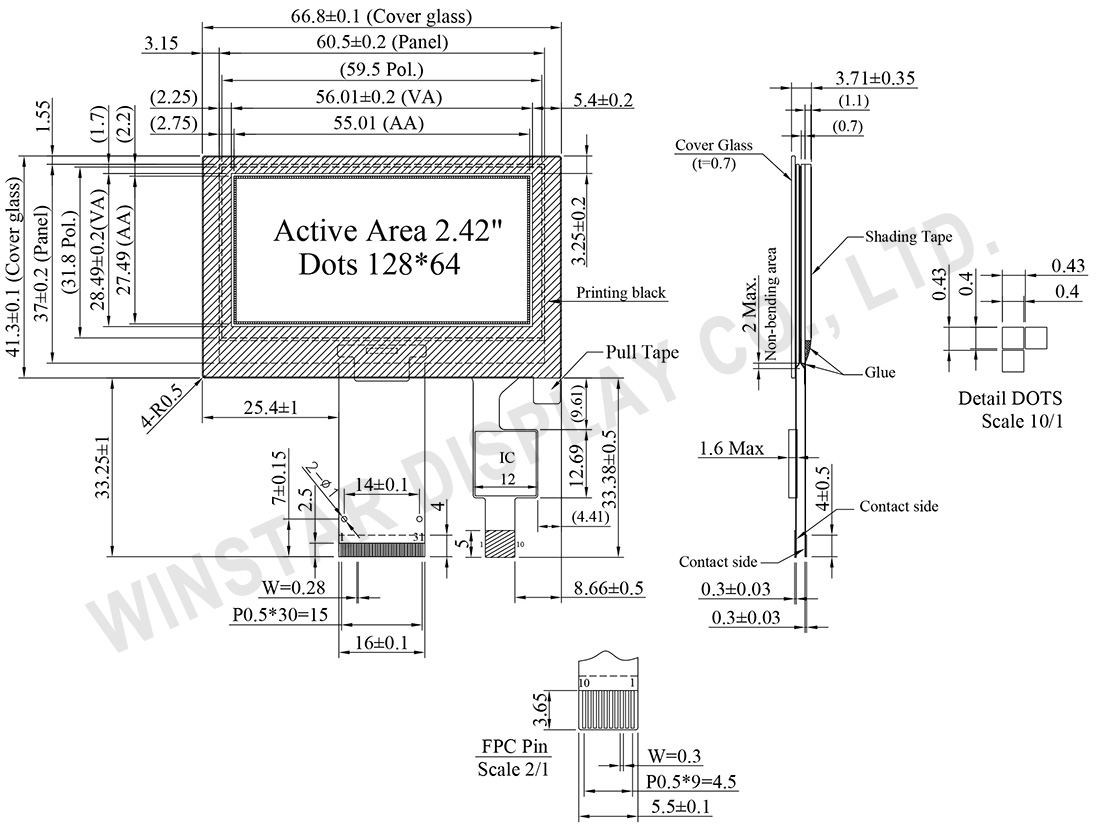

DRAWING

Touch OLED, Capacitive OLED, OLED Capacitive Touchscreen 2.42 inch 128x64 - WEO012864G-CTP

Data source ref: WEO012864GWPP3D00000

SPECIFICATIONS

Interface Pin Function

No. Symbol Function
1 NC(GND) No connection
2 VSS Ground.
3-10 NC No connection
11 VDD Power supply pin for core logic operation
12 BS1 MCU bus interface selection pins. Select appropriate logic setting as described in the following table. BS2, BS1 and BS0 are pin select
  BS1 BS2
I2C 1 0
4-wire Serial 0 0
8-bit 68XX Parallel 0 1
8-bit 80XX Parallel 1 1
Note
(1) 0 is connected to VSS
(2) 1 is connected to VDD
13 BS2
14 NC No connection
15 CS# This pin is the chip select input connecting to the MCU.
The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).
16 RES# This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.
17 D/C# This pin is Data/Command control pin connecting to the MCU.
When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data.
When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register.
In I2C mode, this pin acts as SA0 for slave address selection.
18 R/W# This pin is read / write control input pin connecting to the MCU interface.
When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW.
When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected.
When serial or I2C interface is selected, this pin must be connected to VSS.
19 E/RD# This pin is MCU interface input.
When 6800 interface mode is selected, this pin will be used as the Enable (E) signal.
Read/write operation is initiated when this pin is pulled HIGH and the chip is selected.
When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected.
When serial or I2C interface is selected, this pin must be connected to VSS.
20~27 D0~D7 These pins are bi-directional data bus connecting to the MCU data bus.
Unused pins are recommended to tie LOW.
When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC.
When I2C mode is selected, D2, D1 should be tied together and serve as SDAout,
SDAin in application and D0 is the serial clock input, SCL.
28 IREF This pin is the segment output current reference pin.
IREF is supplied externally.
29 VCOMH COM signal deselected voltage level.
A capacitor should be connected between this pin and VSS.
30 VCC Power supply for panel driving voltage. This is also the most positive power voltage supply pin.
31 NC(GND) No connection


CTP PIN Definition

No. Symbol Function
1 GND Power ground
2 VDD Power supply
3 INT Interrupt signal, active low, asserted to request
Host start a new transaction
4 SDA I2C data signal
5 SCL I2C clock signal
6 RST External reset signal, active low
7 GND Power ground
8 GND Power ground
9 GND Power ground
10 GND Power ground

Mechanical Data

Item Dimension Unit
Dot Matrix 128 x 64 Dot
Module dimension 66.8 × 41.3 × 3.71 mm
Active Area 55.01 × 27.49 mm
Pixel Size 0.40 × 0.40 mm
Pixel Pitch 0.43 × 0.43 mm
Display Mode Passive Matrix
Display Color Monochrome
Interface 8Bits 68xx 80xx / 4-Wire SPI / I2C
Drive Duty 1/64 Duty
OLED IC SSD1309
Size 2.42 inch
CTP IC GT911
Detect Point 1
CTP Interface I2C
Surface Glare

Absolute Maximum Ratings

Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Supply Voltage for Logic VDD -0.3 4 V
Supply Voltage for Display VCC 0 15 V
Operating Temperature TOP -20 +70 °C
Storage Temperature TSTG -30 +80 °C

Touch Panel Controller GT911

Parameter Symbol Min Max Unit
Power Supply Voltage VDD 2.66 3.47 V

Electronical Characteristics

DC Electrical Characteristics

Item Symbol Condition Min Typ Max Unit
Supply Voltage for Logic VDD 2.8 3.0 3.3 V
Supply Voltage for Display VCC 12.5 13.0 13.5 V
High Level Input VIH 0.8×VDD V
Low Level Input VIL 0.2×VDD V
High Level Output VOH 0.9×VDD V
Low Level Output VOL 0.1×VDD V
50% Check Board operating Current VCC =13.0V - 25 36 mA

Touch Panel Controller GT911

Item Symbol Min Typ Max Unit
Supply Voltage VDD 2.8 3.0 3.3 V
Input High Volt. VIH 0.75xVDD   VDD+0.3 V
Input Low Volt. VIL -0.3 0.25xVDD V
Output High Volt. VOH 0.85xVDD V
Output Low Volt. VOL 0.15xVDD V
