Modello numero WEO009632B
►Tipo: grafico
►Struttura: COG
►Dimensione: 0.68 pollici
►96 x 32 a matrice di punti
►IC:SSD1305
►Alimentatore 3V
►1/32 duty
►Interfaccia: 6800, 8080, SPI, I2C
►Colore display: Bianco / Giallo
►Altre opzioni FPC disponibili nella tabella di seguito
Descrizione
DISEGNO

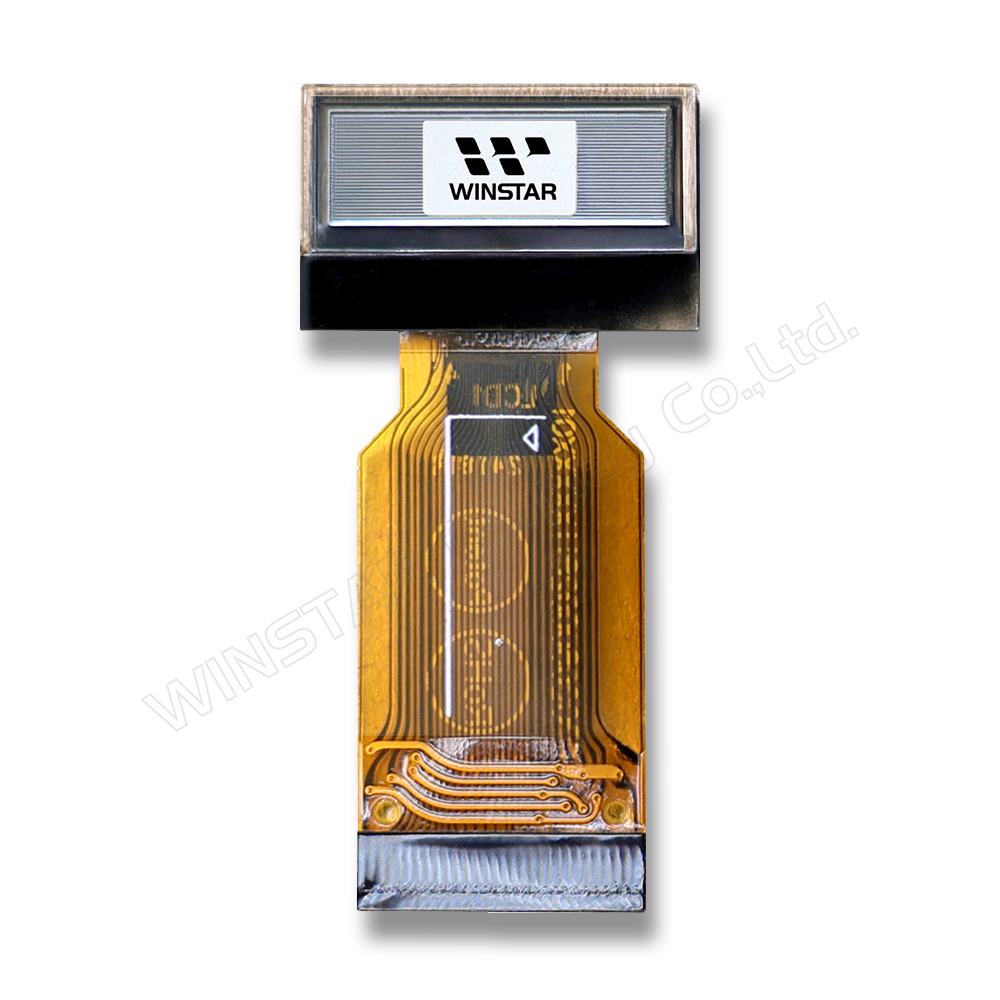

WEO009632B with ZIF FPC
Data source ref: WEO009632BLAP3N00000
WEO009632B with Hotbar FPC
Data source ref: WEO009632BWPP3N00H00
SPECIFICHE TECNICHE
Funzione dei Pin di Interfaccia
Pin | Simbolo | I/O | Funzione | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | VSS | - | Reserved Pin(Supporting Pin) The supporting pins can reduce the influences from stresses on the function pins. These pins must be connected to external ground. |
|||||||||||||||
2 | GDR | - | Reserved pin, not connected. | |||||||||||||||
3 | VDDB | P | Reserved pin, not connected. | |||||||||||||||
4 | FB | - | Reserved pin, not connected. | |||||||||||||||
5 | NC | - | Not connected. | |||||||||||||||
6 | VBREF | - | Reserved pin, not connected. | |||||||||||||||
7 | NC | - | Not connected. | |||||||||||||||
8 | NC | - | Not connected. | |||||||||||||||
9 | VDD | P | Power supply pin for core logic operation. | |||||||||||||||
10 | BS1 | I | MCU bus interface selection pins. Select appropriate logic setting as described in the following table. BS2, and BS1 are pin select.
|
|||||||||||||||
11 | BS2 | I | ||||||||||||||||
12 | NC | - | Not connected. | |||||||||||||||
13 | CS# | I | This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW). |
|||||||||||||||
14 | RES# | I | This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin HIGH (i.e. connect to VDD) during normal operation. | |||||||||||||||
15 | D/C# | I | This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data. When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register. In I2C mode, this pin acts as SA0 for slave address selection. |
|||||||||||||||
16 | WR# | I | This is read / write control input pin connecting to the MCU interface. When interfacing to a 6800-series microprocessor, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH (i.e. connect to VDD) and write mode when LOW. When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS. |
|||||||||||||||
17 | E/RD# | I | This pin is MCU interface input. When 6800 interface mode is selected, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled HIGH and the chip is selected. When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS. |
|||||||||||||||
18~25 | D0~D7 | - | These are 8-bit bi-directional data bus to be connected to the microprocessor’s data bus. When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN. When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL. |
|||||||||||||||
26 | IREF | - | This is segment output current reference pin. When external IREF is used, a resistor should be connected between this pin and VSS to maintain the IREF current at 30uA. |
|||||||||||||||
27 | VCOMH | - | COM signal deselected voltage level. A capacitor should be connected between this pin and VSS. |
|||||||||||||||
28 | VCC | - | Power supply for panel driving voltage. This is also the most positive power voltage supply pin. When charge pump is enabled, a capacitor should be connected between this pin and VSS. |
Dati meccanici
Articolo | Dimensioni | Unità |
---|---|---|
Risoluzione | 96 × 32 | punti |
Dimensione del modulo | 19.80 × 12.32 × 1.21 (mm) | mm |
Area attiva | 16.298 × 5.418 (mm) | mm |
Dimensioni del Dot | 0.148 × 0.148 (mm) | mm |
Passo del Dot | 0.17 × 0.17 (mm) | mm |
Modalità display | Matrice passiva | |
Colore display | monocromatici | |
Drive Duty | 1/32 Duty | |
IC | SSD1305 | |
Interfaccia | 6800, 8080, SPI, I2C | |
Diagonale | 0.68 pollici |
Valori massimi assoluti
Parameter | Simbolo | Valore Min | Valore massimo | Unità |
---|---|---|---|---|
Supply Voltage for Logic | VDD | -0.3 | 4 | V |
Supply Voltage for Display | VCC | 0 | 16 | V |
Temperatura di lavoro | TOP | -40 | +80 | °C |
Temperatura di stock | TSTG | -40 | +85 | °C |
Caratteristiche elettriche
DC elettriche
Articolo | Simbolo | Condizione | Valore Min | Valore tipico | Valore massimo | Unità |
---|---|---|---|---|---|---|
Supply Voltage for Logic | VDD | - | 2.8 | 3.0 | 3.3 | V |
Supply Voltage for Display | VCC | - | 11.5 | 12 | 12.5 | V |
High Level Input | VIH | - | 0.8×VDD | - | VDD | V |
Low Level Input | VIL | - | 0 | - | 0.2×VDD | V |
High Level Output | VOH | Iout = 100uA | 0.9×VDD | - | VDD | V |
Low Level Output | VOL | Iout = 100uA | 0 | - | 0.1×VDD | V |
Simbolo | Parameter | Valore Min | Valore tipico | Valore massimo | Unità | Condizione |
---|---|---|---|---|---|---|
ICC | VCC Supply Current | - | 5.0 | 7.5 | mA | VDD =3.0V , Display 100% ON |
Opzioni FPC:
Immagine | FPC Length | PIN | pitch | ZIF FPC or HOTBAR FPC | Interfaccia | FPC No. | Create Date |
---|---|---|---|---|---|---|---|
30 | 28 | 0.5 | ZIF FPC | 6800, 8080,4-Wire SPI, I2C | FPC2050002811XXXXX01 | 20180131 | |
8.479 | 25 | 0.65 | HOTBAR FPC | 6800, 8080,4-Wire SPI, I2C | FPC2065002501XXXXX00 | 20190906 |
