12864 OLED, OLED Display Module 12864

Model No. WEA012864D-01

►12864 OLED, OLED 12864
►Type: Graphic
►Structure: COG+PCB
►Size: 0.96"
►128x64 Dot Matrix
►IC:SSD1306
►3V/5V Power supply
►1/64 duty
►Interface: I2C, SPI

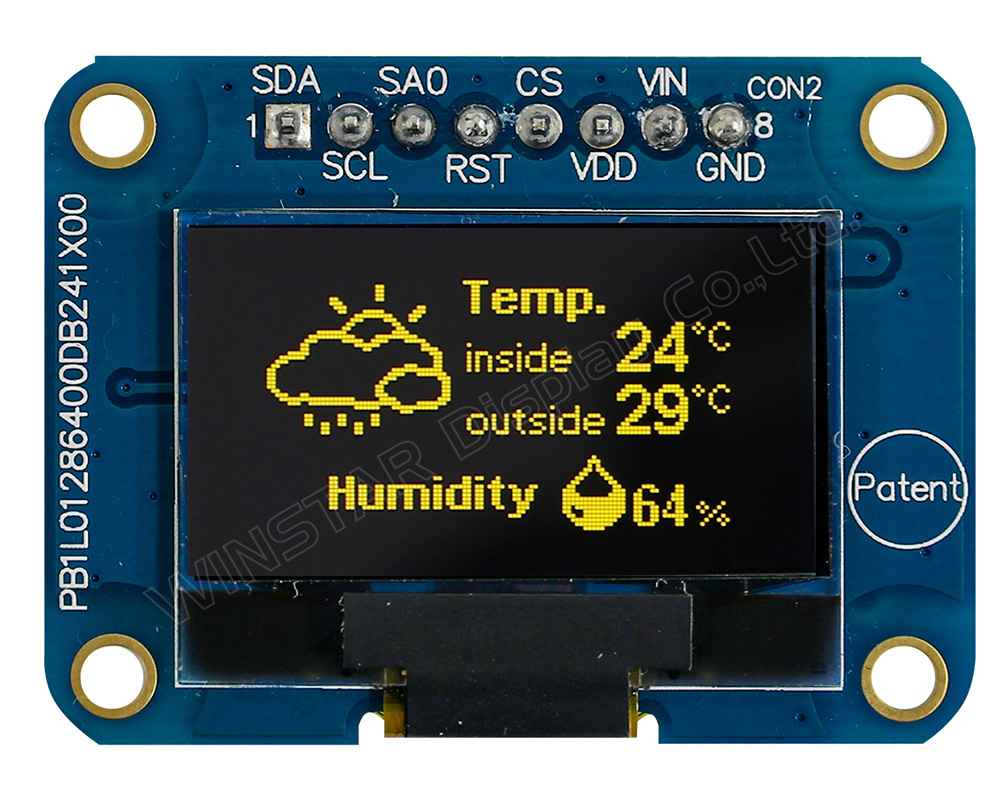

►Display Color: White / Yellow / Sky Blue

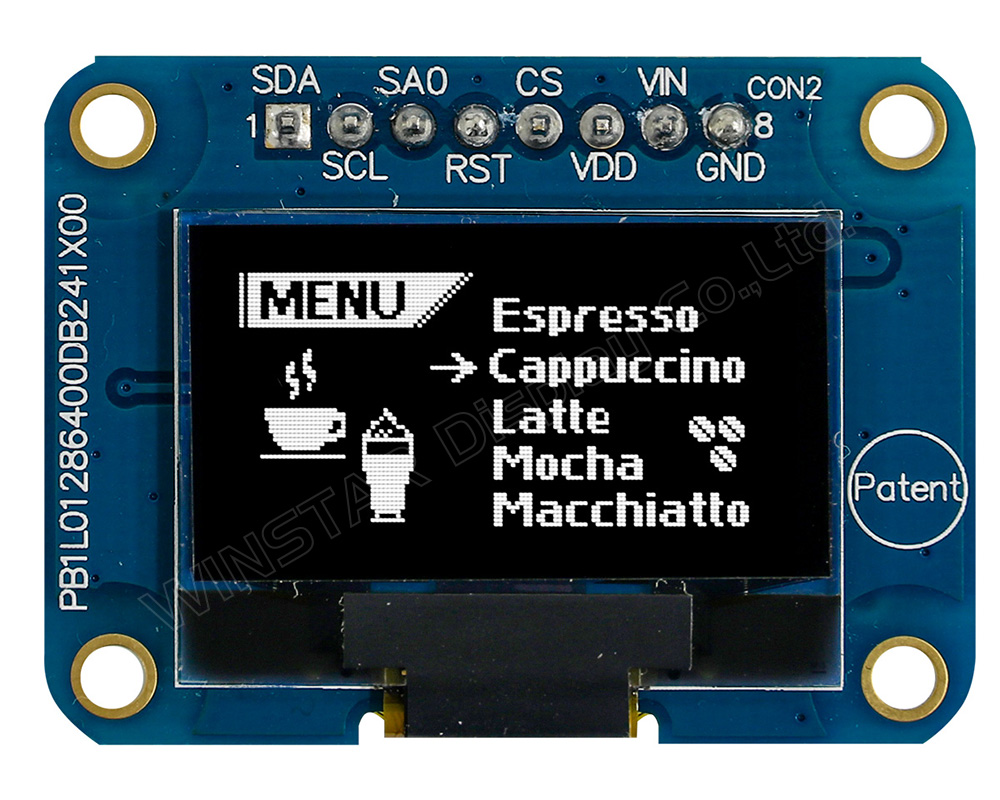

Description

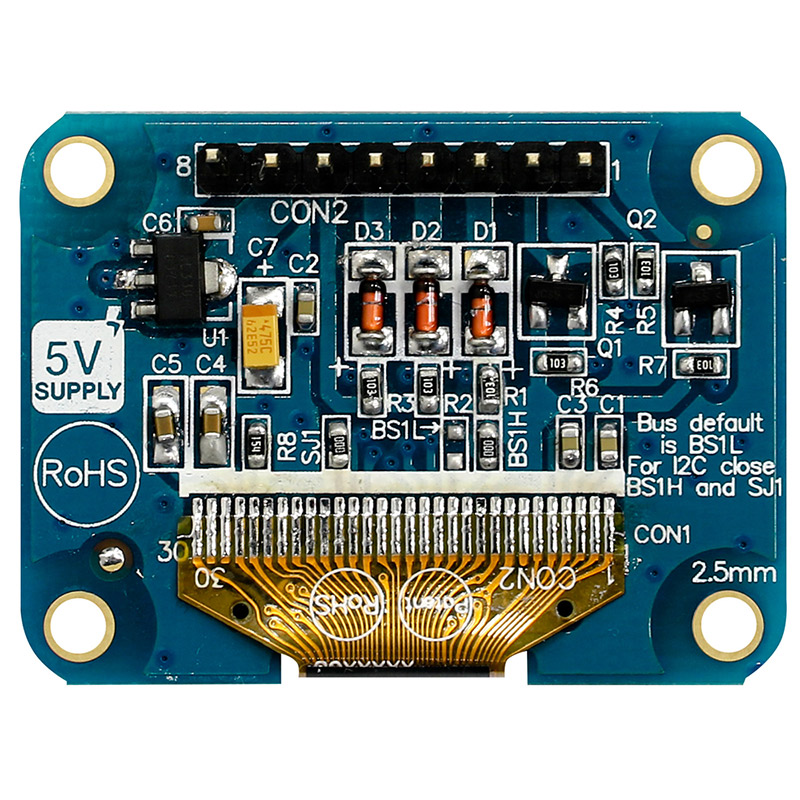

Winstar released two new COG structure OLED 12864 with PCB board models, WEA012864D-01 version and WEA012864D-03 version; these two OLED display module are made of 128x64 pixels, diagonal size 0.96 inch. WEA012864D-01 module is built in with SSD1306 IC, it supports I2C (default), SPI interface optional, VCC 3V /5V, I/O level 5V to 3V, with conversion circuit, 1/64 duty cycle. The WEA012864D-01 model is having PCB outline size 38.0x28.5x2.37 mm with mounting holes on board and 8 metal pins on module.WEA012864D-01 module supports internal Charge Pump supply and external VCC supply.

This 12864 OLED display module is suitable for smart control, industrial control for heater, smart home application, medical device, etc.  This module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.

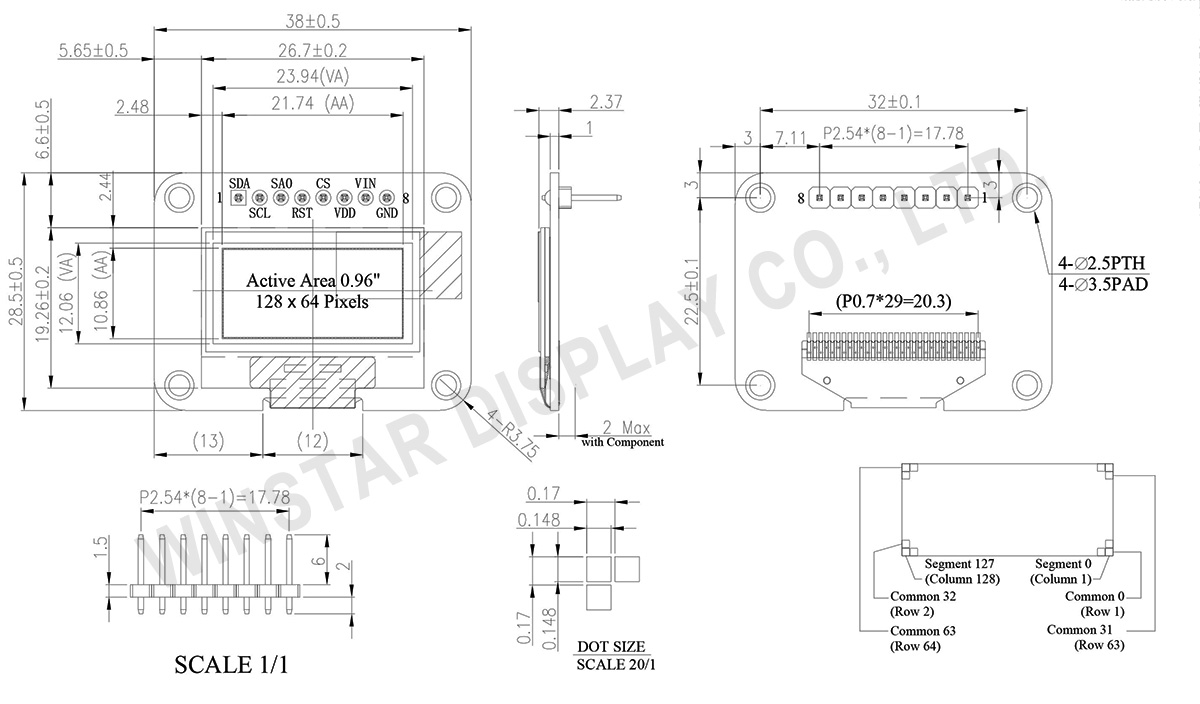

DRAWING

12864 OLED, OLED Display Module 12864, OLED 12864

Data source ref: WEA012864DWPP3N00001

SPECIFICATIONS

Interface Pin Function

No. Symbol Function
1 SDA When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN.
When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
2 SCL
3 SA0 In I2C mode, this pin acts as SA0 for slave address selection.
When 3-wire serial interface is selected, this pin must be connected to VSS.
4 RST This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin HIGH (i.e. connect to VDD) during normal operation.
5 CS This pin is the chip select input. (active LOW).
6 VDD 3.0V Power supply pin for core logic operation.
7 VIN 5.0V Power supply pin for core logic operation.
8 GND This is a ground pin.

Mechanical Data

Item Dimension Unit
Dot Matrix 128 × 64 Dots
Module dimension 38.00 × 28.50 × 2.37 mm
Active Area 21.74 × 10.86 mm
Pixel Size 0.148 × 0.148 mm
Pixel Pitch 0.17 × 0.17 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC SSD1306
Interface I2C, SPI
Size 0.96 inch

Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Supply Voltage for Logic VDD 1.65 3.3 V
Supply Voltage for Logic VIN 4.0 6.0 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C

Electronical Characteristics

Item Symbol Condition Min Typ Max Unit
Supply Voltage for Logic(3V) VDD 2.8 3.0 3.2 V
Supply Voltage for Logic(5V) VIN 4.8 5.0 5.2 V
Input High Volt. VIH 0.8×VDD VDDIO V
Input Low Volt. VIL 0 0.2×VDD V
Output High Volt. VOH 0.9×VDD VDDIO V
Output Low Volt. VOL 0 0.1×VDD V
50% Check Board operating Current ICC Vcc=7.5V 12.0 22.0 mA

Search keyword: 128x64 oled, oled 128x64, 0.96" oled, 0.96 inch oled, oled 0.96",12864 oled, oled 12864,oled 128x64 spi,oled 128x64 ssd1306
