0.96 inch Thin OLED Display, OLED I2C Display
Model No. WEO012864D
►Thin OLED Display
►0.96" OLED Display, OLED 0.96"
►Suitable for wearable device
►Type: Graphic
►Structure: COG
►128 x 64 Dot Matrix
►IC：SSD1306
►3V Power supply
►1/64 duty
►Interface: 6800, 8080, SPI, I2C

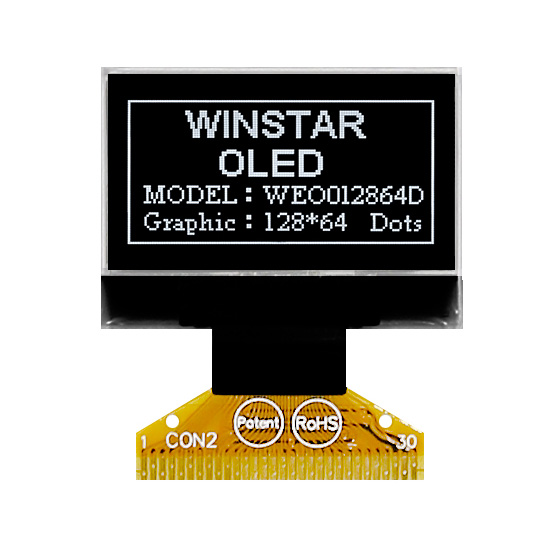

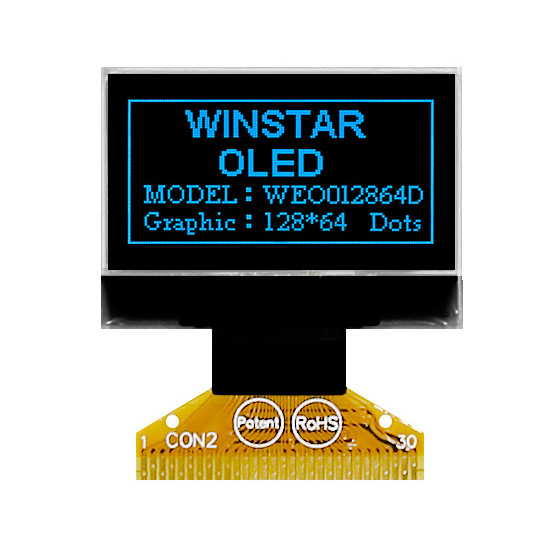

►Display Color: White / Yellow / Blue
►Other FPC options available in below table
Description
Winstar 0.96 inch (6800/8080/SPI/I2C) OLED Display
Winstar released a 0.96 inch Thin OLED Display WEO012864D model which is made of 128x64 pixels, diagonal size only 0.96 inch. The electronic characteristics and dimension of the thinner version and existing WEO012864D are the same, the main difference between these two WEO012864D is the module thickness, the new version is 1.26 mm on thickness as to the existing one is 1.65 mm. The new version thin 0.96" OLED display is also built-in SSD1306 driver IC; it communicates via 6800/8080 8-bit parallel and I2C/SPI interface (0.96" OLED I2C). Adopting thinner OLED panel is a new trend, for new projects, we recommend customers to choose the thinner WEO012864D for new design projects.WEO012864D module supports internal Charge Pump supply and external VCC supply.
FPC Options
WEO012864D Thinner version 0.96 inch OLED Display without Sponge
If customers would like to adopt the WEO012864D thinner version to replace the existing one, you can choose the below part numbers which we add sponge at the back of the module to make them compatible to the existing ones for your applications. Please contact us, if you require different colors.
WEO012864D Thinner version 0.96 inch OLED Display with Sponge

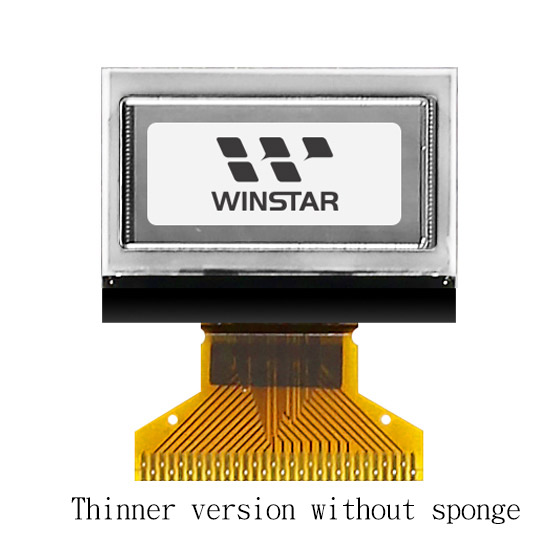

Left: Thinner version without sponge

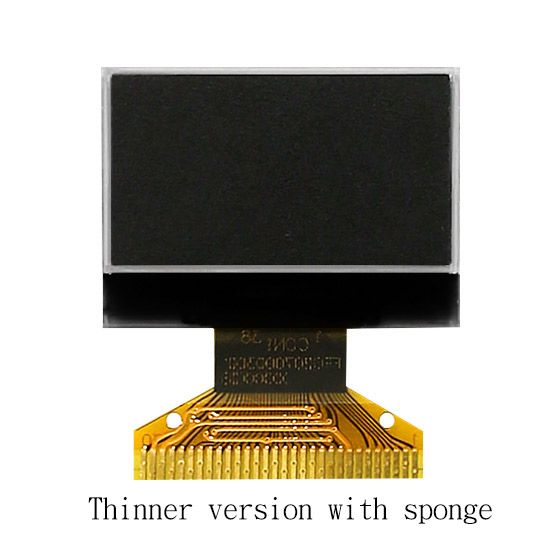

Right: Thinner version with sponge

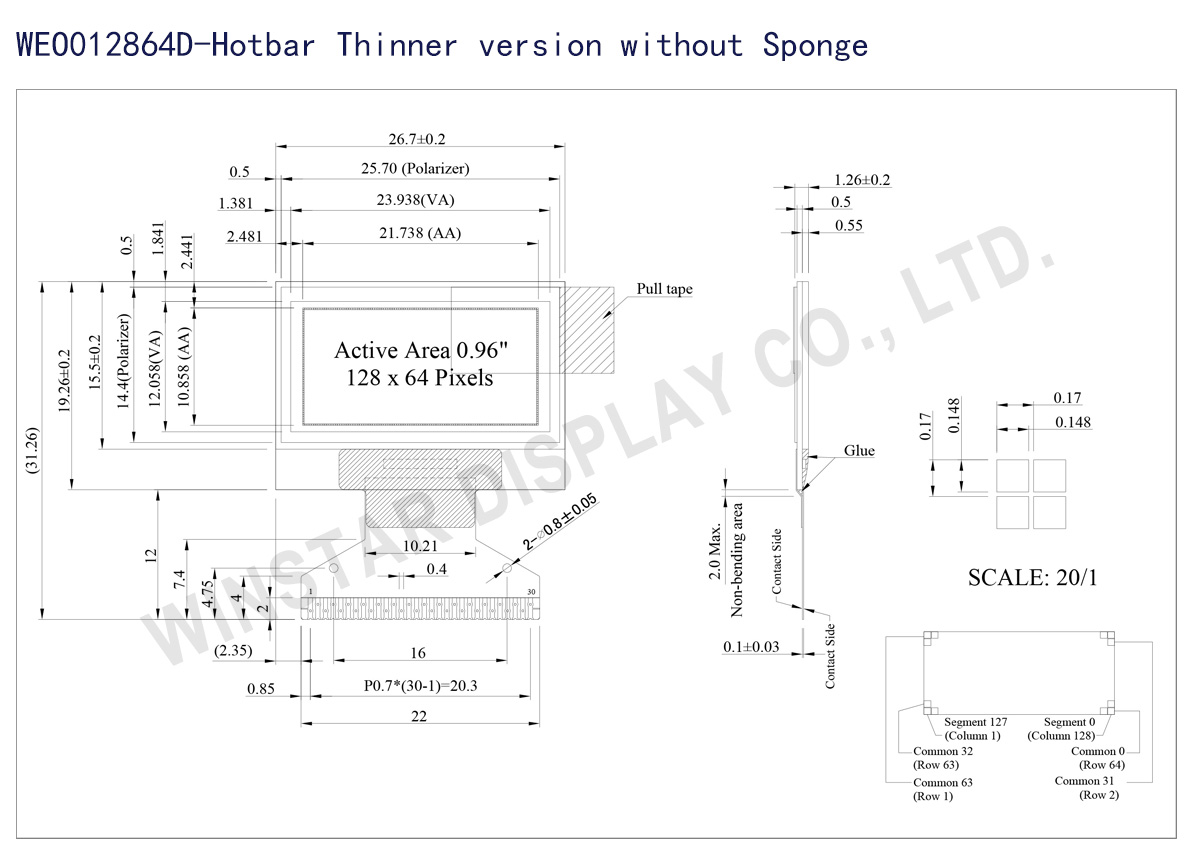

DRAWING
Data source ref: WEO012864DWPP3N00006
Data source ref: WEO012864DWPP3N00007
SPECIFICATIONS
Interface Pin Function
| No. | Symbol | Function |
|---|---|---|
| 1 | N.C. (GND) | Reserved Pin (Supporting Pin) The supporting pins can reduce the influences from stresses on the function pins. These pins must be connected to external ground. |
| 2 | C2N | Positive Terminal of the Flying Inverting Capacitor Negative Terminal of the Flying Boost Capacitor The charge-pump capacitors are required between the terminals. They must be floated when the converter is not used. |
| 3 | C2P | |
| 4 | C1P | |
| 5 | C1N | |
| 6 | VBAT | Power Supply for DC/DC Converter Circuit This is the power supply pin for the internal buffer of the DC/DC voltage converter. It must be connected to external source when the converter is used. It should be connected to VDD when the converter is not used. |
| 7 | NC | NC |
| 8 | VSS | Ground of Logic Circuit This is a ground pin. It acts as a reference for the logic pins. It must be connected to external ground. |
| 9 | VDD | Power Supply for Logic This is a voltage supply pin. It must be connected to external source. |

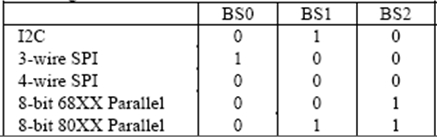

| 10 | BS0 | Communicating Protocol Select These pins are MCU interface selection input. See the following table:  |
| 11 | BS1 | |
| 12 | BS2 | |
| 13 | CS# | Chip Select This pin is the chip select input. The chip is enabled for MCU communication only when CS# is pulled low. |
| 14 | RES# | Power Reset for Controller and Driver This pin is reset signal input. When the pin is low, initialization of the chip is executed. |
| 15 | D/C# | Data/Command Control This pin is Data/Command control pin. When the pin is pulled high, the input at D7~D0 is treated as display data. When the pin is pulled low, the input at D7~D0 will be transferred to the command register. For detail relationship to MCU interface signals, please refer to the Timing Characteristics Diagrams. When the pin is pulled high and serial interface mode is selected, the data at SDIN is treated as data. When it is pulled low, the data at SDIN will be transferred to the command register. In I2C mode, this pin acts as SA0 for slave address selection. |
| 16 | R/W# | Read/Write Select or Write This pin is MCU interface input. When interfacing to a 68XX-series microprocessor, this pin will be used as Read/Write (R/W#) selection input. Pull this pin to “High” for read mode and pull it to “Low” for write mode. When 80XX interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled low and the CS# is pulled low. |
| 17 | E/RD# | Read/Write Enable or Read This pin is MCU interface input. When interfacing to a 68XX-series microprocessor, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled high and the CS# is pulled low. When connecting to an 80XX-microprocessor, this pin receives the Read (RD#) signal. Data read operation is initiated when this pin is pulled low and CS# is pulled low. |
| 18~25 | D0~D7 | Host Data Input/Output Bus These pins are 8-bit bi-directional data bus to be connected to the microprocessor’s data bus. When serial mode is selected, D1 will be the serial data input SDIN and D0 will be the serial clock input SCLK. When I2C mode is selected, D2 & D1 should be tired together and serve as SDAout & SDAin in application and D0 is the serial clock input SCL. |
| 26 | IREF | Current Reference for Brightness Adjustment This pin is segment current reference pin. A resistor should be connected between this pin and VSS. Set the current lower than 12.5μA. |
| 27 | VCOMH | Voltage Output High Level for COM Signal This pin is the input pin for the voltage output high level for COM signals. A capacitor should be connected between this pin and VSS. |
| 28 | VCC | Power Supply for OEL Panel This is the most positive voltage supply pin of the chip. A stabilization capacitor should be connected between this pin and VSS when the converter is used. It must be connected to external source when the converter is not used. |
| 29 | VLSS | Ground of Analog Circuit This is an analog ground pin. It should be connected to VSS externally. |
| 30 | NC (GND) |
Reserved Pin (Supporting Pin) The supporting pins can reduce the influences from stresses on the function pins. These pins must be connected to external ground. |
Mechanical Data
| Item | WEO012864D-Hotbar | WEO012864D-Hotbar with Sponge | Unit |
|---|---|---|---|
| Dot Matrix | 128 × 64 | Dots | |
| Module dimension | 26.7 × 19.26 × 1.26 | 26.7 × 19.26 × 1.61 | mm |
| Active area | 21.738 × 10.858 | mm | |
| Dot size | 0.148 × 0.148 | mm | |
| Dot pitch | 0.17 × 0.17 | mm | |
| Display Mode | Passive Matrix | ||
| Display Color | Monochrome | ||
| Drive Duty | 1/64 Duty | ||
| IC | SSD1306 | ||
| Interface | 6800,8080,SPI,I2C | ||
| Size | 0.96 inch | ||
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Supply Voltage for Logic | VDD | 0 | 4.0 | V |
| Supply Voltage for Display | VCC | 0 | 15.0 | V |
| Operating Temperature | TOP | -40 | +80 | °C |
| Storage Temperature | TSTG | -40 | +85 | °C |
Electronical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage for Logic | VDD | － | 2.8 | 3.0 | 3.3 | V |
| Supply Voltage for Display | VCC | － | 11.5 | 12.0 | 12.5 | V |
| Input High Volt. | VIH | － | 0.8×VDD | － | VDDIO | V |
| Input Low Volt. | VIL | － | 0 | － | 0.2×VDD | V |
| Output High Volt. | VOH | － | 0.9×VDD | － | VDDIO | V |
| Output Low Volt. | VOL | － | 0 | － | 0.1×VDD | V |
| Operating Current for VCC (50% display ON) | ICC | － | － | 16.0 | 20.0 | mA |

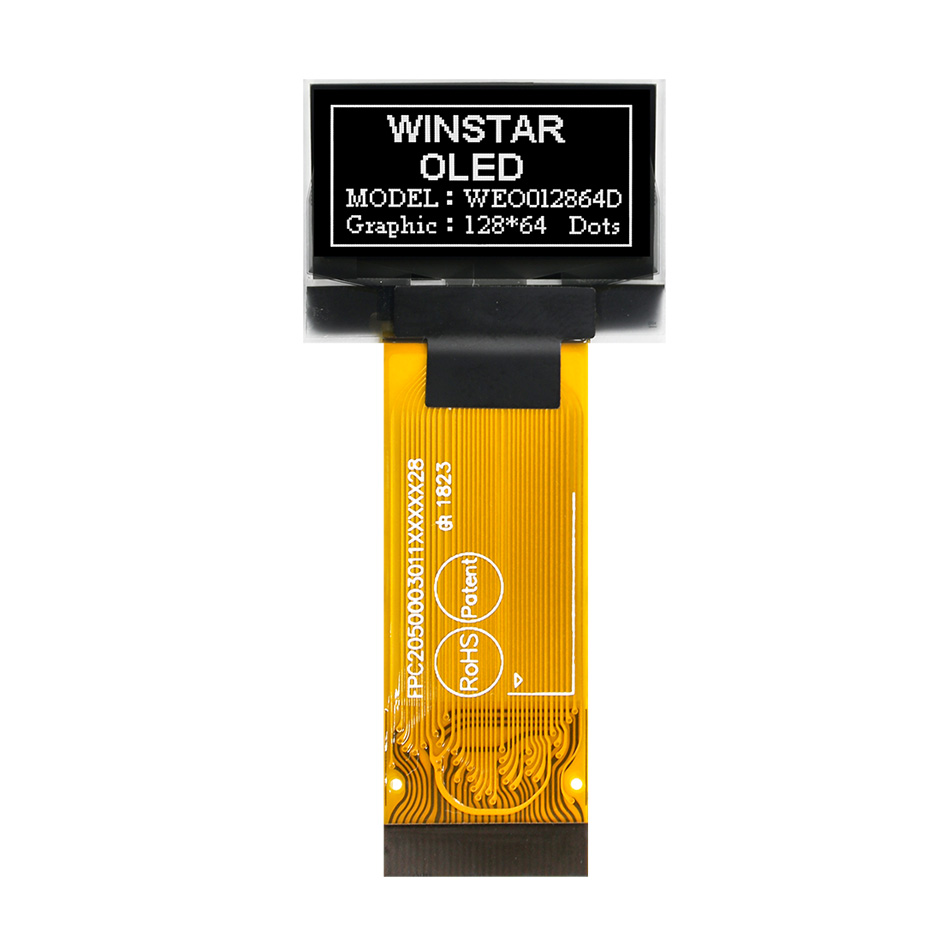

FPC Options:
| Drawing | FPC Length | PIN | Pitch | ZIF FPC or HOTBAR FPC | Interface | FPC No. | Create Date |
|---|---|---|---|---|---|---|---|
 |
22 | 30 | 0.7 | HOTBAR | 6800,8080,SPI,I2C | FPC2070003001XXXXX08 | 20170808 |
 |
41.1 | 30 | 0.5 | ZIF | 6800,8080,SPI,I2C | FPC2050003011XXXXX28 | 20180604 |
 |
13.1 | 30 | 0.5 | ZIF | 6800,8080,SPI,I2C | FPC2050003011XXXXX34 | 20200221 |
