Model No. WEO006448A
►Mini OLED Display, Mini OLED Screen
►0.66" OLED
►Type: Graphic
►Structure: COG
►64 x 48 Dot Matrix (64x48 OLED display)
►IC：SSD1306
►3V Power supply
►1/48 duty
►Interface: 6800, 8080, SPI, I2C
►Display Color: White / Yellow
►Suitable for Wearable Device

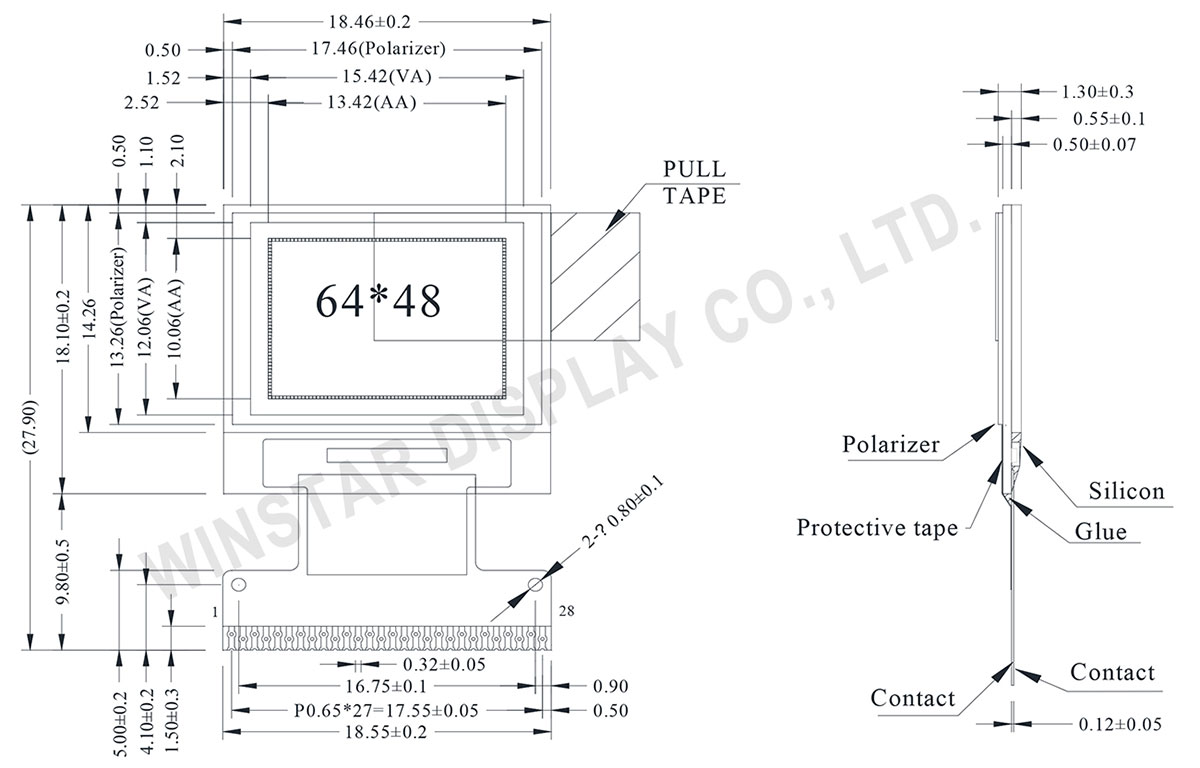

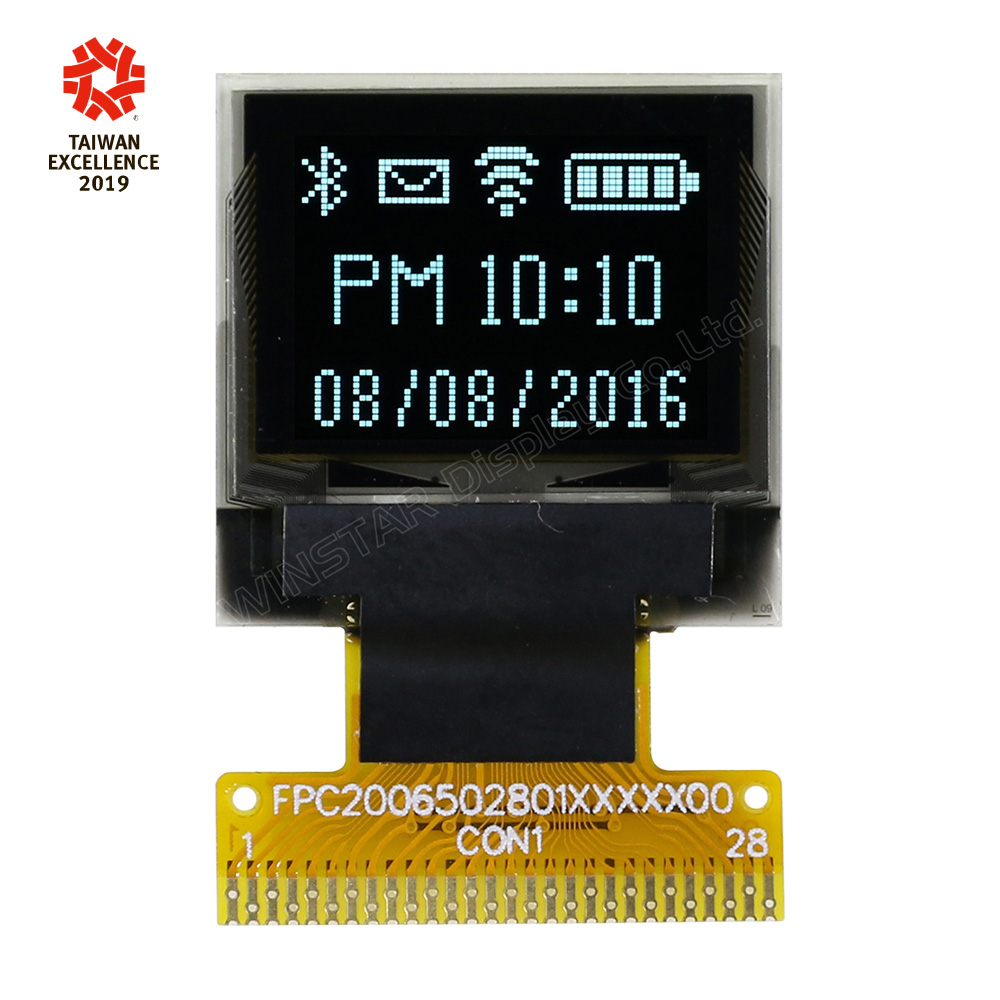

WINSTAR WEO006448A is a mini OLED display screen consisting of 64x48 pixels, with a diagonal size of only 0.66 inch. The WEO006448A has an outline dimension of 18.46 × 18.10 × 1.26 mm and an AA size of 13.42 × 10.06 mm. It is equipped with a built-in SSD1306 controller IC and communicates via 6800/8080 8-bit parallel, I2C, and 4-wire serial interfaces. The WEO006448A module supports both internal charge pump supply and external VCC supply. The WEO006448A is an ultra-thin (only 1.3 mm thick), lightweight, and low-power COG OLED display. It is suitable for use in wearable devices, MP3 players, portable devices, personal care appliances, voice recorder pens, health devices, and more.
The WEO006448A mini OLED display module can operate at temperatures ranging from -40°C to +80°C, with storage temperatures from -40°C to +80°C. Below are the basic specifications of the WEO006448A for reference. For more information, such as samples or quotations, please contact us via the 'Contact Us' page on our official website.
Data source ref: WEO006448AWPP3N00000
| Item | Dimension | Unit |
|---|---|---|
| Dot Matrix | 64 x 48 Dots | － |
| Module dimension | 18.46 × 18.10 × 1.26 | mm |
| Active Area | 13.42 × 10.06 | mm |
| Pixel Size | 0.185 × 0.185 | mm |
| Pixel Pitch | 0.210 × 0.210 | mm |
| Display Mode | Passive Matrix | |
| Display Color | Monochrome | |
| Drive Duty | 1/48 Duty | |
| IC | SSD1306 | |
| Interface | 6800, 8080, 4-Wire SPI, I2C | |
| Size | 0.66 inch | |
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Supply Voltage for Logic | VDD | 0 | 4.0 | V |
| Supply Voltage for Display | VCC | 0 | 15.0 | V |
| Operating Temperature | TOP | -40 | +80 | °C |
| Storage Temperature | TSTG | -40 | +85 | °C |
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage for Logic | VDD | － | 1.65 | 3.0 | 3.3 | V |
| Supply Voltage for Display (Supplied Externally) | VCC | － | 6.0 | 7.5 | 8.0 | V |
| Charge Pump Regulator Supply Voltage | VBAT | － | 3.0 | － | 4.2 | V |
| Charge Pump Output Voltage for Display (Generated by Internal DC/DC) | Charge Pump VCC |
－ | 7.0 | 7.5 | － | V |
| Input High Volt. | VIH | － | 0.8×VDD | － | VDD | V |
| Input Low Volt. | VIL | － | 0 | － | 0.2×VDD | V |
| Output High Volt. | VOH | － | 0.9×VDD | － | VDD | V |
| Output Low Volt. | VOL | － | 0 | － | 0.1×VDD | V |
| Display 50% Pixel on (VCC Supplied Externally) | ICC | VCC=7.5V | － | 6 | 13 | mA |
| Display 50% Pixel on (VCC Generated by Internal DC/DC) | IBAT | － | － | 15 | 23 | mA |
| No. | Symbol | Function | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | ESD-GND | It should be connected to ground. | |||||||||||||||
| 2 | C2N | C1P/C1N – Pin for charge pump capacitor; Connect to each other with a capacitor. C2P/C2N – Pin for charge pump capacitor; Connect to each other with a capacitor. |
|||||||||||||||
| 3 | C2P | ||||||||||||||||
| 4 | C1P | ||||||||||||||||
| 5 | C1N | ||||||||||||||||
| 6 | VBAT | This is the power supply pin for the internal buffer of the DC/DC voltage converter. It must be connected to external source when the converter is used. It should be connected to VDD or kept float when the converter is not used. | |||||||||||||||
| 7 | VSS | This is a ground pin. | |||||||||||||||
| 8 | VDD | Power supply pin for core logic operation. | |||||||||||||||
| 9 | BS1 | These pins are MCU interface selection input. See the following table:
|
|||||||||||||||
| 10 | BS2 | ||||||||||||||||
| 11 | CS# | This pin is the chip select input. (active LOW). | |||||||||||||||
| 12 | RES# | This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin HIGH (i.e. connect to VDD) during normal operation. | |||||||||||||||
| 13 | D/C# | This is Data/Command control pin. When it is pulled HIGH (i.e. connect to VDD), the data at D[7:0] is treated as data. When it is pulled LOW, the data at D[7:0] will be transferred to the command register. In I2C mode, this pin acts as SA0 for slave address selection. |
|||||||||||||||
| 14 | R/W# | This is read / write control input pin connecting to the MCU interface. When interfacing to a 6800-series microprocessor, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH (i.e. connect to VDD) and write mode when LOW. When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS. |
|||||||||||||||
| 15 | E/RD# | When interfacing to a 6800-series microprocessor, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled HIGH (i.e. connect to VDD) and the chip is selected. When connecting to an 8080-series microprocessor, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS |
|||||||||||||||
| 16~23 | D0~D7 | These are 8-bit bi-directional data bus to be connected to the microprocessor’s data bus. When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN. When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL. |
|||||||||||||||
| 24 | IREF | This is segment output current reference pin. When external IREF is used, a resistor should be connected between this pin and VSS to maintain the IREF current at a maximum of 30uA.When internal IREF is used, this pin should be kept NC. |
|||||||||||||||
| 25 | VCOMH | The pin for COM signal deselected voltage level. A capacitor should be connected between this pin and VSS. | |||||||||||||||
| 26 | VCC | Power supply for panel driving voltage. This is also the most positive power voltage supply pin. When charge pump is enabled, a capacitor should be connected between this pin and VSS. |
|||||||||||||||
| 27 | VLSS | This is an analog ground pin. It should be connected to VSS externally. | |||||||||||||||
| 28 | ESD GND | It should be connected to ground. |
