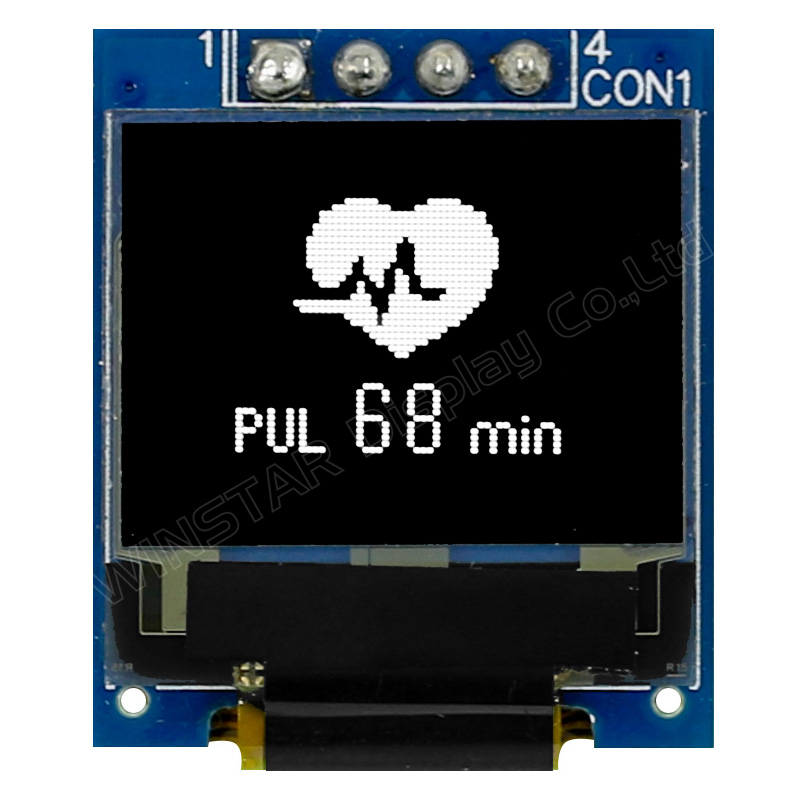

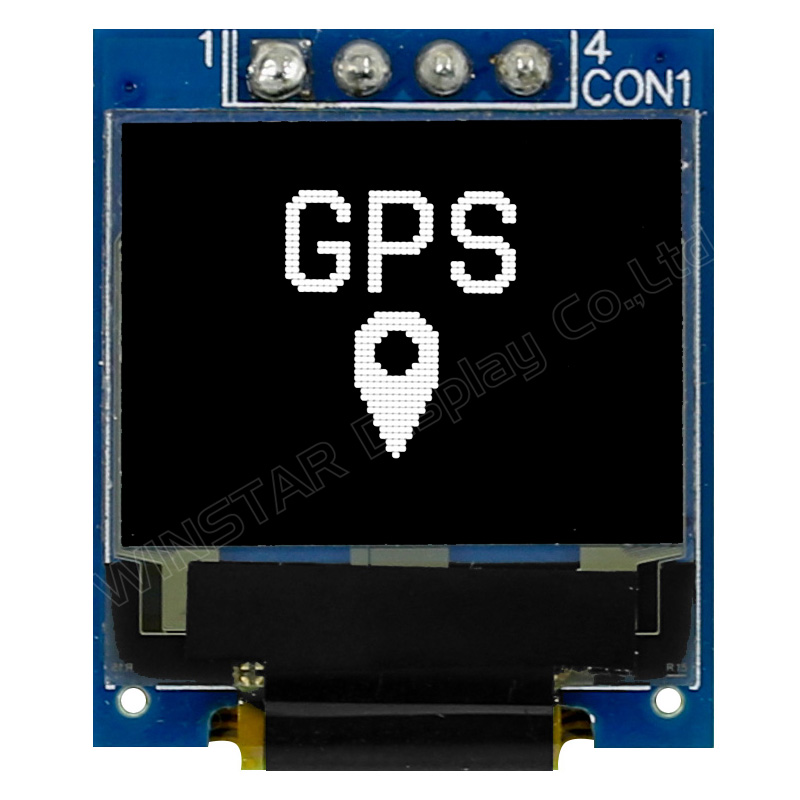

0.66 Inch Miniature OLED Display with Compact Design (COG+PCB)

Model No. WEA006448A

►Miniature OLED Display
►Size: 0.66"
►Type: Graphic
►Structure: COG+PCB
►64 x 48 Dot Matrix
►IC:SSD1306
►3V Power supply
►1/48 duty
►Interface: I2C
►Suitable for Wearable Device

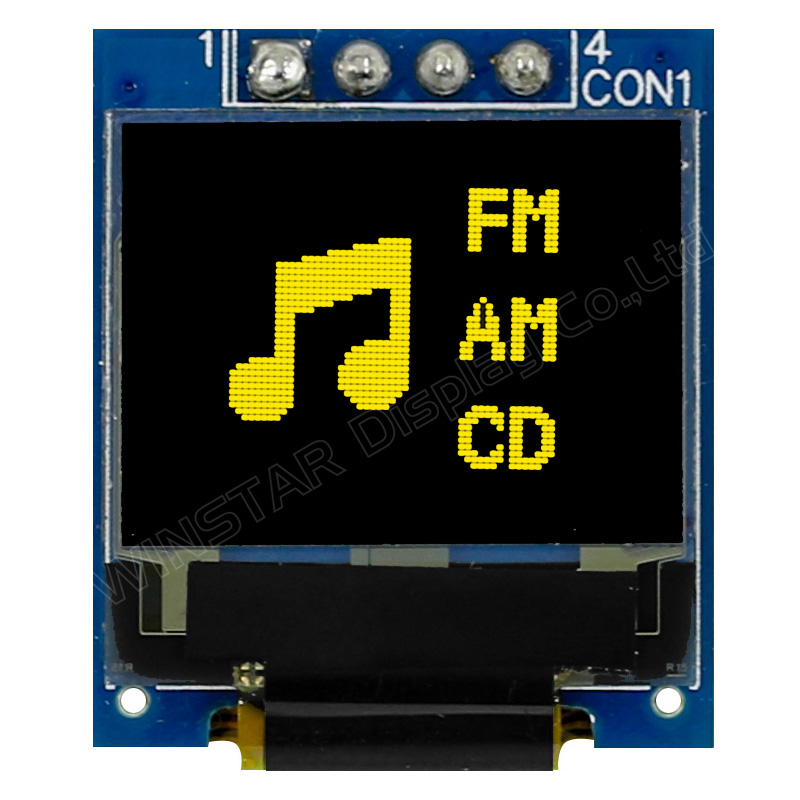

►Display Color: White / Yellow

Description

The WEA006448A is a 0.66-inch miniature OLED display featuring a COG (Chip-on-Glass) structure and an integrated PCB board, with a resolution of 64×48 pixels. Powered by the SSD1306 IC, it communicates via an I2C interface and operates on a 3V logic supply voltage. This module utilizes a 1/48 duty cycle for enhanced power efficiency.

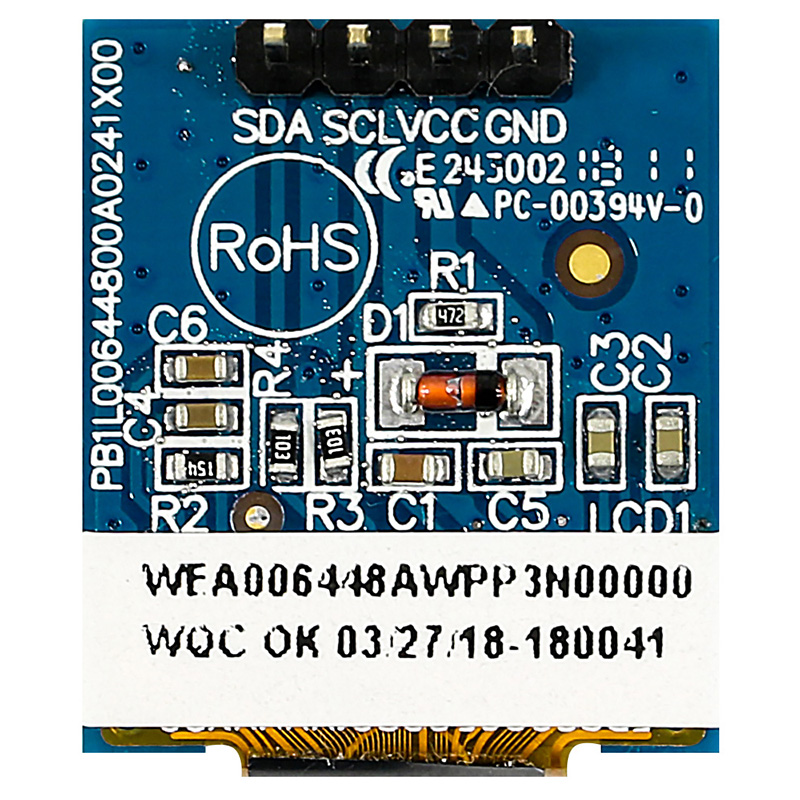

The integrated PCB board simplifies the design and integration process, providing a compact, stable, and reliable solution. By minimizing the need for external components, it reduces overall design complexity and accelerates time-to-market for new products.

This miniature OLED display is self-emitting, eliminating the need for a backlight and offering improved power efficiency and clearer visuals. Its compact PCB design is specifically tailored to the 0.66" miniature OLED panel, making it an ideal choice for a variety of applications. These include industrial devices, Bluetooth speakers and amplifiers, USB devices, portable gadgets, health monitoring devices, digital meters, and instruments.

With an operating temperature range from -40°C to +80°C and storage temperatures from -40°C to +85°C, this module is well-suited for both consumer electronics and industrial applications.

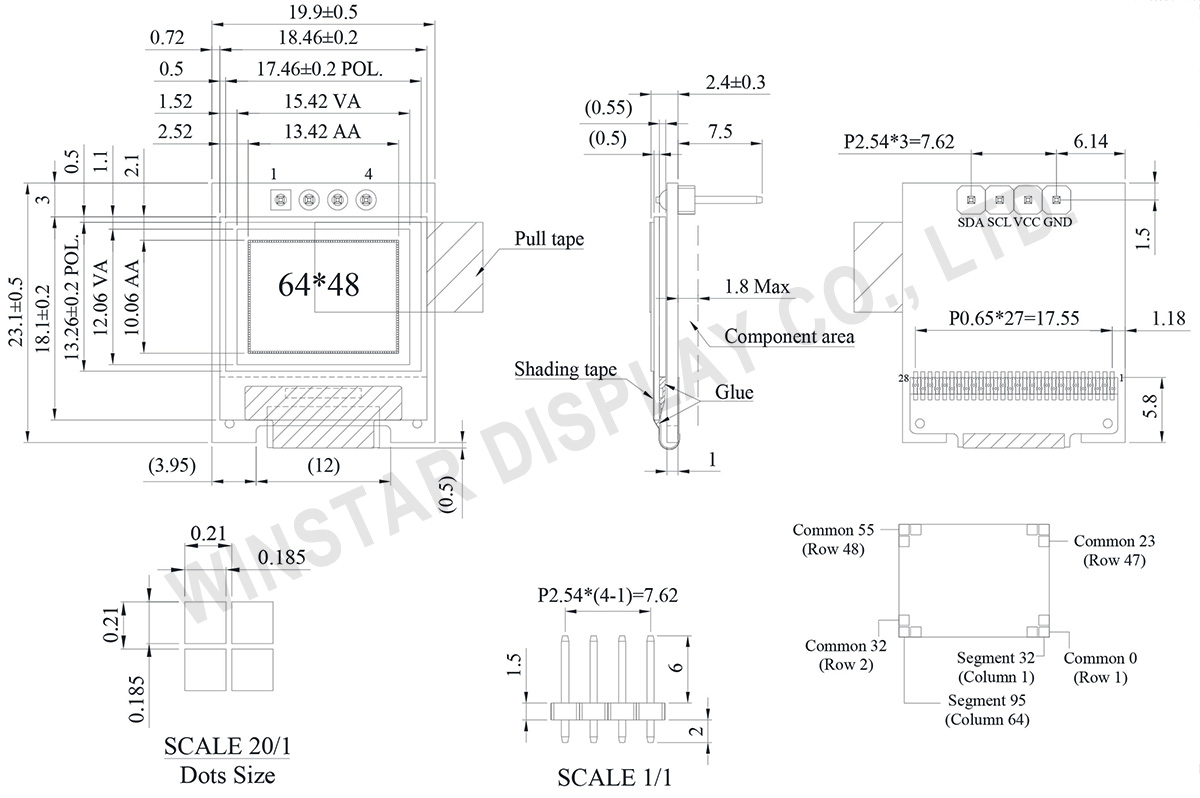

DRAWING

Miniature OLED Display, Miniature OLED with PCB - WEA006448A

Data source ref: WEA006448AWPP3N00000

SPECIFICATIONS

Mechanical Data

Item Dimension Unit
Dot Matrix 64 × 48 Dots

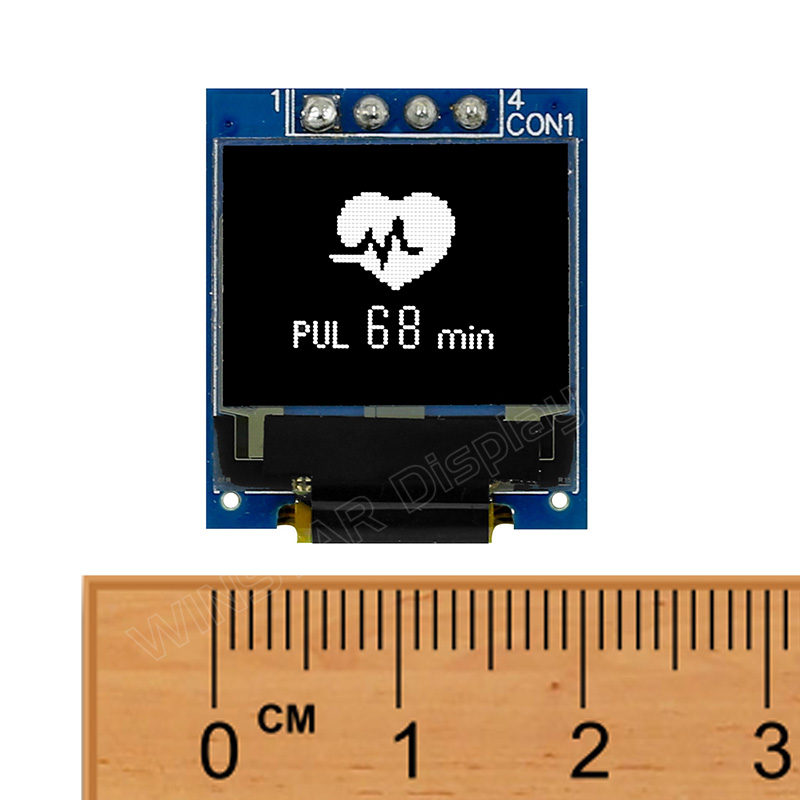

Module dimension 19.9 × 23.1 × 2.4 mm
Active Area 13.42 × 10.06 mm
Pixel Size 0.185 × 0.185 mm
Pixel Pitch 0.210 × 0.210 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/48 Duty
IC SSD1306
Interface I2C
Size 0.66 inch

Electronical Characteristics

Item Symbol Condition Min Typ Max Unit
Supply Voltage for Logic VDD 2.8 3.0 3.3 V
Input High Volt. VIH 0.8×VDD VDDIO V
Input Low Volt. VIL 0 0.2×VDD V
Output High Volt. VOH 0.9×VDD VDDIO V
Output Low Volt. VOL 0 0.1×VDD V
50% check Board operating Current ICC VCC=7.5V 12.0 20.0 mA

Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Supply Voltage for Logic VDD 0 4.0 V
Supply Voltage for Display VCC 0 16.0 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C

Interface Pin Function

No. Symbol Function
1 GND Ground
2 VCC Power supply input.
3 SCL When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI).
4 SDA
