Model No. WEO006432A
►Micro OLED, OLED Micro Display
►Type: Graphic
►Structure: COG
►Size: 0.49" OLED
►64x32 Dot Matrix OLED
►IC：SSD1306
►3V Power supply
►1/32 duty
►Interface: I2C
►Display Color: White / Yellow
►Suitable for Wearable Device

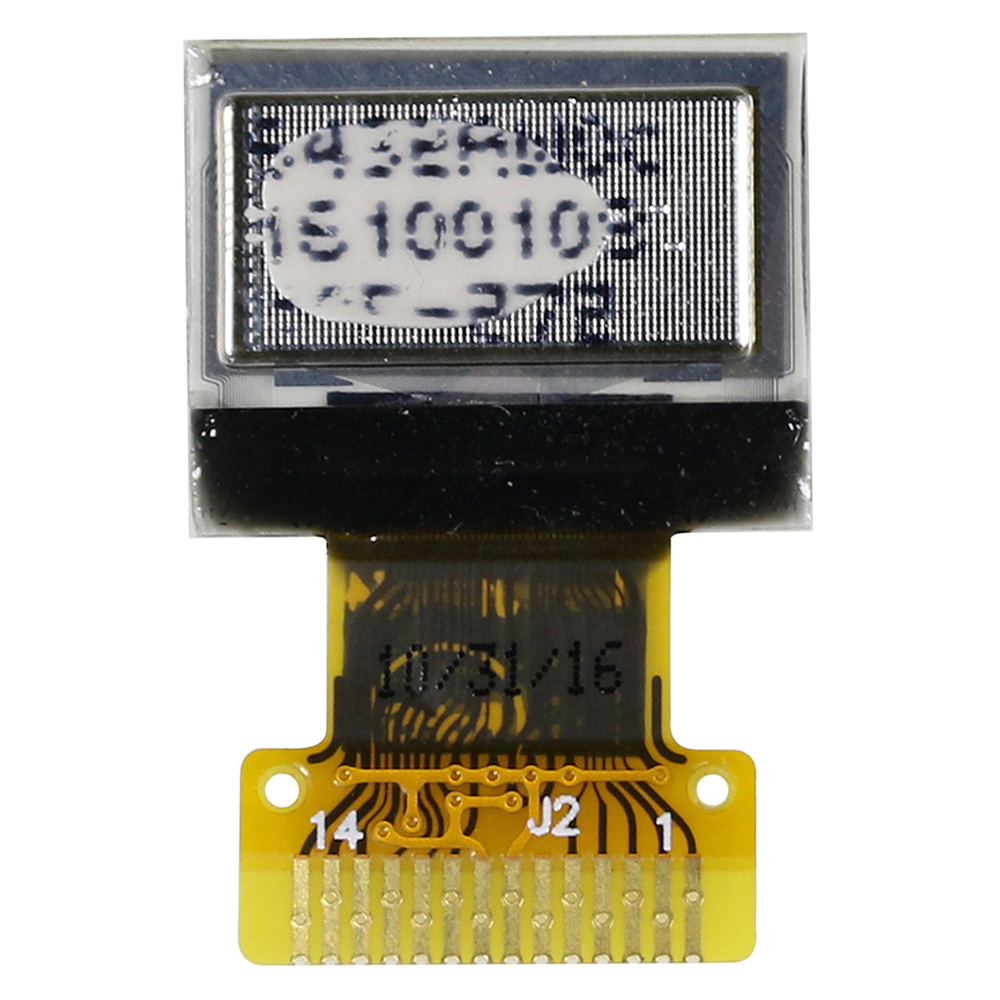

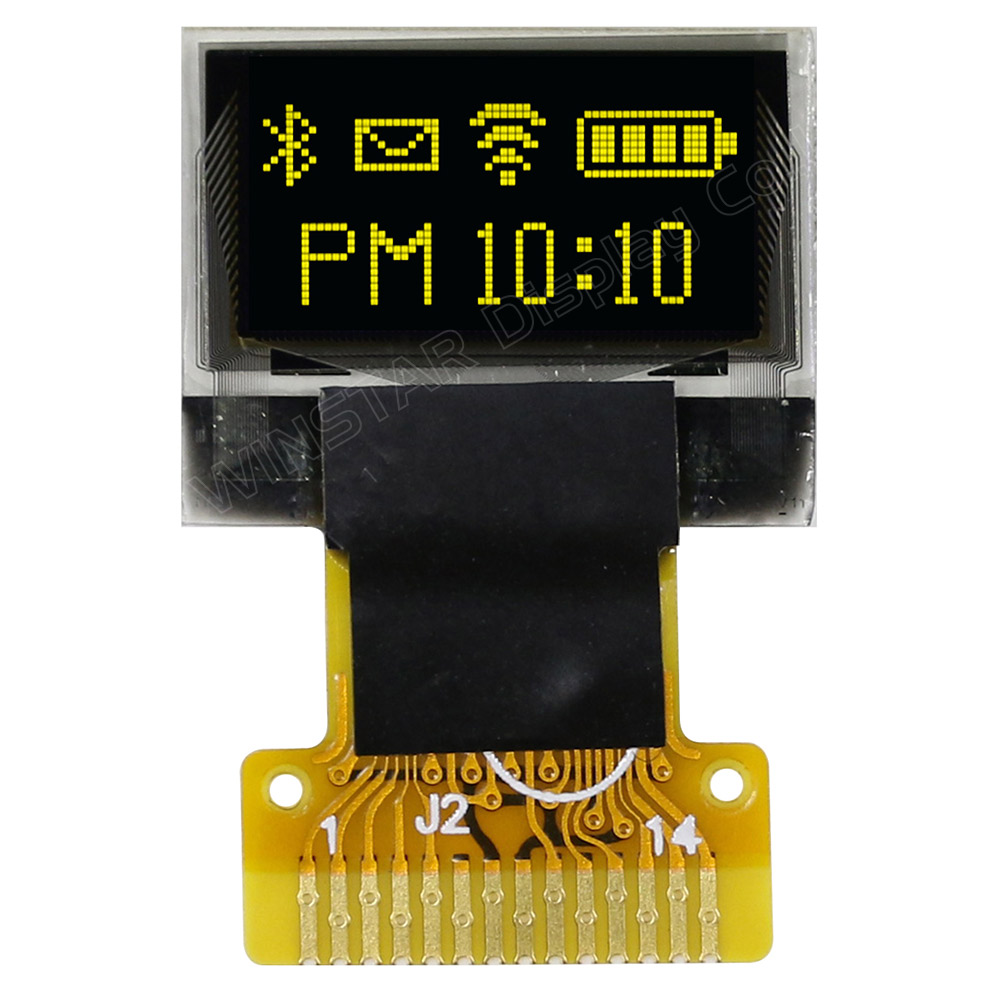

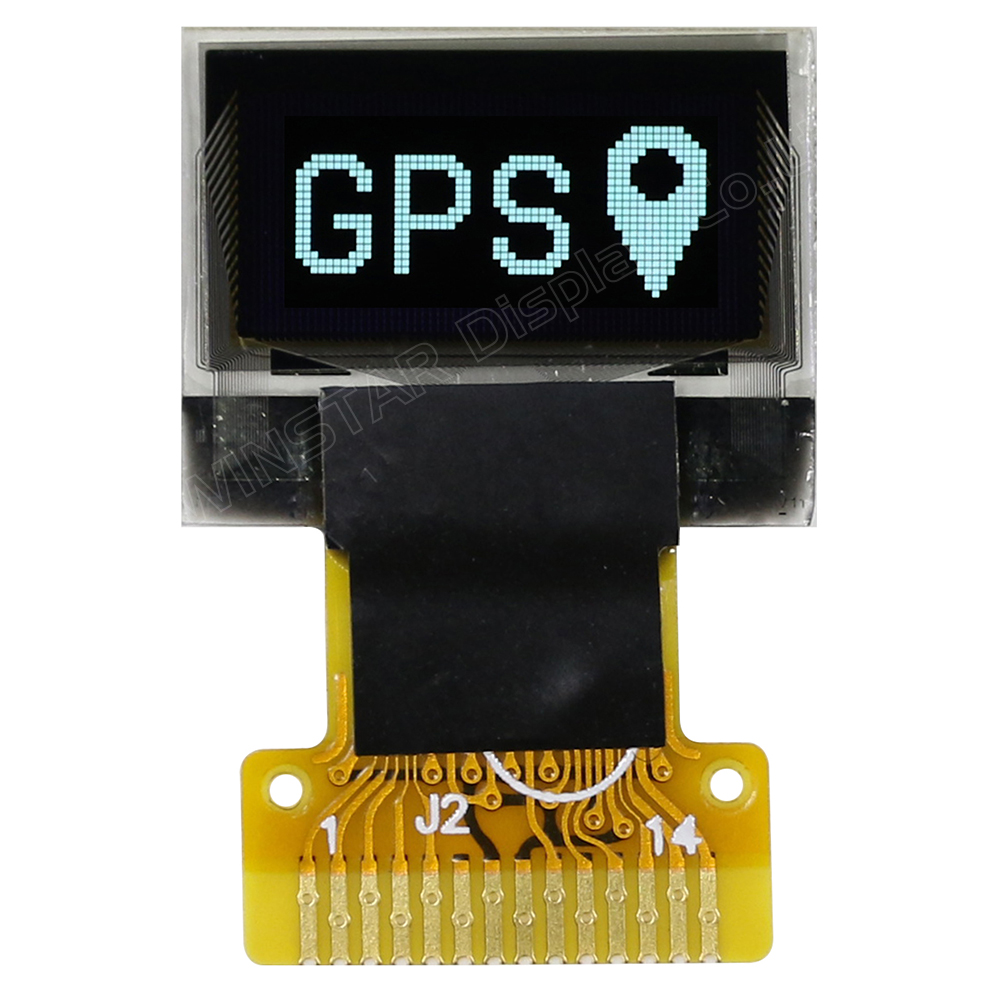

Winstar's OLED WEO006432A is a 0.49-inch micro OLED display module with a resolution of 64x32 dots. The WEO006432A has module dimensions of 14.5×11.6×1.26 mm and an active area size of 11.18×5.58 mm (Diagonal: 0.49"). The micro OLED display is equipped with a built-in SSD1306 IC, supporting the I2C interface. The module operates with a logic voltage of 3V and a duty cycle of 1/32. Additionally, the module supports an internal charge pump supply and external VCC supply. The OLED micro display, also referred to as a micro OLED screen, boasts a high contrast ratio of 10,000:1.
Featuring a COG (Chip-on-Glass) structure OLED display, this micro display module is ultra-thin and eliminates the need for a backlight (self-emitting). It is lightweight and consumes low power, making it ideal for various applications. The module can operate in temperatures ranging from -40℃ to +80℃, with storage temperatures ranging from -40℃ to +85℃. This small-sized 0.49-inch OLED module is well-suited for wearable devices, MP3 players, portable devices, personal care appliances, voice recorder pens, health devices, and more.
Winstar's 0.49" 64x32 OLED WEO006432A is a versatile micro OLED display module offering high performance, a compact design, and suitability for a wide range of applications.
Data source ref: WEO006432AWPP3N00000

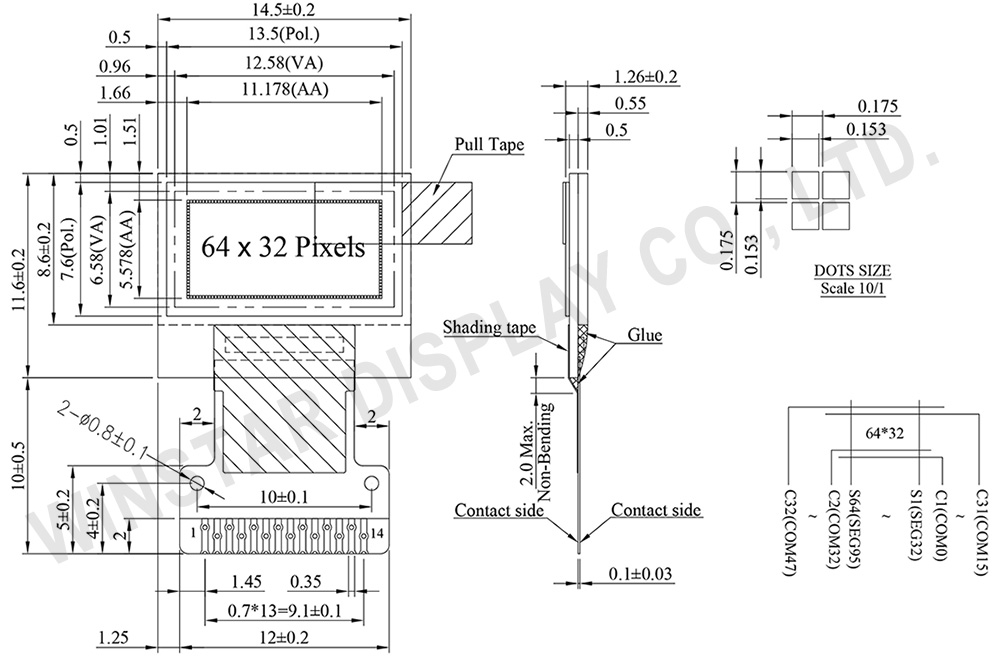

| Item | Dimension | Unit |
|---|---|---|
| Dot Matrix | 64 × 32 | Dots |
| Module dimension | 14.5 × 11.6 × 1.26 | mm |
| Active Area | 11.18 × 5.58 | mm |
| Pixel Size | 0.153 × 0.153 | mm |
| Pixel Pitch | 0.175 × 0.175 | mm |
| Display Mode | Passive Matrix | |
| Display Color | Monochrome | |
| Drive Duty | 1/32 Duty | |
| IC | SSD1306 | |
| Interface | I2C | |
| Size | 0.49 inch | |
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Supply Voltage for Logic | VDD | 0 | 4 | V |
| Supply Voltage for Display | VCC | 0 | 15 | V |
| Operating Temperature | TOP | -40 | +80 | °C |
| Storage Temperature | TSTG | -40 | +85 | °C |
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage for Logic | VDD | － | 1.65 | 3.0 | 3.3 | V |
| Charge Pump Regulator Supply Voltage | VBAT | － | 3.0 | － | 4.2 | V |
| Supply Voltage for Display (Supplied Externally) |
VCC | 6.0 | 7.5 | 8.0 | V | |
| Charge Pump Output Voltage for Display (Generated by Internal DC/DC) | Charge Pump VCC |
－ | 7.0 | 7.5 | － | V |
| Input High Volt. | VIH | － | 0.8×VDD | － | VDD | V |
| Input Low Volt. | VIL | － | 0 | － | 0.2×VDD | V |
| Output High Volt. | VOH | － | 0.9×VDD | － | VDD | V |
| Output Low Volt. | VOL | － | 0 | － | 0.1×VDD | V |
| Display 50% Pixel on (VCC Supplied Externally) | ICC | － | － | 3 | 6 | mA |
| Display 50% Pixel on (VCC Generated by Internal DC/DC) | IBAT | － | － | 5 | 20 | mA |
| No. | Symbol | Function |
|---|---|---|
| 1 | C2N | C2P/C2N – Pin for charge pump capacitor; Connect to each other with a capacitor. C1P/C1N – Pin for charge pump capacitor; Connect to each other with a capacitor |
| 2 | C2P | |
| 3 | C1P | |
| 4 | C1N | |
| 5 | VBAT | This is the power supply pin for the internal buffer of the DC/DC voltage converter. It must be connected to external source when the converter is used. It should be connected to VDD or kept float when the converter is not used. |
| 6 | NC | No connection. |
| 7 | VSS | This is a ground pin. |
| 8 | VDD | Power supply pin for core logic operation. |
| 9 | RES# | This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin HIGH (i.e. connect to VDD) during normal operation. |
| 10 | SCL | The serial clock input |
| 11 | SDA | The serial data input/output |
| 12 | IREF | This is segment output current reference pin. When external IREF is used, a resistor should be connected between this pin and Vss to maintain the IREF current at a maximum of 30uA. When internal IREF is used, this pin should be kept NC. |
| 13 | VCOMH | The pin for COM signal deselected voltage level. A capacitor should be connected between this pin and VSS. |
| 14 | VCC | This is the most positive voltage supply pin. When charge pump is enabled, a capacitor should be connected between this pin and VSS. |
