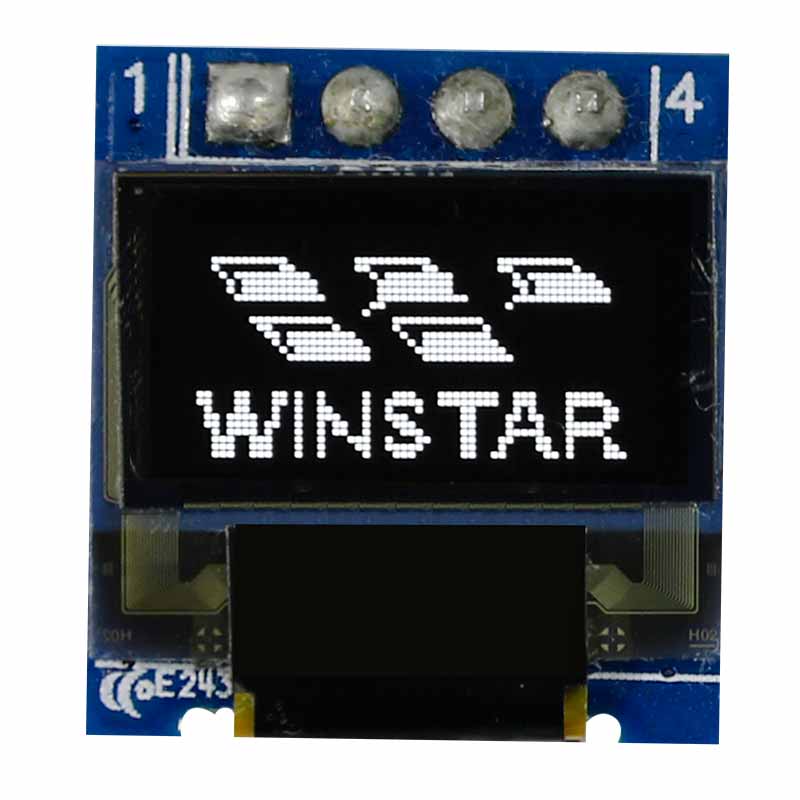

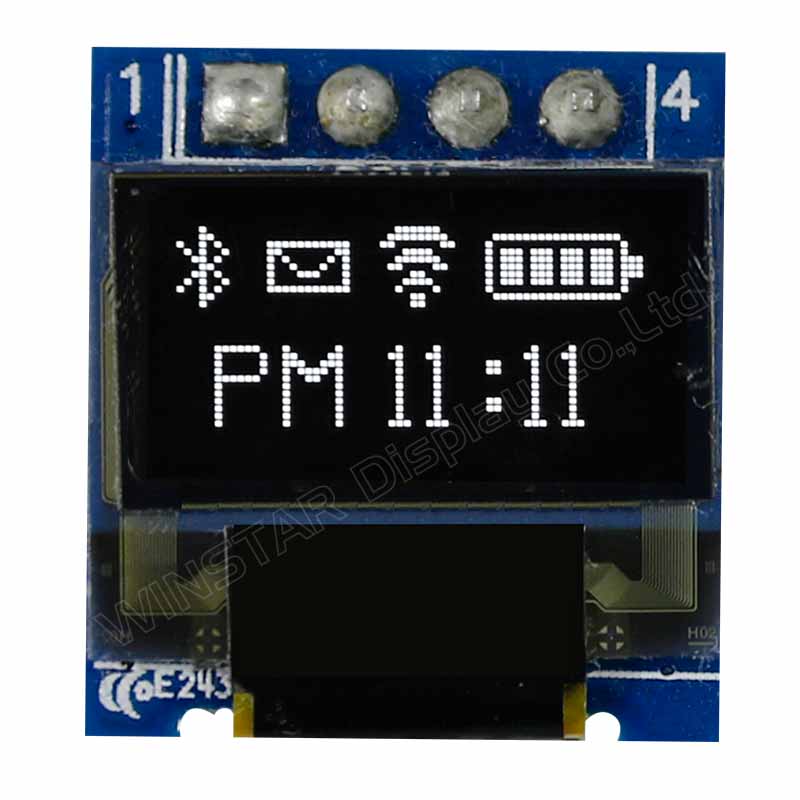

Compact 0.49-inch Graphic OLED with 64x32, SSD1306, I2C, and Integrated PCB

Model No. WEA006432A

►Size: 0.49 inch
►Type: Graphic
►Structure: COG+PCB
►64x32 Dot Matrix
►IC:SSD1306
►3V Power supply
►1/32 duty
►Interface: I2C

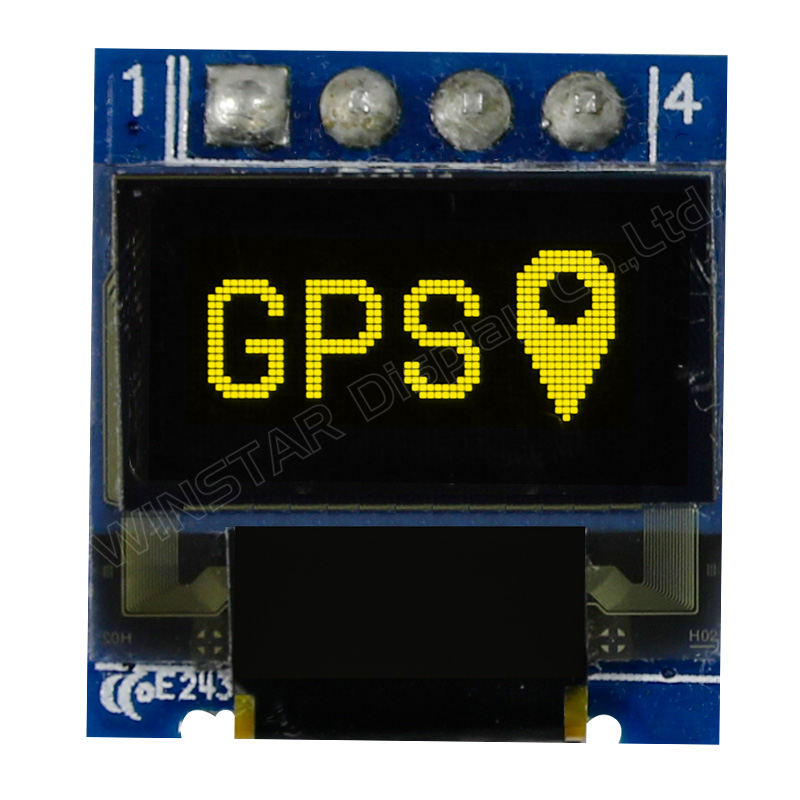

►Display Color: White / Yellow

Description

The WEA006432A is a compact 0.49-inch graphic OLED display with a high-resolution 64x32 pixel configuration. Built with a COG (Chip-on-Glass) structure and integrated into a PCB board, this module ensures robust performance and long-term durability. Powered by the SSD1306 IC, it supports the I2C interface for seamless communication, making it easy to integrate into a wide range of applications. It operates with a low 3V logic supply voltage, ideal for power-sensitive designs, and uses a 1/32 duty cycle to enhance efficiency and reduce power consumption.

The WEA006432A OLED module is designed to operate reliably across a wide temperature range of -40℃ to +80℃, with storage capabilities from -40℃ to +85℃. This makes it suitable for industrial devices, smart home applications, portable gadgets, healthcare equipment, metering devices, and more. Whether you're developing a battery-powered portable device or a smart home control system, this SSD1306 I2C OLED display provides clear, sharp graphics and is highly versatile for a variety of use cases.

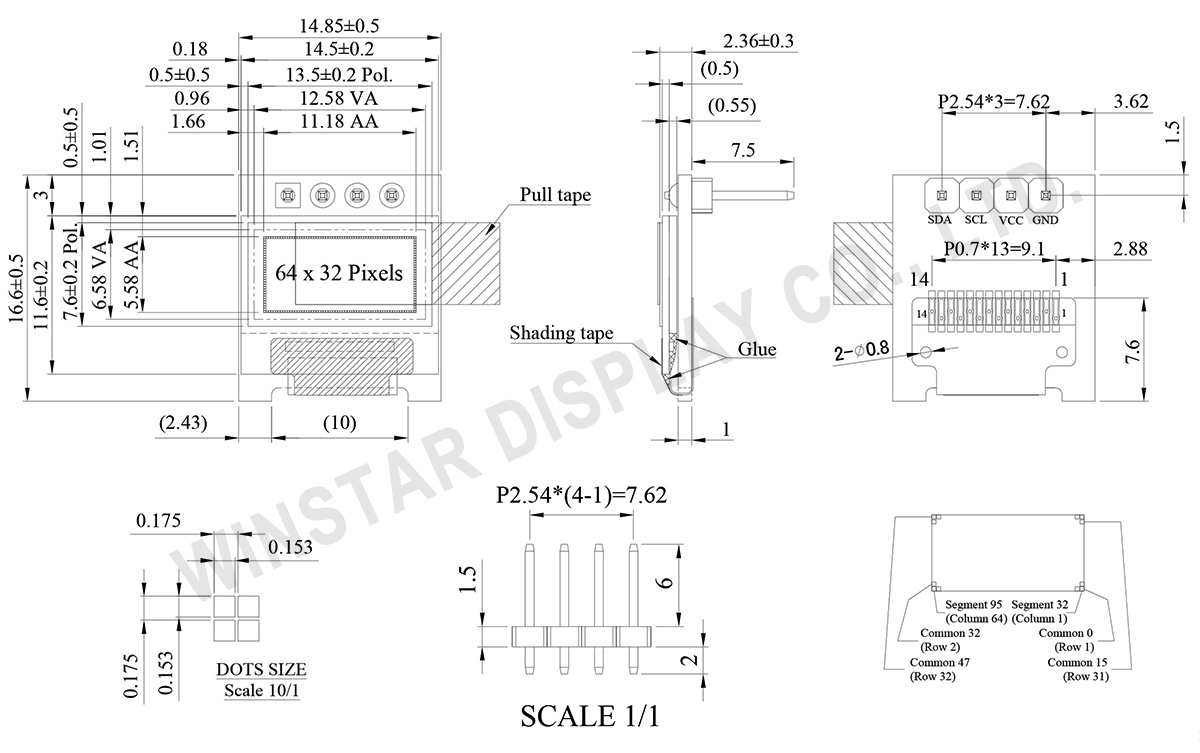

DRAWING

Compact 0.49-inch Graphic OLED with 64x32, SSD1306, I2C, and Integrated PCB - WEA006432A

Data source ref: WEA006432AWPP3N00000

SPECIFICATIONS

Mechanical Data

Item Dimension Unit
Dot Matrix 64 x 32 Dots
Module dimension 14.85 × 16.6 × 2.36 mm
Active Area 11.18 × 5.58 mm
Pixel Size 0.153 × 0.153 mm
Pixel Pitch 0.175 × 0.175 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/32 Duty
IC SSD1306
Interface I2C
Size 0.49 inch

Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Supply Voltage for Logic VCC 0 4.0 V
Supply Voltage for Display VCC1 0 16.0 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C

Electronical Characteristics

Item Symbol Condition Min Typ Max Unit
Supply Voltage for Logic VCC 2.8 3.0 3.2 V
Input High Volt. VIH 0.8×VDD VDDIO V
Input Low Volt. VIL 0 0.2×VDD V
Output High Volt. VOH 0.9×VDD VDDIO V
Output Low Volt. VOL 0 0.1×VDD V
50% check Board operating Current ICC VCC1=7.5V 13.0 26.0 mA

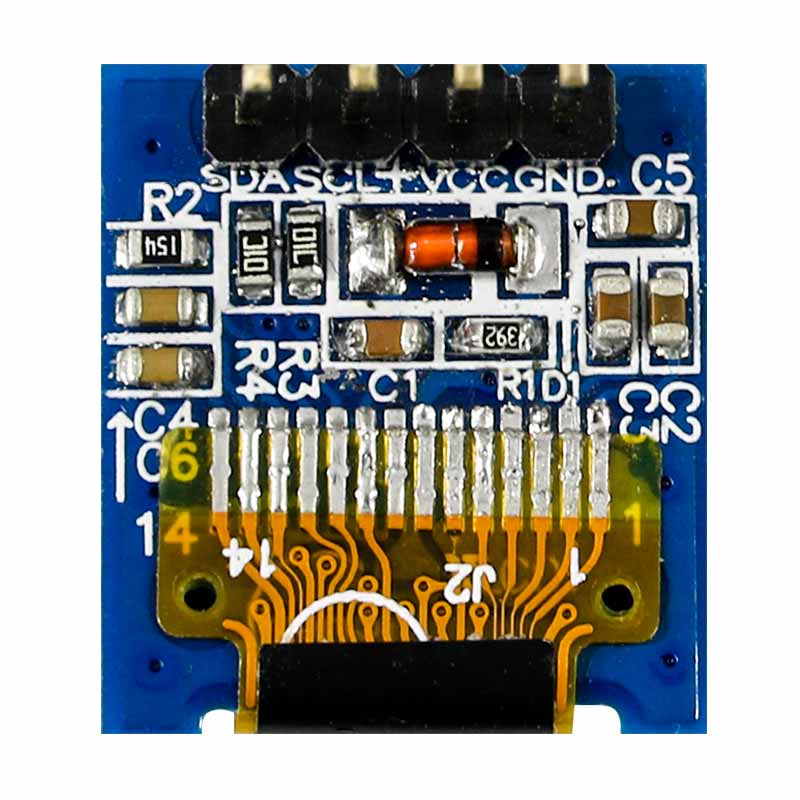

Interface Pin Function

No. Symbol Function
1 GND Ground
2 VCC Power supply input.
3 SCL When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI).
4 SDA
