2.8-Inch Grayscale COF OLED Display with 256x64 Resolution, Touch Panel, PCB, and Frame Support

Model No. WEN025664A-CTP

►Graphic OLED Display
►2.8" OLED
►Structure: COF + Frame + PCB
►256×64 Dot Matrix
►IC:SSD1322
►3V power supply
►1/64 duty cycle
►Interface: 6800, 8080, SPI
►With Capacitive Touch Screen (CTP)
►Detect Point : 1 Finger

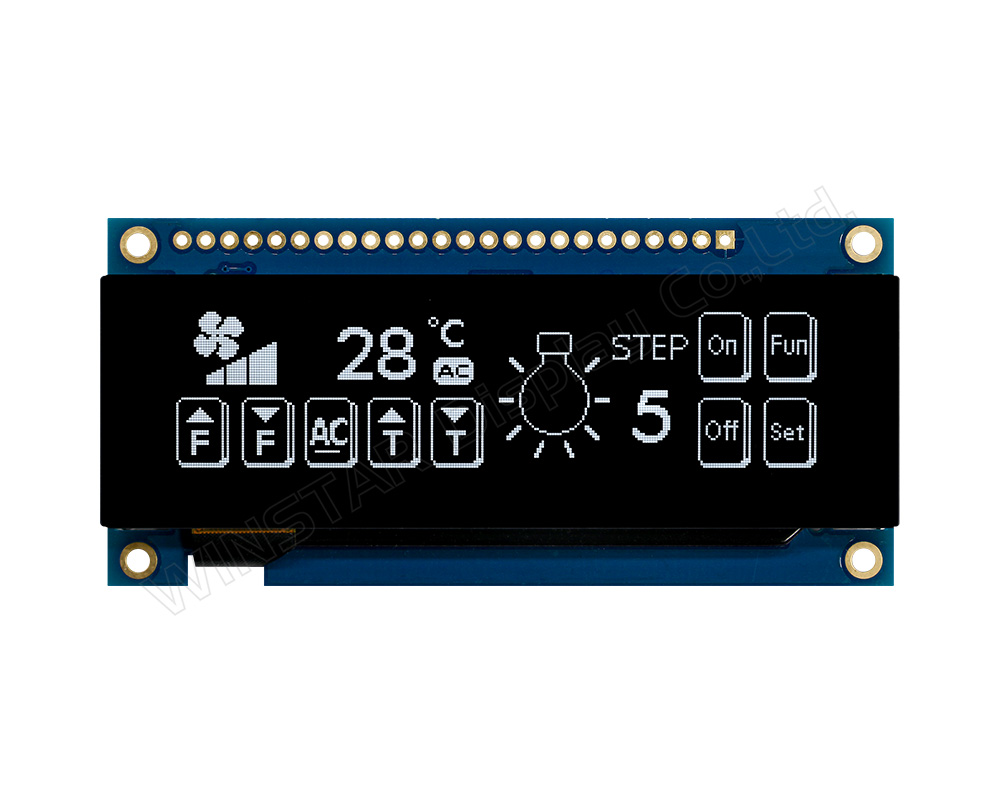

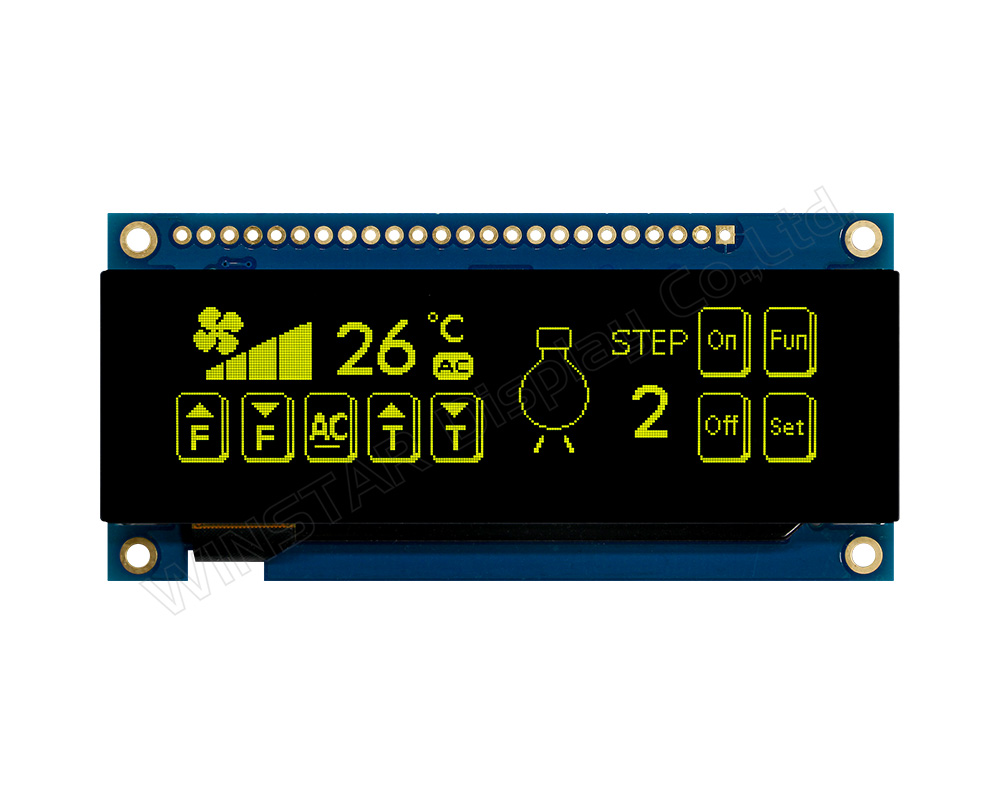

►Display Color: White / Yellow
►Support Grayscale

Description

The WEN025664A-CTP series is a 2.8-inch monochrome graphic COF OLED display featuring a capacitive touch panel with a resolution of 256x64 dots. It is equipped with the SSD1322 IC and supports multiple interfaces, including 6800/8080 8-bit and 3/4-wire SPI interfaces. The module dimensions of the WEN025664A-CTP are 85.0 × 39.8 mm, and the active area is 69.1 × 17.26 mm. The model incorporates a projected capacitive touch panel (PCAP) with the FT6336U IC, supporting I2C interfaces and 1-point touch.

The WEN025664A-CTP OLED series operates on a 3V power supply with a driving method of 1/64 duty. It supports grayscales and boasts a high contrast ratio of 10,000:1. The module is capable of functioning in temperatures ranging from -20°C to +70°C, with a storage temperature range of -30°C to +80°C.

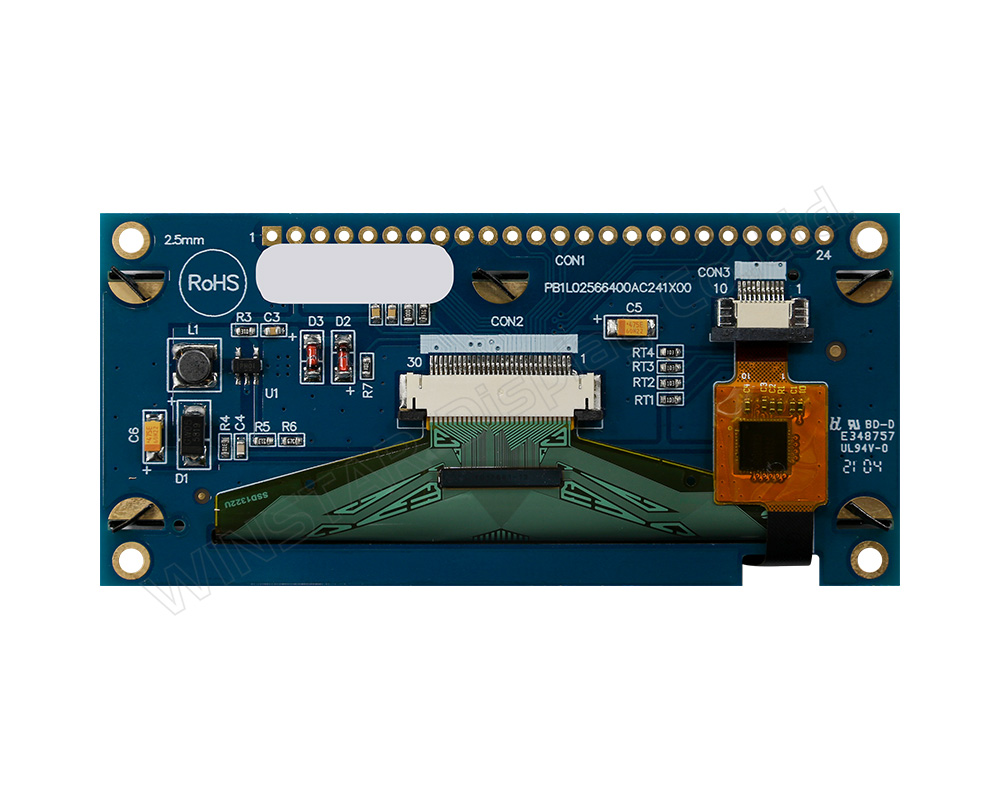

Featuring a metal frame with a PCB board and four screw holes, the WEN025664A-CTP facilitates easy installation for customers. The OLED series, equipped with a PCB board, can effortlessly connect with applications using wires, eliminating the need for customers to develop additional PCB boards. The integration of interface settings and VDD circuits enhances user-friendliness. Additionally, the four screw holes on the PCB simplify the installation process onto the application product.

The WEN025664A-CTP series also offers an option with the same OLED panel but without a touch panel. Please choose the WEN025664A series for the non-touch panel option.

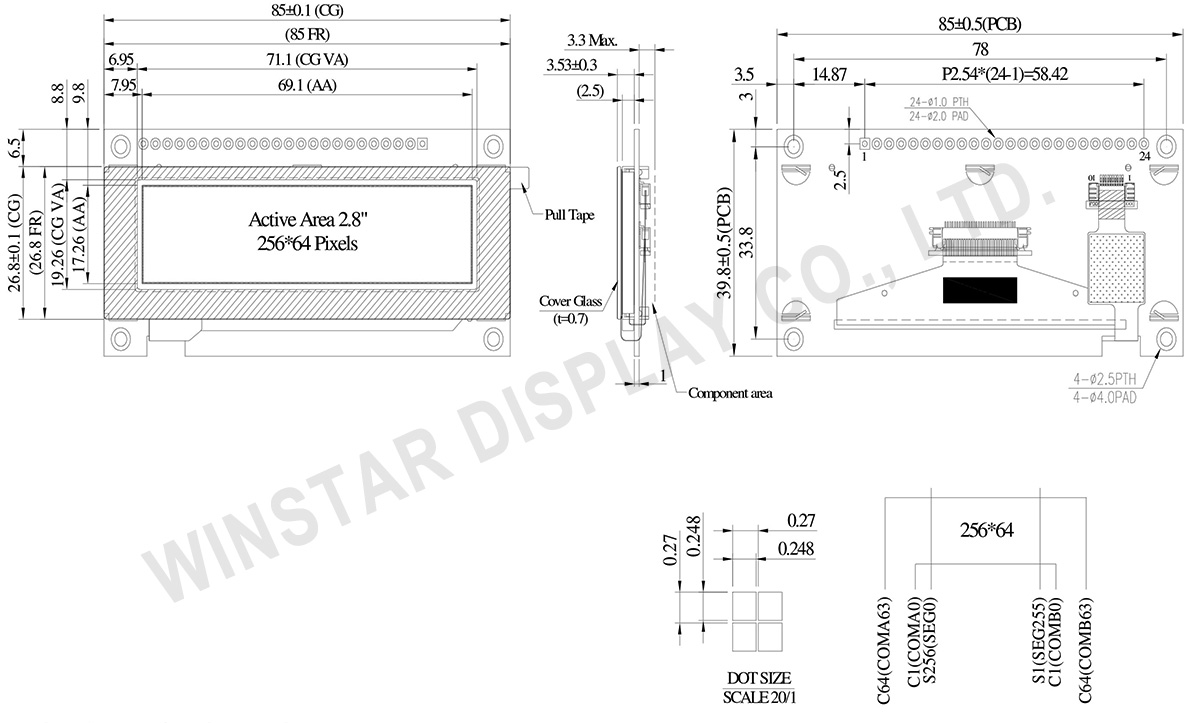

DRAWING

2.8 inch 256x64 OLED Display with Touch Panel Support Grayscale - WEN025664A-CTP

Data source ref: WEN025664AWPP3D00000

SPECIFICATIONS

Interface Pin Function

Pin Number Symbol I/O Function
1 VSS P Ground.
2 VDD P Power Supply for Core Logic Circuit
Power supply pin for core logic operation. A capacitor is required to connect between this pin and VSS
3 N.C. P Reserved Pin
The N.C. pin between function pins are reserved for compatible and flexible design.
4 D/C# I Data/Command Control
This pin is Data/Command control pin connecting to the MCU.
When the pin is pulled HIGH, the content at D[7:0] will be interpreted as data.
When the pin is pulled LOW, the content at D[7:0] will be interpreted as command.
5 R/W#
(WR#)
I Read/Write Select or Write
This pin is MCU interface input. When interfacing to a 68XX-series microprocessor, this pin will be used as Read/Write (R/W#) selection input. Pull this pin to “High” for read mode and pull it to “Low” for write mode.
When 80XX interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled low and the CS# is pulled low.
When serial mode is selected, this pin must be connected to VSS.
6 E/RD# I Read/Write Enable or Read
This pin is MCU interface input.
When interfacing to a 68XX-series microprocessor, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled high and the CS# is pulled low.
When connecting to an 80XX-microprocessor, this pin receives the Read (RD#) signal. Data read operation is initiated when this pin is pulled low and CS# is pulled low.
When serial mode is selected, this pin must be connected to VSS.
7~14 DB0 I/O Host Data Input/Output Bus
These pins are 8-bit bi-directional data bus to be connected to the microprocessor’s data bus.
When serial mode is selected, D1 will be the serial data input SDIN and D0 will be the serial clock input SCLK.
DB1
DB2
DB3
DB4
DB5
DB6
DB7
15 NC P Reserved Pin
The N.C. pin between function pins are reserved for compatible and flexible design.
16 RES# I This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.
17 CS# I Data/Command Control
This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW.
18 NC P Reserved Pin
The N.C. pin between function pins are reserved for compatible and flexible design.
19 BS1 I Communicating Protocol Select
These pins are MCU interface selection input. See the following table:
BS[1:0] Interface
00 4 line SPI
01 3 line SPI
10 8-bit 8080 parallel
11 8-bit 6800 parallel

Note
(1) 0 is connected to VSS
(2) 1 is connected to VDD
20 BS0
21 TP_SCK I I2C clock input
22 TP_SDA I I2C data input and output
23 TP_INT I External interrupt to the host
24 TP_RST I External Reset, Low is active

General Specification

Item Dimension Unit
Dot Matrix 256 × 64 Dots
Module dimension 85.0 × 39.8 ×7.83 mm
Active Area 69.1 × 17.26 mm
Pixel Size 0.248×0.248 mm
Pixel Pitch 0.27×0.27 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
OLED IC SSD1322 (COF)
OLED Interface 6800, 8080, SPI
Size 2.8 inch
CTP IC FT6336U
Detect Point 1
CTP Interface I2C
Surface Normal Glare

Absolute Maximum Ratings

Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Supply Voltage for Display VDD -0.3 4 V
Operating Temperature TOP -20 +70 °C
Storage Temperature TSTG -30 +80 °C

Electronical Characteristics

DC Electrical Characteristics

Item Symbol Condition Min Typ Max Unit
Supply Voltage for Logic VDD 2.8 3.0 3.3 V
High Level Input VIH 0.8×VDD VDD V
Low Level Input VIL 0 0.2×VDD V
High Level Output VOH 0.9×VDD VDD V
Low Level Output VOL 0 0.1×VDD V
50% Check Board operating Current IDD VDD =3V 125 250 mA
