Model No. WH1602B
►16x2 LCD Display
►Type: Character
►Structure : COB
►Size: 2.26 inch
►16 characters x 2 Lines
►5x8 dots includes cursor
►+5V power supply (Also available for +3V)
►Negative voltage option is only for the +3V power supply
►1/16 duty cycle
►LED can be driven by PIN1, PIN2, PIN15, PIN16 or A and K
►WH1602B2 : total thickness 10.0mm
►Interface: 6800 (ST7066 IC), option SPI/I2C (RW1063 IC)
The WH1602B series is one of WINSTAR's most popular 16x2 LCD display modules, designed to meet a wide range of system integration needs. Each module features a 16-character × 2-line format, supports either 5V or 3V power supply, and is equipped with a standard controller IC—ST7066 or RW1063, depending on the interface type. These modules include 8-character CGRAM for user-defined characters and provide optional access to low-level commands for advanced control.
Unlike many standard COB character modules that require an external control board for serial communication, WINSTAR's WH1602B1 (SPI) and WH1602B3 (I2C) integrate the interface controller directly on the COB. This makes the 16x2 LCD display easier to implement, reduces component count, and simplifies PCB layout. With only two I/O pins required, this design enables flexible control via hardware or software, making system integration quick and efficient.
This series supports multiple interface options—including Parallel, SPI, and I2C—to meet diverse application requirements. If your design requires a 6800 parallel interface, choose model WH1602B. For systems requiring Traditional or Simplified Chinese font support, we recommend our graphic LCD module WG14432B.
| Model No. | Interface Type | Controller IC | Thickness (No B/L) | Thickness (With B/L) |
|---|---|---|---|---|
| WH1602B | 6800 (4/8-bit Parallel) | ST7066 | 9.70 mm | 13.2–13.5 mm |
| WH1602B1 | 4-line SPI | RW1063 | 9.70 mm | 13.2–13.5 mm |
| WH1602B2 | 6800 (4/8-bit Parallel) | ST7066 | 10.0 mm | - |
| WH1602B3 | I2C | RW1063 | 9.70 mm | 13.2–13.5 mm |
This WINSTAR 16x2 LCD display module is highly compatible with industrial applications such as control panels, diagnostic devices, and compact user interfaces. Whether you're developing a simple interface or a sophisticated control system, the WH1602B series delivers a reliable solution with a compact footprint. Also known as a 16 by 2 LCD, this versatile module fits seamlessly into space-constrained industrial and consumer applications.
This series is ideal for applications requiring clear character output in a compact form factor. Looking for a display LCD 16x2 datasheet or the complete 16x2 character LCD datasheet? The standard datasheet is available for download on this page. For more detailed specifications or custom configurations, please contact us.

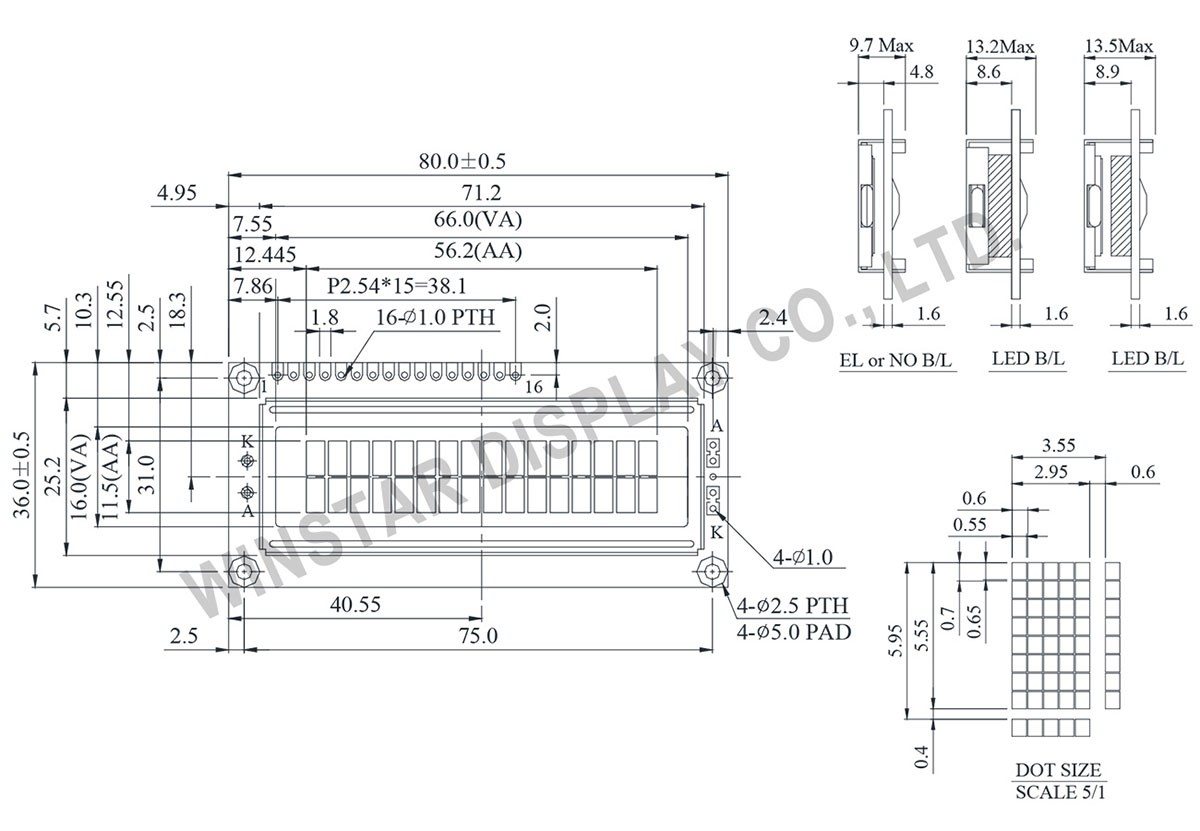

| Item | Dimension | Unit |
|---|---|---|
| Number of Characters | 16 Characters x 2 Lines | － |
| Module dimension | 80.0 x 36.0 x 13.5 (MAX) | mm |
| View area | 66.0 x 16.0 | mm |
| Active area | 56.20 x 11.5 | mm |
| Dot size | 0.55 x 0.65 | mm |
| Dot pitch | 0.60 x 0.70 | mm |
| Character size | 2.95 x 5.55 | mm |
| Character pitch | 3.55 x 5.95 | mm |
| Duty | 1/16 | |
| Backlight Type | LED | |
| IC | ST7066U | |
| Interface | 6800 | |
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
| Input Voltage | VI | VSS | － | VDD | V |
| Supply Voltage For Logic | VDD-VSS | -0.3 | － | 7 | V |
| Supply Voltage For LCD | VDD-Vo | -0.3 | － | 13 | V |
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For Logic | VDD-VSS | － | 4.5 | 5.0 | 5.5 | V |
| Supply Voltage For LCD | VDD-V0 | Ta=-20℃ Ta=25℃ Ta=70℃ |
－ 3.6 3.2 |
－ 3.7 － |
5.2 3.8 － |
V V V |
| Input High Volt. | VIH | － | 0.7 VDD | － | VDD | V |
| Input Low Volt. | VIL | － | Vss | － | 0.6 | V |
| Output High Volt. | VOH | － | 3.9 | － | VDD | V |
| Output Low Volt. | VOL | － | 0 | － | 0.4 | V |
| Supply Current | IDD | VDD=5.0V | 1.0 | 1.2 | 1.5 | mA |
| Pin No. | Symbol | Level | Description |
|---|---|---|---|
| 1 | VSS | 0V | Ground |
| 2 | VDD | 5.0V | Supply Voltage for logic |
| 3 | VO | (Variable) | Contrast Adjustment |
| 4 | RS | H/L | H: DATA, L: Instruction code |
| 5 | R/W | H/L | H: Read L: Write |
| 6 | E | H,H→L | Chip enable signal |
| 7 | DB0 | H/L | Data bus line |
| 8 | DB1 | H/L | Data bus line |
| 9 | DB2 | H/L | Data bus line |
| 10 | DB3 | H/L | Data bus line |
| 11 | DB4 | H/L | Data bus line |
| 12 | DB5 | H/L | Data bus line |
| 13 | DB6 | H/L | Data bus line |
| 14 | DB7 | H/L | Data bus line |
| 15 | A | － | Power supply for B/L(+) |
| 16 | K | － | Power supply for B/L(-) |
