Model No. WEA012864AA
►Type: Graphic
►Structure: COG+PCB
►Size: 1.54 inch
►128 x 64 Dot Matrix
►IC：SSD1327
►3V Power supply
►1/64 duty
►Interface: 4-wire SPI
►Display Color: White / Yellow
►Support Grayscale

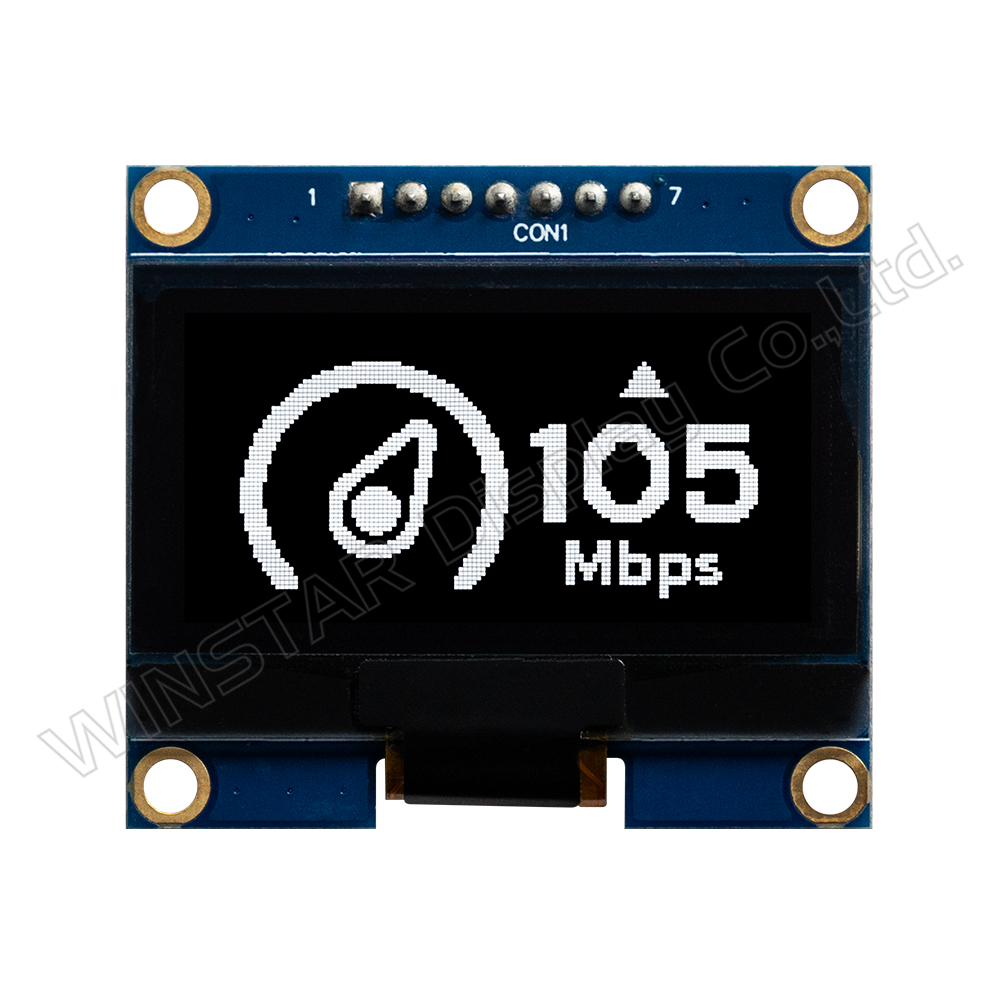

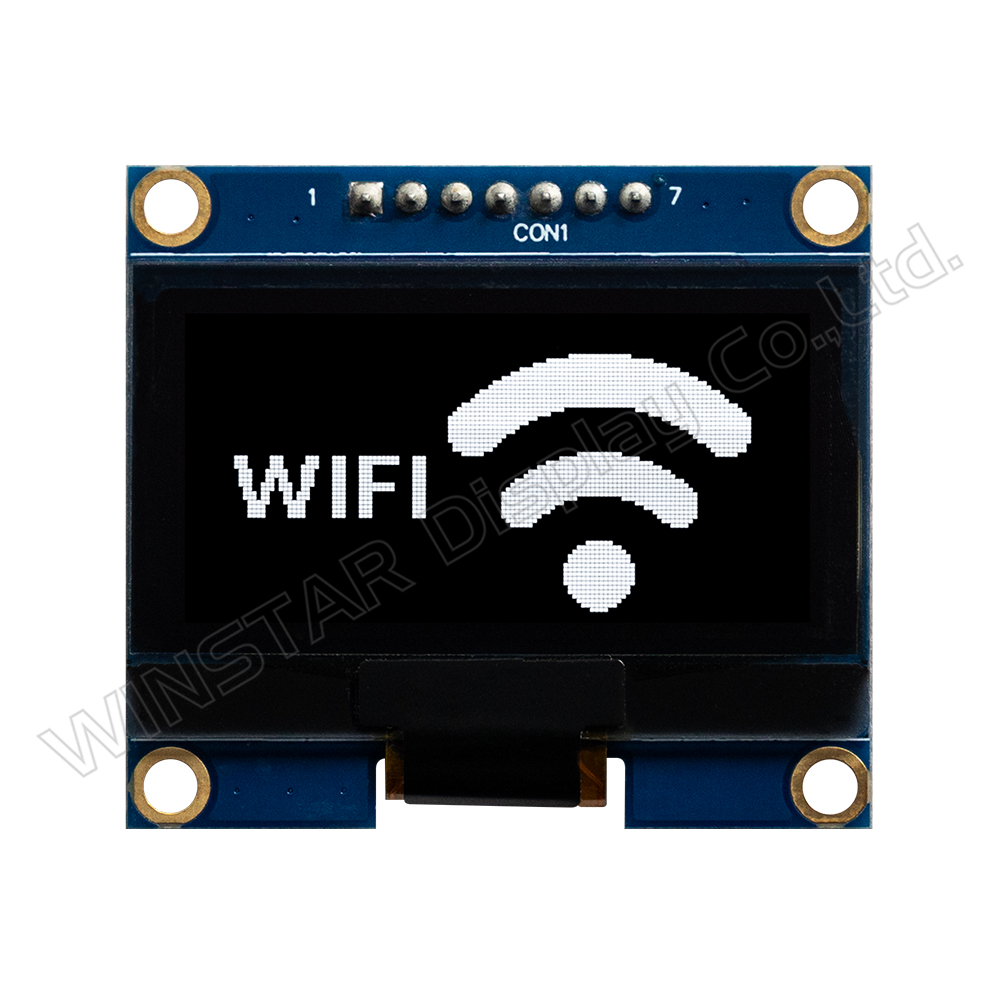

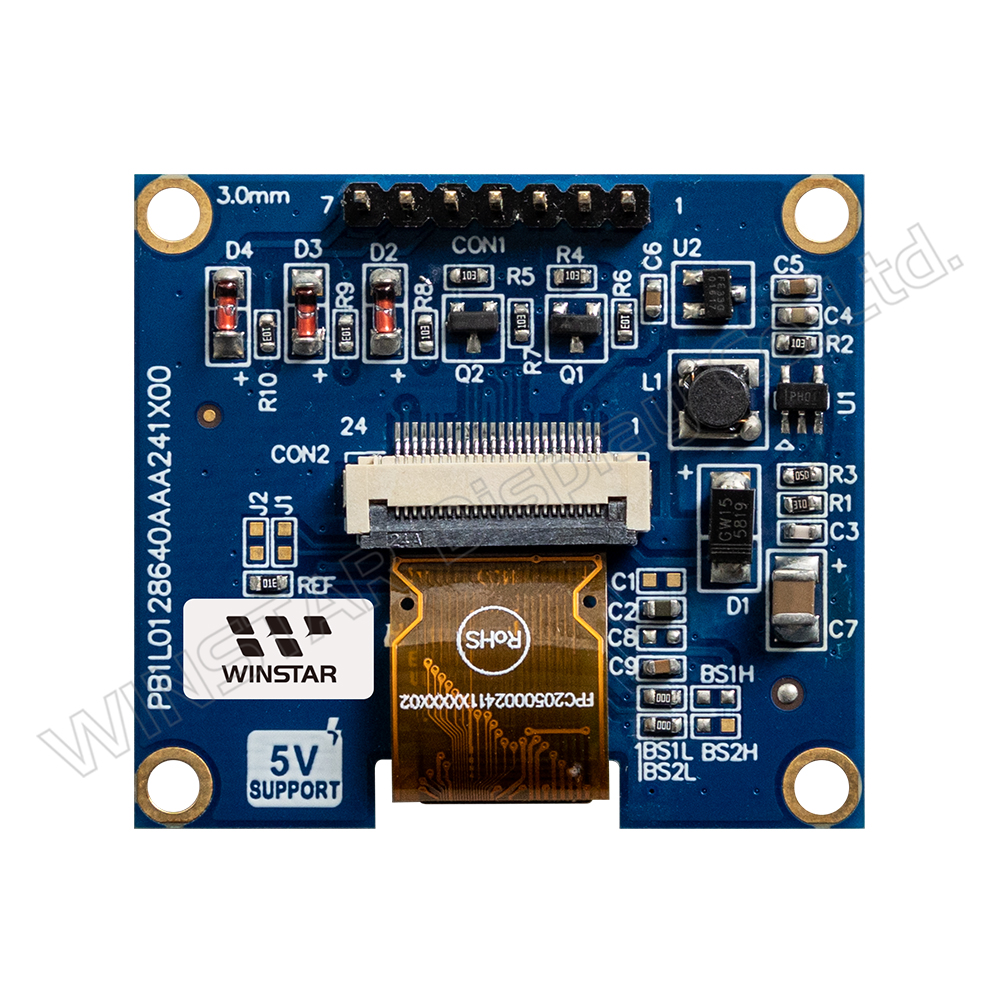

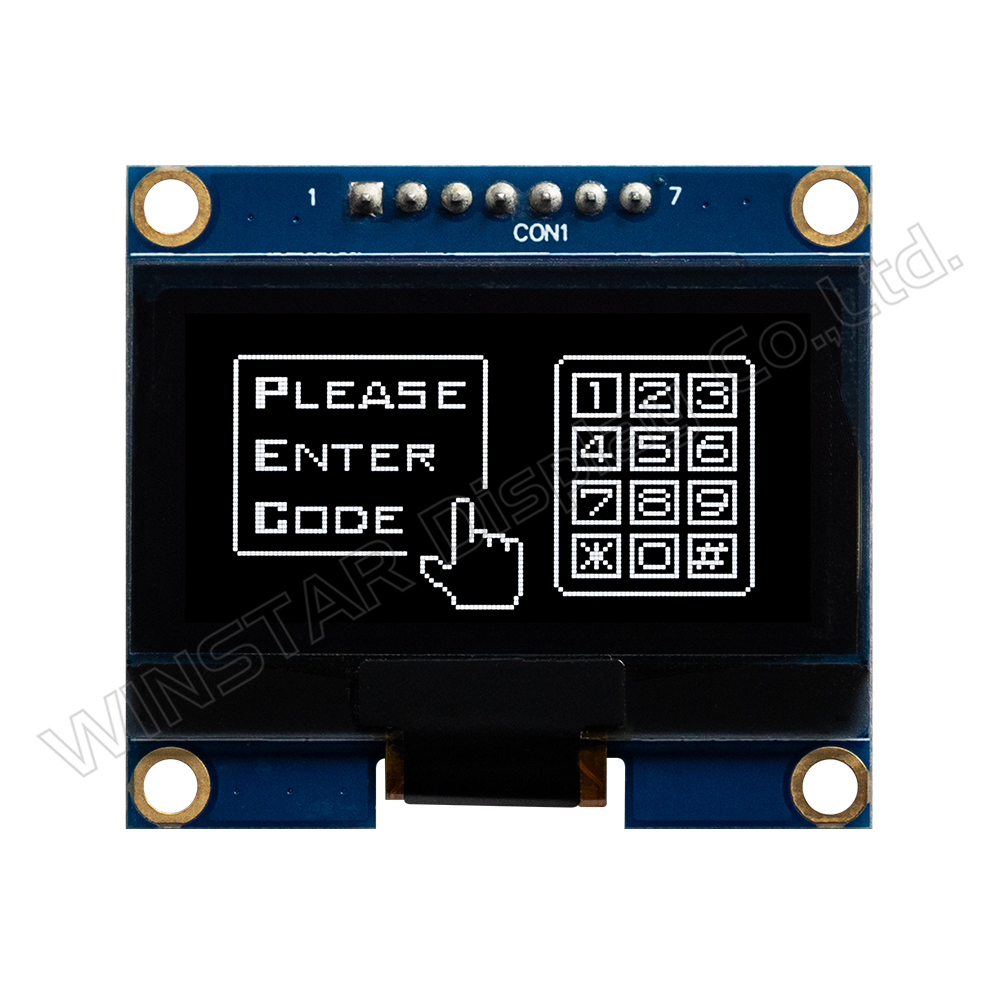

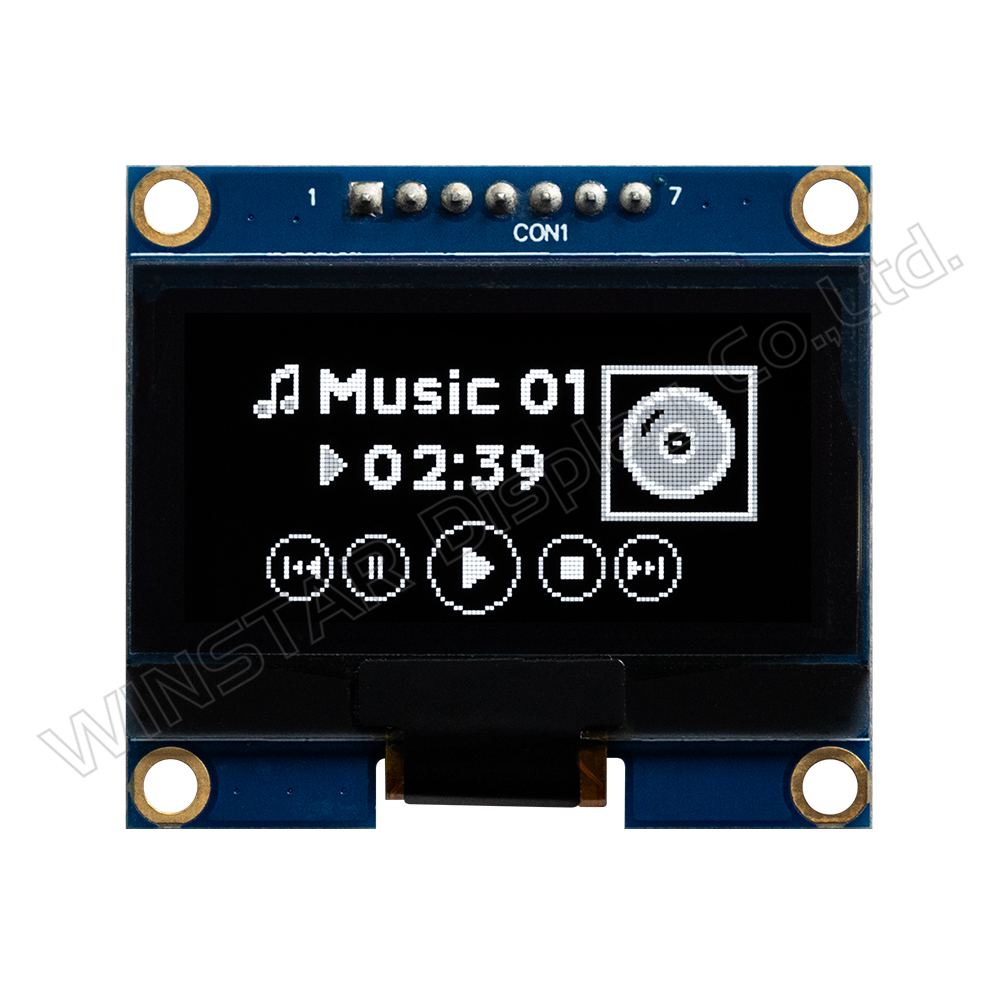

WEA012864AA is a diagonal 1.54 inch OLED display with a resolution of 128x64 pixels. The module has the SSD1327 IC, supporting 4-wire SPI interfaces and optional I2C interfaces with driving duty 1/64. The supply voltage for logic is from 3.3V to 5V.
This OLED module can present 4 bits grayscale and is suitable for electronic devices, medical applications, automotive meters, etc. WEA012864AA can operate at temperatures from -40°C to +80°C; its storage temperatures range from -40°C to +85°C.
Data source ref: WEA012864AAWAP3N00000

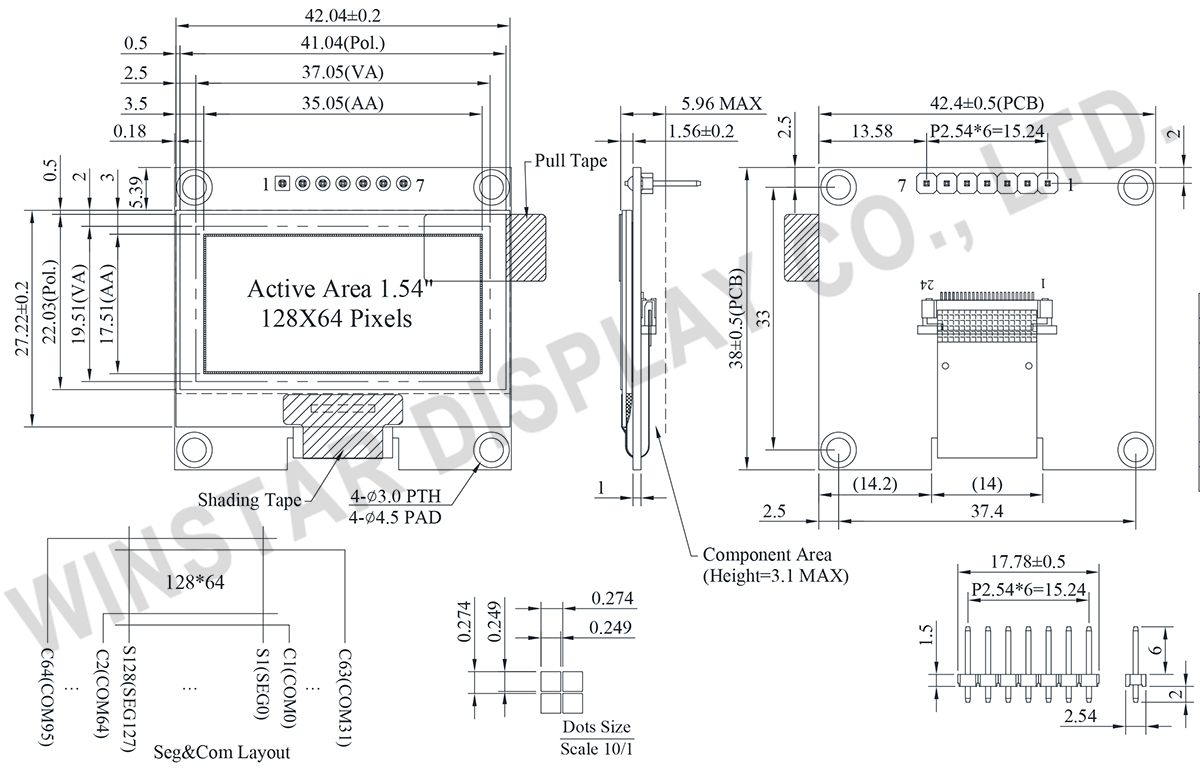

| Item | Dimension | Unit |
|---|---|---|
| Dot Matrix | 128 × 64 | - |
| Module dimension | 42.4 x 38.0 x 5.96(MAX) | mm |
| Active Area | 35.05 × 17.51 | mm |
| Pixel Size | 0.249 × 0.249 | mm |
| Pixel Pitch | 0.274 × 0.274 | mm |
| Display Mode | Passive Matrix | |
| Display Color | Monochrome | |
| Drive Duty | 1/64 Duty | |
| Gray Scale | 4 bits | |
| IC | SSD1327 | |
| Interface | 4-wire SPI | |
| Size | 1.54 inch | |
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Supply Voltage for Logic | VCC | 2.0 | 5.5 | V |
| Operating Temperature | TOP | -40 | +80 | °C |
| Storage Temperature | TSTG | -40 | +85 | °C |
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage for Logic(3V/5V) | VCC | － | 2.8 | 3.3 | 5.2 | V |
| Input High Volt. | VIH | － | 0.8×VCC | - | VCC | V |
| Input Low Volt. | VIL | － | VSS | - | 0.2×VCC | V |
| Output High Volt. | VOH | － | 0.9×VCC | - | VCC | V |
| Output Low Volt. | VOL | － | 0 | - | 0.1×VCC | V |
| Display 50% Pixel on | ICC | VCC =3.0V | - | 60 | 120 | mA |
| No. | Symbol | Function |
|---|---|---|
| 1 | GND | This is a ground pin. |
| 2 | VCC | Power supply for panel driving voltage. This is also the most positive power voltage supply pin. It is supplied by external high voltage source. |
| 3 | D0 | These pins are bi-directional data bus connecting to the MCU data bus. Unused pins are recommended to tie LOW. When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC. |
| 4 | D1 | |
| 5 | RES# | This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin pull HIGH during normal operation. |
| 6 | D/C# | This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data. When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register. |
| 7 | CS# | This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW). |
