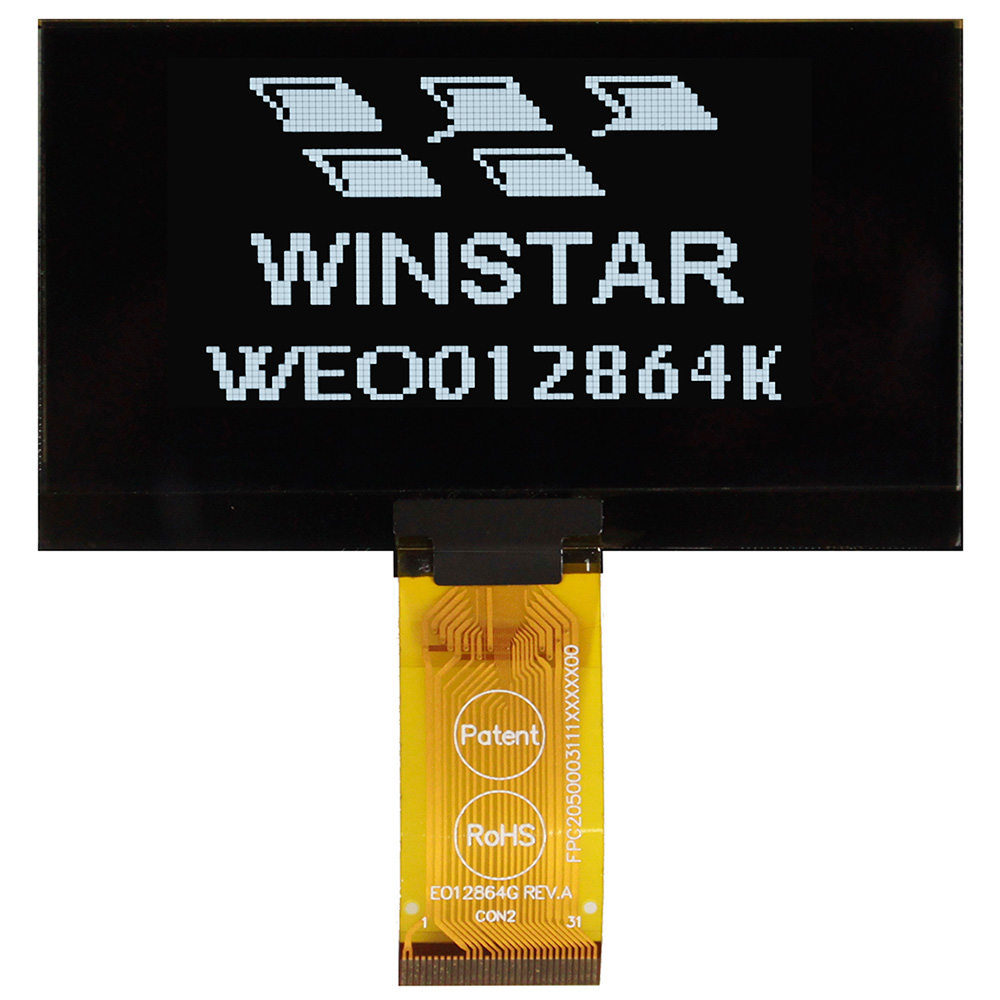

2.7" Graphic OLED Monochrome 128x64

Model No. WEO012864K

►Type: Graphic
►Structure: COG; Frame Option
►Size: 2.7 inch
►128 x 64 Dot Matrix
►IC:SSD1309
►3V Power supply
►1/64 duty
►Interface: 6800, 8080, SPI, I2C
►Display Color: White / Yellow / Sky Blue / Green
►Other FPC options available in below table

Description

Winstar OLED Monochrome Display WEO012864K is made of 128x64 pixels, diagonal size is 2.7 inch. This graphic display is built-in SSD1309 IC which with the module dimension of 73.0 x 41.86 mm and AA size of 61.41 x 30.69 mm. The display is based on a chip-on-glass technology and therefore reaches a very low installation depth of only 2.15 mm.

     Frame Option | FPC Options

DRAWING

Winstar WEO012864K 2.7 Graphic OLED Monochrome 128x64

Data source ref:WEO012864KLPP3N00000

SPECIFICATIONS

General Specification

Item Dimension Unit
Dot Matrix 128 x 64
Module dimension 73.0 × 41.86 × 2.11 mm
Active Area 61.41 × 30.69 mm
Pixel Size 0.45 × 0.45 mm
Pixel Pitch 0.48 × 0.48 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty

Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Supply Voltage for Logic VDD -0.3 4 V
Supply Voltage for Display VCC 0 15 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C

Electronical Characteristics

Item Symbol Condition Min Typ Max Unit
Supply Voltage for Logic VDD 2.8 3.0 3.3 V
Supply Voltage for Display VCC 12 13 14 V
High Level Input VIH 0.8×VDD V
Low Level Input VIL 0.2×VDD V
High Level Output VOH 0.9×VDD V
Low Level Output VOL 0.1×VDD V
50% Check Board operating Current VCC =13.0V 22 33 mA

Interface Pin Function

No. Symbol Function
1 NC(GND) No connection
2 VSS Ground.
3-10 NC No connection
11 VDD Power supply pin for core logic operation
12 BS1 MCU bus interface selection pins. Select appropriate logic setting as described in the following table. BS2, BS1 and BS0 are pin select
  BS1 BS2
I2C 1 0
4-wire Serial 0 0
8-bit 68XX Parallel 0 1
8-bit 80XX Parallel 1 1
Note
(1) 0 is connected to VSS
(2) 1 is connected to VDD
13 BS2
14 NC No connection
15 CS# This pin is the chip select input connecting to the MCU.
The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).
16 RES# This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.
17 D/C# This pin is Data/Command control pin connecting to the MCU.
When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data.
When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register.
In I2C mode, this pin acts as SA0 for slave address selection.
When 3-wire serial interface is selected, this pin must be connected to VSS.
18 R/W# This pin is read / write control input pin connecting to the MCU interface.
When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW.
When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected.
When serial or I2C interface is selected, this pin must be connected to VSS.
19 E/RD# This pin is MCU interface input.
When 6800 interface mode is selected, this pin will be used as the Enable (E) signal.
Read/write operation is initiated when this pin is pulled HIGH and the chip is selected.
When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected.
When serial or I2C interface is selected, this pin must be connected to VSS.
20~27 D0~D7 These pins are bi-directional data bus connecting to the MCU data bus.
Unused pins are recommended to tie LOW.
When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC.
When I2C mode is selected, D2, D1 should be tied together and serve as SDAout,
SDAin in application and D0 is the serial clock input, SCL.
28 IREF This pin is the segment output current reference pin.
IREF is supplied externally.
29 VCOMH COM signal deselected voltage level.
A capacitor should be connected between this pin and VSS.
30 VCC Power supply for panel driving voltage. This is also the most positive power voltage supply pin.
31 NC(GND) No connection

Frame Option:

Drawing Reference Part Number Material Detailed Drawing
WEF012864K WEF012864K* SUS-304 spec drawing

FPC Options:

Drawing Reference Part Number FPC Length PIN pitch ZIF FPC or HOTBAR FPC Interface
FPC2050003111XXXXX01_WEO012864KLPP3N00000 WEO012864KWPP3N000** 36 31 0.5 ZIF 6800, 8080, SPI, I2C
FPC2050002211XXXXX03_WEO012864KWPP3N00F00 WEO012864KWPP3N00F** 69.85 22 0.5 ZIF 6800, 8080, SPI, I2C
FPC2050002411XXXXX11 WEO012864QWPP3N000** 105.57 30 0.5 ZIF 6800, 8080, SPI, I2C
FPC2050003011XXXXX11 WEF012864QLPP3N00F** 42 24 0.5 ZIF 6800, 8080, SPI, I2C
