مدل شماره WEP012832A-CTP

◄نوع : گرافیک
◄ساختار: COG+PCB+Frame
◄سایز: 2.23 اینچ
◄ماتریس نقطه ای 128×32
◄کنترلگر SSD1305
◄منبع انرژی +3V
◄چرخه کار 1/32
◄رابط: 6800, 8080, SPI, I2C
◄صفحه لمسی: با پنل (صفحه) لمسی خازنی (CTP)
◄Detect Point : 1 Finger
◄رنگ صفحه‌نمایش: سفید, زرد, آبی

طراحی

2.23 128x32 Capacitive Touch OLED Display - WEP012832A-CTP - Winstar Display

Data source ref: WEP012832AWPP3D00001

مشخصات

عملکرد پین رابط

.No نماد عملکرد
1 VSS .Ground
2 VDD .Power supply pin for core logic operation
3 V0 .Keep float (i.e. disable). Power supply for panel driving voltage. This is also the most positive power voltage supply pin
4 D/C# This is Data/Command control pin. When it is pulled HIGH (i.e. connect to VDDIO), the data at D[7:0] is treated as data. When it is pulled LOW, the data at D[7:0] will be transferred to .the command register
.In I2C mode, this pin acts as SA0 for slave address selection
5 R/W# .This is read / write control input pin connecting to the MCU interface
When interfacing to a 6800-series microprocessor, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH (i.e. connect to VDDIO) and write mode when LOW. When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the .chip is selected
.When serial interface is selected, this pin must be connected to VSS
6 E/RD# (When interfacing to a 6800-series microprocessor, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled HIGH (i.e. connect to VDDIO
.and the chip is selected
.When connecting to an 8080-microprocessor, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected
.When serial interface is selected, this pin must be connected to VSS
7~14 DB0~DB7 .These are 8-bit bi-directional data bus to be connected to the microprocessor's data bus
When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be left opened. When I2C mode is selected, D2, D1 .should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL
15 CS# (This pin is the chip select input. (active LOW
16 RES# .This pin is reset signal input. When the pin is LOW, initialization of the chip is executed
.Keep this pin HIGH (i.e. connect to VDDIO) during normal operation
17,18 BS1, BS2 Communicating Protocol Select.
These pins are MCU interface selection input. See the following table:
  68XX-parallel 80XX-parallel Serial I2C
BS1 0 1 0 1
BS2 1 1 0 0
19 N.C. No connection.
20 FG(GND) Ground.
21 TP_SCK I2C Clock
22 TP_SDA I2C Data
23 TP_INT Interrupt Output
This pin is used as the dedicated interrupt output signal.
24 TP_RST Hardware Reset
This pin is to reset hardware for this chip.
25 TP_VDD Power supply pin for only touch panel (3.3V).
26 VSS Ground.
27 N.C. No connection.
28 N.C. No connection.

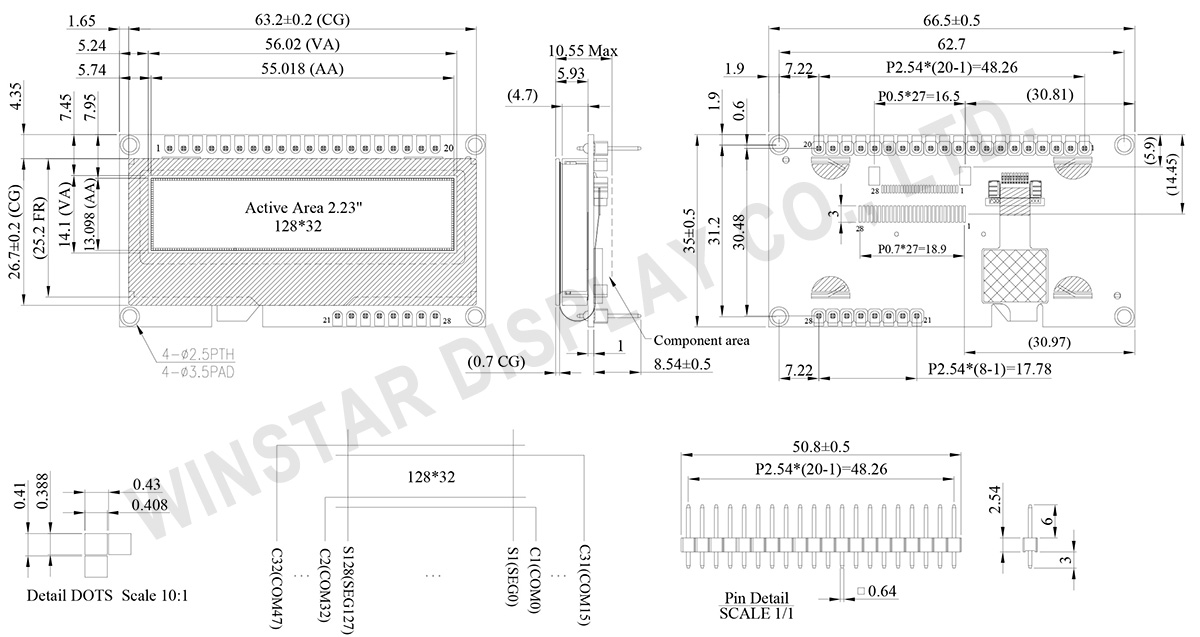

داده مکانیکی

مورد ابعاد واحد
وضوح 128 × 32 Dots
ابعاد ماژول 66.5 × 35.0 × 10.55 mm
ناحیه فعال 55.018 × 13.098 mm
اندازه نقطه 0.408 × 0.388 mm
درجه نقطه 0.43 × 0.41 mm
حالت رنگ ماتریس غیرفعال
رنگ صفحه‌نمایش Monochrome
Drive Duty 1/32 Duty
IC SSD1305
OLED رابط 6800, 8080, 4-Wire SPI, I2C
قطری 2.23 اینچ

CTP IC FT6336U
Detect Point 1
CTP رابط I2C
سطح تابش خیره‌کننده

بیشینه مقادیر مجاز مطلق

Parameter نماد مقدار حداقل مقدار حداکثر واحد
Supply Voltage for Logic VDD -0.3 4.0 V
Supply Voltage for Display V0 0 16.0 V
دمای عملیاتی TOP -20 +70 °C
دمای بسته‌بندی TSTG -40 +85 °C


Touch Panel Controller FT6336U

Parameter نماد مقدار حداقل مقدار حداکثر واحد
Power Supply Voltage VDD -0.3 3.6 V

مشخصات الکترونیکی

DC مشخصات الکترونیکی

مورد نماد وضعیت مقدار حداقل مقدار معمول مقدار حداکثر واحد
Supply Voltage for Logic VDD 3.2 3.3 3.5 V
Supply Voltage for Display V0 12.0 12.5 13.0 V
Input High Volt. VIH 0.8×VDD VDD V
Input Low Volt. VIL 0 0.2×VDD V
Output High Volt. VOH IOUT = 100uA, 3.3MHz 0.9×VDD VDD V
Output Low Volt. VOL IOUT = 100uA, 3.3MHz 0 0.1×VDD V
Operating Current for VDD 50% Check Board IDD V0 =12.5V - 85 128 mA


Touch Panel Controller FT6336U

مورد نماد وضعیت مقدار حداقل مقدار معمول مقدار حداکثر واحد
Supply Voltage VDD 2.8 3.0 3.3 V
Input High Volt. VIH 0.7xVDD VDD V
Input Low Volt. VIL -0.3 0.3xVDD V
Output High Volt. VOH IOH = -0.1mA 0.7xVDD V
Output Low Volt. VOL IOH = 0.1mA 0.3xVDD V
