Model No. WF70D3TIFGDHGV
►Size: 7"
►Resolution : 800x480 dots
►View Direction: 12H
►Interface: HDMI(only for DVI)
►Controller IC : TFP401
►Control-Board : Yes
►Brightness(cd/m2): 350
►Frame Through Hole: No
►Touch Screen : Projected Capacitive Touch Screen
►Touch Points : 1 / 2 / Option
►Operating Temperature : -20~70℃

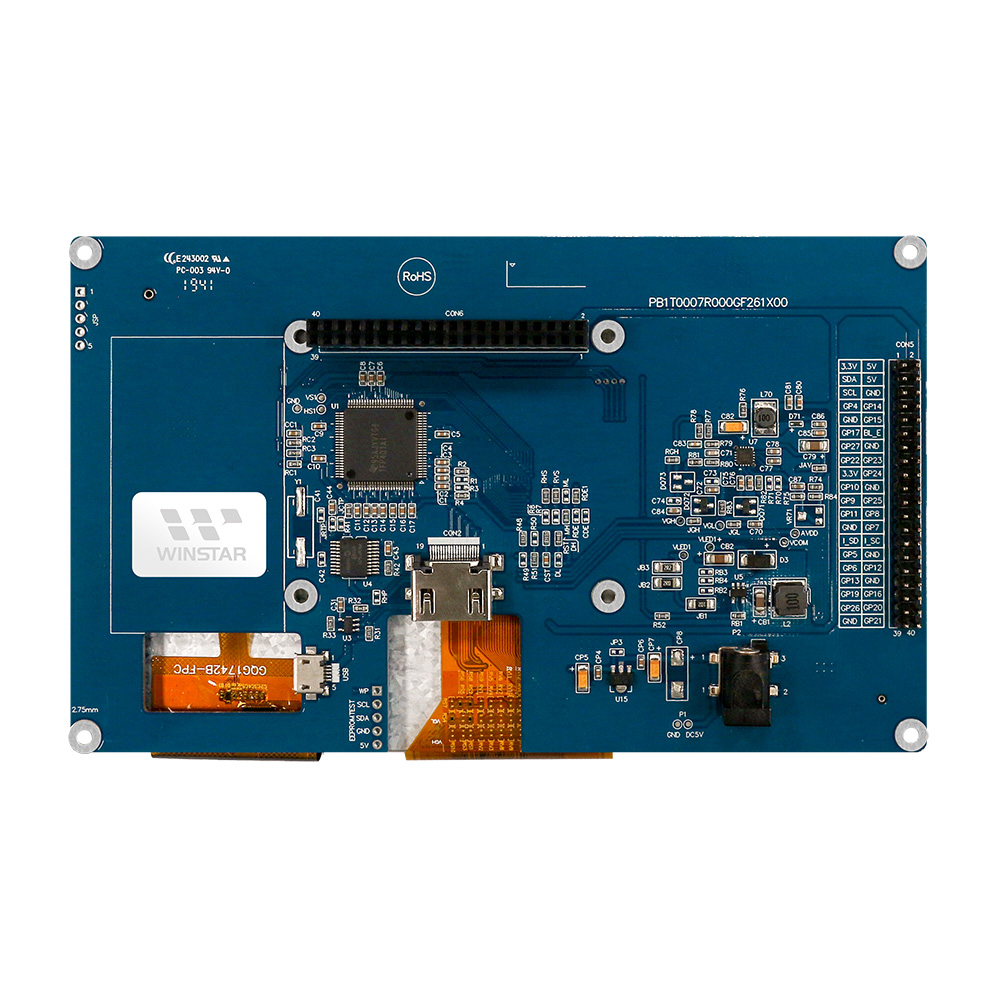

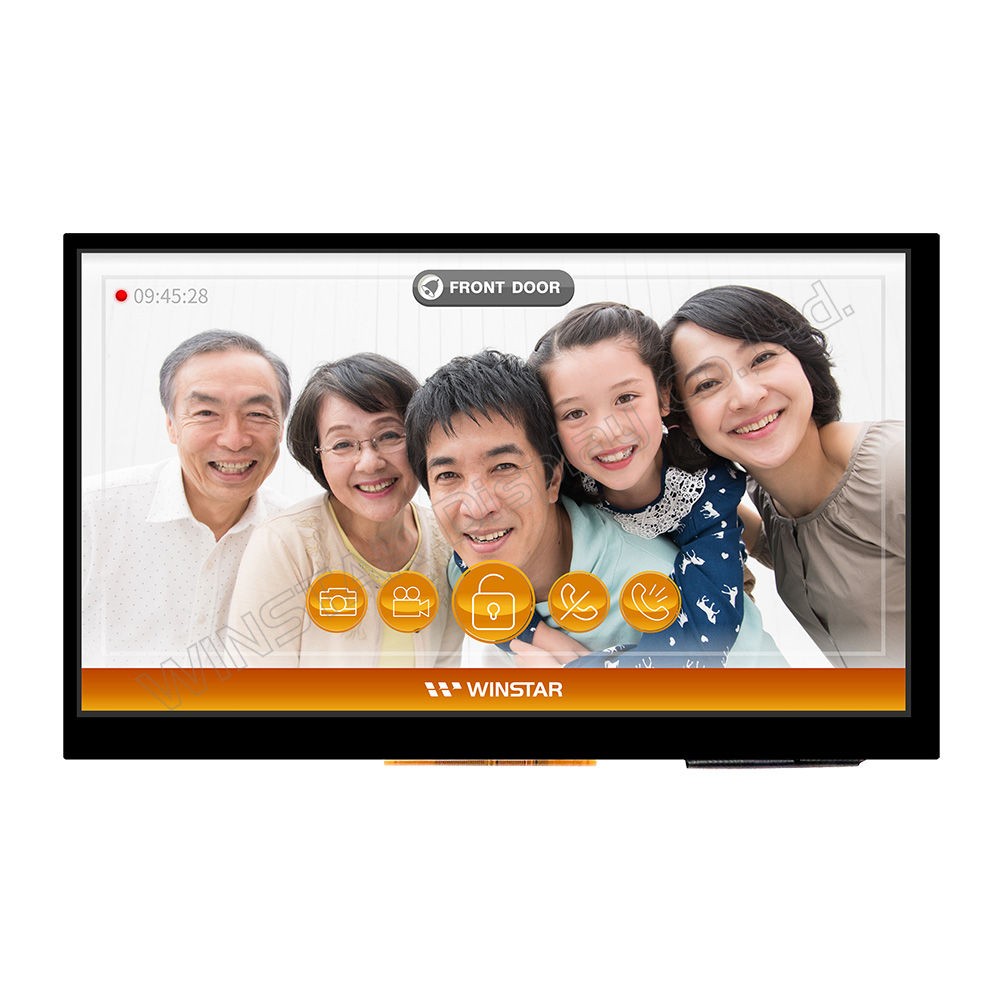

WF70D3TIFGDHGV is a 7-inch TFT-LCD module that supports HDMI (DVI only) signal input and features a Projected Capacitive Touch Panel (PCAP) with a WVGA resolution of 800x480. The module comes with a control board that supports the HDMI signal interface and includes a 40-pin GPIO connector on board, designed for easy integration with Raspberry Pi systems. This display includes a Capacitive Touch Screen overlay with a USB interface on the TFT panel. We offer an optional connector (P/N WWHDMI-00#) and USB cable (P/N OTP1XXXXXXXXXXXX0155) that customers can use to connect the WF70D3TIFGDHGV module directly to their Raspberry Pi. Please note, the WF70D3TIFGDHGV does not include an HDMI connector or USB cable by default.
WF70D3TIFGDHGV is equipped with a TFP401 Controller IC to convert signals and support the HDMI (DVI only) signal interface. The PCAP (CTP) IC is the ILI2130, which supports a USB interface. The typical supply voltage for the LCM (VDD) is 5V. The display features anti-glare surface glass, a 12 o'clock viewing direction, and gray-scale inversion at 6 o'clock.
Part No. WWHDMI-00# (Optional component)
▪ Supports HDMI connector (Only DVI Signal) for TFT module and Raspberry Pi.
| Item | Dimension | Unit |
|---|---|---|
| Size | 7.0 | inch |
| Dot Matrix | 800 × RGB × 480(TFT) | dots |

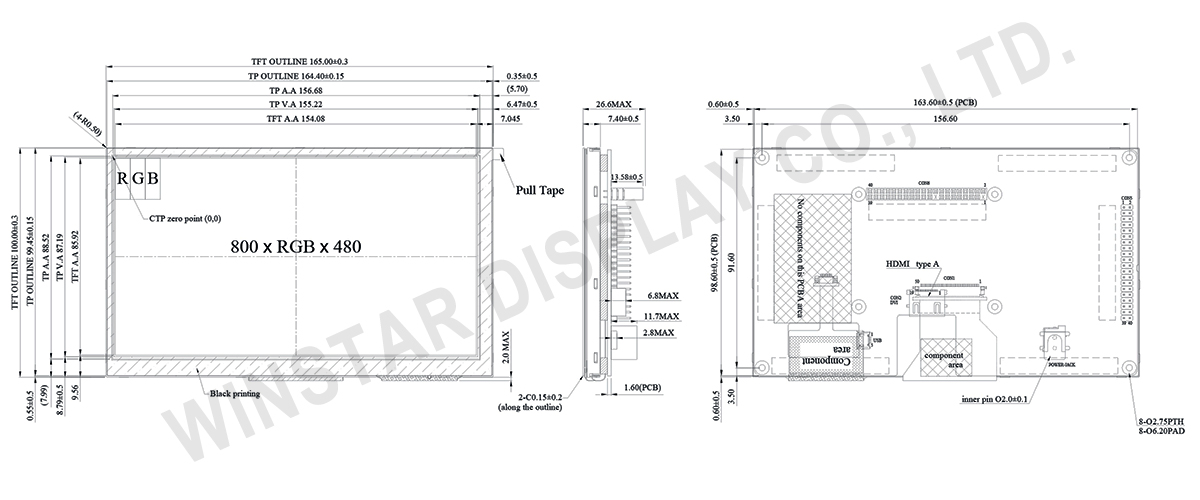

| Module dimension | 165.0(W) × 100(H) × 26.6(D) | mm |
| Active area | 154.08 × 85.92 | mm |
| Dot pitch | 0.0642 × 0.179 | mm |
| LCD type | TFT, Normally White, Transmissive | |
| View Direction | 12 o'clock | |
| Gray Scale Inversion Direction | 6 o'clock | |
| Aspect Ratio | 16:9 | |
| Controller IC | TFP401 or equivalent | |
| Backlight Type | LED, Normally White | |
| TFT Interface | HDMI(only for DVI) | |
| CTP IC | ILI2130 or Equivalent | |
| CTP Interface | USB | |
| CTP FW Version | 0x07.0x00.0x00.0x00.0x65.0x90.0x00.0x01 | |
| CTP Resolution | 16384*16384 | |
| Touch Panel | With PCAP | |
| Surface | Glare | |
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Supply Voltage For LCM | VDD | 4.9 | 5 | 5.1 | V |
| Supply Current For LCM | IDD | － | 900 | 1350 | mA |
| LED Life Time | － | 50,000 | － | － | Hr |
| Pin | Symbol | Function |
|---|---|---|
| 1 | NC | No connection |
| 2 | 5V | Raspberry Pi:Power 5V |
| 3 | GPIO02 | Raspberry Pi:GPIO02 |
| 4 | 5V | Raspberry Pi:Power 5V |
| 5 | GPIO03 | Raspberry Pi:GPIO03 |
| 6 | GND | Raspberry Pi:GND |
| 7 | GPIO04 | Raspberry Pi:GPIO04 |
| 8 | GPIO14 | Raspberry Pi:GPIO14 |
| 9 | GND | Raspberry Pi:GND |
| 10 | GPIO15 | Raspberry Pi:GPIO15 |
| 11 | GPIO17 | Raspberry Pi:GPIO17 |
| 12 | GPIO18 | Raspberry Pi:GPIO18 (Backlight Enable) |
| 13 | GPIO27 | Raspberry Pi:GPIO27 |
| 14 | GND | Raspberry Pi:GND |
| 15 | GPIO22 | Raspberry Pi:GPIO22 |
| 16 | GPIO23 | Raspberry Pi:GPIO23 |
| 17 | NC | No connection |
| 18 | GPIO24 | Raspberry Pi:GPIO24 |
| 19 | GPIO10 | Raspberry Pi:GPIO10 |
| 20 | GND | Raspberry Pi:GND |
| 21 | GPIO09 | Raspberry Pi:GPIO09 |
| 22 | GPIO25 | Raspberry Pi:GPIO25 |
| 23 | GPIO11 | Raspberry Pi:GPIO11 |
| 24 | GPIO08 | Raspberry Pi:GPIO08 |
| 25 | GND | Raspberry Pi:GND |
| 26 | GPIO07 | Raspberry Pi:GPIO07 |
| 27 | ID_SD | Raspberry Pi:ID_SD |
| 28 | ID_SC | Raspberry Pi:ID_SC |
| 29 | GPIO05 | Raspberry Pi:GPIO05 |
| 30 | GND | Raspberry Pi:GND |
| 31 | GPIO06 | Raspberry Pi:GPIO06 |
| 32 | GPIO12 | Raspberry Pi:GPIO12 |
| 33 | GPIO13 | Raspberry Pi:GPIO13 |
| 34 | GND | Raspberry Pi:GND |
| 35 | GPIO19 | Raspberry Pi:GPIO19 |
| 36 | GPIO16 | Raspberry Pi:GPIO16 |
| 37 | GPIO26 | Raspberry Pi:GPIO26 |
| 38 | GPIO20 | Raspberry Pi:GPIO20 |
| 39 | GND | Raspberry Pi:GND |
| 40 | GPIO21 | Raspberry Pi:GPIO21 |
| Pin | Symbol | Function |
|---|---|---|
| 1 | 3.3V | TFT Module Power limit can only output 3.3V,100mA |
| 2 | 5V | Raspberry Pi:Power 5V |
| 3 | GPIO02 | Raspberry Pi:GPIO02 |
| 4 | 5V | Raspberry Pi:Power 5V |
| 5 | GPIO03 | Raspberry Pi:GPIO03 |
| 6 | GND | Raspberry Pi:GND |
| 7 | GPIO04 | Raspberry Pi:GPIO04 |
| 8 | GPIO14 | Raspberry Pi:GPIO14 |
| 9 | GND | Raspberry Pi:GND |
| 10 | GPIO15 | Raspberry Pi:GPIO15 |
| 11 | GPIO17 | Raspberry Pi:GPIO17 |
| 12 | GPIO18 | Raspberry Pi:GPIO18 (Backlight Enable) |
| 13 | GPIO27 | Raspberry Pi:GPIO27 |
| 14 | GND | Raspberry Pi:GND |
| 15 | GPIO22 | Raspberry Pi:GPIO22 |
| 16 | GPIO23 | Raspberry Pi:GPIO23 |
| 17 | 3.3V | TFT Module Power limit can only output 3.3V,100mA |
| 18 | GPIO24 | Raspberry Pi:GPIO24 |
| 19 | GPIO10 | Raspberry Pi:GPIO10 |
| 20 | GND | Raspberry Pi:GND |
| 21 | GPIO09 | Raspberry Pi:GPIO09 |
| 22 | GPIO25 | Raspberry Pi:GPIO25 |
| 23 | GPIO11 | Raspberry Pi:GPIO11 |
| 24 | GPIO08 | Raspberry Pi:GPIO08 |
| 25 | GND | Raspberry Pi:GND |
| 26 | GPIO07 | Raspberry Pi:GPIO07 |
| 27 | ID_SD | Raspberry Pi:ID_SD |
| 28 | ID_SC | Raspberry Pi:ID_SC |
| 29 | GPIO05 | Raspberry Pi:GPIO05 |
| 30 | GND | Raspberry Pi:GND |
| 31 | GPIO06 | Raspberry Pi:GPIO06 |
| 32 | GPIO12 | Raspberry Pi:GPIO12 |
| 33 | GPIO13 | Raspberry Pi:GPIO13 |
| 34 | GND | Raspberry Pi:GND |
| 35 | GPIO19 | Raspberry Pi:GPIO19 |
| 36 | GPIO16 | Raspberry Pi:GPIO16 |
| 37 | GPIO26 | Raspberry Pi:GPIO26 |
| 38 | GPIO20 | Raspberry Pi:GPIO20 |
| 39 | GND | Raspberry Pi:GND |
| 40 | GPIO21 | Raspberry Pi:GPIO21 |
| Pin No. | Symbol | I/O | Function |
|---|---|---|---|
| 1 | Rx2+ | I | Channel-2 positive receiver input; low-voltage signal differential- input pair. |
| 2 | GND | P | Ground |
| 3 | Rx2- | I | Channel-2 negative receiver input; low-voltage signal differential- input pair. |
| 4 | Rx1+ | I | Channel-1 positive receiver input; low-voltage signal differential- input pair. |
| 5 | GND | P | Ground |
| 6 | Rx1- | I | Channel-1 negative receiver input; low-voltage signal differential- input pair. |
| 7 | Rx0+ | I | Channel-0 positive receiver input; low-voltage signal differential- input pair. |
| 8 | GND | P | Ground |
| 9 | Rx0- | I | Channel-0 negative receiver input; low-voltage signal differential- input pair. |
| 10 | RxC+ | I | Clock positive receiver input; low-voltage signal differential- input pair. |
| 11 | GND | P | Ground |
| 12 | RxC- | I | Clock negative receiver input; low-voltage signal differential- input pair. |
| 13-14 | NC | - | No connection |
| 15 | SCL | I/O | DDC(Data Display Channel) Clock |
| 16 | SDA | I/O | DDC(Data Display Channel) Data |
| 17 | GND | P | Ground |
| 18 | 5V | P | Power Supply |
| 19 | Detect | I/O | Hot plug detect |
| Pin No. | Symbol | I/O | Function |
|---|---|---|---|
| 1 | 5V | P | Power Supply |
| 2 | D- | I/O | USB Data - |
| 3 | D+ | I/O | USB Data + |
| 4 | NC | - | No connection |
| 5 | GND | P | Ground |
| Pin No. | Symbol | I/O | Function |
|---|---|---|---|
| 1 | 5V | P | Power Supply (5V) |
| 2 | GND | P | Ground |
| 3 | NC | No connection |
