Model No. WEA025664A
►Type: Graphic
►Structure: COG+PCB
►Size: 2.08 inch
►256x64 Dot Matrix
►IC：SSD1362
►3V Power supply
►1/64 duty
►Interface: SPI

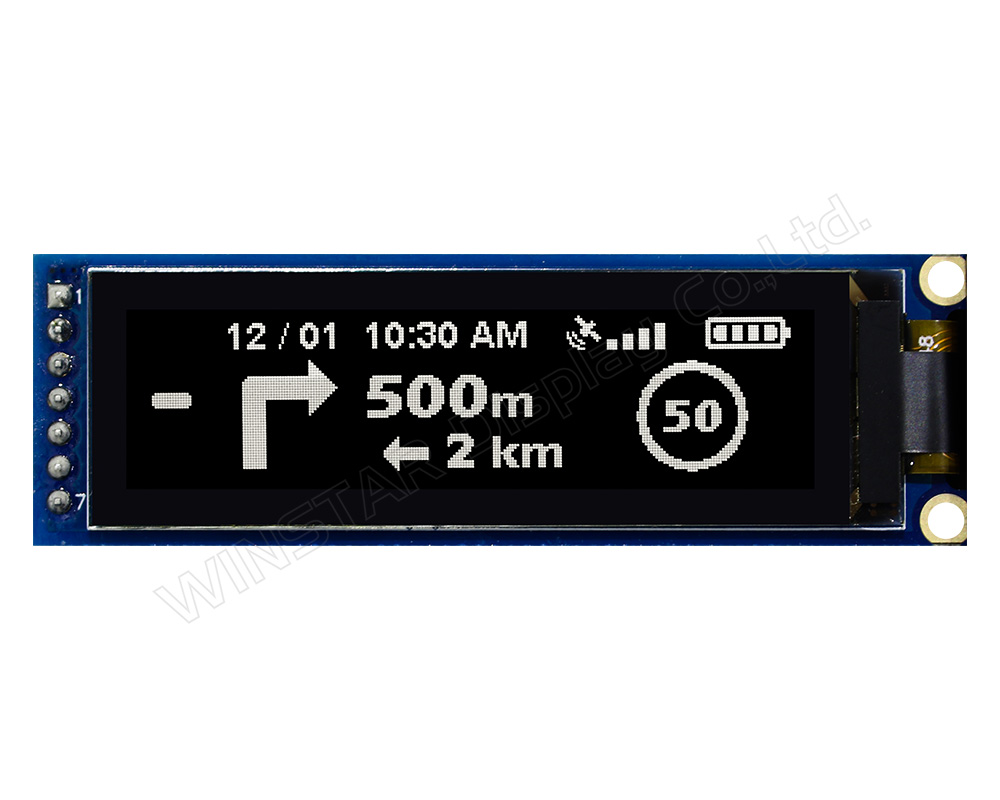

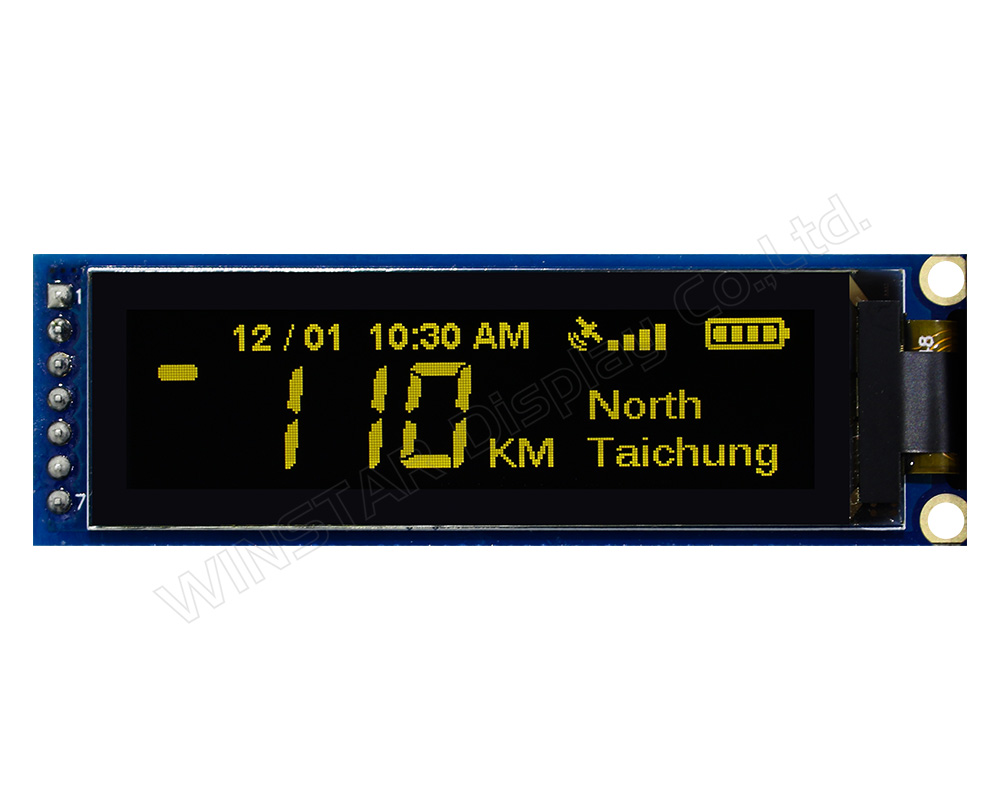

►Display Color: White / Yellow

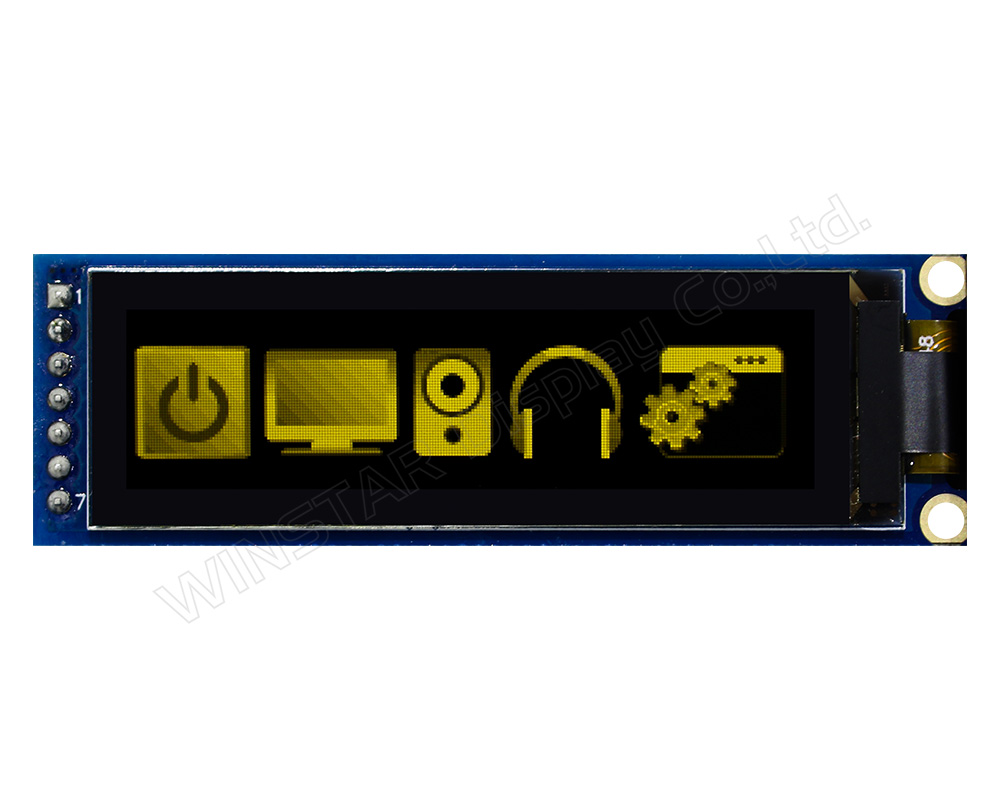

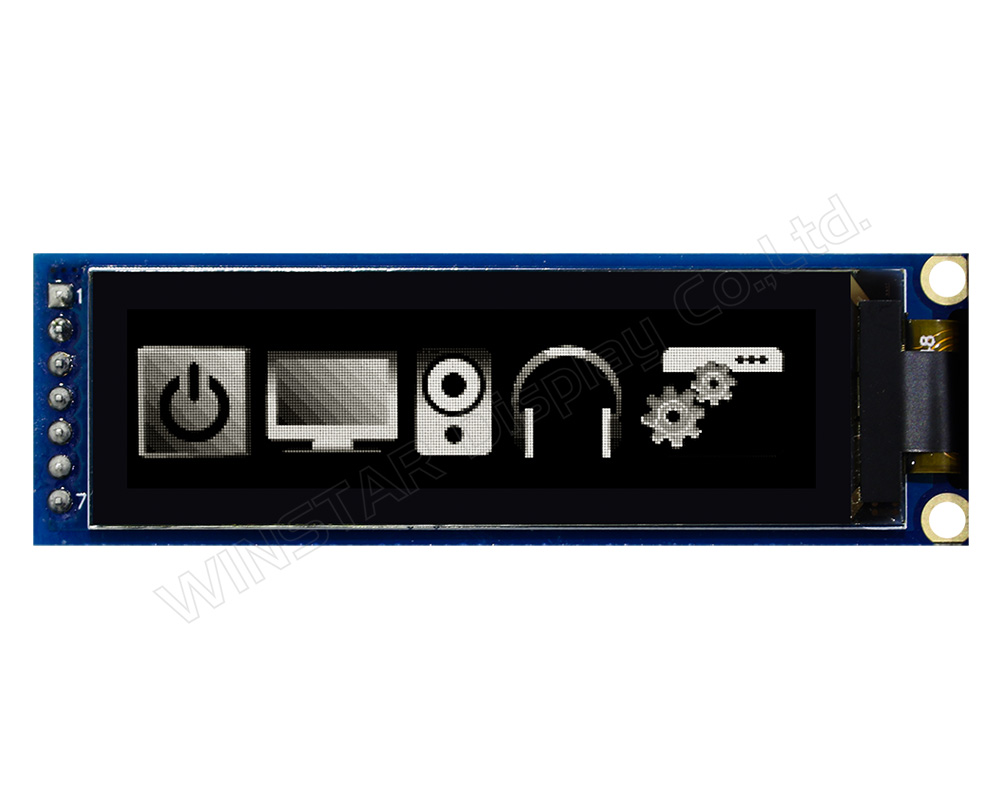

►Support Grayscale
►Traditional Chinese version options (Font IC: GT21L16T1W)

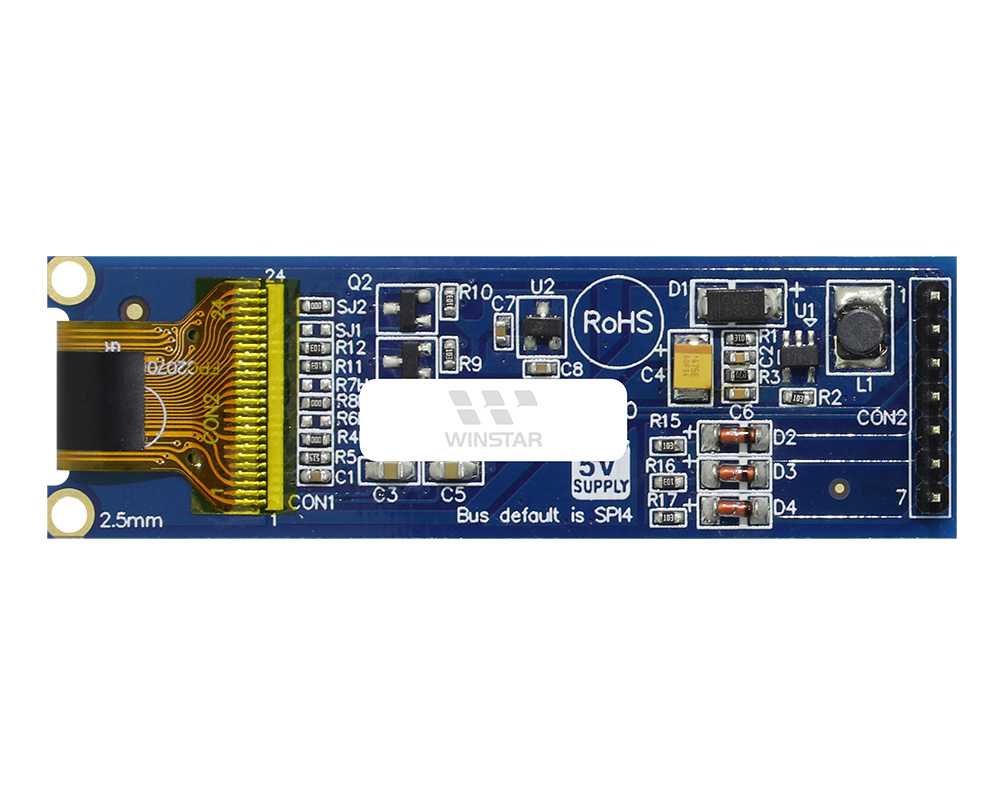

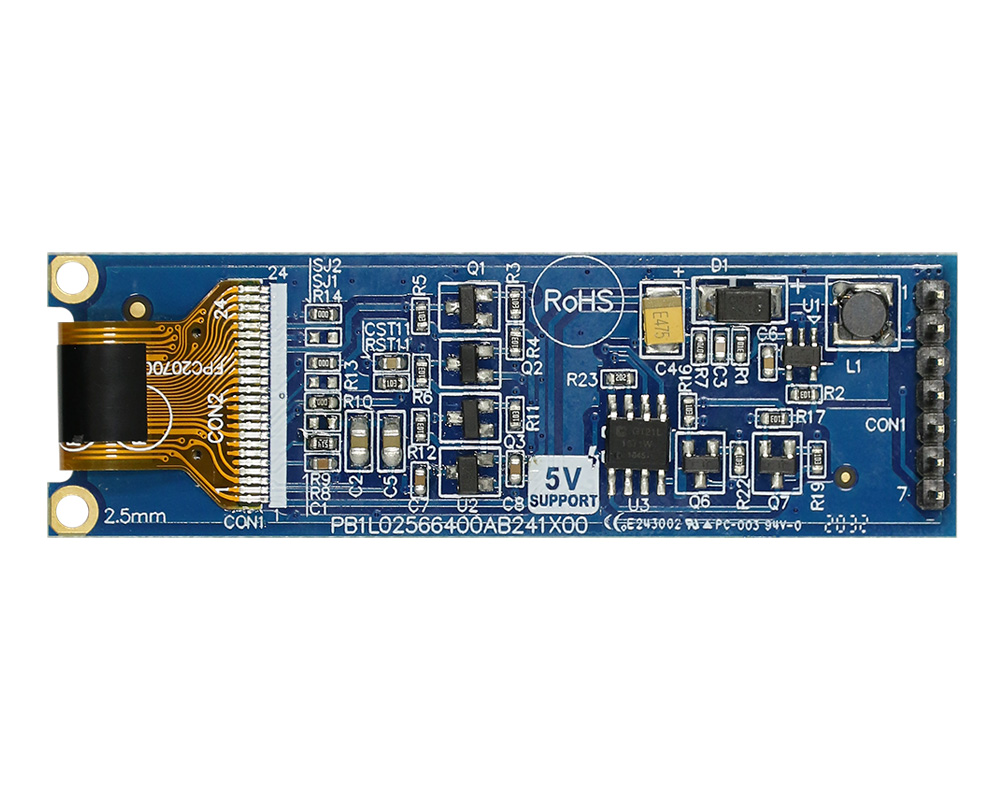

WEA025664A is a COG Graphic OLED with PCB on module, which is made of resolution 256x64 pixels, diagonal size 2.08 inch. This PCB board with two mounting holes is easy-to-use for customers to fix modules on their applications. WEA025664A OLED module is equipped with SSD1362 driver IC that enables using SPI interface. This model is optional for integrating with a Font IC of GT21L16T1W for traditional Chinese which supports SPI interface. The GT21L16T1W is a 15x16 dots fonts chip; it supports Chinese standard GB12345 traditional Chinese character set, BIG5 traditional Chinese character basic set, Japanese standard JIS0208 Japanese character set (compatible with Unicode), and a total of 150 countries’ character. The supply voltage for logic of WEA025664A is 3V or 5V, supports 16 gray scale (4bits), driving duty 1/64, the display with 50% check board current is 90mA@3.3VDD (typical value).
This OLED module is suitable for smart home application, medical device, smart control and etc. WEA025664A module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.

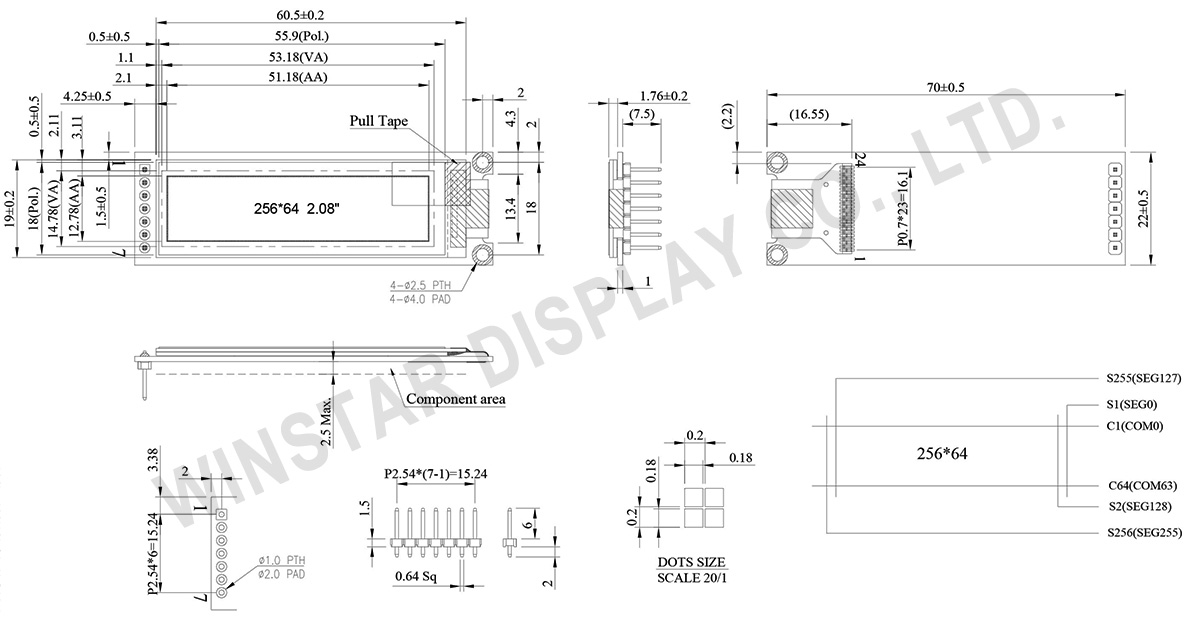

| Item | Dimension | Unit |
|---|---|---|
| Dot Matrix | 256 x 64 Dots | － |
| Module dimension | 70.0 x 22.0 x 1.76 | mm |
| Active Area | 51.18 x 12.78 | mm |
| Pixel Size | 0.18 x 0.18 | mm |
| Pixel Pitch | 0.2 x 0.2 | mm |
| Display Mode | Passive Matrix | |
| Display Color | Monochrome | |
| Drive Duty | 1/64 Duty | |
| Gray Scale | 4 Bits | |
| IC | SSD1362 | |
| Interface | SPI | |
| Size | 2.08 inch | |
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Supply Voltage | VCC | 1.65 | 5.5 | V |
| Operating Temperature | TOP | -40 | +80 | °C |
| Storage Temperature | TSTG | -40 | +85 | °C |
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage | VCC | － | 2.8 | 3.3 | 5.2 | V |
| Input High Volt. | VIH | － | 0.8×VCC | － | VCC | V |
| Input Low Volt. | VIL | － | 0 | － | 0.2×VCC | V |
| Output High Volt. | VOH | － | 0.9×VCC | － | VCC | V |
| Output Low Volt. | VOL | － | 0 | － | 0.1×VCC | V |
| 50% Check Board operating Current | ICC | VCC=3.3V | － | 90 | 135 | mA |
| No. | Symbol | Function |
|---|---|---|
| 1 | GND | Reserved pin. It should be connected to ground. |
| 2 | VCC | Power supply for panel driving voltage. This is also the most positive power voltage supply pin. It is supplied by external high voltage source. |
| 3 | D0 | These pins are bi-directional data bus connecting to the MCU data bus. Unused pins are recommended to tie LOW. When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SID. |
| 4 | D1 | |
| 5 | RES# | This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin pull HIGH during normal operation. |
| 6 | D/C# | This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D[1:0] will be interpreted as data. When the pin is pulled LOW, the data at D[1:0] will be transferred to a command register. |
| 7 | CS# | This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW). |
