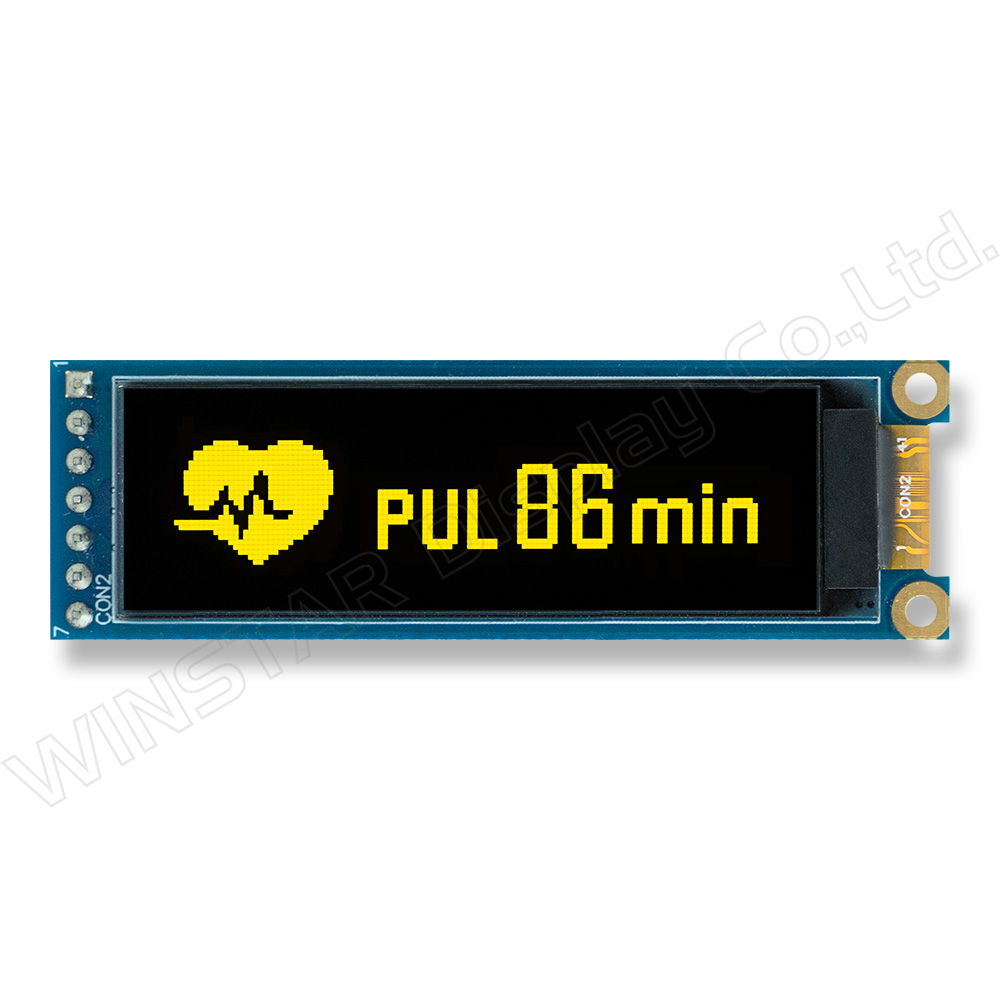

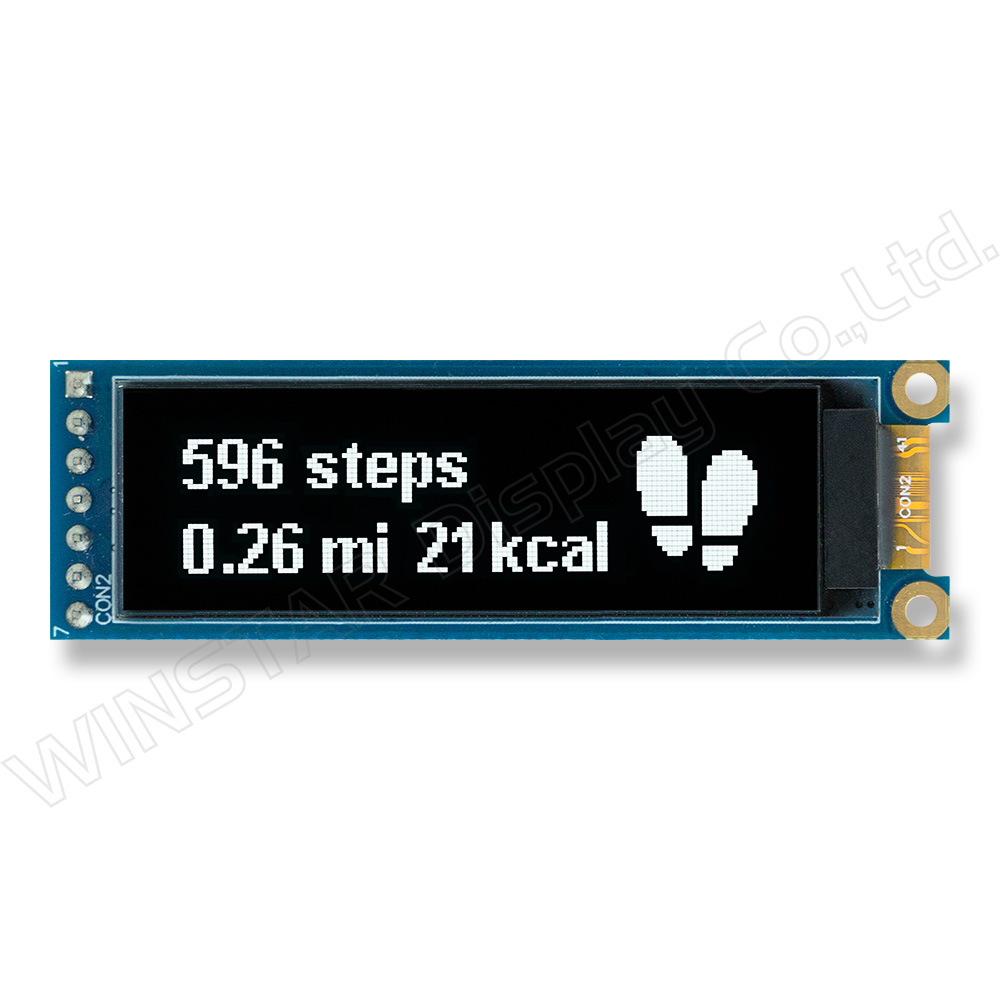

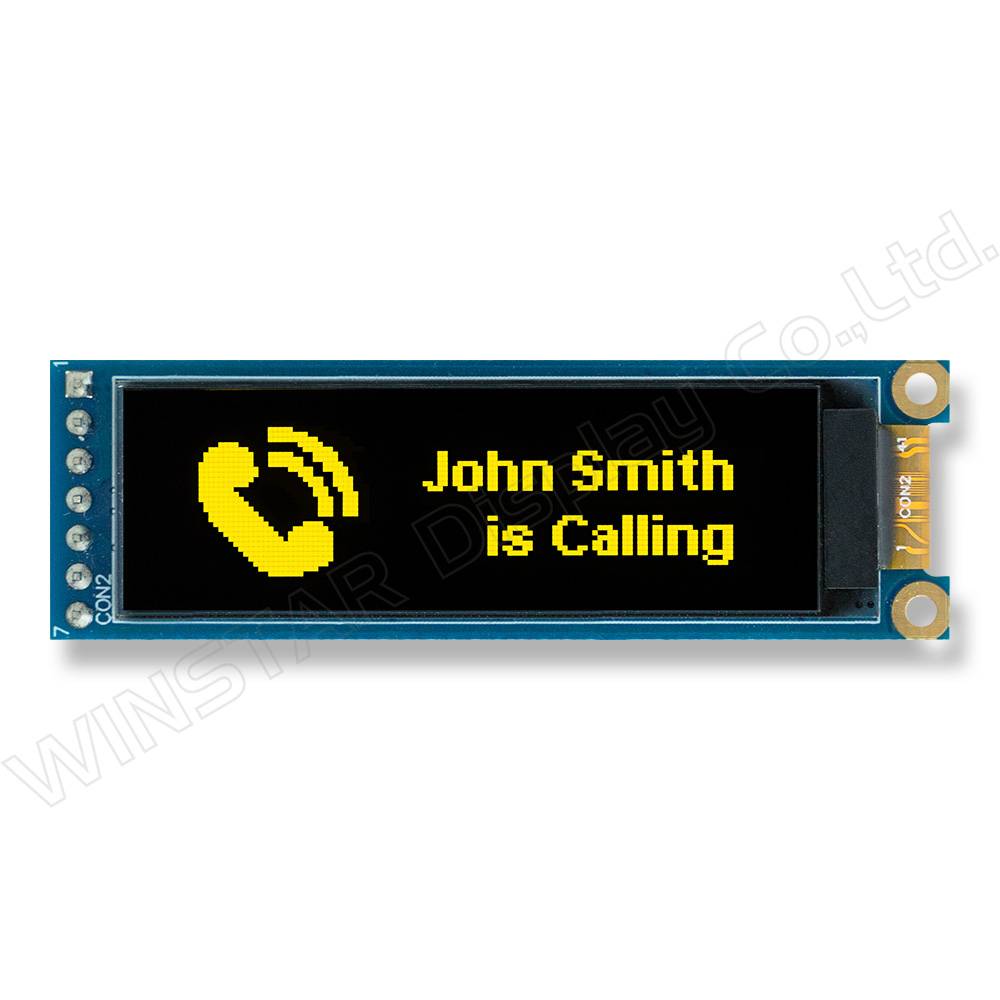

1.71 inch Graphic OLED Display Module 128x32 (COG+PCB)
Model No. WEA012832P
►1.71 inch OLED Display Module
►Type: Graphic

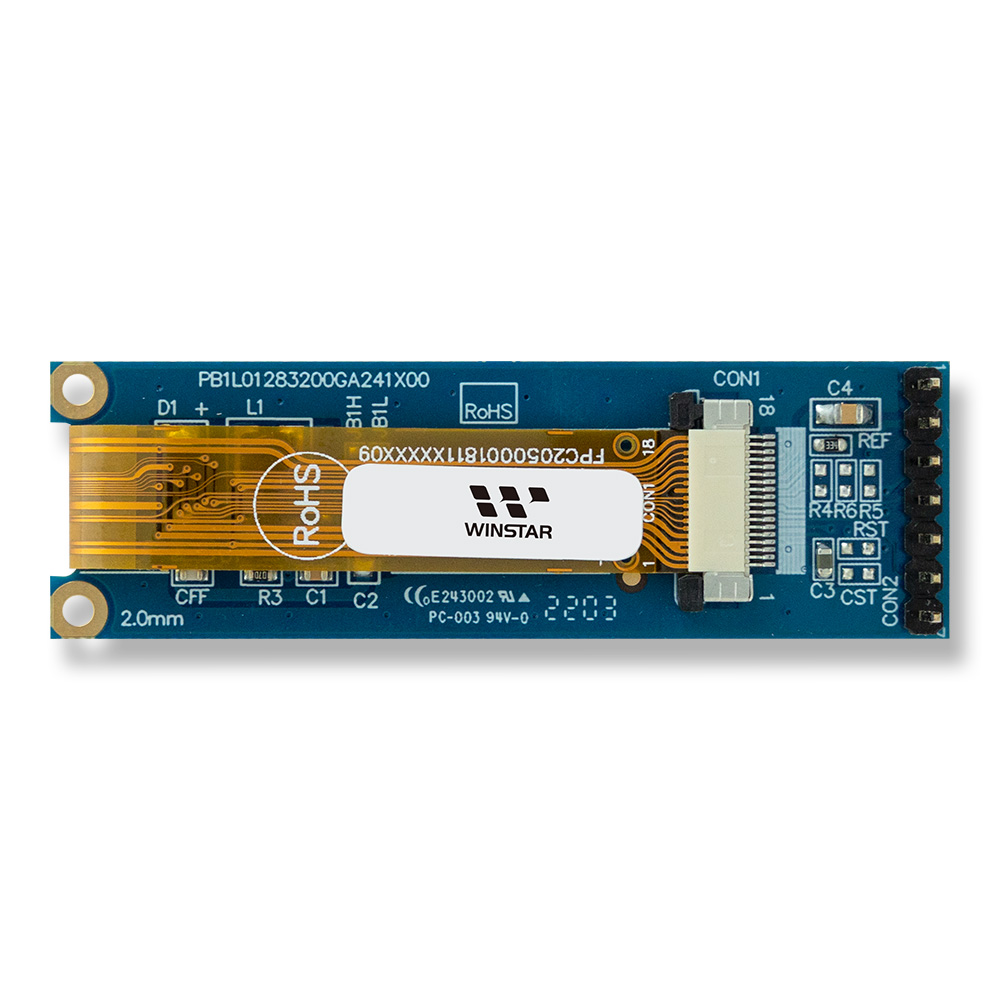

►Structure: COG+PCB
►128x32 Dot Matrix
►IC：CH1115
►3V Power supply
►1/32 duty
►Interface: 4-Wire SPI
►Display Color: White / Yellow
Description
WEA012832P is 1.71 inches graphic COG module with PCB. It has a resolution of 128x64 pixels and a CH1115 driver IC supporting a 4-wire SPI interface with 1/32 driving duty. Its logic supply voltage ranges from 1.8 V to 3.3 V; the typical value is 3 V.
The module can work within the temperature range of -40°C to +80°C; its storage temperatures cover from -40°C to +85°C.

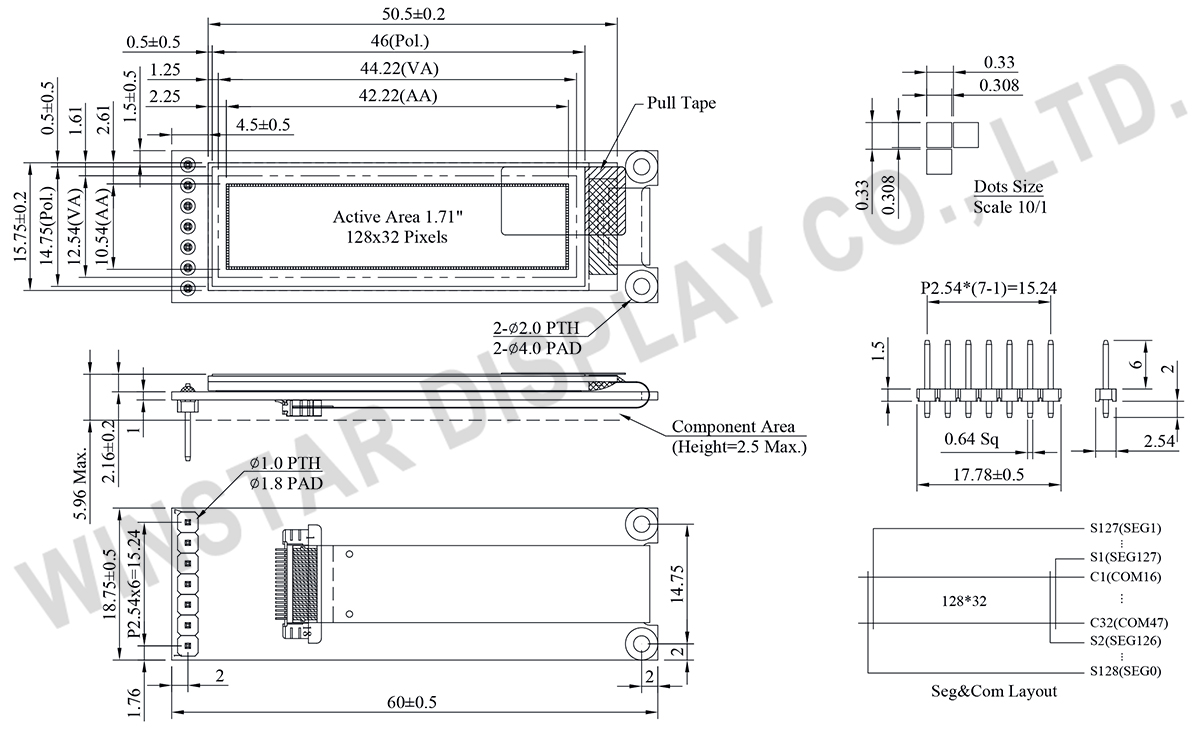

DRAWING
Data source ref: WEA012832PLAP3N00000
SPECIFICATIONS
Interface Pin Function
| No. | Symbol | Function |
|---|---|---|
| 1 | GND | Ground. |
| 2 | VCC | Power supply pin for logic. |
| 3 | D0 | When the serial interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SI). |
| 4 | D1 | |
| 5 | RES# | This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin HIGH (i.e. connect to VDD) during normal operation. |
| 6 | D/C# | This is the Data/Command control pad that determines whether the data bits are data or a command. D/C = "H": the inputs at D0 and D1 are treated as display data. D/C = "L": the inputs at D0 and D1 are transferred to the command registers. |
| 7 | CS# | This pin is the chip select input. (active LOW) |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Dot Matrix | 128 x 32 | Dots |
| Module dimension | 60.0 × 18.75 × 5.96(MAX) | mm |
| Active Area(AA) | 42.22 × 10.54 | mm |
| Pixel Size | 0.308 × 0.308 | mm |
| Pixel Pitch | 0.33 × 0.33 | mm |
| Display Mode | Passive Matrix | |
| Display Color | Monochrome | |
| Drive Duty | 1/32 Duty | |
| IC | CH1115 | |
| Interface | 4-Wire SPI | |
| Size | 1.71 inch | |
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Supply Voltage for Logic | VCC | -0.3 | 3.6 | V |
| Operating Temperature | TOP | -40 | +80 | °C |
| Storage Temperature | TSTG | -40 | +85 | °C |
Electronical Characteristics
DC Electrical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage for Logic | VCC | － | 1.8 | 3.0 | 3.3 | V |
| High Level Input | VIH | － | 0.8×VCC | － | VCC | V |
| Low Level Input | VIL | － | GND | － | 0.2×VCC | V |
| High Level Output | VOH | － | 0.8×VCC | － | VCC | V |
| Low Level Output | VOL | － | GND | － | 0.2×VCC | V |
| Display 50% Pixel on | ICC | VCC =3V | - | 40 | 30 | mA |
