Home Products TFT Display IPS TFT LCD WF40CTYAQMNG10

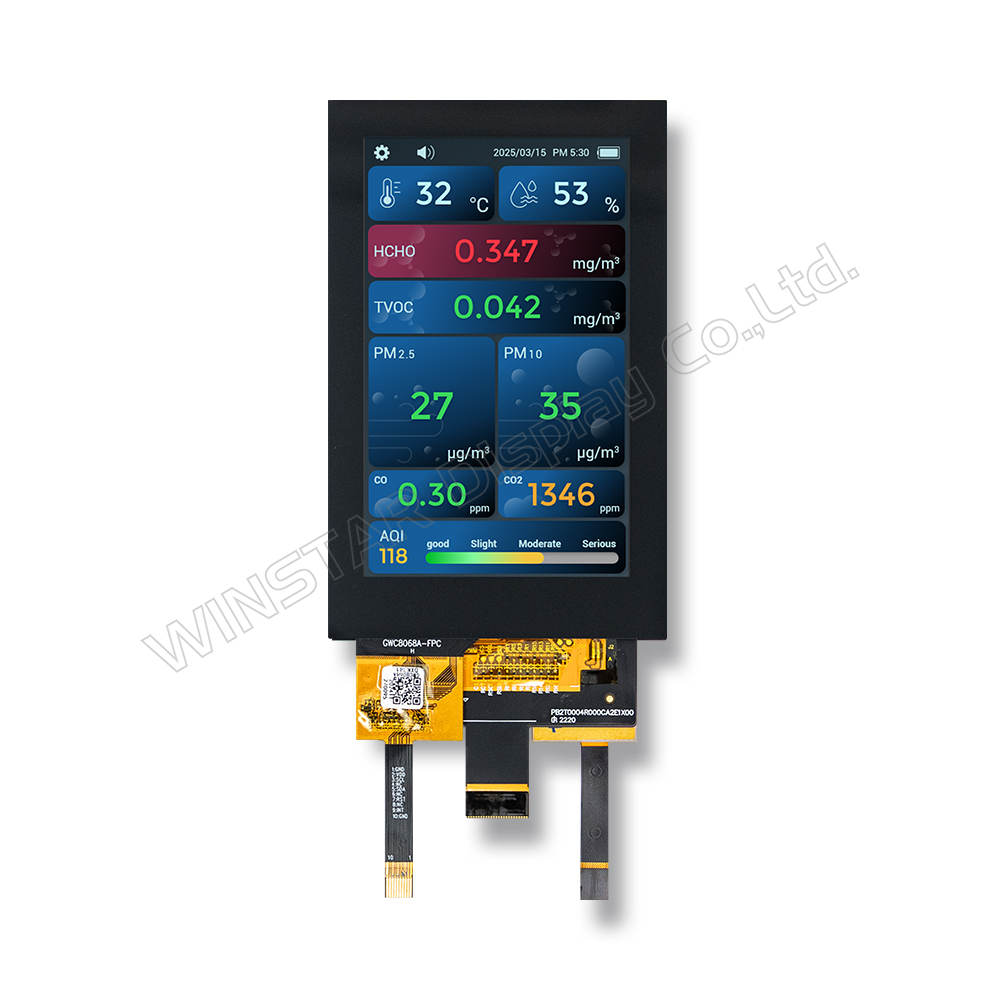

3.97-inch Portrait Screen MIPI IPS TFT-LCD with Capacitive Touch

Model No. WF40CTYAQMNG10

►Size : 3.97"
►Resolution : 480×800 dots (Portrait Screen)
►View Direction : IPS
►Interface : MIPI DSI
►Driver IC : ST7701S
►Control-Board : No
►Brightness(cd/m²) : 400 (Min)
►Frame Through Hole : No
►Touch Screen : Projected Capacitive Touch Panel (PCAP),OCA
►Detect Point : 5 Fingers

Description

The WF40CTYAQMNG10 is a 3.97-inch portrait orientation IPS TFT-LCD display module, offering a resolution of 480 x 800 pixels. This module is equipped with an ST7701S TFT driver IC and supports a MIPI DSI serial interface (2 lanes). The portrait screen configuration, ideal for vertical applications, provides excellent flexibility for designing small, space-efficient industrial displays. It also features a larger glass cover for enhanced durability and protection, making it suitable for more demanding environments.

With an IPS panel that delivers wide viewing angles (Left: 80° / Right: 80° / Up: 80° / Down: 80° typical), a contrast ratio of 900:1, and a minimum brightness of 400 nits, this display ensures sharp visuals and clarity, even in environments with moderate ambient light. The portrait screen format is particularly well-suited for applications such as handheld devices, small industrial equipment, and security monitoring systems, where vertical display arrangements are preferred for better readability and usability.

Equipped with a Projected Capacitive Touch Screen supporting 5-point multi-touch, this module offers a precise and responsive touch experience. The touch panel is integrated with a GT911 driver IC that supports the I2C interface, enhancing the overall touch performance for a seamless user experience. The optical bonding technology used in the PCAP panel increases durability and improves optical clarity, making this portrait screen module ideal for long-lasting, high-performance applications.

Operating at a supply voltage range of 2.8V to 3.3V, the TFT module supports a wide temperature range from -20°C to +70°C for operation and -30°C to +80°C for storage, ensuring its reliability in a variety of environments. Perfect for vertical applications such as dash cameras, this module brings superior display quality to small devices and industrial systems, with the added advantage of an enhanced glass cover for additional protection and durability.

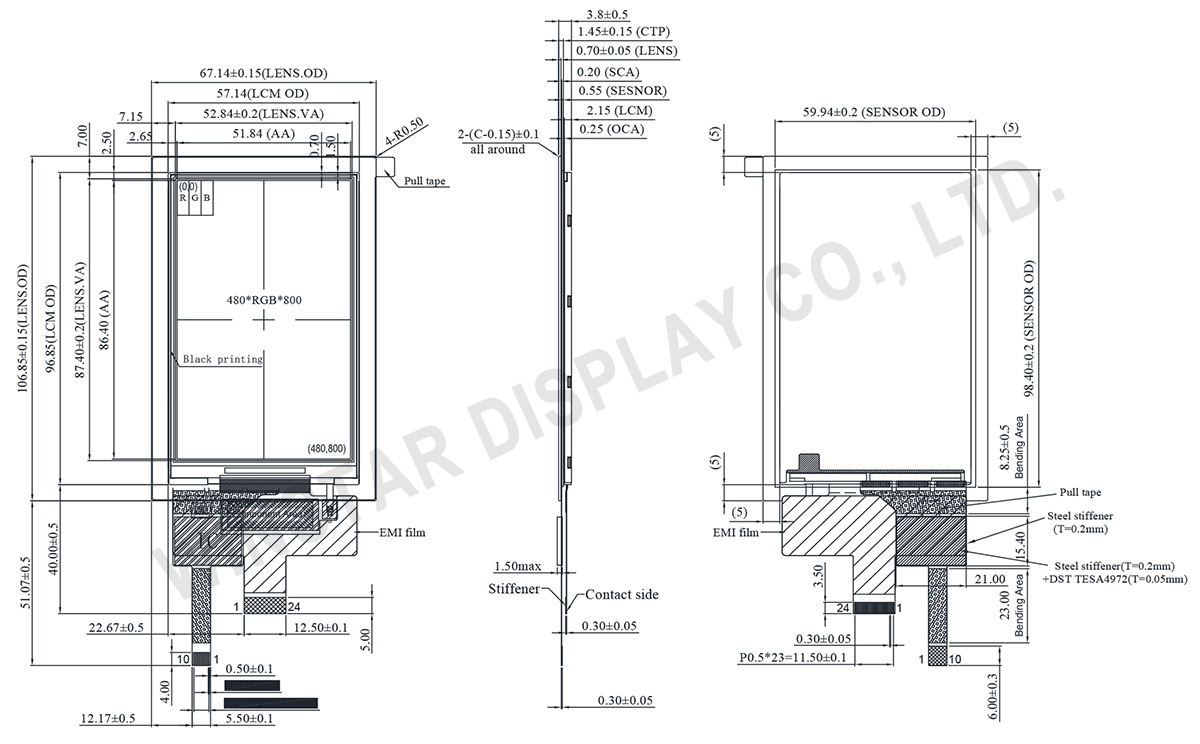

DRAWING

Portrait Screen, 3.97-inch Portrait Screen MIPI IPS TFT-LCD with Capacitive Touch - WF40CTYAQMNG10

SPECIFICATIONS

General Specifications

Item Dimension Unit
Size 3.97 inch
Dot Matrix 480× 3(RGB) × 800 dots
Module dimension 67.14(H) × 106.85 (W)× 3.8 mm
Active area 51.84(H) × 86.4 (V) mm
Dot pitch 0.108(H) × 0.108(V) mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio Portrait
Interface 2-Lanes MIPI
Driver IC ST7701S
Backlight Type LED, Normally White
PCAP Driver IC GT911
PCAP Interface I2C
PCAP FW Version 65
PCAP Resolution 480*800
Touch Panel Projected Capacitive Touch Panel (PCAP)
Surface Glare

Absolute Maximum Ratings

Item Symbol Min Typ Max Unit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80

Electrical Characteristics

Typical Operation Conditions

Item Symbol Values Unit
Min. Typ. Max.
Interface Supply Voltage VCI 2.8 - 3.3 V
Power voltage IOVCC 1.65 1.8 3.3 V
Current for Driver(White) ICI - 65 98 mA
Supply CTP VDDT 2.8V 2.7 2.8 3.3 V
IDDT 2.8V - 20 30 mA

Backlight Driving Conditions

Parameter Symbol Min. Typ. Max. Unit
LED current ILED - 40 - mA
LED voltage VLED+ 13.5 15 17 V
LED Life Time   50,000 - - Hr


Interface

LCM PIN Definition

Pin Symbol Function
1 GND Power ground
2-5 NC No connect
6 GND Power ground
7 D0N MIPI DSI differential data pair (Data lane 0)
8 D0P
9 GND Power ground
10 CLK_N MIPI DSI differential clock pair
11 CLK_P
12 GND Power ground
13 D1N MIPI DSI differential data pair(Data lane 1)
14 D1P
15 GND Power ground
16 IOVCC I/O and interface power supply (1.8V)
17 RESET Reset input
18 TE Tearing effect output pin.
19 VCI Analog power supply
20 VCI Analog power supply
21 NC No connect
22 LEDK Power for LED backlight cathode
23 LEDA Power for LED backlight anode
24 GND Power ground

2. CTP PIN Definition

Pin Symbol Function
1 VSS Ground for analog circuit
2 VDDT 2.8V Power Supply : +2.8V
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit
