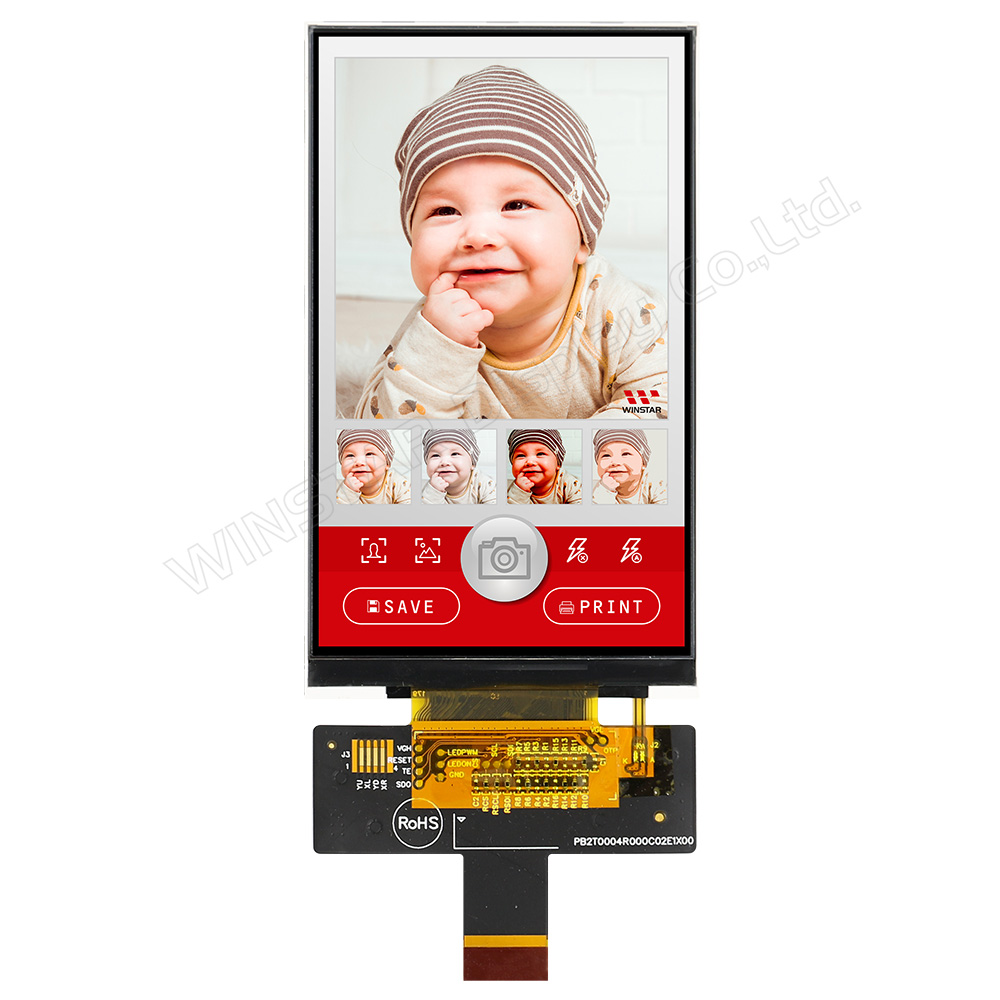

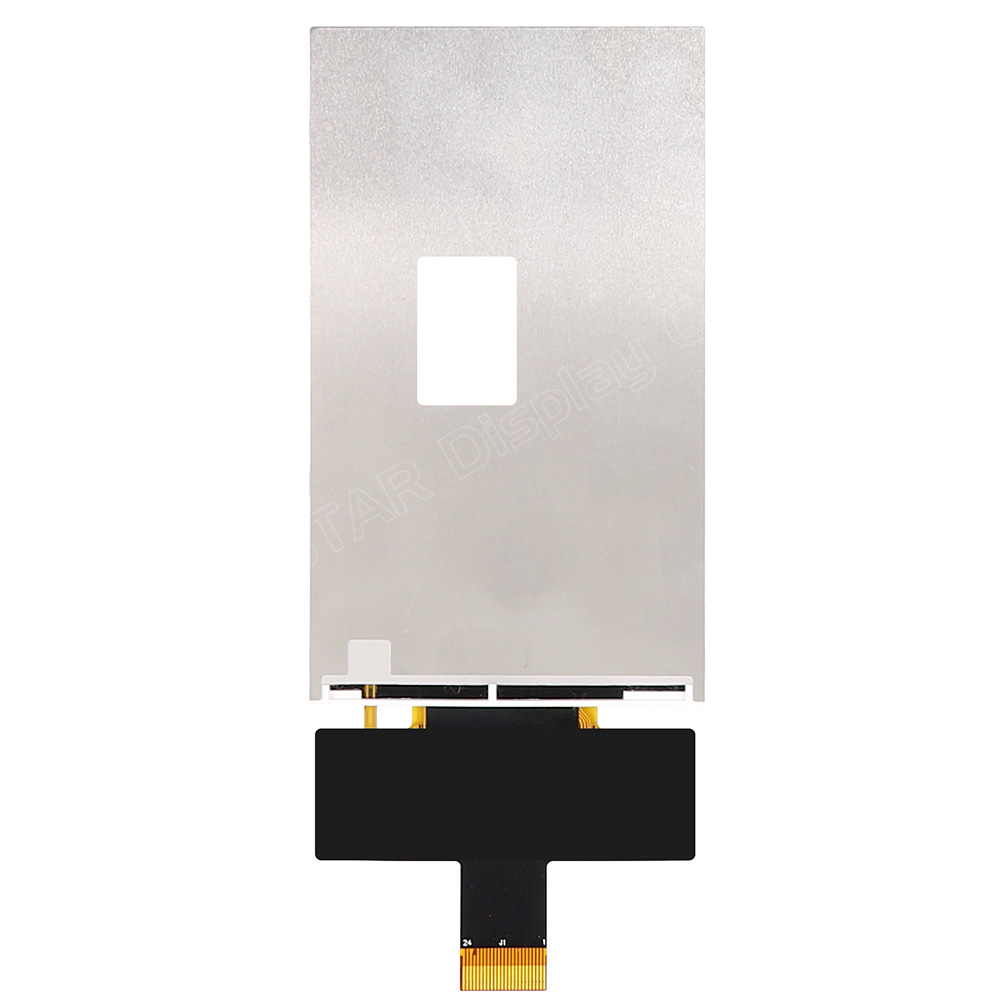

3.97 inch IPS, MIPI Interface TFT LCD Module 480x800

Model No. WF40CTYAQMNN0

►Size : 3.97"
►Resolution : 480×800 dots
►View Direction : IPS
►Interface : MIPI DSI
►Driver IC : ST7701S
►Control-Board : No
►Brightness(cd/m²) : 600
►Frame Through Hole : No
►Touch Screen : Without touch screen

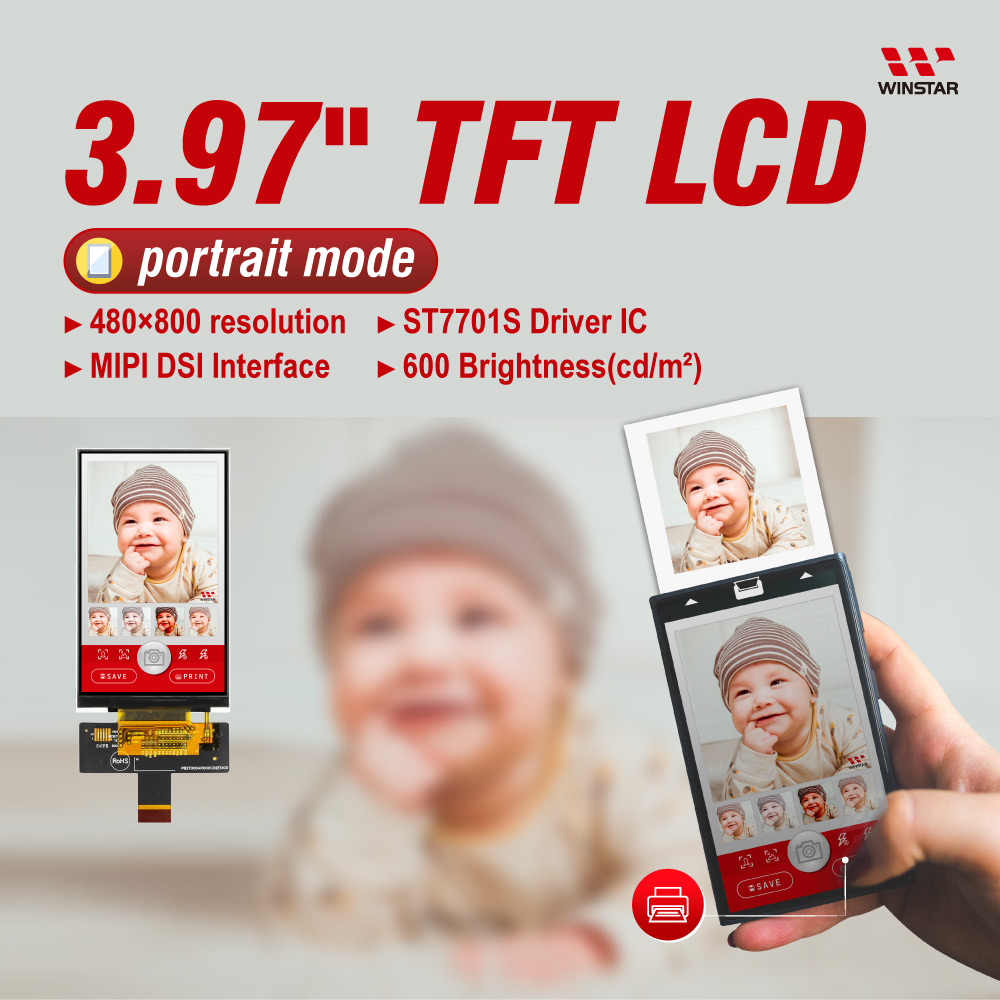

Description

WF40CTYAQMNN0 is a 3.97-inch IPS TFT-LCD display module with a resolution of 480 x 800 pixels. The WF40C module supports a MIPI DSI Serial interface (2 lanes) and features an IPS panel, providing a wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degrees (typical), a contrast ratio of 900:1 (typical value), and a brightness of 600 nits (typical value). The panel has a glare surface, enhancing brightness performance in darker environments by reflecting more light and contributing to improved visibility. Additionally, a glare surface helps maintain color saturation, making displayed images vibrant and realistic. The display surface typically incurs fewer light losses, enhancing the overall efficiency of the display.

This 3.97-inch MIPI LCD display operates in portrait mode and integrates the driver IC ST7701S on the module. The interface supply voltage range is 2.8V to 3.3V. The TFT module can operate at temperatures ranging from -20°C to +70°C, with storage temperatures ranging from -30°C to +80°C. It is suitable for small industrial equipment, security monitoring systems, handheld devices, and applications such as dash cameras.

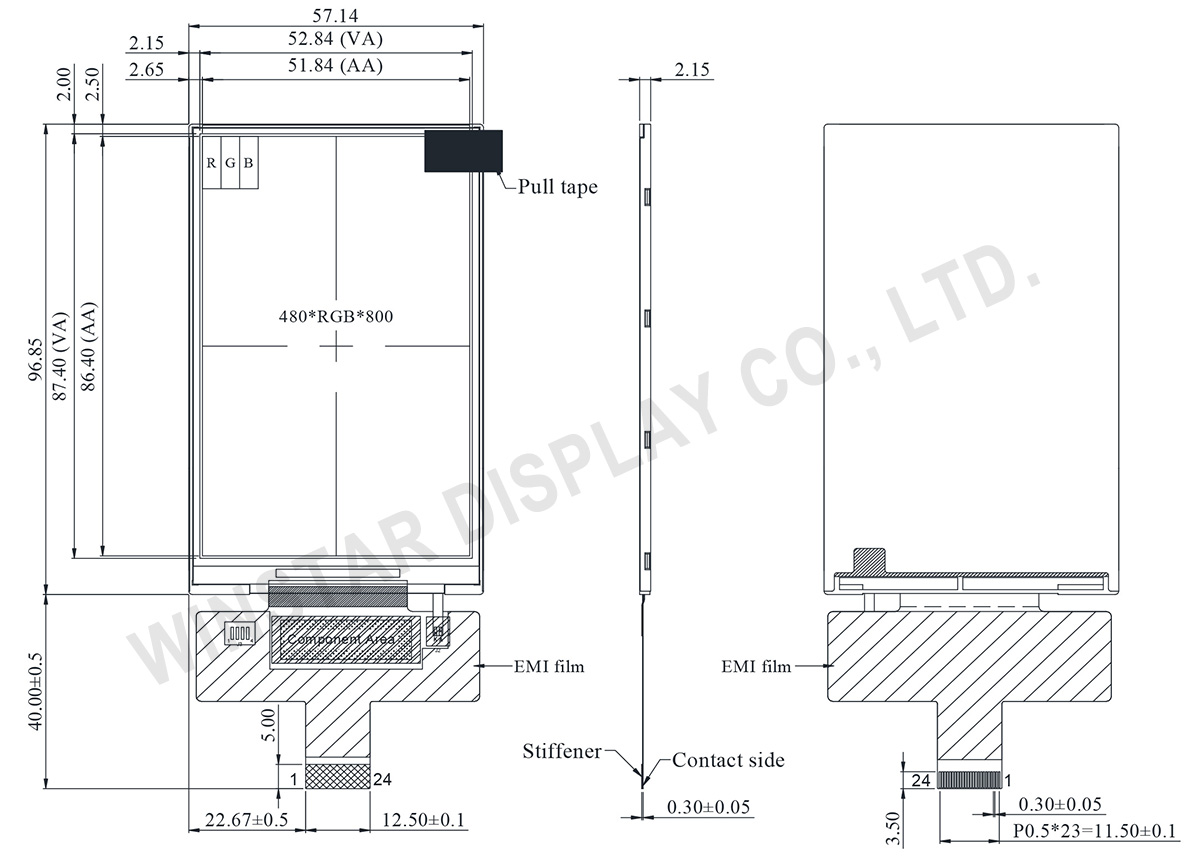

DRAWING

3.97 inch IPS, MIPI Interface TFT LCD Module 480x800 - WF40CTYAQMNN0

SPECIFICATIONS

General Specifications

Item Dimension Unit
Size 3.97 inch
Dot Matrix 480× 3(RGB) × 800 dots
Module dimension 57.14(H) × 96.85 (W)× 2.15 mm
Active area 51.84(H) × 86.4 (V) mm
Dot pitch 0.108(H) × 0.108(V) mm
LCD type TFT, Normally Black, Transmissive
View Direction IPS
Aspect Ratio Portrait
Interface 2-Lanes MIPI
Driver IC ST7701S
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Glare

Absolute Maximum Ratings

Item Symbol Min Typ Max Unit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80

Electrical Characteristics

Item Symbol Values Unit
Min. Typ. Max.
Interface Supply Voltage VCI 2.8 - 3.3 V
Power voltage IOVCC 1.65 1.8 3.3 V
Current for Driver(White) IDD - 65 98 mA

Interface

Pin Symbol Function
1 GND Power ground
2~5 NC No connect
6 GND Power ground
7 D0N MIPI DSI differential data pair (Data lane 0)
8 D0P
9 GND Power ground
10 CLK_N MIPI DSI differential clock pair
11 CLK_P
12 GND Power ground
13 D1N MIPI DSI differential data pair(Data lane 1)
14 D1P
15 GND Power ground
16 IOVCC I/O and interface power supply (1.8V)
17 RESET Reset input
18 TE Tearing effect output pin.
19 VCI Analog power supply
20 VCI Analog power supply
21 NC No connect
22 LEDK Power for LED backlight cathode
23 LEDA Power for LED backlight anode
24 GND Power ground
