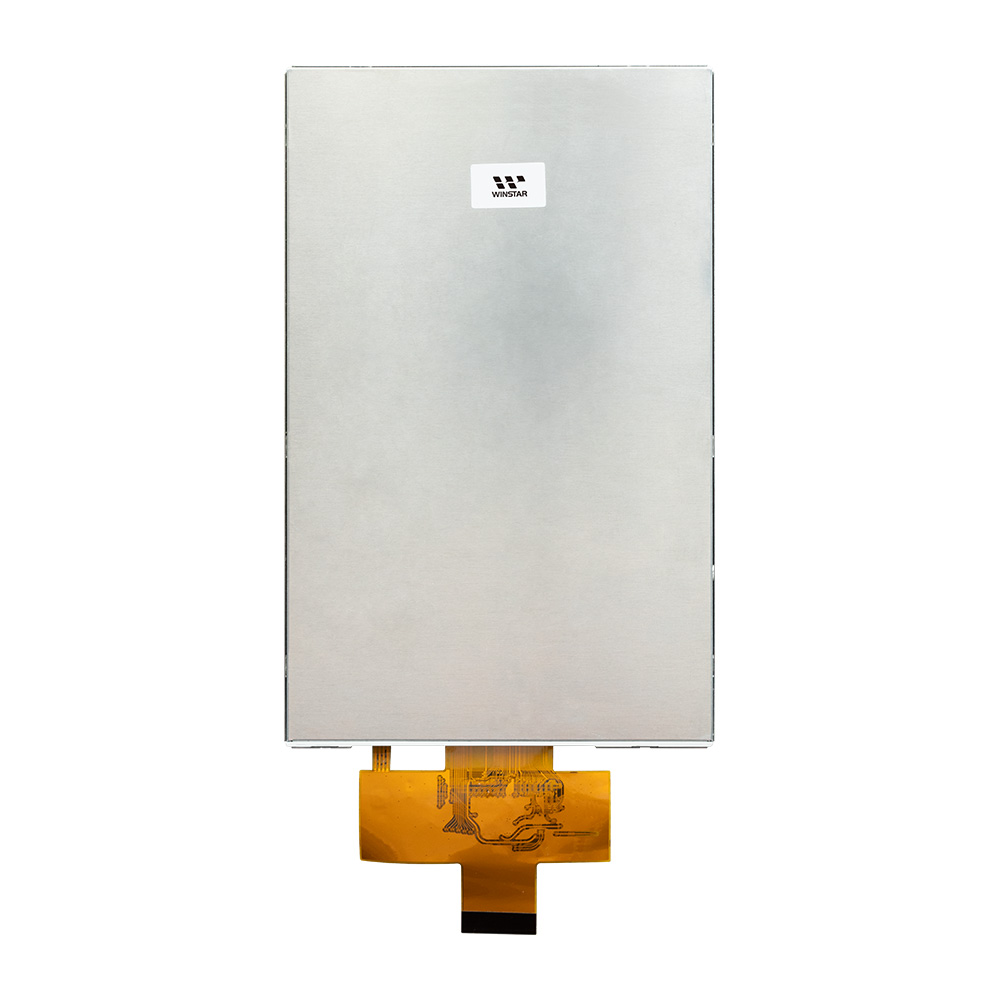

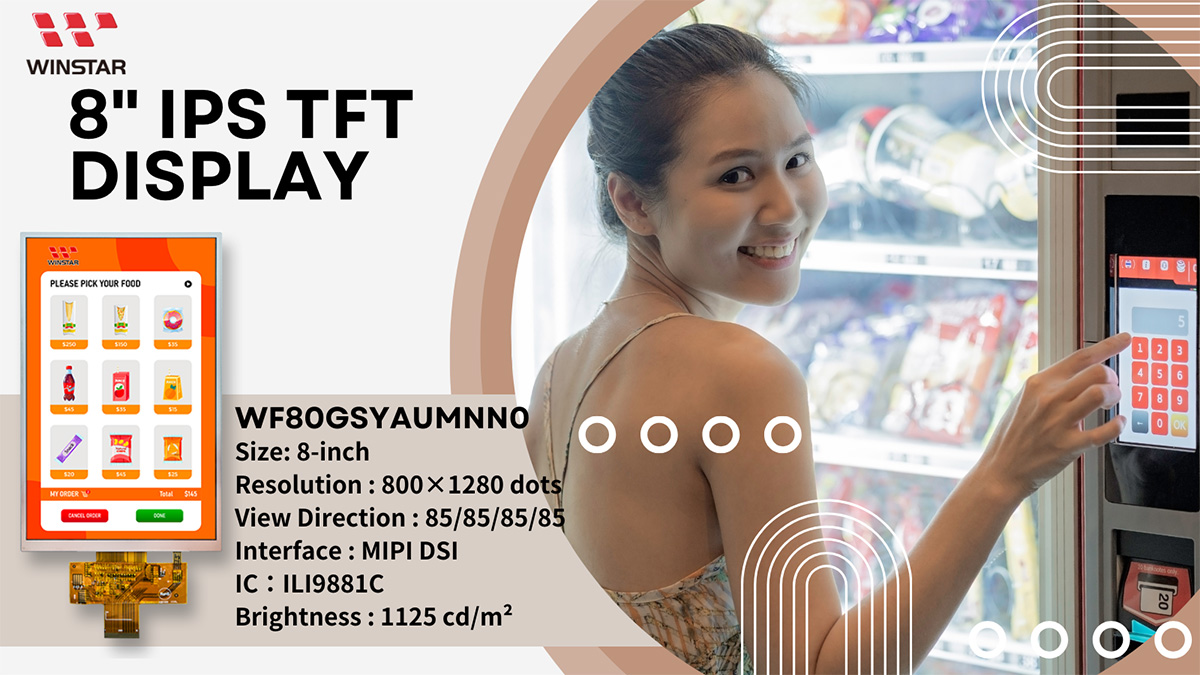

8-inch MIPI IPS 800x1280 TFT LCD Display Module
Model No. WF80GSYAUMNN0
►Size : 8"
►Resolution : 800×1280 dots
►View Direction : IPS
►Interface : MIPI DSI
►Driver IC：ILI9881C
►Control-Board :No
►Brightness (cd/m²) : 1125
►Frame Through Hole : No
►Touch Screen : Without touch screen
Description
The WF80GSYAUMNN0 is an 8-inch vertical screen TFT-LCD display module with a resolution of 800×1280 pixels, a high brightness of 1125 nits (typical value), and a contrast ratio of 1500:1 (typical value). This TFT module utilizes the ILI9881C driver IC and supports the 4-Lanes MIPI DSI interface, offering advantages such as low power consumption, a high transmission rate, support for multiple data-encoding formats, and low noise and interference.
The WF80GSYAUMNN0 module employs IPS panel technology, providing relatively wide viewing angles of left: 85/right: 85/up: 85/down: 85 degrees (typical value). It incorporates an anti-glare surface with an aspect ratio of 10:16.

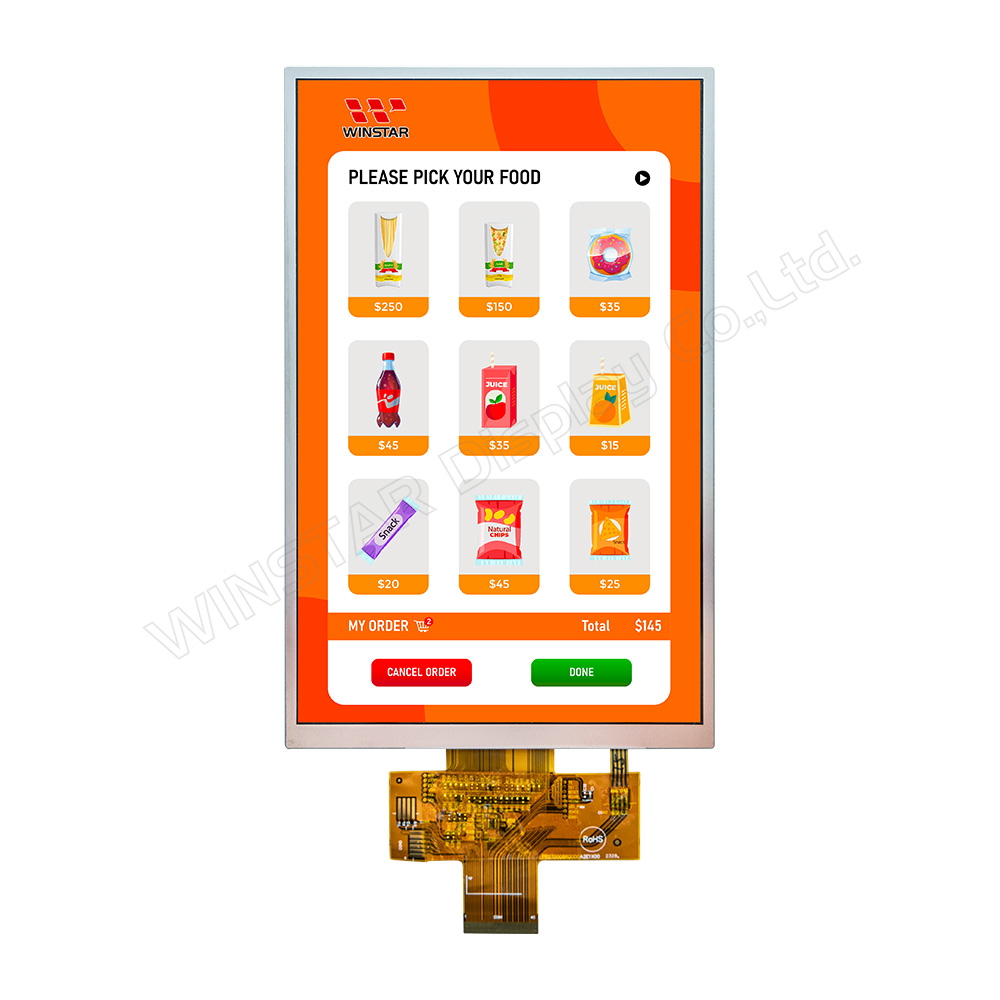

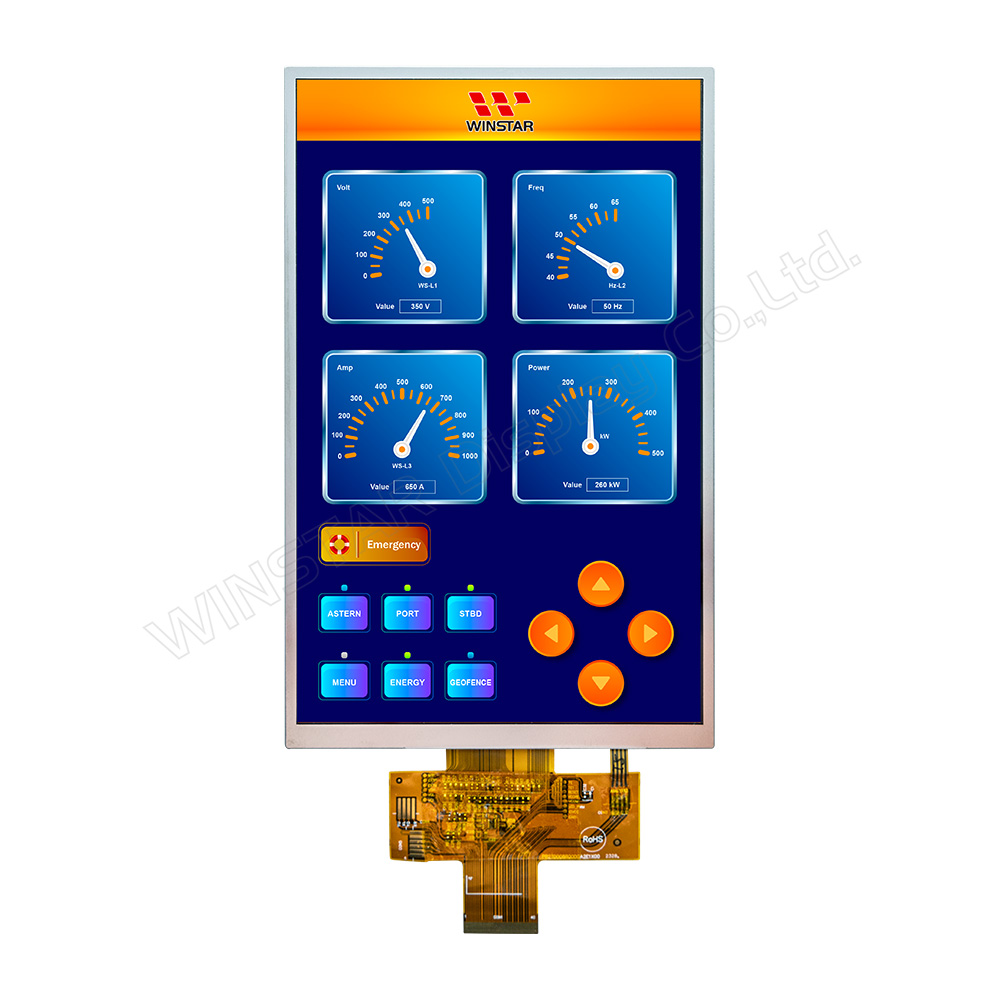

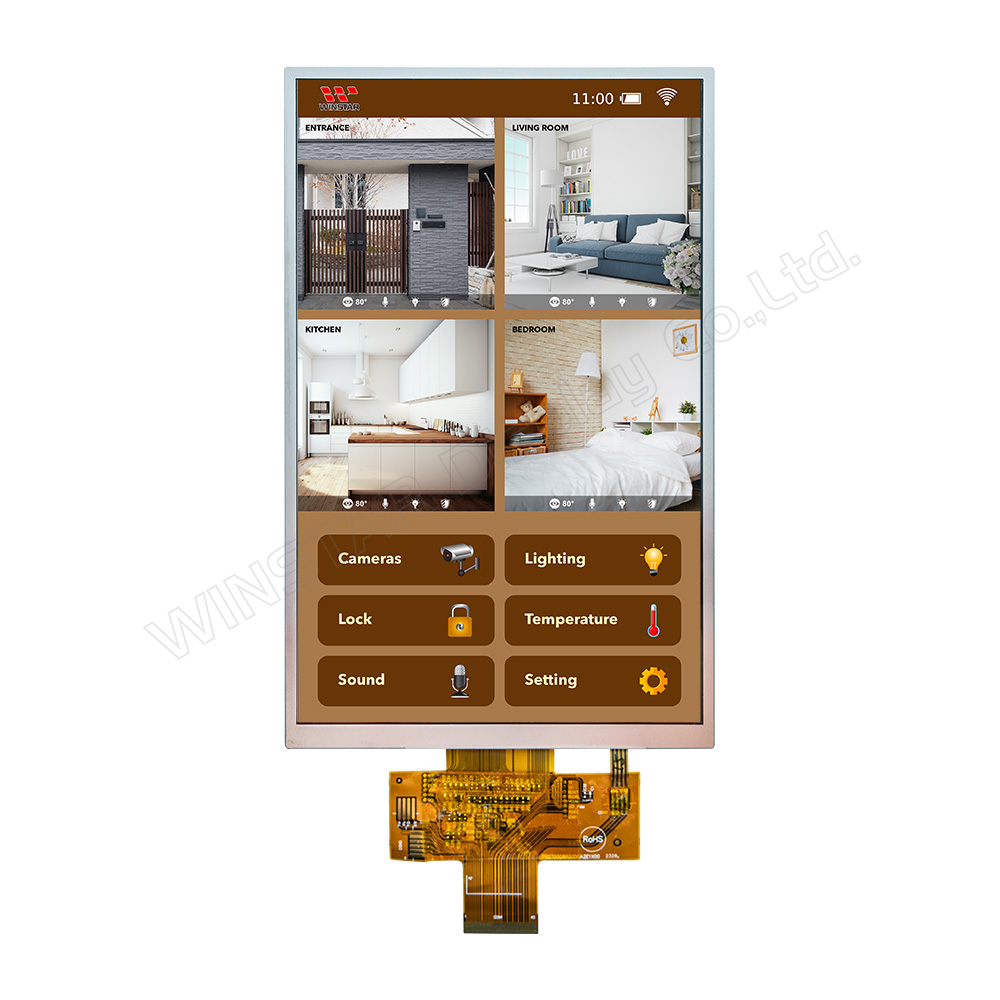

The analog circuit of the power supply operates within the range of 3.0V~3.6V, with a typical value of 3.3V. Operating temperatures range from -20℃ to +70℃, and storage temperatures range from -30℃ to +80℃. The WF80GSYAUMNN0 8-inch display finds wide applications, particularly in vertical screen orientations suitable for vending machines, ship control panels, home surveillance systems, and smart door locks.

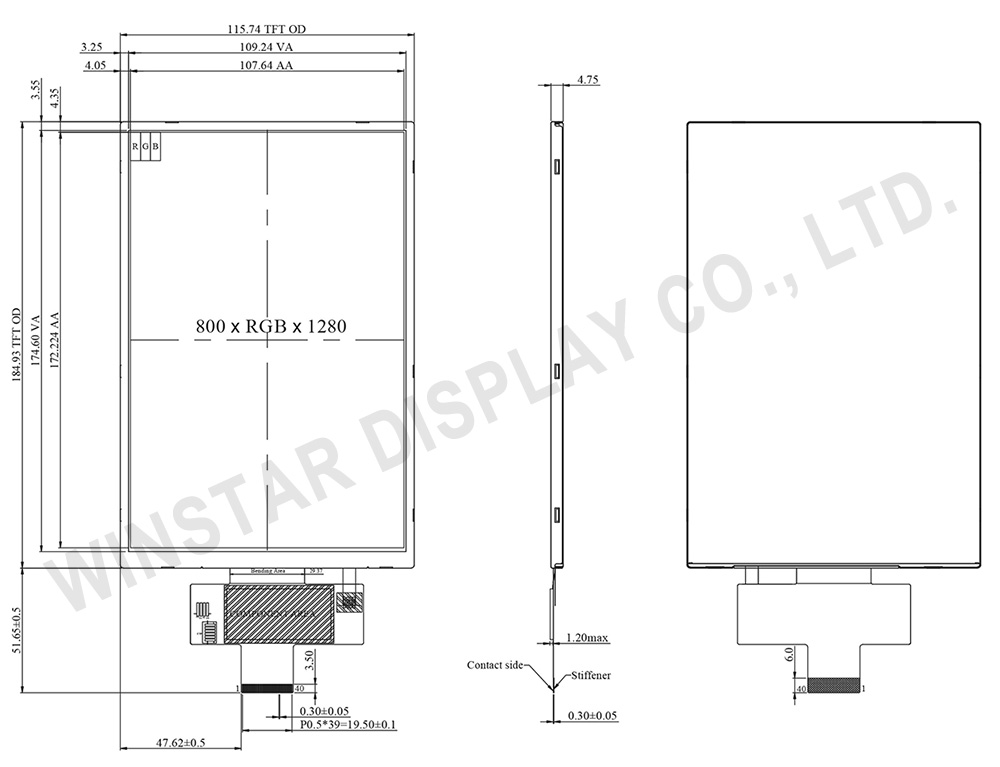

DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Function |
|---|---|---|
| 1-9 | NC | No connection |
| 10-11 | VCI | Power supply for analog circuits. Connect to an external power supply of 3.0V to 3.6V |
| 12-13 | NC | No connection |
| 14 | RESET | The external reset input (RESX) Initializes the chip with a low input. Be sure to execute a power-on reset after supplying power. Fix to IOVCC level when not in use. |
| 15 | TE | Tearing effect output pin. Leave the pin open when not in use. |
| 16 | NC | No connection (LED PWM) |
| 17-18 | GND | Power ground |
| 19-20 | IOVCC | Power supply for analog circuits. Connect to an external power supply of 1.65V to 3.6V |
| 21 | GND | Power ground |
| 22 | D3P | MIPI DSI differential data pair. (Data lane 3) |
| 23 | D3N | |
| 24 | GND | Power ground |
| 25 | D2P | MIPI DSI differential data pair. (Data lane 2) |
| 26 | D2N | |
| 27 | GND | Power ground |
| 28 | CLKP | MIPI DSI differential clock pair |
| 29 | CLKN | |
| 30 | GND | Power ground |
| 31 | D1P | MIPI DSI differential data pair. (Data lane 1) |
| 32 | D1N | |
| 33 | GND | Power ground |
| 34 | D0P | MIPI DSI differential data pair. (Data lane 0) |
| 35 | D0N | |
| 36 | GND | Power ground |
| 37 | VLED1+ | Power for LED1 backlight anode |
| 38 | VLED2+ | Power for LED2 backlight anode |
| 39 | VLED1- | Power for LED1 backlight cathode |
| 40 | VLED2- | Power for LED2 backlight cathode |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 8.0 | inch |
| Dot Matrix | 800 × 3(RGB) ×1280 | dots |
| Module dimension | 115.74 × 184.93 × 4.75 | mm |
| Active area | 107.64 × 172.224 | mm |
| Pixel pitch | 0.13455 × 0.13455 | mm |
| LCD type | TFT, Normally Black, Transmissive | |
| Viewing angle | 85/85/85/85 | |
| TFT Drive IC | ILI9881C or Equivalent | |
| TFT Interface | 4-Lanes MIPI | |
| Aspect Ratio | 10:16 | |
| Backlight Type | LED, Normally White | |
| Touch Panel | Without Touch Panel | |
| Surface | Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | 70 | ℃ |
| Storage Temperature | TST | -30 | － | 80 | ℃ |
Electrical Characteristics
Typical Operation Conditions
| Item | Symbol | Values | Unit | ||
|---|---|---|---|---|---|
| Min. | Typ. | Max. | |||
| Power supply for analog circuit | VCI | 3.0 | 3.3 | 3.6 | V |
| Power supply for logic circuit | IOVCC | 1.65 | 1.8 | 3.6 | V |
| Current for Driver | IVCI | - | 45 | 70 | mA |
| I IOVCC | - | 20 | 30 | mA | |
