Home Products TFT Display IPS TFT LCD WF70D4SYAUMNG10

7-inch Vertical Touch Screen Display with High-Brightness & PCAP Technology

Model No. WF70D4SYAUMNG10

►Size : 7-inch
►Resolution : 800 x 1280 dots
►View Direction : IPS
►Interface : MIPI DSI
►Driver IC : ILI9881C
►Control-Board : No
►Brightness(cd/m²): 850
►Frame Through Hole : No
►Touch Screen : Projected Capacitive Touch Panel (PCAP),OCA
►Detect Point : 10 Fingers
►Operating Temperature : -20~+70°C

Description

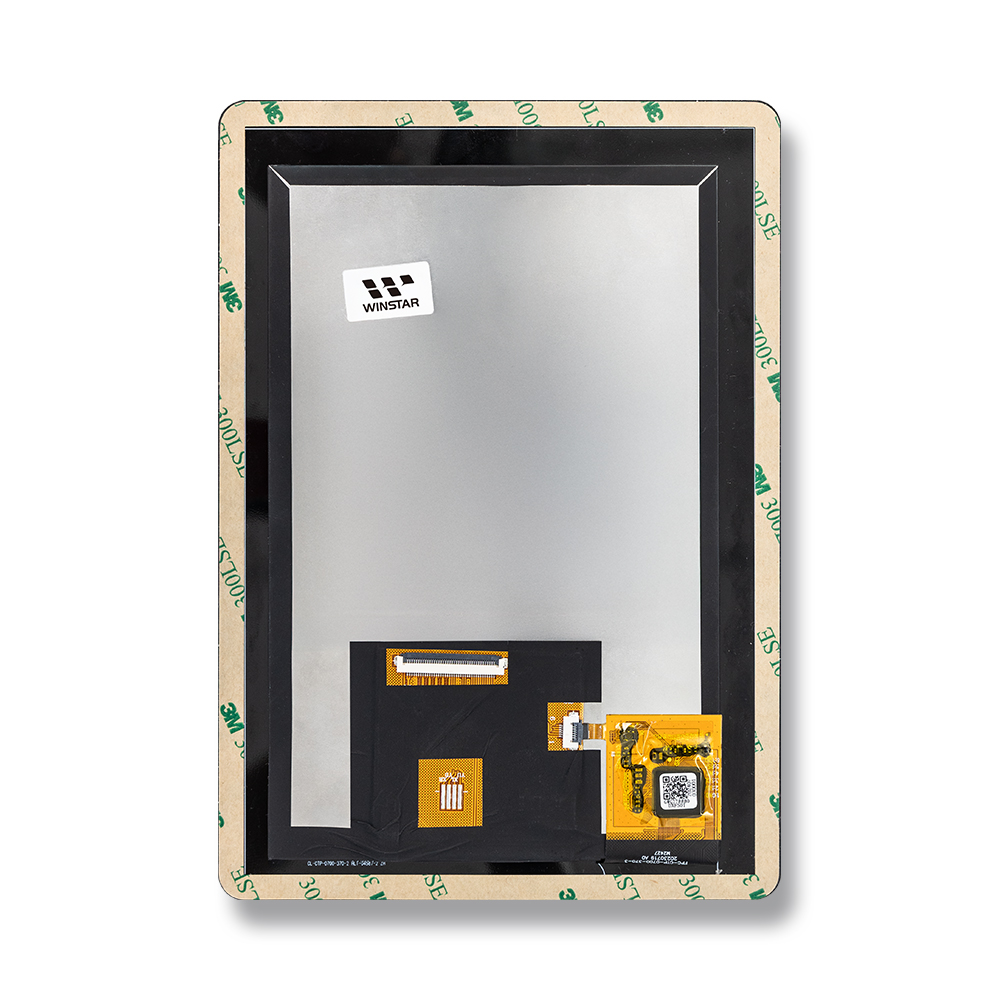

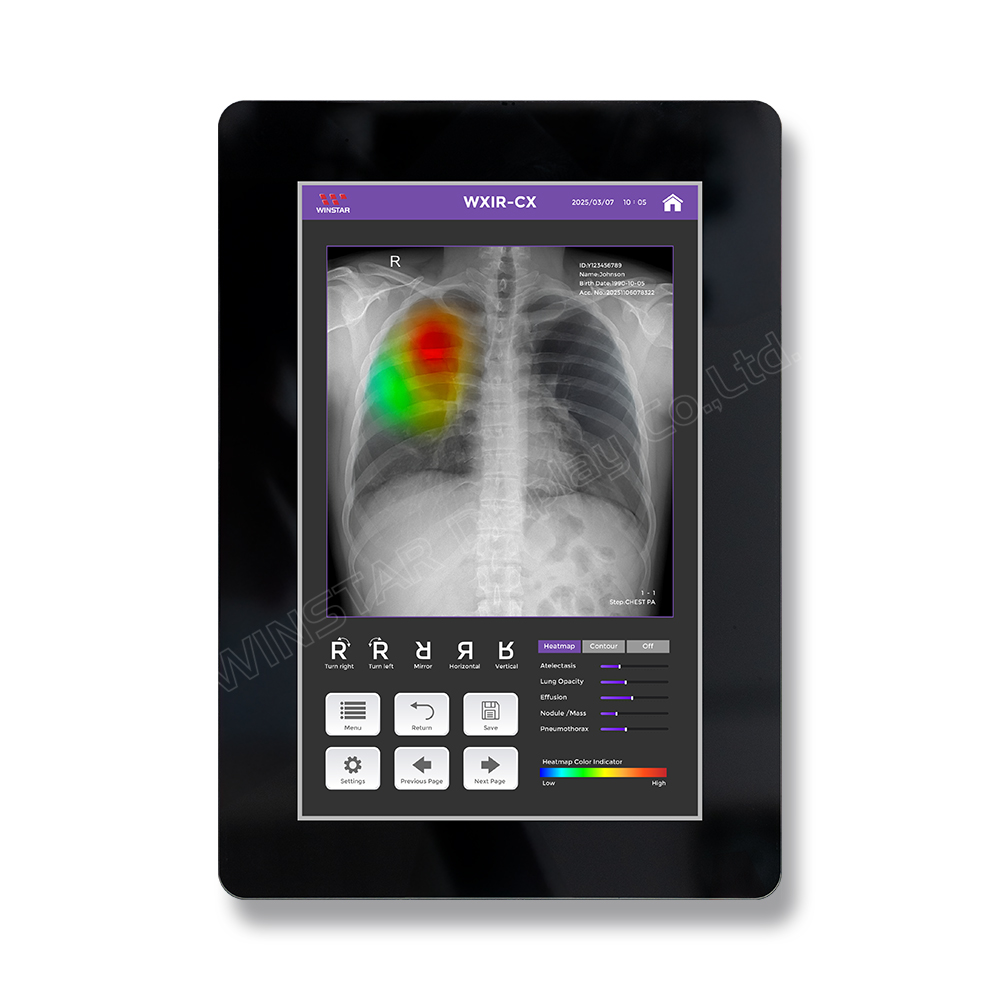

The WF70D4SYAUMNG10 is a vertical 7-inch high-brightness IPS TFT display featuring Projected Capacitive Touch Screen (PCAP) technology, designed for demanding industrial and commercial applications. It comes with a narrow bezel design and an extended glass cover for added durability and protection, making it ideal for rugged environments.

Vibrant Display and Wide Viewing Angles

With a resolution of 800 x 1280 pixels and IPS technology, this vertical touch screen display ensures vibrant color reproduction and wide viewing angles (85°/85°/85°/85°). This provides consistent image clarity from any direction.

Advanced Touchscreen Technology

Equipped with Projected Capacitive Touch Screen technology, the vertical touch screen supports 10-point multi-touch for responsive and precise user interactions. The ILI2511 PCAP driver IC and I2C interface further enhance the touchscreen's performance, offering a seamless and intuitive touch experience. Additionally, the PCAP panel features OCA technology to increase its durability and present better optical clarity.

High Brightness for Visibility

With a brightness of 850cd/m², the display is optimized for high-visibility environments, ensuring clear readability even in bright conditions. The 1000:1 contrast ratio ensures sharp text and detailed images, making it ideal for precision-demanding applications such as Human-Machine Interfaces (HMI), medical devices, and automotive systems.

Reliable Performance in Extreme Conditions

The WF70D4SYAUMNG10 operates reliably within a wide temperature range of -20°C to +70°C, and can be stored between -30°C and +80°C, making it suitable for challenging industrial environments. Its 2-Lane MIPI interface and ILI9881C TFT driver IC ensure smooth and efficient operation.

Perfect for Interactive Applications

With its vertical orientation and advanced touch capabilities, this vertical touch screen is ideal for applications that require both interactive features and high-performance visuals. Whether used in industrial control systems, medical equipment, or automotive displays, the WF70D4SYAUMNG10 offers exceptional reliability, clarity, and user interactivity, making it the perfect solution for a wide range of industries.

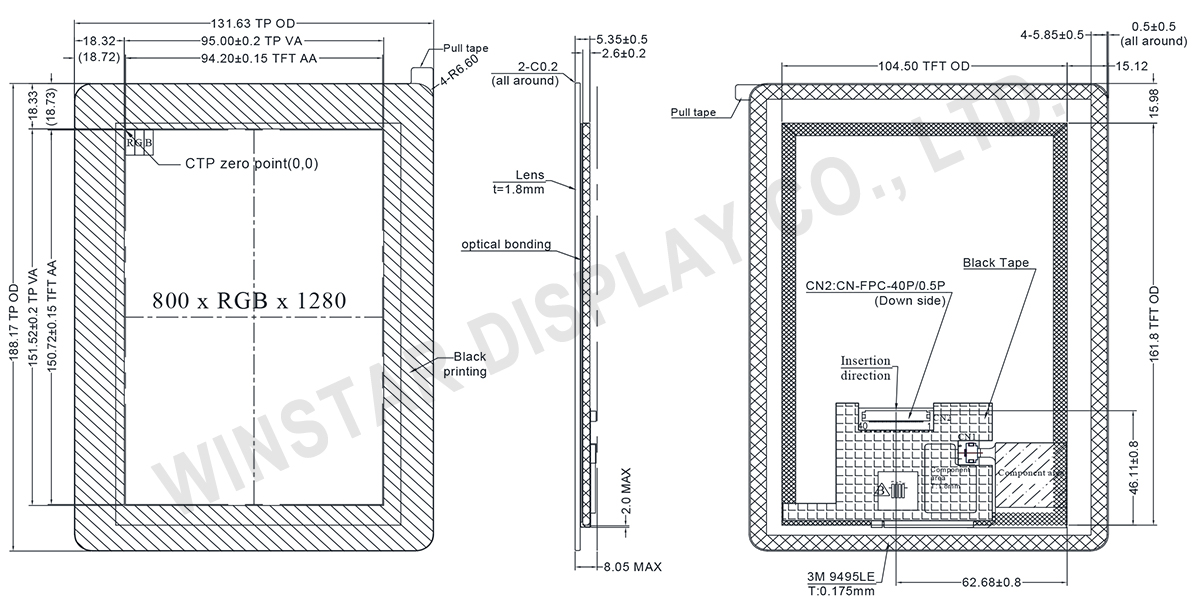

DRAWING

7-inch Vertical Touch Screen Display with High-Brightness & PCAP Technology, Vertical Touch Screen - WF70D4SYAUMNG10

SPECIFICATIONS

General Specifications

Item Dimension Unit
Size 7.0 inch
Dot Matrix 800 × RGB ×1280 dots
Module dimension 131.63 × 188.17 × 8.05 mm
Active area 94.2 × 150.72 mm
Pixel pitch 0.11775 × 0.11775 mm
LCD type TFT, Normally Black, Transmissive
View Angle 85/85/85/85
TFT IC ILI9881C
TFT Interface 2-Lanes MIPI
Aspect Ratio 16:9
Backlight Type LED, Normally White
PCAP Driver IC ILI2511
PCAP Interface I2C
PCAP FW Version 0x06.0x00.0x00.0x00.0x77.0x88.0x00.0x02
PCAP Resolution 16384*16384
Touch Panel Projected Capacitive Touch Panel (PCAP)
Surface Glare

Absolute Maximum Ratings

Item Symbol Min Typ Max Unit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80

Electrical Characteristics

Typical Operation Conditions

Item Symbol Values Unit
Min. Typ. Max.
Supply voltage VCI 2.5 3.3 3.6 V
IOVCC 1.7 1.8 1.9 V
Supply LCM current IVCI - 130 195 mA
IIOVCC - 18 30 mA

Backlight Driving Conditions

Parameter Symbol Min. Typ. Max. Unit
LED current ILED - 140 - mA
LED voltage VLED+ 16.8 18.0 19.2 V
LED Life Time   - 30,000 - Hr

Interface Pin Function

1. LCM PIN Definition

Pin Symbol Function
1 TP_GND Ground
2 TP_SDA TP serial interface address and data input/output.
3 TP_SCL TP serial interface clock input.
4 TP_INT TP indicate coordinate data ready.
5 TP_RST System reset signal input, active low.
6 NC(YU) No connection
7 NC(XL) No connection
8 NC(YD) No connection
9 NC(XR) No connection
10-11 VCI Power for analog circuit.
12-13 NC No connection
14 RESET Global reset pin.
15 TE Tearing effect output pin.
Leave the pin open when not in use.
16 NC No connection
17-18 GND Ground
19-20 IOVCC Power supply for I/O system.
21 GND Ground
22-23 NC No connection
24 GND Ground
25-26 NC No connection
27 GND Ground
28 CLKP MIPI DSI differential clock pair leave it open or fix to LVDSVSS level when not in use
29 CLKN MIPI DSI differential clock pair leave it open or fix to LVDSVSS level when not in use
30 GND Ground
31 D1P MIPI DSI differential data pair.
32 D1N MIPI DSI differential data pair.
33 GND Ground
34 D0P MIPI DSI differential data pair.
35 D0N MIPI DSI differential data pair.
36-37 GND Ground
38 VLED+ LED input terminal (Anode)
39-40 VLED- Ground (Cathode)
