Model No. WF70D2SWGGDNG0
►Size : 7-inch
►Resolution : 800 x 480 dots
►View Direction : IPS
►Interface : RGB
►Driver IC : RM53052+RM57452
►Control-Board : No
►Brightness(cd/m²): 1000
►Frame Through Hole : No
►Touch Screen : Projected Capacitive Touch Panel (PCAP)
►Detect Point : 5 Fingers
►Operating Temperature : -30~+80 °C (Wide Temperature)

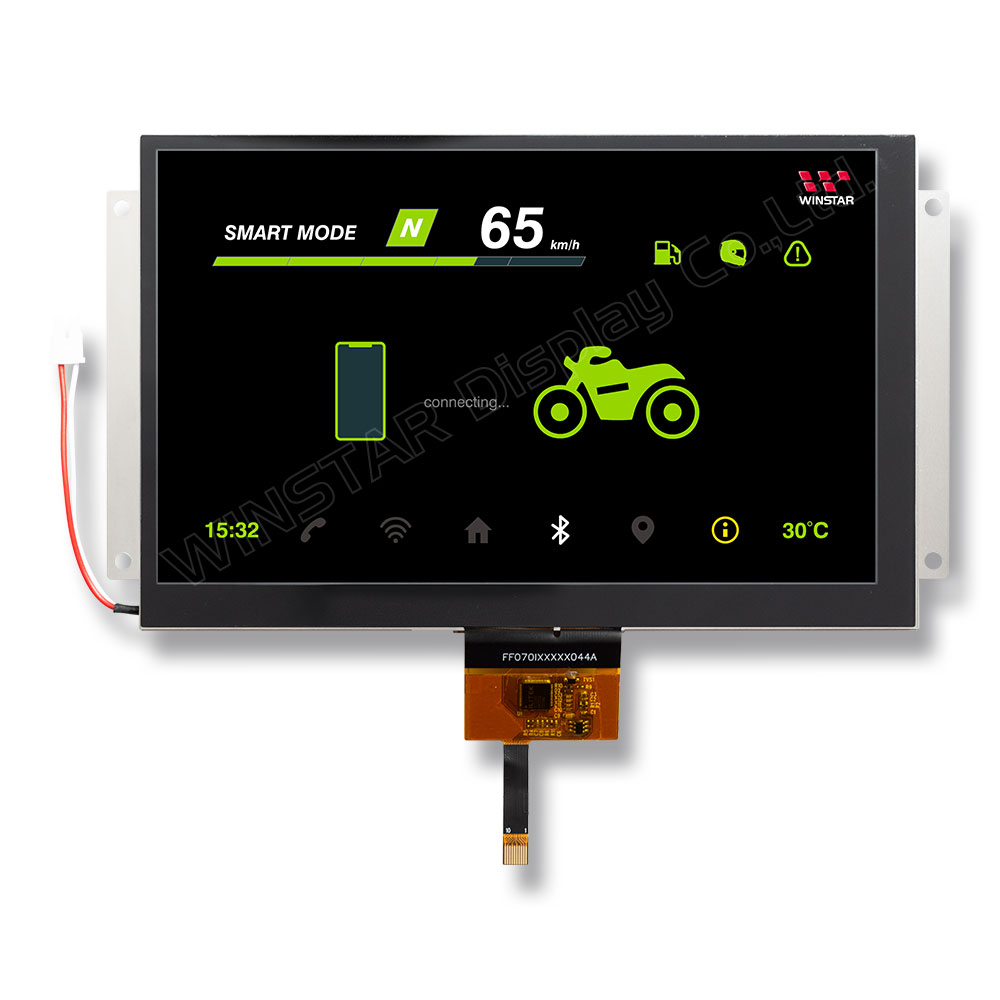

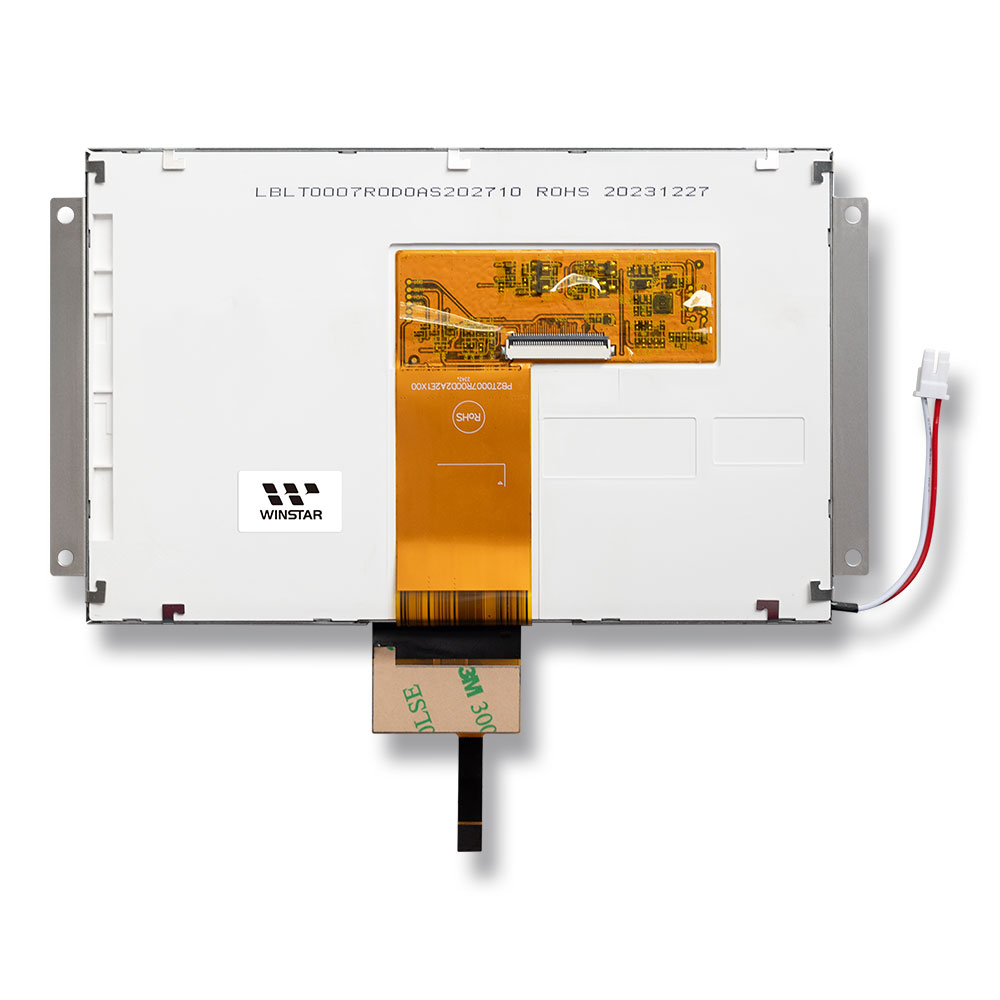

WF70D2SWGGDNG0 is a sunlight-viewable 7-inch IPS TFT LCD display with a projected capacitive touch panel, featuring a resolution of 800x480 pixels and an aspect ratio of 16:9. It boasts a high brightness level of 1000 cd/m² and a contrast ratio (typical) of 1500:1. Utilizing IPS display technology, it offers wide viewing angles of 85 degrees in all directions (left, right, up, and down).
The WF70D2 series 7 inch TFT LCD module, featuring IPS glass as an upgrade from the TN glass used in the WF70H and WF70C4 series, offers wide viewing angles, making it highly suitable for customers previously using the WF70C4 and aiming to enhance visual performance. Mechanically and in terms of Pin Define, the WF70D2 series shares identical specifications with the WF70H/WF70C4 series.
With outline dimensions measuring 181.2 × 105.4 mm and an active area of 152.4 × 91.44 mm, this module integrates RM53052 and RM57452 driver ICs and supports an 18-bit RGB interface. Designed to operate reliably in temperatures ranging from -30℃ to +80℃, it can also withstand similar storage conditions. The LCM operates on a supply voltage range of 2.9V to 3.6V, with a typical voltage of 3.3V.
This 7 inch IPS display module includes a projected capacitive touch panel (PCAP) with an ILI2130 driver IC, supporting I2C interfaces and 5-point touch functionality.
This model is suitable for a wide range of applications, including motorcycle dashboards, access control systems, outdoor charging stations, medical equipment, industrial displays, mining equipment control panels, construction site equipment, farm automation systems, and more. It excels due to its high brightness, wide viewing angles, and robust temperature tolerance.
| Item | Dimension | Unit |
|---|---|---|
| Size | 7.0 | inch |
| Dot Matrix | 800 × RGB × 480(TFT) | dots |

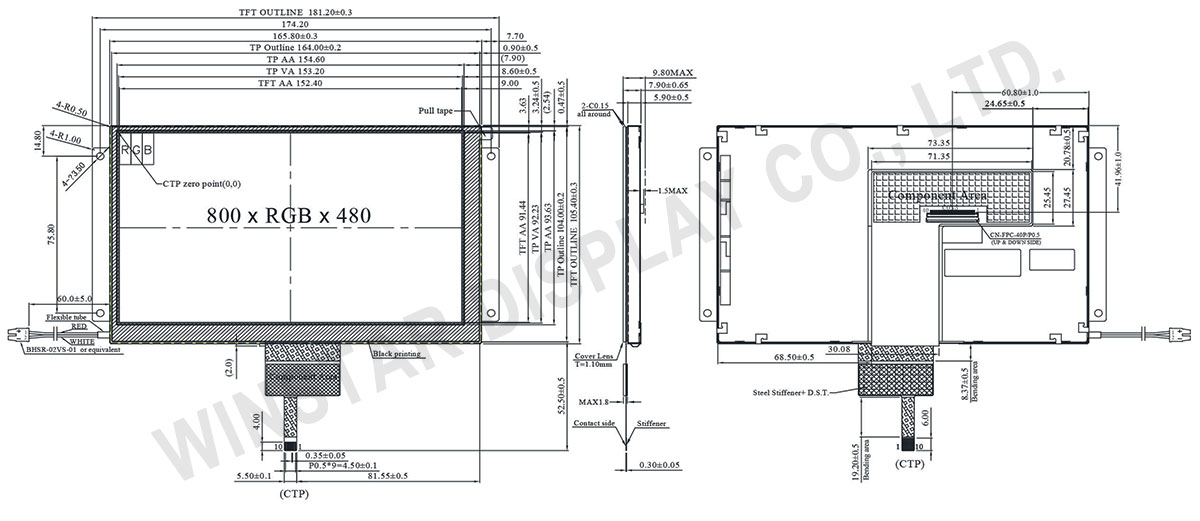

| Module dimension | 181.2(W) × 105.4(H) × 9.8 (MAX)(D) | mm |
| Active area | 152.4 × 91.44 | mm |
| Pixel pitch | 0.1905 × 0.1905 | mm |
| LCD type | TFT, Normally Black, Transmissive | |
| View Angle | 85/85/85/85 | |
| TFT IC | RM53052+RM57452 | |
| Aspect Ratio | 16:9 | |
| Backlight Type | LED, Normally White | |
| TFT Interface | 18-bit RGB | |
| PCAP Driver IC | ILI2130 | |
| PCAP Interface | I2C | |
| PCAP FW Version | 0x07.0x00.0x00.0x00.0x70.0x44.0x0A.0x02 | |
| PCAP Resolution | 16384*16384 | |
| Touch Panel | Projected Capacitive Touch Panel (PCAP) | |
| Surface | Glare | |
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -30 | － | +80 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For LCM | Vcc | － | 2.9 | 3.3 | 3.6 | V |
| Supply Current For LCM | Icc | Black Pattern | － | 85 | 130 | mA |
| Supply CTP | VDDT | 3.1 | 3.3 | 3.5 | V | |
| ICTP | － | 65 | 100 | mA |
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|
| LED current | － | － | 110 | － | mA |
| LED voltage | VLED+ | 22.4 | 24.0 | 25.6 | V |
| LED Life Time | － | 50,000 | － | － | Hr |
| Pin | Symbol | Function |
|---|---|---|
| 1 | GND | Power Ground |
| 2 | GND | Power Ground |
| 3 | NC | Not Connect |
| 4 | Vcc | Power Supply for Digital Circuit |
| 5 | Vcc | Power Supply for Digital Circuit |
| 6 | Vcc | Power Supply for Digital Circuit |
| 7 | Vcc | Power Supply for Digital Circuit |
| 8 | NC | Not Connect |
| 9 | DE | Data Enable |
| 10 | GND | Power Ground |
| 11 | GND | Power Ground |
| 12 | GND | Power Ground |
| 13 | B5 | Blue Data 5 (MSB) |
| 14 | B4 | Blue Data 4 |
| 15 | B3 | Blue Data 3 |
| 16 | GND | Power Ground |
| 17 | B2 | Blue Data 2 |
| 18 | B1 | Blue Data 1 |
| 19 | B0 | Blue Data 0 (LSB) |
| 20 | GND | Power Ground |
| 21 | G5 | Green Data 5 (MSB) |
| 22 | G4 | Green Data 4 |
| 23 | G3 | Green Data 3 |
| 24 | GND | Power Ground |
| 25 | G2 | Green Data 2 |
| 26 | G1 | Green Data 1 |
| 27 | G0 | Green Data 0(LSB) |
| 28 | GND | Power Ground |
| 29 | R5 | Red Data 5 (MSB) |
| 30 | R4 | Red Data 4 |
| 31 | R3 | Red Data 3 |
| 32 | GND | Power Ground |
| 33 | R2 | Red Data 2 |
| 34 | R1 | Red Data 1 |
| 35 | R0 | Red Data 0(LSB) |
| 36 | GND | Power Ground |
| 37 | GND | Power Ground |
| 38 | DCLK | Clock Signals ; Latch Data at the Falling Edge (CLK) |
| 39 | GND | Power Ground |
| 40 | GND | Power Ground |
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VLED+ | Red, LED_ Anode |
| 2 | VLED- | White, LED_ Cathode |
| Pin | Symbol | Function |
|---|---|---|
| 1 | VSS | Ground for analog circuit |
| 2 | VDDT | Power Supply : +3.3V |
| 3 | SCL | I2C clock input |
| 4 | NC | No connect |
| 5 | SDA | I2C data input and output |
| 6 | NC | No connect |
| 7 | /RST | External Reset, Low is active |
| 8 | NC | No connect |
| 9 | /INT | External interrupt to the host |
| 10 | VSS | Ground for analog circuit |
