10.4" 1024x768 HDMI (DVI) TFT LCD Display with PCAP

Model No. WF104GSWFMLHBV

►Size : 10.4”
►Resolution : 1024 x 768 dots
►View Direction : IPS (80/80/80/80)
►Interface : Support HDMI Connector (Only DVI Signal)
►Controller IC : TFP401
►Control-Board : No
►Brightness (cd/m²): 800
►Frame Through Hole : No
►Touch Screen : Projected capacitive touch screen (PCAP)
►Detect Point : 1 / 2 / Option
►Operating Temperature : -30~+80°C (Wide Temperature)

Description

The WF104GSWFMLHBV is a high-brightness 1024x768 HDMI TFT-LCD display with a projected capacitive touch panel (PCAP). This module features a diagonal size of 10.4 inches and an aspect ratio of 4:3. Featuring the TFP401 Controller IC, the WF104GSWFMLHBV comes with a control board that exclusively supports the HDMI signal interface (DVI) for the Raspberry Pi system. Specifically designed for the Raspberry Pi platform, this TFT module includes a 40-pin GPIO connector for seamless integration. Additionally, the WF104G HDMI series supports PWM (Pulse Width Modulation) functionality for adjusting LED backlight brightness.

The WF104GSWFMLHBV adopts an IPS panel, providing a wider viewing angle of 80 degrees (typical value) in all directions: Left: 80 / Right: 80 / Up: 80 / Down: 80. It boasts a brightness of 800 nits (typical value) and a contrast ratio of 800:1 (typical value). Equipped with a projected capacitive touch panel (PCAP) featuring the ILI2511 IC, it supports a USB interface and offers 1/ 2/ multi-point touch capabilities.

The LCM power supply voltage ranges from 11.4V to 12.6V, with a typical value of 12.0V. The display operates within temperatures ranging from -20℃ to +70℃, with storage temperatures from -30℃ to +80℃. The 10.4-inch 1024x768 HDMI display module of the WF104GSWFMLHBV is suitable for use in control panels for infotainment systems in cars, industrial control systems, boat dashboards, and home security.

Assembly Instructions: Please Note: Assembly requires the use of edge measuring keyholes for fixing and support. Ensure proper alignment during installation to avoid misplacement.

High-Brightness Wide Temperature HDMI TFT LCD Module - Ideal for automotive Infotainment, Industrial Controls, Boat Dashboards, and Home Security Systems

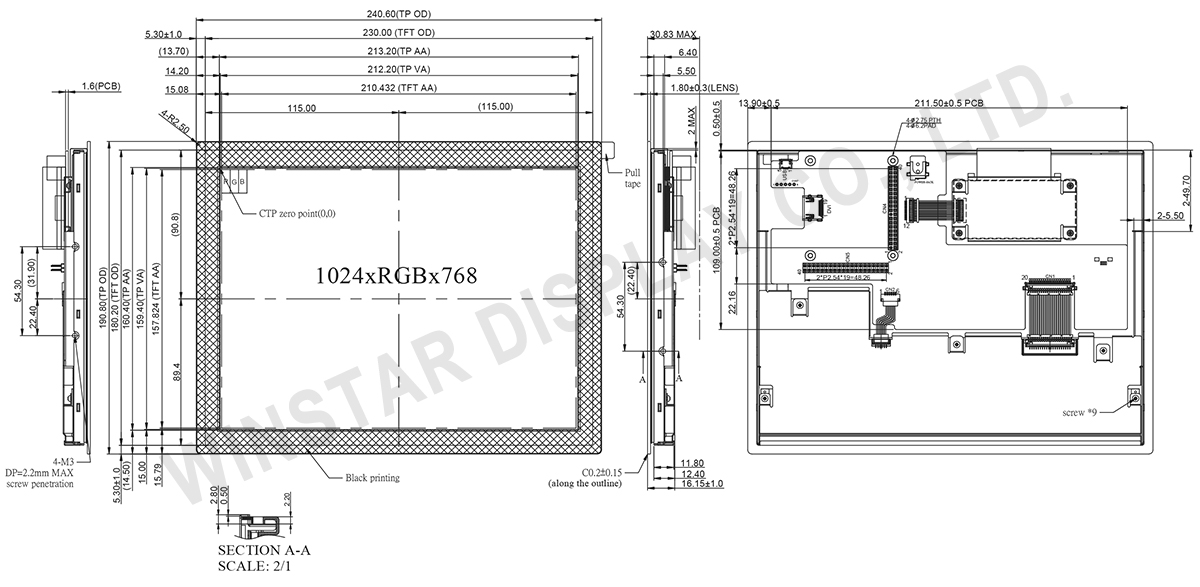

DRAWING

1024x768 HDMI, 10.4 inch 1024x768 HDMI (DVI Signal) TFT LCD Display with PCAP - WF104GSWFMLHBV

SPECIFICATIONS

General Specifications

Item Dimension Unit
Size 10.4 inch
Resolution 1024 × RGB × 768 (TFT) dots
Module dimension 240.6 × 190.8 × 30.83 mm
Active area 210.432 × 157.824 mm
Pixel Pitch 0.2055 × 0.2055 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80 min
Aspect Ratio 4:3
Controller IC TFP401
Backlight Type LED, Normally White
TFT Interface HDMI (only for DVI)
PCAP IC ILI2511 or Equivalent
PCAP Interface USB
PCAP FW Version 0x06.0x00.0x00.0x00.0x00.0x00.0x00.0x00
PCAP Resolution 16384*16384
Touch Panel Projected capacitive touch screen (PCAP)
Surface Glare
Screw torque M2 Min:1.4 Max:2.2 (Unit, Kgf.cm)
M3 Min:2.0 Max:2.4 (Unit, Kgf.cm)
Assembly Instructions Need to use edge measuring keyholes to perform fixing and support

Absolute Maximum Ratings

Item Symbol Min Typ Max Unit
Operating Temperature TOP -30 +80
Storage Temperature TST -30 +80

Electrical Characteristics

Operating conditions

Item Symbol Min Typ Max Unit
Supply Voltage For LCM 12V 11.4 12.0 12.6 V
Supply Current For LCM I12V 940 1410 mA
LED life time - 100,000 - Hr

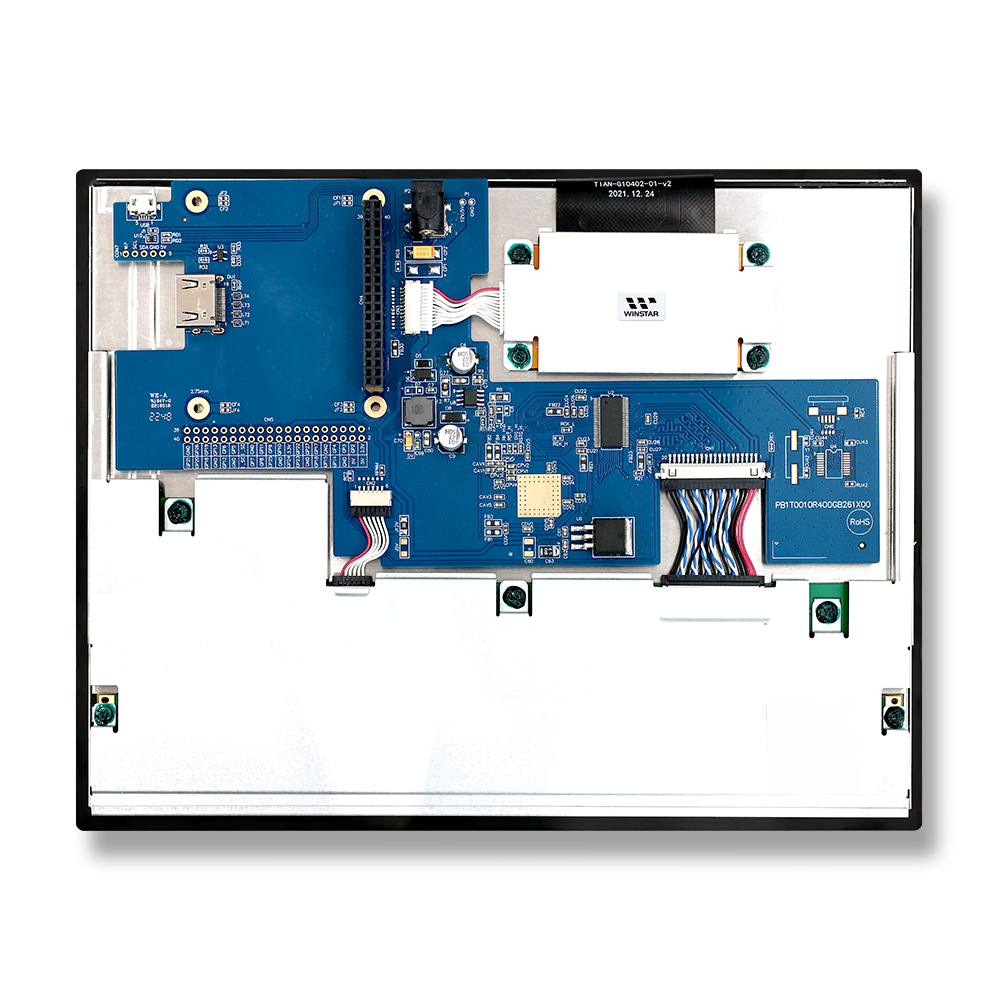

Interface

1.CN4

Pin No. Symbol Function
1 NC No connection
2 5V Raspberry Pi:Power 5V
3 GPIO02 Raspberry Pi:GPIO02
4 5V Raspberry Pi:Power 5V
5 GPIO03 Raspberry Pi:GPIO03
6 GND Raspberry Pi:GND
7 GPIO04 Raspberry Pi:GPIO04
8 GPIO14 Raspberry Pi:GPIO14
9 GND Raspberry Pi:GND
10 GPIO15 Raspberry Pi:GPIO15
11 GPIO17 Raspberry Pi:GPIO17
12 GPIO18
(PWM_BL)
Backlight Enable,Active_H (Raspberry Pi:GPIO18)
13 GPIO27 Raspberry Pi:GPIO27
14 GND Raspberry Pi:GND
15 GPIO22 Raspberry Pi:GPIO22
16 GPIO23 Raspberry Pi:GPIO23
17 NC No connection
18 GPIO24 Raspberry Pi:GPIO24
19 GPIO10 Raspberry Pi:GPIO10
20 GND Raspberry Pi:GND
21 GPIO09 Raspberry Pi:GPIO09
22 GPIO25 Raspberry Pi:GPIO25
23 GPIO11 Raspberry Pi:GPIO11
24 GPIO08 Raspberry Pi:GPIO08
25 GND Raspberry Pi:GND
26 GPIO07 Raspberry Pi:GPIO07
27 ID_SD Raspberry Pi:ID_SD
28 ID_SC Raspberry Pi:ID_SC
29 GPIO05 Raspberry Pi:GPIO05
30 GND Raspberry Pi:GND
31 GPIO06 Raspberry Pi:GPIO06
32 GPIO12 Raspberry Pi:GPIO12
33 GPIO13 Raspberry Pi:GPIO13
34 GND Raspberry Pi:GND
35 GPIO19 Raspberry Pi:GPIO19
36 GPIO16 Raspberry Pi:GPIO16
37 GPIO26 Raspberry Pi:GPIO26
38 GPIO20 Raspberry Pi:GPIO20
39 GND Raspberry Pi:GND
40 GPIO21 Raspberry Pi:GPIO21

2. CN5

Pin No. Symbol Function
1 3.3V TFT Module Power limit can only output 3.3V,100mA
2 5V Raspberry Pi:Power 5V
3 GPIO02 Raspberry Pi:GPIO02
4 5V Raspberry Pi:Power 5V
5 GPIO03 Raspberry Pi:GPIO03
6 GND Raspberry Pi:GND
7 GPIO04 Raspberry Pi:GPIO04
8 GPIO14 Raspberry Pi:GPIO14
9 GND Raspberry Pi:GND
10 GPIO15 Raspberry Pi:GPIO15
11 GPIO17 Raspberry Pi:GPIO17
12 GPIO18
(PWM_BL)
Backlight Enable ,Active_H (Raspberry Pi:GPIO18)
13 GPIO27 Raspberry Pi:GPIO27
14 GND Raspberry Pi:GND
15 GPIO22 Raspberry Pi:GPIO22
16 GPIO23 Raspberry Pi:GPIO23
17 3.3V TFT Module Power limit can only output 3.3V,100mA
18 GPIO24 Raspberry Pi:GPIO24
19 GPIO10 Raspberry Pi:GPIO10
20 GND Raspberry Pi:GND
21 GPIO09 Raspberry Pi:GPIO09
22 GPIO25 Raspberry Pi:GPIO25
23 GPIO11 Raspberry Pi:GPIO11
24 GPIO08 Raspberry Pi:GPIO08
25 GND Raspberry Pi:GND
26 GPIO07 Raspberry Pi:GPIO07
27 ID_SD Raspberry Pi:ID_SD
28 ID_SC Raspberry Pi:ID_SC
29 GPIO05 Raspberry Pi:GPIO05
30 GND Raspberry Pi:GND
31 GPIO06 Raspberry Pi:GPIO06
32 GPIO12 Raspberry Pi:GPIO12
33 GPIO13 Raspberry Pi:GPIO13
34 GND Raspberry Pi:GND
35 GPIO19 Raspberry Pi:GPIO19
36 GPIO16 Raspberry Pi:GPIO16
37 GPIO26 Raspberry Pi:GPIO26
38 GPIO20 Raspberry Pi:GPIO20
39 GND Raspberry Pi:GND
40 GPIO21 Raspberry Pi:GPIO21

3. DVI

Pin No. Symbol I/O Function
1 Rx2+ I Channel-2 positive receiver input; low-voltage signal differential- input pair.
2 GND P Ground
3 Rx2- I Channel-2 negative receiver input; low-voltage signal differential- input pair.
4 Rx1+ I Channel-1 positive receiver input; low-voltage signal differential- input pair.
5 GND P Ground
6 Rx1- I Channel-1 negative receiver input; low-voltage signal differential- input pair.
7 Rx0+ I Channel-0 positive receiver input; low-voltage signal differential- input pair.
8 GND P Ground
9 Rx0- I Channel-0 negative receiver input; low-voltage signal differential- input pair.
10 RxC+ I Clock positive receiver input; low-voltage signal differential- input pair.
11 GND P Ground
12 RxC- I Clock negative receiver input; low-voltage signal differential- input pair.
13-14 NC - No connection
15 SCL I/O DDC(Data Display Channel) Clock
16 SDA I/O DDC(Data Display Channel) Data
17 GND P Ground
18 5V P Power Supply
19 Detect I/O Hot plug detect

I: input, O: output, P: Power

4. CTP USB PIN Definition

Pin Symbol Function
1 5V Power Supply (5V)
2 D- Data line -
3 D+ Data line +
4 NC No connection
5 GND Power Ground

5. POWER JACK

Pin Symbol Function
1 12V Power Supply (12.0V)
2 GND Power Ground
3 NC No connection
