Model No. WFM0103A2TABASNN000
►1.03" 128 × 128 resolution
►Reflective active-matrix display
►Black and white, 1-bit per pixel
►Serial interface
►1-bit internal memory in panel
►Super low power consumption

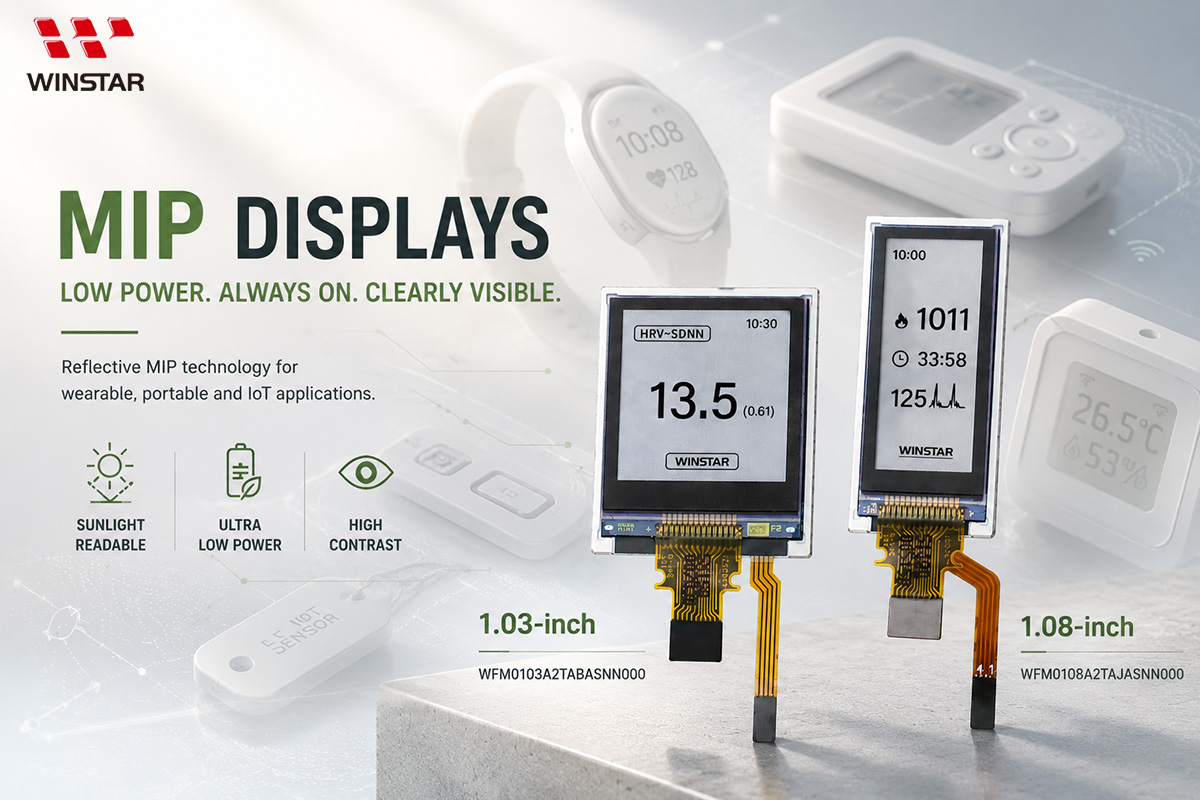

WFM0103A2TABASNN000 is a 1.03-inch reflective MIP (Memory in Pixel) display module with a 128x128 resolution and SPI interface. The display operates using ambient light, supporting visibility in bright environments, including outdoor conditions.
An integrated LED back light is included to support visibility under low ambient light conditions. Due to the reflective display structure, the front light functions as a supplementary light source rather than the primary illumination source.
This module is designed for ultra-low power consumption, making it suitable for battery-powered applications requiring efficient power management. The compact module size of 24.29 x 28.66 x 1.78 mm, Hard Coat front polarizer, and operating temperature range of -20°C to +70°C support integration into compact electronic systems.
| Item | Specification | Unit |
|---|---|---|
| Size | 1.03 | inch |
| Dot Matrix | 128 × 128 | dots |

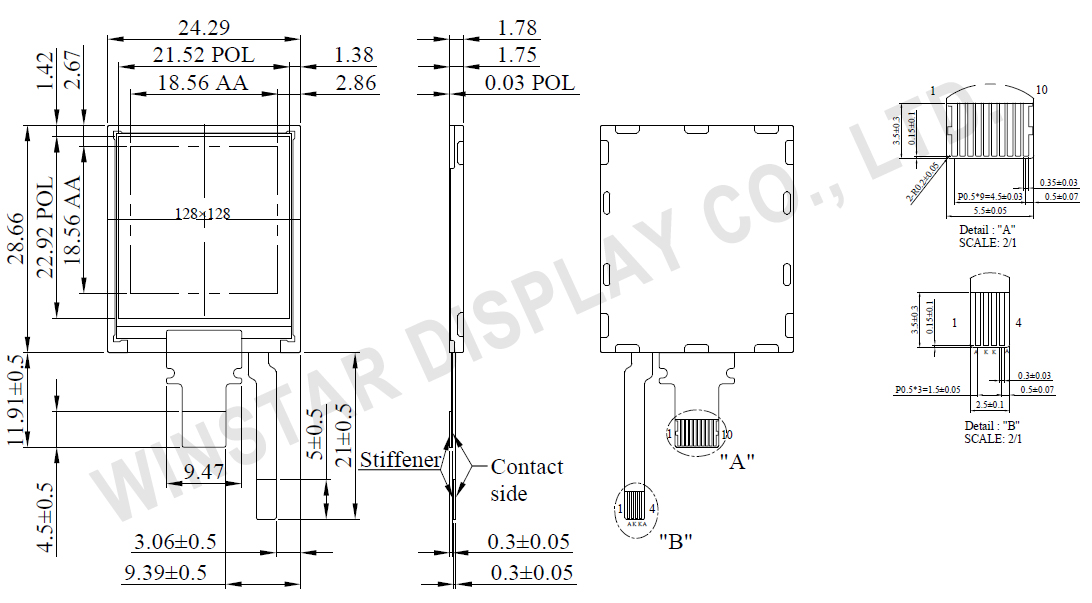

| Module Dimension | 24.29 × 28.66 × 1.78 | mm |
| Active Area | 18.56 × 18.56 | mm |
| Dot Pitch | 0.145 × 0.145 | mm |
| Pixel Array | Square | |
| Display Type | Reflective MIP (Memory in Pixel) | |
| Gray Scale Inversion Direction | 2 O'clock | |
| Interface | SPI | |
| Light Source | Integrated LED Backlight | |
| Touch Panel | Without Touch Panel | |
| Surface | Hard Coat (HC) Front Polarizer | |
| Operating Temperature | -20 ~ +70 | °C |
| Storage Temperature | -30 ~ +80 | °C |
| Supply Voltage | 2.7 ~ 3.3 | V |
| Panel Current | Typ. 0.00833 | mA |
| LED Current | Min. 15 / Typ. 20 | mA |
| Response Time | Max. 40 | ms |
| Contrast Ratio | Typ. 20 | - |
| Brightness (with LED) | Typ. 30 | cd/m² |
| Viewing Angle | 60 / 60 / 60 / 60 | deg |
| No. | Symbol | Function |
|---|---|---|
| 1 | SCLK | Serial clock signal |
| 2 | SI | Serial data input signal |
| 3 | SCS | Chip select signal ( Active of Hi ) |
| 4 | EXTCOMIN | External COM inversion signal input ( Square wave) |
| 5 | DISP | Display ON/OFF signal |
| 6 | VDDA | Power supply (Analog) |
| 7 | VDD | Power supply (Digital) |
| 8 | EXTMODE | Control mode of COM inversion is select terminal |
| 9 | VSS | GND (Digital) |
| 10 | VSSA | GND (Analog) |
| No. | Symbol | Function |
|---|---|---|
| 1 | A | Power for LED backlight (Anode) |
| 2 | K | Power for LED backlight (Cathode) |
| 3 | K | Power for LED backlight (Cathode) |
| 4 | A | Power for LED backlight (Anode) |
| Item | Symbol | Values | Unit | ||
|---|---|---|---|---|---|
| Min. | Typ. | Max. | |||
| Power supply voltage | VDDA (Analog) | +2.7 | +3.0 | +3.3 | V |
| VDD (Logic) | +2.7 | +3.0 | +3.3 | V | |
| Input logic high voltage | VIH | VDD-0.1 | VDD | VDD | V |
| Input logic low voltage | VIL | VSS | VSS | VSS+0.1 | V |
| Current Consumption | HOLD ( no display data update ) | - | 15 | 60 | μW |
| Data update mode with display update ( 1 fram / sec ) | - | 45 | 120 | μW | |
| Item | Symbol | Values | Unit | ||
|---|---|---|---|---|---|
| Min. | Typ. | Max. | |||
| LED current | ILED | - | 20 | - | mA |
| LED voltage | VLED | 2.4 | 2.8 | 3.2 | V |
| Power consumptlon | PBL | - | 0.056 | - | W |
| LED life time | - | 50,000 | - | - | Hr |
