Model No. WFM0108A2TAJASNN000
► Size: 1.08 inch
► Resolution: 160 × 68 pixels (10,880 pixels)
► Display Type: Reflective active-matrix (slightly transmissive, black & white)
► Interface: Serial data interface
► Memory: 1-bit memory in each pixel for in-panel data storage
► Update Method: Arbitrary line update supported
► Structure: Monolithic design
► Features: Ultra-low power consumption, thin, lightweight, and compact
► Surface Treatment: HardCoat front polarizer
► Connection: FPC
WFM0108A2TAJASNN000 is a 1.08-inch reflective MIP (Memory in Pixel) display module featuring a 160×68 resolution and SPI interface. The display adopts a reflective active-matrix structure with slightly transmissive characteristics, providing good readability under ambient light conditions.
Each pixel integrates 1-bit memory, enabling image data to be stored directly within the panel and allowing the displayed image to be maintained without continuous refresh. The module supports arbitrary line updates, so only modified areas need to be refreshed, significantly reducing overall power consumption.
The module features a monolithic design, resulting in a thin, lightweight, and compact form factor. A HardCoat front polarizer is applied to improve surface durability for portable and low-power device integration.
This display is suitable for applications requiring ultra-low power operation, stable image retention, and reliable visibility in bright ambient environments.
| Item | Specification | Unit |
|---|---|---|
| Size | 1.08 | inch |
| Dot Matrix | 160 × 68 | dots |

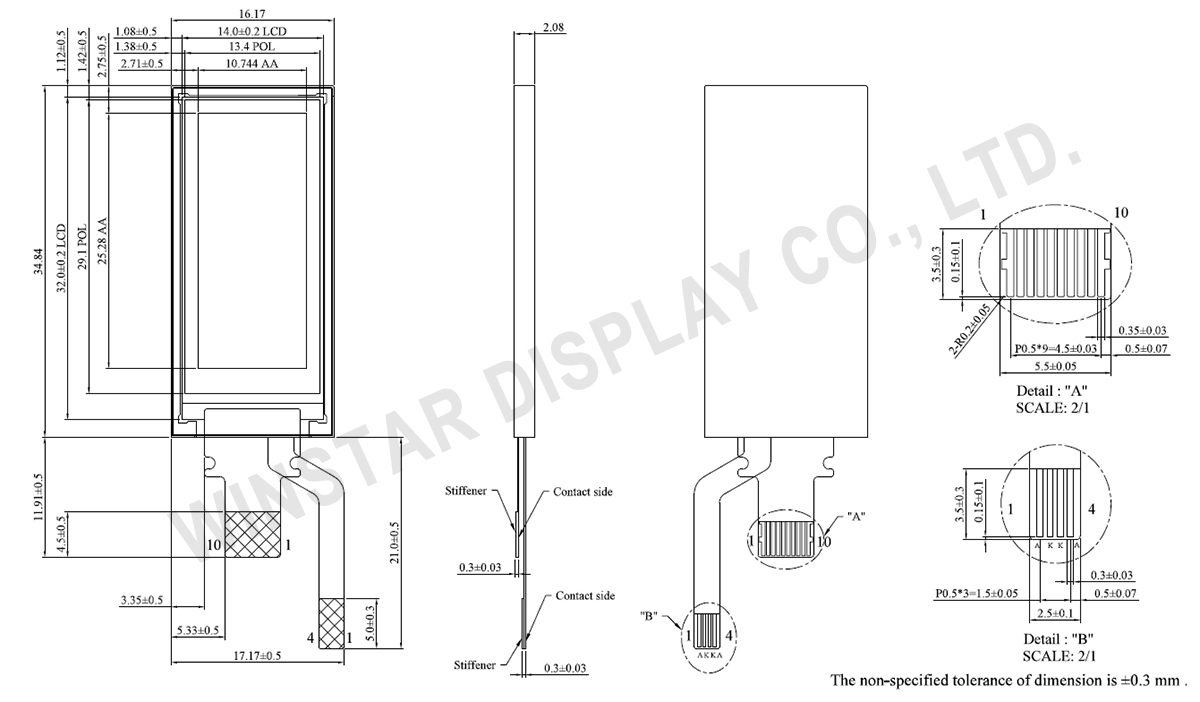

| Module Dimension | 32 × 14 × 2.08 | mm |
| Active Area | 25.28 × 10.744 | mm |
| Dot Pitch | 0.158 × 0.158 | mm |
| Pixel Array | Square | |
| Display Type | Reflective MIP (Memory in Pixel) | |
| Gray Scale Inversion Direction | All | |
| Interface | SPI | |
| Light Source | Integrated LED Backlight | |
| Touch Panel | Without Touch Panel | |
| Surface | Hard Coat (HC) Front Polarizer | |
| Operating Temperature | -20 ~ +70 | °C |
| Storage Temperature | -30 ~ +80 | °C |
| Supply Voltage | 2.7 ~ 3.3 | V |
| Panel Current | Typ. 0.00833 | mA |
| LED Current | Min. 15 / Typ. 20 | mA |
| Response Time | Max. 40 | ms |
| Contrast Ratio | Typ. 20 | - |
| Brightness (with LED) | Typ. 20 | cd/m² |
| Viewing Angle | 60 / 60 / 60 / 60 | deg |
| Terminal | Symbol | Function |
|---|---|---|
| 1 | SCLK | Serial clock signal |
| 2 | SI | Serial data input signal |
| 3 | SCS | Chip select signal ( Active of Hi ) |
| 4 | EXTCOMIN | External COM inversion signal input ( Square wave) |
| 5 | DISP | Display ON/OFF signal |
| 6 | VDDA | Power supply (Analog) |
| 7 | VDD | Power supply (Digital) |
| 8 | EXTMODE | Control mode of COM inversion is select terminal |
| 9 | VSS | GND (Digital) |
| 10 | VSSA | GND (Analog) |
| No. | Symbol | Function |
|---|---|---|
| 1 | A | Power for LED backlight (Anode) |
| 2 | K | Power for LED backlight (Cathode) |
| 3 | K | Power for LED backlight (Cathode) |
| 4 | A | Power for LED backlight (Anode) |
| Item | Symbol | Values | Unit | ||
|---|---|---|---|---|---|
| Min. | Typ. | Max. | |||
| Power supply voltage | VDDA (Analog) | +2.7 | +3.0 | +3.3 | V |
| VDD (Logic) | +2.7 | +3.0 | +3.3 | V | |
| Input logic high voltage | VIH | VDD-0.1 | VDD | VDD | V |
| Input logic low voltage | VIL | VSS | VSS | VSS+0.1 | V |
| Current Consumption | HOLD ( no display data update ) | - | 15 | 50 | μW |
| Data update mode with display update ( 1 fram / sec ) | - | 25 | 100 | μW | |
| Item | Symbol | Values | Unit | ||
|---|---|---|---|---|---|
| Min. | Typ. | Max. | |||
| LED current | ILED | - | 20 | - | mA |
| LED voltage | VLED | 2.7 | 3.0 | 3.3 | V |
| LED life time | - | 50,000 | - | - | Hr |
