Solving Display Challenges for Digital Mixers and Audio Consoles: A Deep Dive into UART Communication and GPIO Interfaces

March 20,2025

Description

In modern audio equipment, display systems are not just used for showing basic parameters; they need to enable efficient, real-time data transmission and control operations. For digital mixers, audio consoles, and similar professional devices, achieving precise data synchronization and stable interface operation is critical to enhancing the user experience.

What is UART Communication and Why is it Crucial for Audio Console Displays?

UART (Universal Asynchronous Receiver-Transmitter) is a simple, stable serial communication protocol commonly used for data transmission between devices. In audio equipment, the UART interface enables low-latency, peer-to-peer data exchange between the audio console display and other devices, which is essential for rapid operator response.

Why Choose UART for Data Transmission?

  • Simple and Stable: UART is an efficient communication protocol, ideal for audio consoles and other devices that require low latency, offering stable performance even in dynamic environments.
  • Peer-to-Peer Communication: UART allows devices to connect and exchange data directly, without the need for complex intermediary equipment or network setups. This is particularly advantageous for live sound and recording applications.

Proprietary UART and GPIO Pin Support: Flexible and Customizable Solutions

In addition to standard UART communication, Proprietary UART offers enhanced customization capabilities, especially when devices need more complex data interaction or specific configurations. This makes the audio console display system more flexible and adaptable to different use cases.

GPIO (General Purpose Input/Output) pins are another key feature, supporting direct connections between multiple devices and providing additional control and signaling functions. For audio equipment that requires further integration with external hardware or additional control interfaces, GPIO support offers extended possibilities.

Technological Integration: How to Achieve Seamless Display Control and User Experience

By combining UART communication and GPIO interface support, audio equipment can offer more efficient display control and interaction. For instance, the display interface on a digital mixer can show multi-channel audio data in real-time, allowing users to instantly adjust volume, gain, and other parameters. All of this relies on stable, low-latency data transmission, ensuring realtime interactive.

In practice, this technological integration can significantly enhance equipment reliability and stability, reducing latency and minimizing the risk of operational failure.

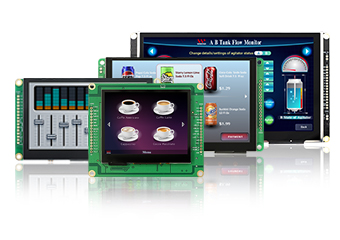

WINSTAR's UART Smart Display: Designed for Audio Consoles

With the above technical background in mind, WINSTAR's Smart Display is the ideal choice for audio equipment. Our display systems fully support UART peer-to-peer communication and GPIO interfaces, providing stable, reliable display and control experiences for digital mixers, audio consoles, and other devices, whether used in live sound environments or recording studios.

Solving Display Challenges for Digital Mixers and Audio Consoles

Available Size Options:

To meet the diverse needs of different applications, WINSTAR's UART Smart Display offers a variety of size options, including:

  • 3.5" – Compact display, ideal for space-constrained devices.
  • 4.3" – Slightly larger for more precise control and display.
  • 5" – Balanced size, offering a good visual effect for medium-sized devices.
  • 7" – Larger display area, allowing for more data and parameter adjustments.
  • 10.1" – Larger visual area, suitable for devices or applications requiring higher display standards.

These size options are designed to meet the needs of various devices and environments, whether for live sound setups, studio recording equipment, or large mixing console systems.

Assistance with Market Certifications:

In addition to providing efficient and stable display solutions, WINSTAR can assist clients in navigating the process of obtaining certifications for international standards. Whether it's CE, UL, FCC, RoHS, or audio-specific standards like IEC and AES for sound quality performance, WINSTAR's professional team offers comprehensive support. We help our clients successfully achieve certifications for global market entry.

We understand that in the audio industry, product compliance and certifications are crucial for successful market entry. WINSTAR will be your trusted partner, helping your products meet the highest quality and safety standards.

Learn More Today: Contact us for technical details and integration solutions
