Quantum Dot TFT Display, QD LCD Display 10.1"
Model No. WF101NTYA4LNN0#000
►Size: 10.1 inch
►Resolution: 1920x1200 dots
►View Direction: IPS
►Interface : LVDS
►Driver IC : FL5893DA
►Control-Board : No
►Brightness(cd/m²) : 500
►Frame Through Hole : No
►Touch Screen : No
Description
WF101NTYA4LNN0#000 features a 10.1 inch Quantum Dot (QD) TFT display boasting a resolution of 1920×1200 dots. Quantum dot (QD) technology represents a breakthrough in LCD displays, elevating color reproduction and saturation to new heights. At the core of this innovation are tiny semiconductor crystals known as quantum dots, which possess the remarkable ability to emit pure red, green, and blue light—the essential building blocks for vibrant displays. Through a process called photoluminescence, quantum dots imbue screens with richer, more lifelike colors, setting a new standard in visual excellence.
The QD LCD display technology employed in WF101NTYA4LNN0#000 unlocks a broader color gamut range, delivering unparalleled color purity and saturation. Aimed at achieving full 100% coverage of the NTSC color space, this display ensures every hue is rendered with exceptional fidelity. Equipped with the FL5893DA driver IC and supporting a 2ch-LVDS interface, this QD TFT LCD delivers both performance and versatility. Its IPS panel guarantees a wider viewing angle of Left: 80 / Right: 80 / Up: 80 / Down: 80 degrees, ensuring consistent image quality from various perspectives. Boasting a brightness of 500 cd/m² and a contrast ratio of 900:1, this display shines in both clarity and depth. Operating within a power supply range of 3.0V to 3.6V, with a typical value of 3.3V, and with an operating temperature range of -20 to +70°C, WF101NTYA4LNN0#000 is designed to excel in diverse environments, with a storage temperature extending from -30 to +80°C.
The application of quantum dot technology significantly enhances the color performance of displays, offering improved color accuracy and saturation. WF101NTYA4LNN0#000 sets a new benchmark for displays, promising vivid, true-to-life imagery across a range of applications and settings.

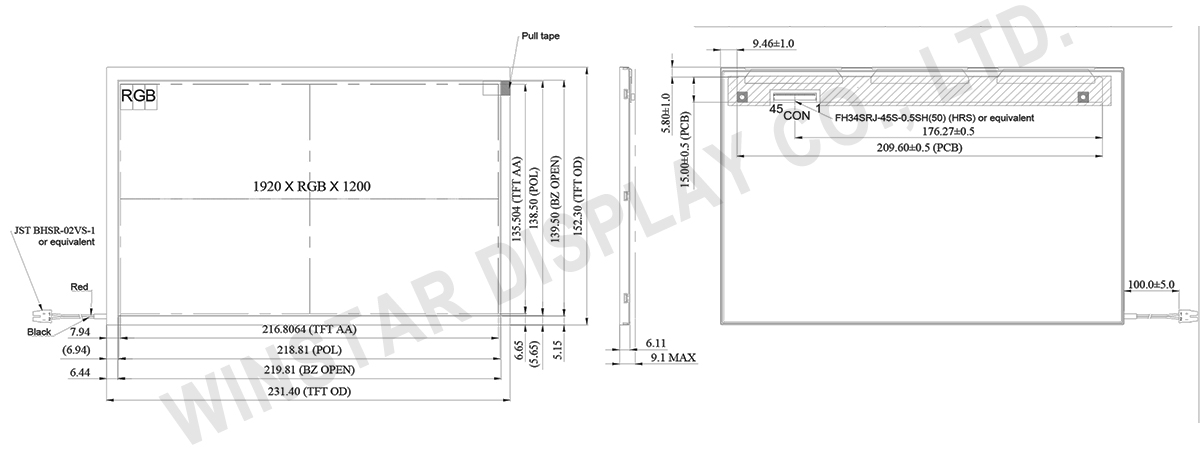

DRAWING
SPECIFICATIONS
Interface
1.TFT LCD MODULE
Pin No. | Symbol | Description |
---|---|---|
1-5 | NC | No connection |
6 | GND | Ground |
7 | ELV3P | EVEN LVDS Positive data signal (+) |
8 | ELV3N | EVEN LVDS Negative data signal (-) |
9 | GND | Ground |
10 | ELV2P | EVEN LVDS Positive data signal (+) |
11 | ELV2N | EVEN LVDS Negative data signal (-) |
12 | GND | Ground |
13 | ELVCLKP | EVEN LVDS Positive CLK signal (+) |
14 | ELVCLKN | EVEN LVDS Negative CLK signal (-) |
15 | GND | Ground |
16 | ELV1P | EVEN LVDS Positive data signal (+) |
17 | ELV1N | EVEN LVDS Negative data signal (-) |
18 | GND | Ground |
19 | ELV0P | EVEN LVDS Positive data signal (+) |
20 | ELV0N | EVEN LVDS Negative data signal (-) |
21 | GND | Ground |
22 | OLV3P | Odd LVDS Positive data signal (+) |
23 | OLV3N | Odd LVDS Negative data signal (-) |
24 | GND | Ground |
25 | OLV2P | Odd LVDS Positive data signal (+) |
26 | OLV2N | Odd LVDS Negative data signal (-) |
27 | GND | Ground |
28 | OLVCLKP | Odd LVDS Positive CLK signal (+) |
29 | OLVCLKN | Odd LVDS Negative CLK signal (-) |
30 | GND | Ground |
31 | OLV1P | Odd LVDS Positive data signal (+) |
32 | OLV1N | Odd LVDS Negative data signal (-) |
33 | GND | Ground |
34 | OLV0P | Odd LVDS Positive data signal (+) |
35 | OLV0N | Odd LVDS Negative data signal (-) |
36 | GND | Ground |
37-39 | NC | No connection (PIN39 and PIN40 cannot be short-circuited together) |
40 | NC | No connection alone |
41-45 | VDDIN | Power supply VDDIN=3.3V (Typ.) |
2.Backlight PIN Definition
Pin | Symbol | Function |
---|---|---|
1 | VLED+ | Red, LED_ Anode |
2 | VLED- | Power supply |
General Specifications
Item | Dimension | Unit |
---|---|---|
Size | 10.1 | inch |
Dot Matrix | 1920(H) X RGB X 1200(V) | dots |
Module dimension | 231.40 x152.3 x 9.1 Max | mm |
Active area | 216.8064(H) x 135.504(V) | mm |
Pixel pitch | 0.11292(H) x 0.11292(V) | mm |
LCD type | TFT, Normally Black, Transmissive | |
Interface | 2ch-LVDS | |
Driver IC | FL5893DA or Equivalent | |
Viewing Angle | 80/80/80/80 | |
Aspect Ratio | 16:10 | |
Backlight Type | LED,Normally White | |
Touch Panel | Without Touch Panel | |
Surface | Glare |
Absolute Maximum Ratings
Item | Symbol | Min | Typ | Max | Unit |
---|---|---|---|---|---|
Operating Temperature | TOP | -20 | - | +70 | ℃ |
Storage Temperature | TST | -30 | - | +80 | ℃ |
Electrical Characteristics
Item | Symbol | Min | Typ | Max | Unit |
---|---|---|---|---|---|
Power Supply Voltage | VDDIN | 3.0 | 3.3 | 3.6 | V |
VRP | - | - | 300 | mV | |
Power Supply Current | IDD | - | 300 | 360 | mA |
Power Consumption | PLCD | - | - | 1.2 | W |
Rush current | IRUSH | - | 1 | 3.0 | A |
