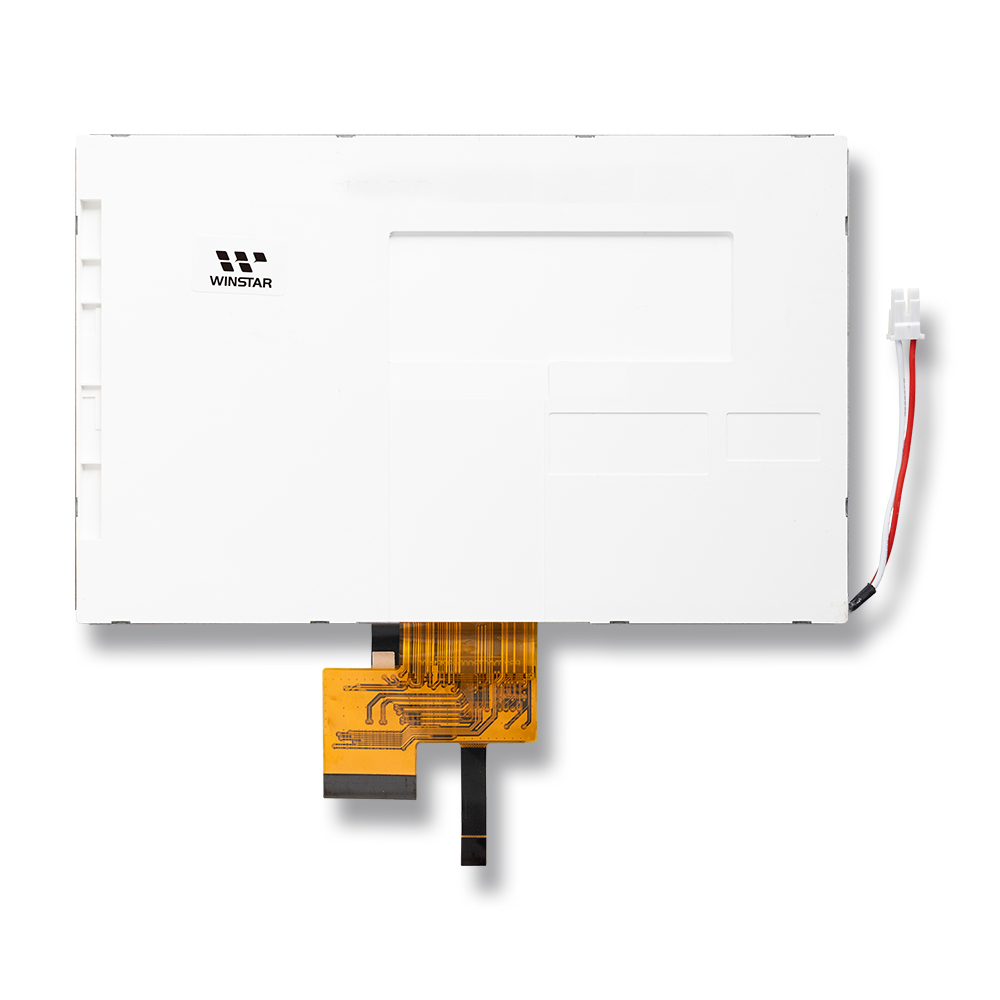

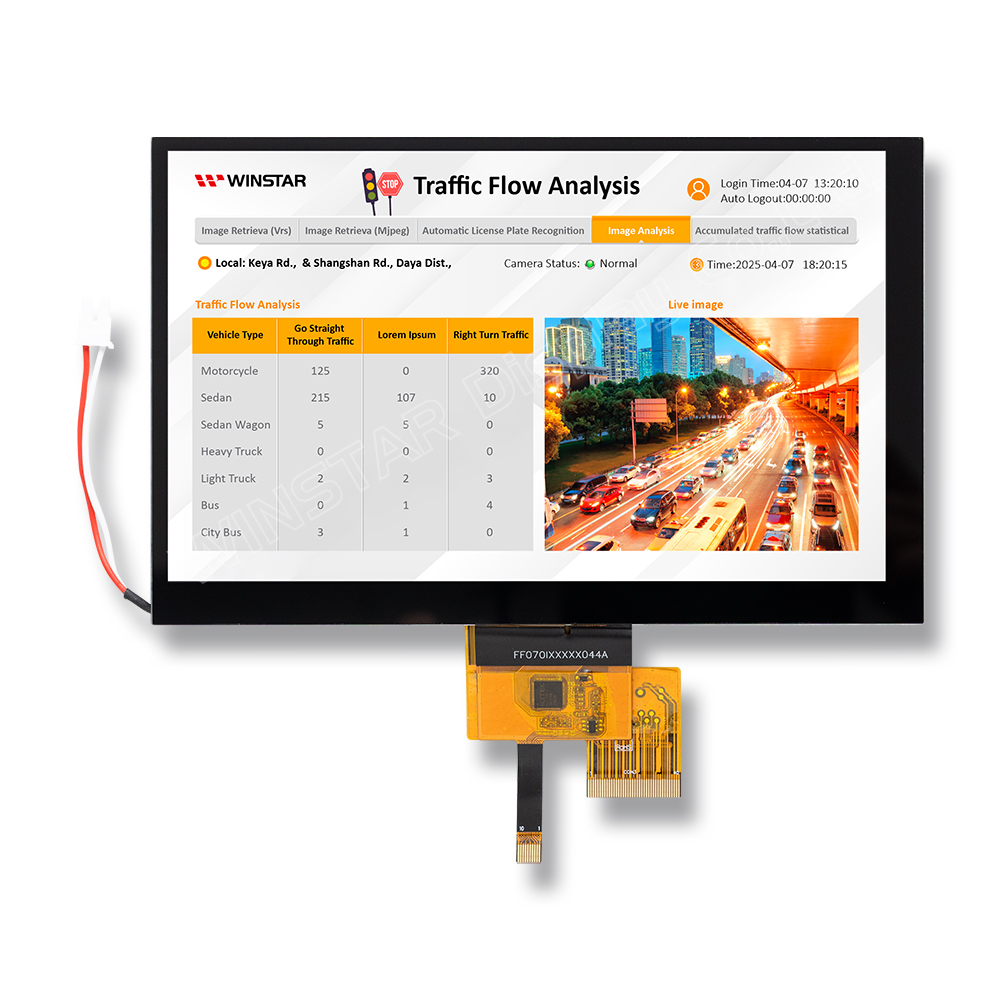

The WF70D2SWAGLNG0 is a 7-inch IPS TFT LCD display designed for high-performance applications. It features a resolution of 800x480 pixels with a 16:9 aspect ratio and is equipped with a projected capacitive touch panel (PCAP) for smooth and responsive touch interactions. With a typical brightness of 1000 cd/m² and a contrast ratio of 1500:1, this display is optimized for clear visibility in environments with high ambient light, making it an excellent choice for outdoor or bright indoor settings.
Thanks to its IPS technology, the display offers 85-degree viewing angles in all directions (left, right, up, and down), ensuring consistent clarity from nearly any viewing position. The WF70D2SWAGLNG0 model uses an LVDS interface, which provides improved signal integrity, lower power consumption, and enhanced noise resistance—making it ideal for high-performance systems.
The module integrates the RM53052 and RM57452 driver ICs for reliable operation, and supports the ILI2130 driver IC for the PCAP touch functionality, offering 5-point touch support via I2C interfaces.
Designed to perform reliably in temperatures ranging from -30℃ to +80℃, this module is built to withstand a wide range of environmental conditions, ensuring its durability in both extreme temperatures and varied storage conditions.
Applications:
This high-brightness, wide-temperature range, touch-enabled display is particularly suited for use in industrial control systems, smart home appliances, medical equipment, and monitoring systems. It is especially effective in applications that require reliable performance in challenging lighting and temperature conditions, where touch functionality and high visibility are essential.
