5.7" TFT Display Panel with Controller Board

Model No. WF57A2TIBCDBN0

►Size : 5.7 inch
►Resolution : 320 x 240 dots
►View Direction : 12H
►Interface : MCU
►Controller IC:SSD1963
►Control-Board : Yes
►Brightness (cd/m²) : 900
►Frame Through Hole : Yes
►Touch Screen : No
►O-Film: Option

Description

The WF57Q is 5.7 inch size of Winstar TFT Q series family. The WF57Q is SSD1963 controller board plus a 36 pin-out connector on board. This model is featured with 8 bit or 16 bit options and already defined pin no. 33 ~ 36 as backlight supply; so there is no need to design extra backlight circuit. This display is with the module dimension of 141.12 x 101.55 mm.

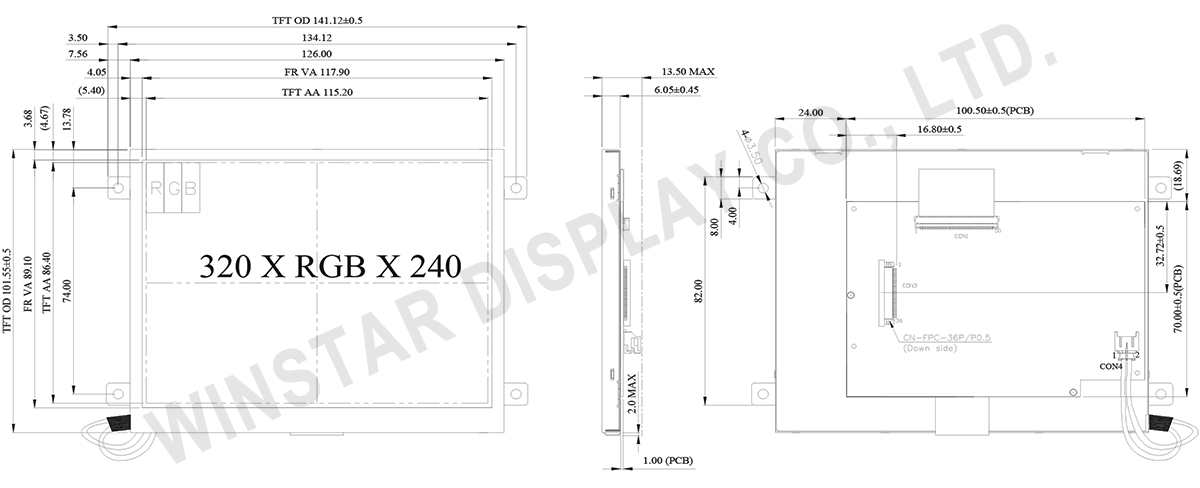

DRAWING

5.7" TFT Display Panel with Controller Board - WF57A2TIBCDBN0

SPECIFICATIONS

Interface

LCM PIN Definition (CON3)
Pin Symbol Function
1 GND System ground pin of the IC . Connect to system ground.
2 VDD Power Supply : +3.3V
3 BLE Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7 DB0 Data bus
8 DB1 Data bus
9 DB2 Data bus
10 DB3 Data bus
11 DB4 Data bus
12 DB5 Data bus
13 DB6 Data bus
14 DB7 Data bus
15 DB8 Data bus (When select 8bits Mode, this pin is NC)
16 DB9 Data bus (When select 8bits Mode, this pin is NC)
17 DB10 Data bus (When select 8bits Mode, this pin is NC)
18 DB11 Data bus (When select 8bits Mode, this pin is NC)
19 DB12 Data bus (When select 8bits Mode, this pin is NC)
20 DB13 Data bus (When select 8bits Mode, this pin is NC)
21 DB14 Data bus (When select 8bits Mode, this pin is NC)
22 DB15 Data bus (When select 8bits Mode, this pin is NC)
23 NC No connect
24 NC No connect
25 CS Chip select
26 RESET Hardware reset
27 L/R Left / right selection; Default L/R=H
28 U/D Up/down selection; ; Default U/D=L
29 NC No connect
30 NC No connect
31 NC No connect
32 NC No connect
33 VLED- Power for LED Driver IC(GND)
34 VLED- Power for LED Driver IC(GND)
35 VLED+ Power for LED Driver IC(+5V)
36 VLED+ Power for LED Driver IC(+5V)

General Specifications

Item Dimension Unit
Size 5.7 inch
Dot Matrix 320 × RGB × 240(TFT) dots
Module dimension 141.12 × 101.55 × 13.5 mm
Active area 115.2 × 86.4 mm
Dot pitch 0.12 × 0.36 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 4:3
Backlight Type LED, Normally White
Controller IC SSD1963
Interface Digital 8080 family MPU 8bit/16bit
Touch Panel Without Touch Panel
Surface Glare

Absolute Maximum Ratings

Item Symbol Min Typ Max Unit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80

Electrical Characteristics

1. Operating conditions: (CON3.Pin1=GND, Pin2=VDD)
Item Symbol Min Typ Max Unit
Supply Voltage For LCM VDD 3.0 3.1 3.3 V
Supply Current For LCM IDD - 400 600 mA

2. Backlight driving conditions (CON3.Pin33,34=VLED-, Pin35,36=VLED+)
Parameter Symbol Min Typ Max Unit
Operation Current For LED Driver VLED=5V - 370 555 V
Power Consumption VLED=5V - 1850 2775 V
Supply Voltage For LED Driver VLED+ - 5 - V
LED Life Time - - 50,000 - mA
