5.7 inch Touch Panel, 5.7" Touch Screen

Model No. TST0005R7E4111XXXX03

►Size : 5.7 inch Touch Screen
►Structure : G-G
►Outline Dimension : 125.7 x 101.25 mm
►Viewing Area : 116.4 × 87.76 mm
►Interface : I2C
►Driver IC : ILI2130
►Compatible with TFT models: WF57A2, WF57A3, WF57V, WF57W, WF57X, WF57Z series

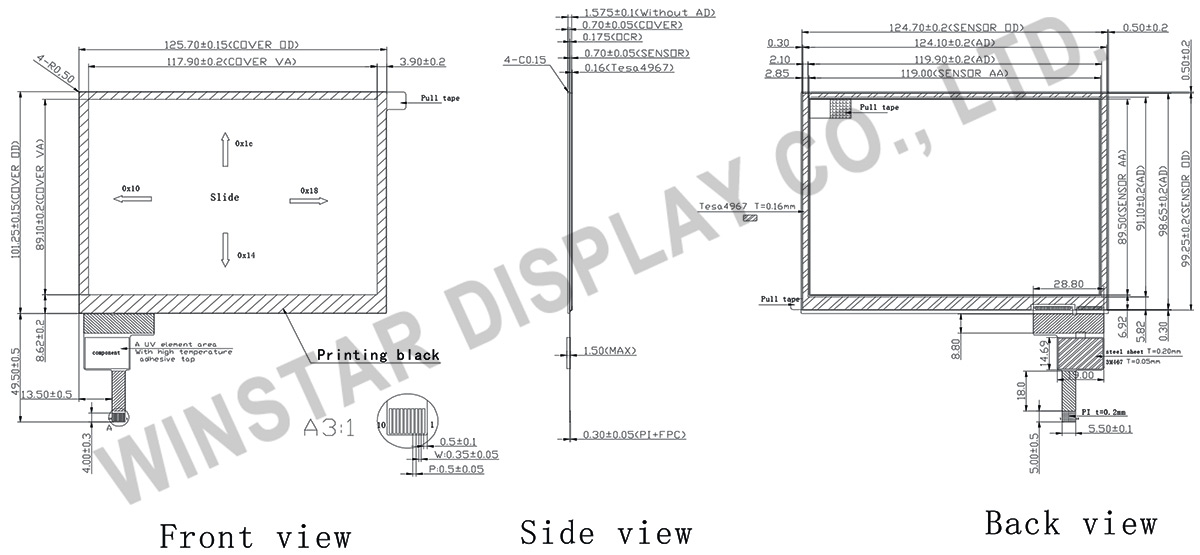

DRAWING

5.7 inch Touch Screen, 5.7" Touch Panel - Winstar Display

SPECIFICATIONS

General Specification

NO. Item Specifications Unit
1 Touch Panel Size 5.7(Diagonal) inch
2 Structure CTP
3 View Area 116.40(H)x87.76(V) mm
4 Outer Dimension 125.70(H)x101.25(V)x1.74(D) mm
5 Channels 15x20

Feature

NO. Item Specifications
1 Type Projected Capacitive Touch Panel (PCAP)
2 Input Mode Finger
3 Connector COF-IIC

Interface Pin Function

NO. Symbol I/O Description
1 VSS --- System ground
2 VDDT --- Power supply
3 SCL I/O I2C clock signal
4 NC --- No Connection
5 SDA I/O I2C data signal
6 NC --- No Connection
7 RST I External reset signal, active low
8 NC --- No Connection
9 INT O Interrupt signal, active low, asserted to request
Host start a new transcation
10 VSS --- System ground

IC Specification

NO. Symbol Description
1 Driver IC ILI2130
2 Detect Points 5
3 Interface I2C
4 Power Supply MIN 3.1V,TYP 3.3V,MAX 3.5V

Other

Environment Conditions:

NO. Item Specifications
1 Operation Temperature -20~70℃
2 Storage Temperature -30~80℃
