HD IPS LCD Touchscreen Display - LVDS
Model No. WF101KTYAPLNT0
►10.1” IPS HD LCD Display
►Resolution : 1280×800 dots
►View Direction: IPS
►Interface : LVDS
►Driver IC：EK79202B1
►Control-Board : No
►Brightness (cd/m²): 250
►Frame Through Hole : No
►Touch Screen : Resistive Touch Panel
►IPS HD Display, IPS Touchscreen Display, IPS LCD Touchscreen
Description
WF101KTYAPLNT0 is a 10.1 inch IPS TFT LCD Display with Resistive Touchscreen. This TFT-LCD module is LVDS interface with high resolution of 1280x800 pixels. WF101KTYAPLNT0 is featured with IPS panel which is having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical) and having HD resolution (1280 horizontal by 800 vertical pixel).
WF101KTYAPLNT0 is an IPS TFT-LCD with a normally black display mode and LVDS interface 40-pin having typical brightness 250cd/m2 through RTP and contrast ratio: 1000:1. The power supply voltage (VCC) for WF101K is from 3.0V to 3.5V, typical value 3.3V. WF101KTYAPLNT0 is very suitable for HMI (Human-machine Interaction) applications or POS system, etc.

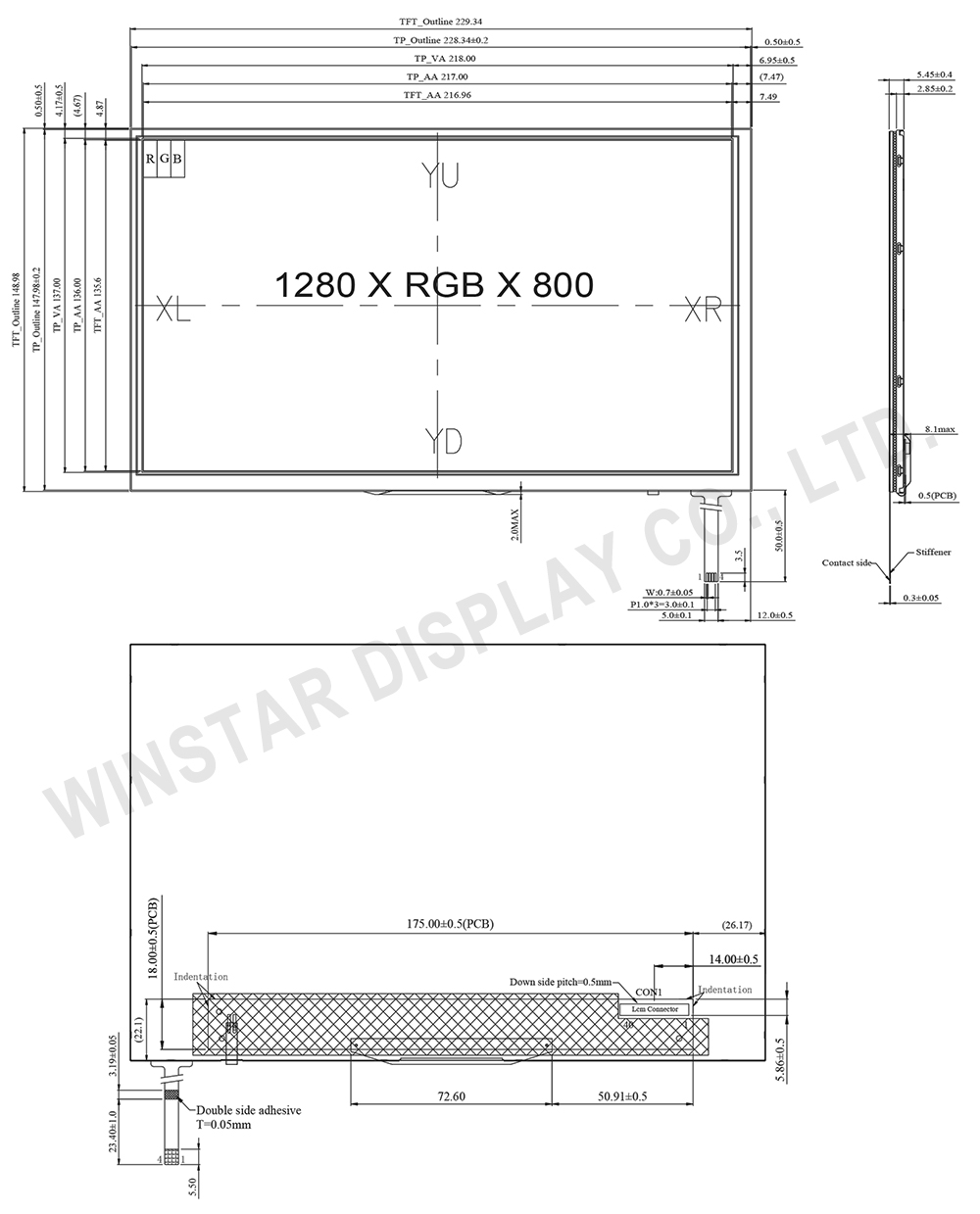

DRAWING
SPECIFICATIONS
Interface
| Pin No. | Symbol | I/O | Function |
|---|---|---|---|
| 1 | NC | - | No connection |
| 2 | VCC | P | Power Supply |
| 3 | VCC | P | Power Supply |
| 4 | NC | - | No connection |
| 5 | NC | - | No connection |
| 6 | NC | - | No connection |
| 7 | GND | P | Ground |
| 8 | Rxin0- | I | -LVDS Differential Data Input |
| 9 | Rxin0+ | I | +LVDS Differential Data Input |
| 10 | GND | P | Ground |
| 11 | Rxin1- | I | -LVDS Differential Data Input |
| 12 | Rxin1+ | I | +LVDS Differential Data Input |
| 13 | GND | P | Ground |
| 14 | Rxin2- | I | -LVDS Differential Data Input |
| 15 | Rxin2+ | I | +LVDS Differential Data Input |
| 16 | GND | P | Ground |
| 17 | RxCLK- | I | -LVDS Differential Clock Input |
| 18 | RxCLK+ | I | +LVDS Differential Clock Input |
| 19 | GND | P | Ground |
| 20 | Rxin3- | I | -LVDS Differential Data Input |
| 21 | Rxin3+ | I | +LVDS Differential Data Input |
| 22 | GND | P | Ground |
| 23 | NC | - | No connection |
| 24 | NC | - | No connection |
| 25 | GND | P | Ground |
| 26 | NC | - | No connection |
| 27 | NC | - | No connection |
| 28 | NC | - | No connection |
| 29 | NC | - | No connection |
| 30 | GND | P | Ground |
| 31 | LED- | P | LED Cathode |
| 32 | LED- | P | LED Cathode |
| 33 | NC | - | No connection |
| 34 | NC | - | No connection |
| 35 | VGL | P | Gate OFF Voltage |
| 36 | NC | - | No connection |
| 37 | NC | - | No connection |
| 38 | VGH | P | Gate ON Voltage |
| 39 | LED+ | P | LED Anode |
| 40 | LED+ | P | LED Anode |
I: input, O: output, P: Power
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Screen Diagonal | 10.1 | inch |
| Number of Pixels | 1280 x 3(R GB) x 800 | dots |
| Module dimension | 229.34 x 148.98 x 5.45 | mm |
| Active area | 216.96 (H) x 135.6(V) | mm |
| Pixel pitch | 0.1695 × 0.1695 | mm |
| Display Mode | Normally Black , Transmissive | |
| Viewing Angle | 80/80/80/80 | |
| Pixel Arrangement | R.G.B. Vertical Stripe | |
| TFT Drive IC | EK79202B1 or Equivalent | |
| TFT Interface | LVDS | |
| Backlight Type | LED, Normally White | |
| Aspect Ratio | 16:10 | |
| Touch Panel | Resistive Touch Screen | |
| Surface | Anti-Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
| Item | Symbol | Values | Unit | ||
|---|---|---|---|---|---|
| Min. | Typ. | Max. | |||
| Power voltage | VCC | 3.0 | 3.3 | 3.5 | V |
| VGH | 18 | V | |||
| VGL | -10 | V | |||
| VSP | 5.5 | V | |||
| VSN | -5.5 | V | |||
