10.25 Inch Bar Type TFT LCD Display, 1920x720 IPS PCAP

Model No. WFN1025A2S0WALNA000

►Size: 10.25 inch
►Resolution : 1920x720 pixels
►View Direction :85/85/85/85 (IPS)
►Interface : 2ch-LVDS (VESA)
►Driver IC：FL5896*1 & FL5101*2
►Control-Board : No
►Brightness (cd/m²): 800
►Frame Through Hole : No
►Touch Screen : Projected capacitive touch screen (PCAP) + Optical Bonding
►Touch Points : 10
►Operating Temperature: -30~+85℃

DATASHEET

DEMO CODE

ADD TO INQUIRY

BACK to LIST NEXT

Description

WFN1025A2S0WALNA000 is a 10.25-inch bar type TFT LCD display featuring a 1920x720 resolution, IPS technology, and a typical brightness of 800 cd/m². The module supports a 1-port LVDS interface (VESA), utilizes FL5896 and FL5101 driver ICs, and integrates a projected capacitive touch panel (PCAP) with optical bonding.

The PCAP touch panel supports 10-point multi-touch operation through an I²C interface. Optical bonding helps reduce internal reflections and improve display readability in bright ambient environments.

With an operating temperature range of -30°C to +85°C, this display is suitable for industrial control and automation equipment, transportation systems, logistics and warehouse interfaces, outdoor HMI applications, and other embedded systems.

10.25 Inch Bar Type TFT LCD Display, 1920x720 IPS PCAP - WFN1025A2S0WALNA000

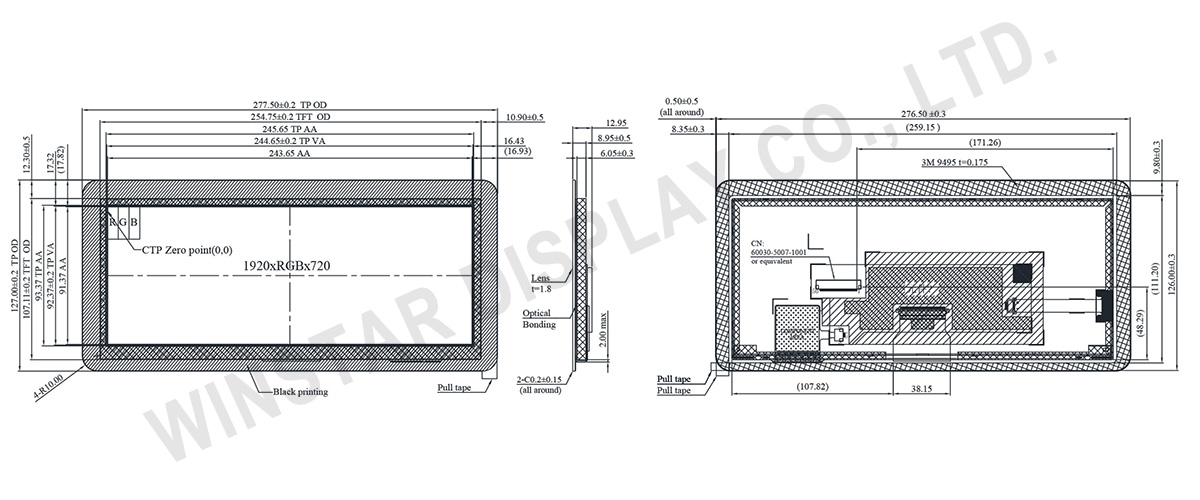

DRAWING

SPECIFICATIONS

General Specifications

Item	Dimension	Unit
Size	10.25	inch
Dot Matrix	1920 x RGB x 720	dots
Module dimension	277.5 x 127.0 x 12.95	mm
Active area	243.65 x 91.37	mm
Pixel Pitch	0.1269 x 0.1269	mm
LCD type	TFT, Normally Black, Transmissive
View Angle	85/85/85/85
TFT Interface	1-port LVDS(VESA)
TFT Driver IC	FL58961 & FL51012
Backlight Type	LED ,Normally White
CTP IC	GT9271 or equivalent
CTP Interface	I2C
CTP FW Version	65
CTP Resolution	1920x720
Touch Panel	Projected Capacitive Touch Panel
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-30	－	+85	℃
Storage Temperature	TST	-40	－	+90	℃

Electrical Characteristics

Operating conditions

Item	Symbol	Values			Unit
Item	Symbol	Min.	Typ.	Max.	Unit
Power voltage	VDD	-	3.3	-	V
Power current	IDD	-	333	500	mA
High Level Input Voltage	VIH	0.7 VDD	-	VDD	V
Low Level Input Voltage	VIL	0	-	0.3 VDD	V
Supply CTP	TP_VDD	2.8	3.1	3.3	V
Supply CTP	TP_IDD	-	13.0	20.0	mA

LED driving conditions

Parameter	Symbol	Min.	Typ.	Max.	Unit
LED current	ILED	-	360	-	mA
LED voltage	VLED+	23.4	27.0	30.6	V
LED Life Time	-	30,000	-	-	Hr

Interface Pin Function

1. LCM PIN Definition

FPC Connector is used for the module electronics interface.The recommended model is 60030-5007-1001 manufactured by XFE.

Pin. No	Symbol	I/O	Function
1	GND	P	Ground
2	TP_RST	-	TP Reset pin
3	TP_INT	-	TP Interrupt
4	TP_I2C_SCL	-	TP High speed interface Clock differential signal input pins.
5	TP_I2C_SDA	-	TP serial data input/output bi-direction pin
6	TP_VDD	-	Power supply for CTP
7	NC	-	No connection
8	GND	P	Ground
9	LVDS_D0P	I	+LVDS Differential Data Input
10	LVDS_D0N	I	-LVDS Differential Data Input
11	GND	P	Ground
12	LVDS_D1P	I	+LVDS Differential Data Input
13	LVDS_D1N	I	-LVDS Differential Data Input
14	GND	P	Ground
15	LVDS_D2P	I	+LVDS Differential Data Input
16	LVDS_D2N	I	-LVDS Differential Data Input
17	GND	P	Ground
18	LVDS_CLK0P	I	+LVDS Differential Clock Input
19	LVDS_CLK0N	I	-LVDS Differential Clock Input
20	GND	P	Ground
21	LVDS_D3P	I	+LVDS Differential Data Input
22	LVDS_D3N	I	-LVDS Differential Data Input
23	GND	P	Ground
24	NC	-	No connection
25-27	VDD	P	Power supply
28	DP_I2C_SCL	I	Serial communication data input.
29	DP_I2C_SDA	I	Serial communication clock input.
30	BIST	I	Enable built-in self test (BIST) function BISTEN=H, BIST mode BISTEN=L, Normal mode (Default)
31	NC	-	No connect.
32	TB	I	Vertical shift direction (Gate output) selection.TB function is the hardware setting “XOR” with register setting when FCS=L.) H：Forward,Top-Bottom (Default) L：Reverse,Bottom-Top
33	STBYB	I	Standby mode. STBYB=H : normal (Default), STBYB=L: standby mode.
34	FAIL_DET	O	Fail detection signal output Normal = H , Abnormal = L
35	LCD_RST	I	Global reset pin. Active low to enter reset state. Keep VDD during operation. Normally pull high.
36	RL	I	Horizontal shift direction (Source output) selection. H: Left - Right (Default); L: Right - Left.
37	NC	-	No connection
38-39	LEDA	P	Power Supply For LED Backlight Anode Input
40	NC	-	No connection
41	NTC1	P	NTC PIN
42	NTC2	P	NTC PIN
43	NC	-	No connection
44	VLEDK1	P	Power Supply For LED Backlight Cathode Input
45	VLEDK2	P	Power Supply For LED Backlight Cathode Input
46	VLEDK3	P	Power Supply For LED Backlight Cathode Input
47	VLEDK4	P	Power Supply For LED Backlight Cathode Input
48	NC	-	No connection
49-50	GND	P	Ground
