Model No. WEG010016J
►Type: Graphic
►Structure: COB
►Size: 3.84"
►100 x 16 Dot Matrix
►IC：WS0010-TX
►5V power supply
►1/16 duty cycle
►Interface: 6800

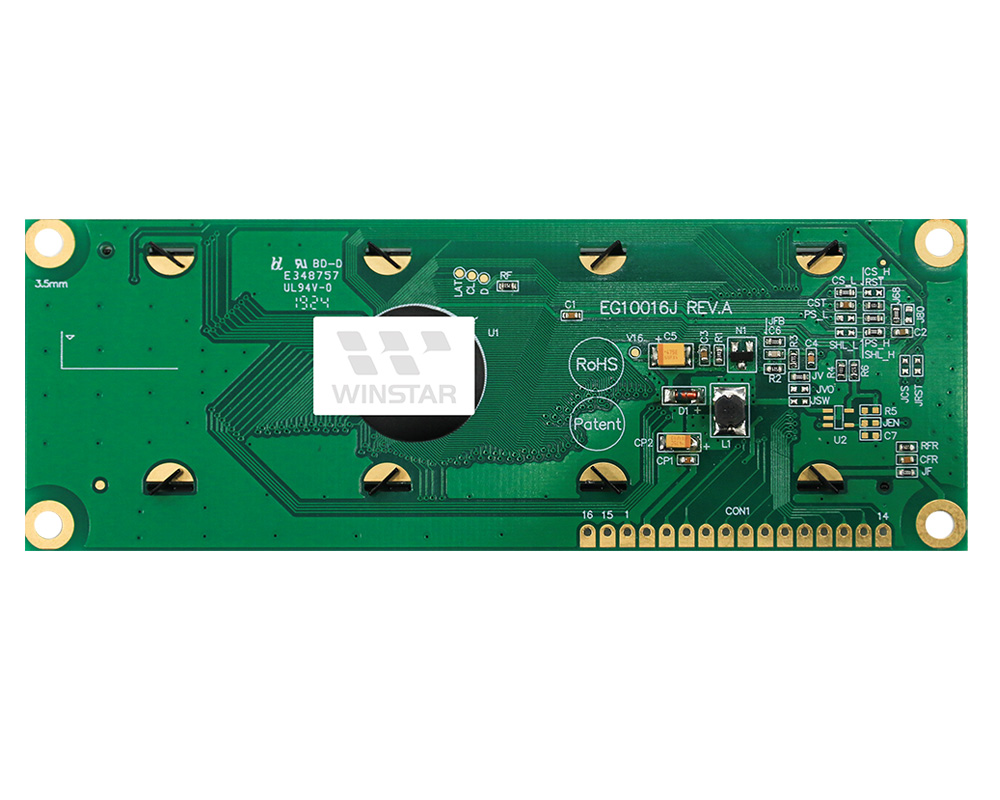

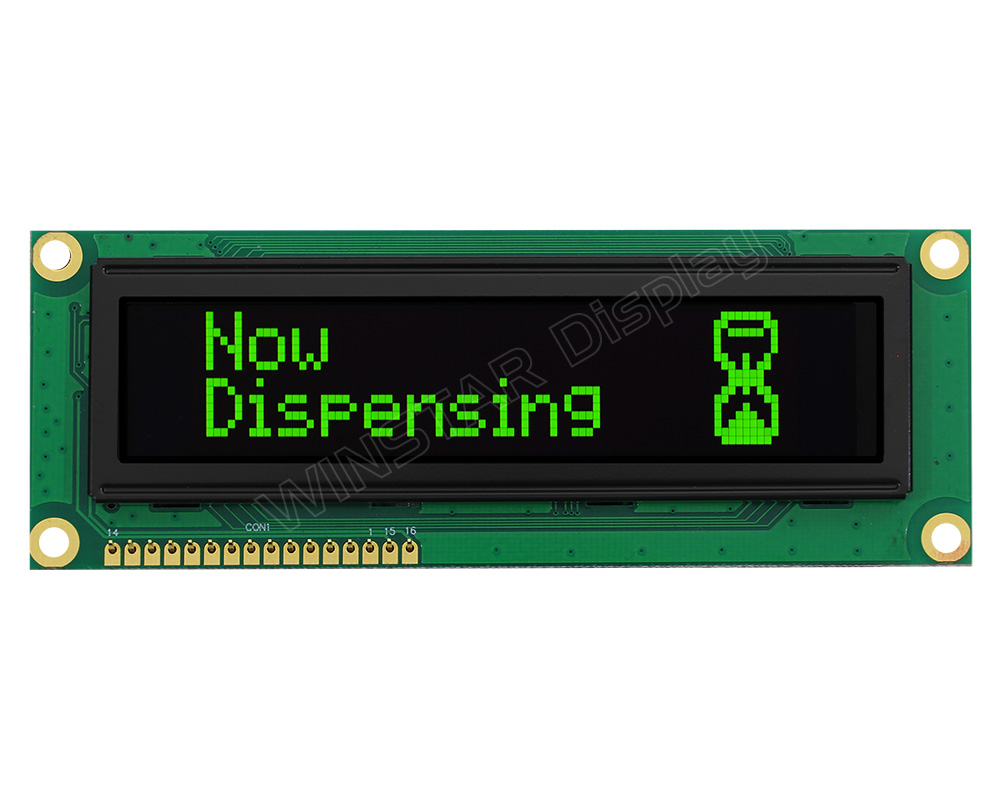

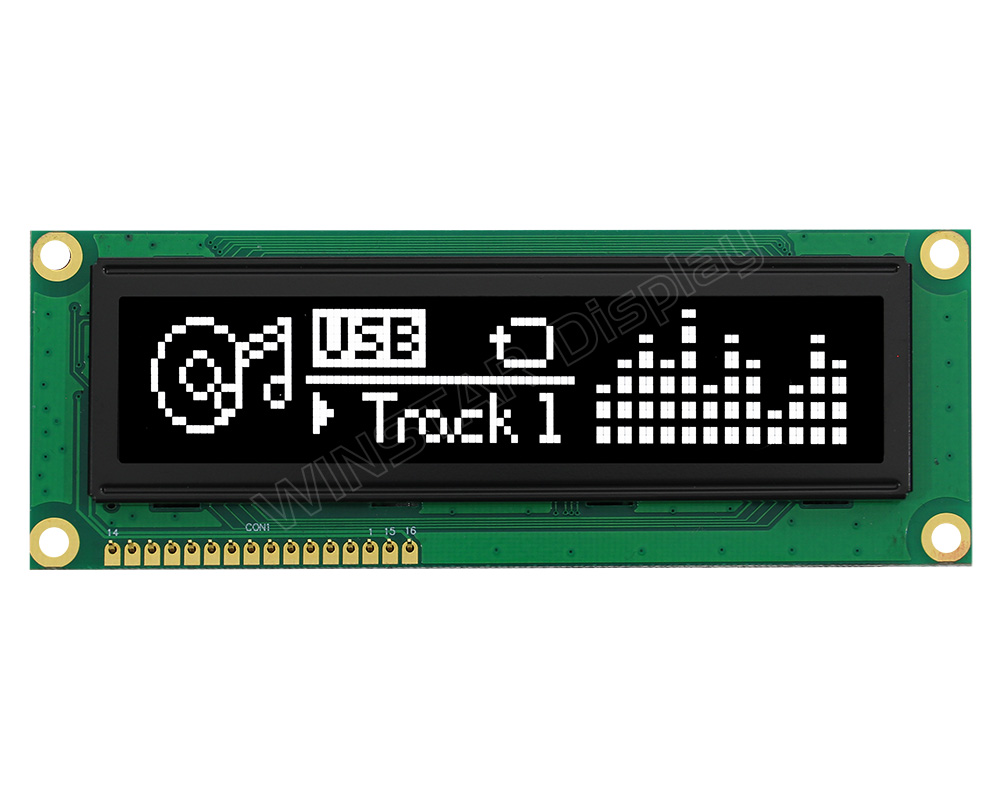

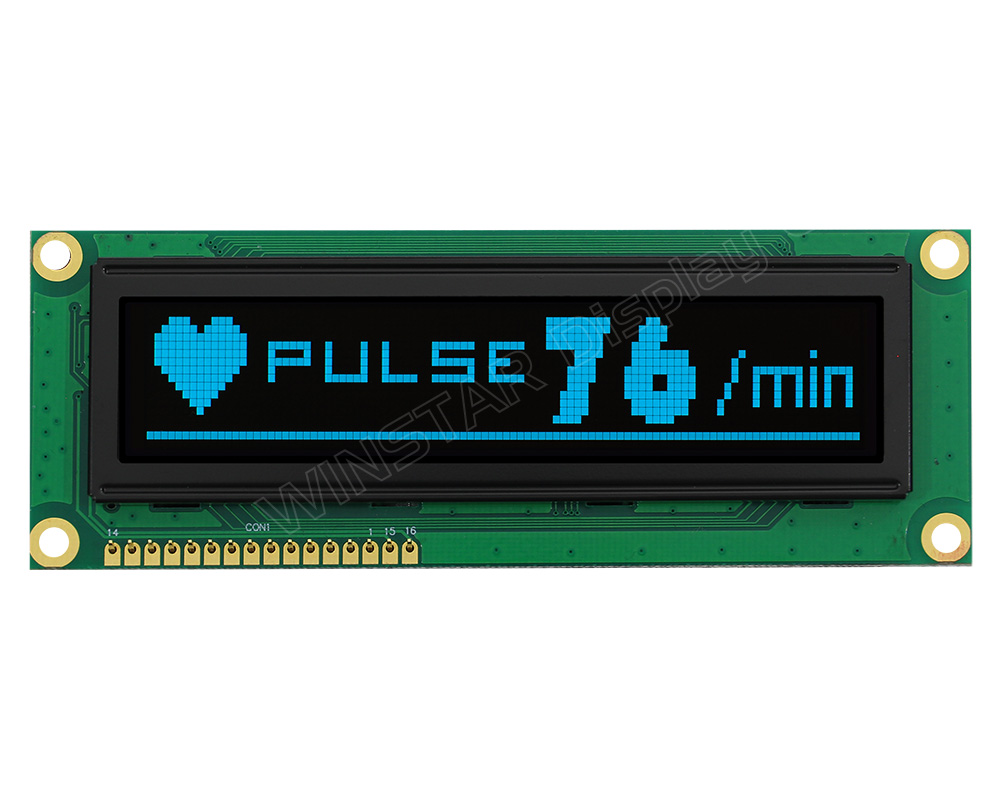

►Display Color: White / Yellow / Blue / Green

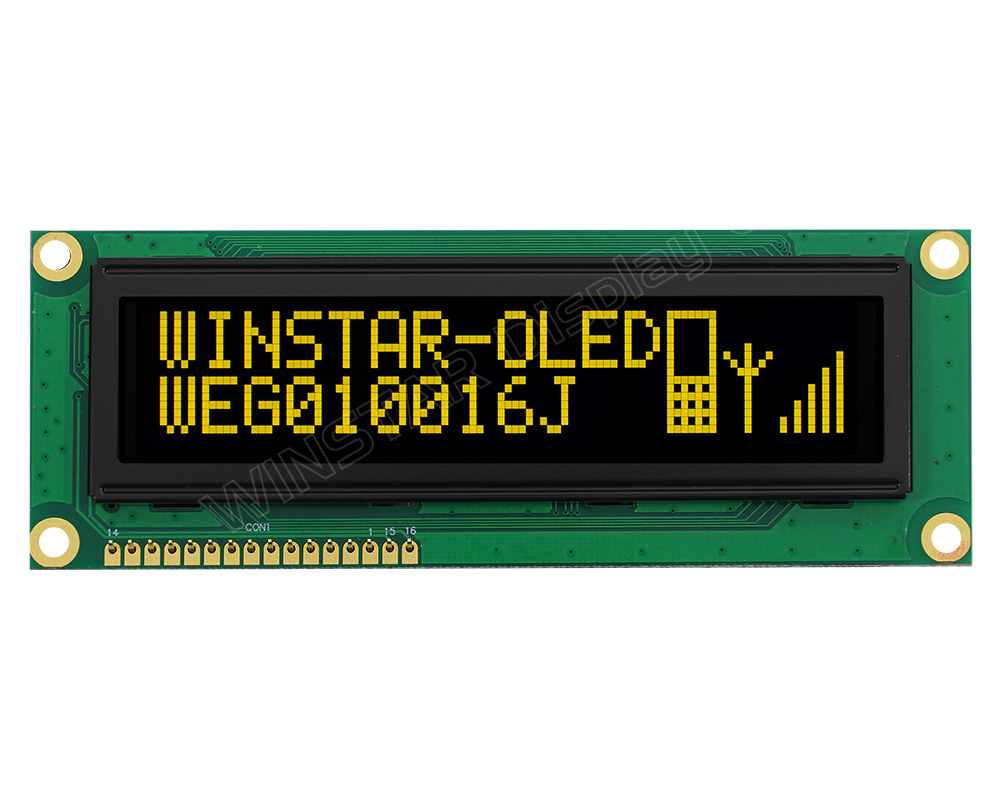

WEG010016J is a graphic OLED display module which has a very high contrast ratio with an extremely dark background versus the lit-up pixels on the display. This 3.84 inch monochrome 100x16 passive matrix OLED display module features a very wide viewing angle up to 175°. WEG010016J is COB structure OLED, it is built in with WS0010-TX IC, supporting 6800 interfaces.
The supply voltage for logic is 5V, driver duty 1/16, its operating temperature is -40℃~+80℃; and storage temperature ranges are -40℃~+85℃.

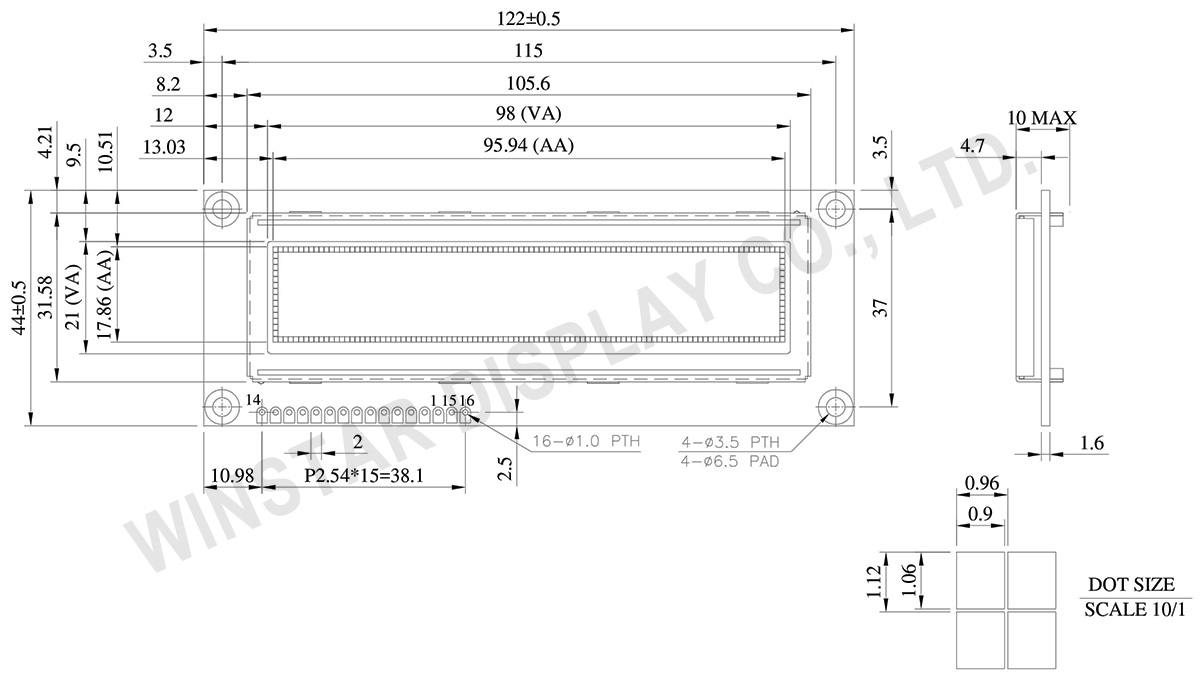

| Item | Dimension | Unit |
|---|---|---|
| Dot Matrix | 100×16 | Dots |
| Module dimension | 122.0 × 44.0 × 10.0(MAX) | mm |
| View area | 98.00 × 21.00 | mm |
| Active area | 95.94 × 17.86 | mm |
| Dot size | 0.90 × 1.06 | mm |
| Dot pitch | 0.96 × 1.12 | mm |
| Panel Type | OLED , Yellow | |
| Duty | 1/16 | |
| IC | WS0010-TX | |
| Interface | 6800 | |
| Size | 3.84 inch | |
| Item | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Operating Temperature | TOP | -40 | +80 | °C |
| Storage Temperature | TST | -40 | +85 | °C |
| Supply Voltage For Logic | VDD-VSS | -0.3 | 5.3 | V |
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For Logic | VDD-VSS | － | 4.8 | 5.0 | 5.3 | V |
| Input High Volt. | VIH | － | 0.8xVDD | － | VDD | V |
| Input Low Volt. | VIL | － | GND | － | 0.2xVDD | V |
| Output High Volt. | VOH | IOH=-0.5mA | 0.8xVDD | － | VDD | V |
| Output Low Volt. | VOL | IOL=0.5mA | GND | － | 0.2xVDD | V |
| 50% Check Board Operating Current | IDD | VDD=5V | － | 50 | 75 | mA |
| Pin No. | Symbol | Level | Description |
|---|---|---|---|
| 1 | VSS | 0V | Ground |
| 2 | VDD | 5.0V | Supply Voltage for logic |
| 3 | NC | － | － |
| 4 | RS | H/L | H: DATA, L: Instruction code |
| 5 | R/W | H/L | H: Read(Module→MPU) L: Write(MPU→Module) |
| 6 | E | H,H→L | Chip enable signal |
| 7 | DB0 | H/L | Data bit 0 |
| 8 | DB1 | H/L | Data bit 1 |
| 9 | DB2 | H/L | Data bit 2 |
| 10 | DB3 | H/L | Data bit 3 |
| 11 | DB4 | H/L | Data bit 4 |
| 12 | DB5 | H/L | Data bit 5 |
| 13 | DB6 | H/L | Data bit 6 |
| 14 | DB7 | H/L | Data bit 7 |
| 15 | NC | － | － |
| 16 | NC | － | － |
