Model No. WH1601A-VATN
►Type: Character
►Structure : COB
►Size: 2.36"
►16 Character x 1 line
►5x8 dots includes cursor
►IC: RW1063
►+5V power supply only
►1/16 duty cycle
►LED type : Highlight Red / Green / Blue / Yellow-green / White
►LED can be driven by PIN1, PIN2 or K
►Interface : Option 6800, SPI, I2C
The VATN version of WH1601A is a 2.36-inch 16x1 VATN character LCD display featuring a 5x8 dot matrix per character, including cursor support. VATN (Vertically Aligned Twisted Nematic) technology provides a black background, high contrast, and wide viewing angles for displaying characters and status information.

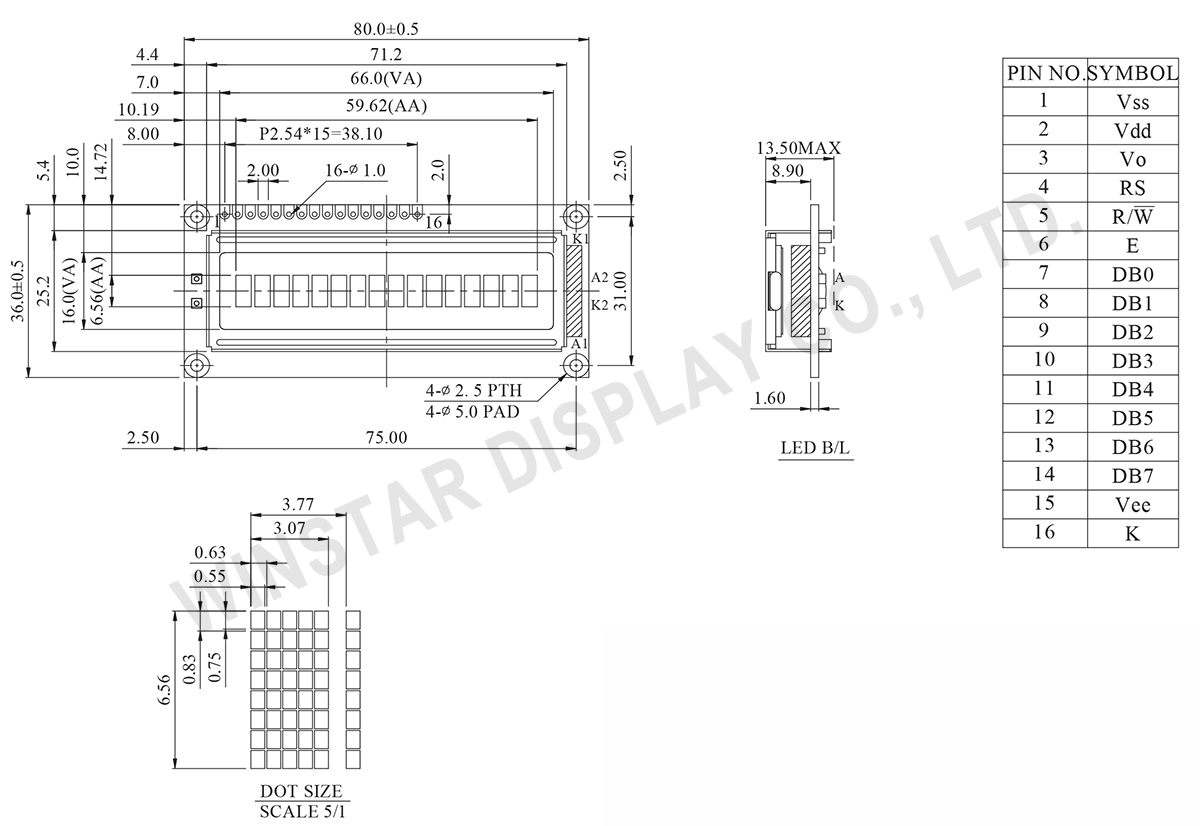

This 16x1 VATN LCD module features a COB (Chip-on-Board) structure with module dimensions of 80.0 x 36.0 x 13.5 mm (max.) and a viewing area of 66.0 x 16.0 mm. It incorporates the RW1063 controller IC, operates with a typical 5.0V logic supply, and supports an operating temperature range of -20°C to +70°C.
The display is available with red, green, blue, yellow-green, or white LED backlight options. Its negative-mode VATN display characteristics make it suitable for equipment requiring clearly visible characters and status information against a dark background, including industrial control panels, measuring instruments, UPS systems, medical equipment, and home appliances.
The WH1601A VATN LCD series offers three interface options to accommodate different host controller requirements:
| Item | Dimension | Unit |
|---|---|---|
| Number of Characters | 16 characters x 1Lines | － |
| Module dimension | 80.0 x 36.0 x 13.5 (MAX) | mm |
| View area | 66.0 x 16.0 | mm |
| Active area | 59.62 x 6.56 | mm |
| Dot size | 0.55 x 0.75 | mm |
| Dot pitch | 0.63 x 0.83 | mm |
| Character size | 3.07 x 6.56 | mm |
| Character pitch | 3.77 x 6.56 | mm |
| Duty | 1/16 | |
| Backlight Type | LED | |
| IC | RW1063 | |
| Interface | 6800 | |
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
| Input Voltage | VIN | -0.3 | － | VDD+0.3 | V |
| Supply Voltage For Logic | VDD-VSS | -0.3 | － | 5.5 | V |
| Supply Voltage For LCD | VDD-V0 | VSS -0.3 | － | VSS +7.0 | V |
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For Logic | VDD-VSS | － | 4.5 | 5.0 | 5.5 | V |
| Supply Voltage For LCD | VDD-V0 | Ta=-20℃ Ta=25℃ Ta=70℃ |
－ 6.2 － |
－ 6.5 － |
－ 6.8 － |
V V V |
| Input High Volt. | VIH | － | 2.5 | － | VDD | V |
| Input Low Volt. | VIL | － | -0.3 | － | 0.6 | V |
| Output High Volt. | VOH | － | 3.9 | － | － | V |
| Output Low Volt. | VOL | － | － | － | 0.4 | V |
| Supply Current | IDD | VDD=5.0V | 1.0 | 1.5 | 2.5 | mA |
| Pin No. | Symbol | Level | Description |
|---|---|---|---|
| 1 | VSS | 0V | Ground |
| 2 | VDD | 5.0V | Supply Voltage for logic |
| 3 | VO | (Variable) | Contrast Adjustment |
| 4 | RS | H/L | H: DATA, L: Instruction code |
| 5 | R/W | H/L | H: Read L: Write |
| 6 | E | H,H→L | Chip enable signal |
| 7 | DB0 | H/L | Data bus line |
| 8 | DB1 | H/L | Data bus line |
| 9 | DB2 | H/L | Data bus line |
| 10 | DB3 | H/L | Data bus line |
| 11 | DB4 | H/L | Data bus line |
| 12 | DB5 | H/L | Data bus line |
| 13 | DB6 | H/L | Data bus line |
| 14 | DB7 | H/L | Data bus line |
| 15 | Vee | － | Negative Voltage Output |
| 16 | K | － | LED - |
