Model No. WH1602B-VATN
►Type: Character
►Structure : COB
►Size: 2.26"
►16 Character x 2 line
►5x8 dots includes cursor
►IC: RW1063
►+5V power supply only
►1/16 duty cycle
►LED type : Highlight Highlight Red / Green / Blue / Yellow-green / White LCD Display
►LED can be driven by PIN1, PIN2 or K
►Interface : Option 6800, SPI, I2C
The VATN version of WH1602B is a 2.26-inch 16x2 VATN character LCD display featuring 16 characters per line across two lines, with a 5x8 dot matrix per character. VATN (Vertically Aligned Twisted Nematic) technology provides a black background, high contrast, and wide viewing angles for displaying characters and equipment status information.

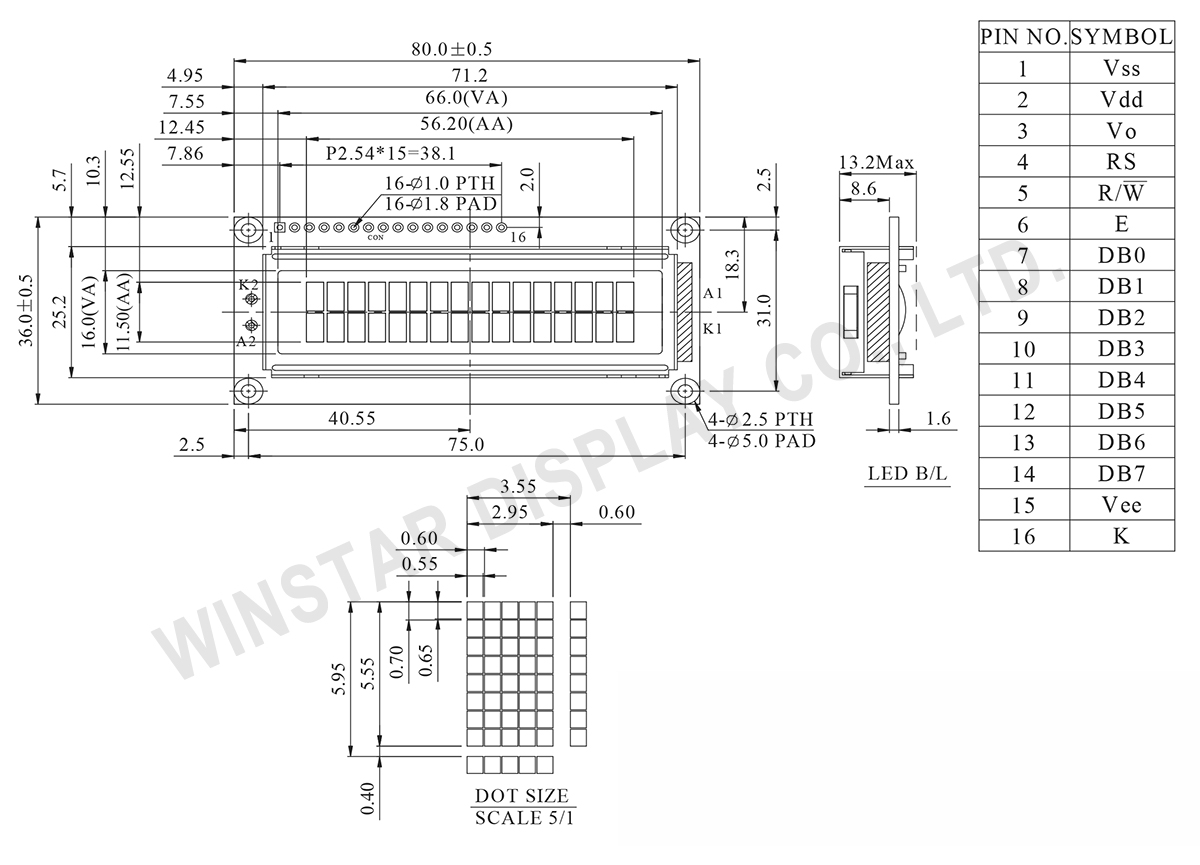

This 16x2 VATN LCD module features a COB (Chip-on-Board) structure with module dimensions of 80.0 x 36.0 x 13.2 mm (max.) for the standard WH1602B configuration and a viewing area of 66.0 x 16.0 mm. It incorporates the RW1063 controller IC, operates with a typical 5.0V logic supply, and supports an operating temperature range of -20°C to +70°C.
The display is available with red, green, blue, yellow-green, or white LED backlight options. Its negative-mode VATN display characteristics make it suitable for equipment requiring clearly visible characters and status information against a dark background, including industrial control panels, measuring instruments, UPS systems, medical equipment, and home appliances.
The WH1602B VATN LCD series offers four configurations with 6800 parallel, SPI, and I2C interface options to accommodate different host controller and mechanical design requirements:
| Item | Dimension | Unit |
|---|---|---|
| Number of Characters | 16 Characters x 2 Lines | － |
| Module dimension | 80.0 x 36.0 x 13.2 (MAX) | mm |
| View area | 66.0 x 16.0 | mm |
| Active area | 56.20 x 11.5 | mm |
| Dot size | 0.55 x 0.65 | mm |
| Dot pitch | 0.60 x 0.70 | mm |
| Character size | 2.95 x 5.55 | mm |
| Character pitch | 3.55 x 5.95 | mm |
| Duty | 1/16 | |
| Backlight Type | LED | |
| IC | RW1063 | |
| Interface | 6800 | |
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
| Input Voltage | VIN | -0.3 | － | VDD +0.3 | V |
| Supply Voltage For Logic | VDD-VSS | -0.3 | － | 5.5 | V |
| Supply Voltage For LCD | VDD-Vo | Vss -0.3 | － | Vss +7.0 | V |
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For Logic | VDD-VSS | － | 4.5 | 5.0 | 5.5 | V |
| Supply Voltage For LCD | VDD-V0 | Ta=-20℃ Ta=25℃ Ta=70℃ |
－ 6.2 － |
－ 6.5 － |
－ 3.8 － |
V V V |
| Input High Volt. | VIH | － | 2.5 | － | VDD | V |
| Input Low Volt. | VIL | － | -0.3 | － | 0.6 | V |
| Output High Volt. | VOH | － | 3.9 | － | － | V |
| Output Low Volt. | VOL | － | － | － | 0.4 | V |
| Supply Current | IDD | VDD=5.0V | － | 2.0 | － | mA |
| Pin No. | Symbol | Level | Description |
|---|---|---|---|
| 1 | VSS | 0V | Ground |
| 2 | VDD | 5.0V | Supply Voltage for logic |
| 3 | VO | (Variable) | Contrast Adjustment |
| 4 | RS | H/L | H: DATA, L: Instruction code |
| 5 | R/W | H/L | H: Read L: Write |
| 6 | E | H,H→L | Chip enable signal |
| 7 | DB0 | H/L | Data bus line |
| 8 | DB1 | H/L | Data bus line |
| 9 | DB2 | H/L | Data bus line |
| 10 | DB3 | H/L | Data bus line |
| 11 | DB4 | H/L | Data bus line |
| 12 | DB5 | H/L | Data bus line |
| 13 | DB6 | H/L | Data bus line |
| 14 | DB7 | H/L | Data bus line |
| 15 | Vee | － | Negative Voltage Output |
| 16 | K | － | LED - |
