Model No. WH1601L
►Character LCD, LCD Alphanumeric 16x1
►Type: Character
►Structure : COB
►Size: 3.75 inch
►16 characters x 1 Lines
►5x8 dots includes cursor
►+5V power supply (Also available for +3V)
►Negative voltage option is only for the +3V power supply
►1/16 duty cycle
►LED can be driven by PIN1, PIN2, PIN15, PIN16 or A and K
►Interface: 6800 (ST7066 IC), option SPI/I2C (RW1063 IC)

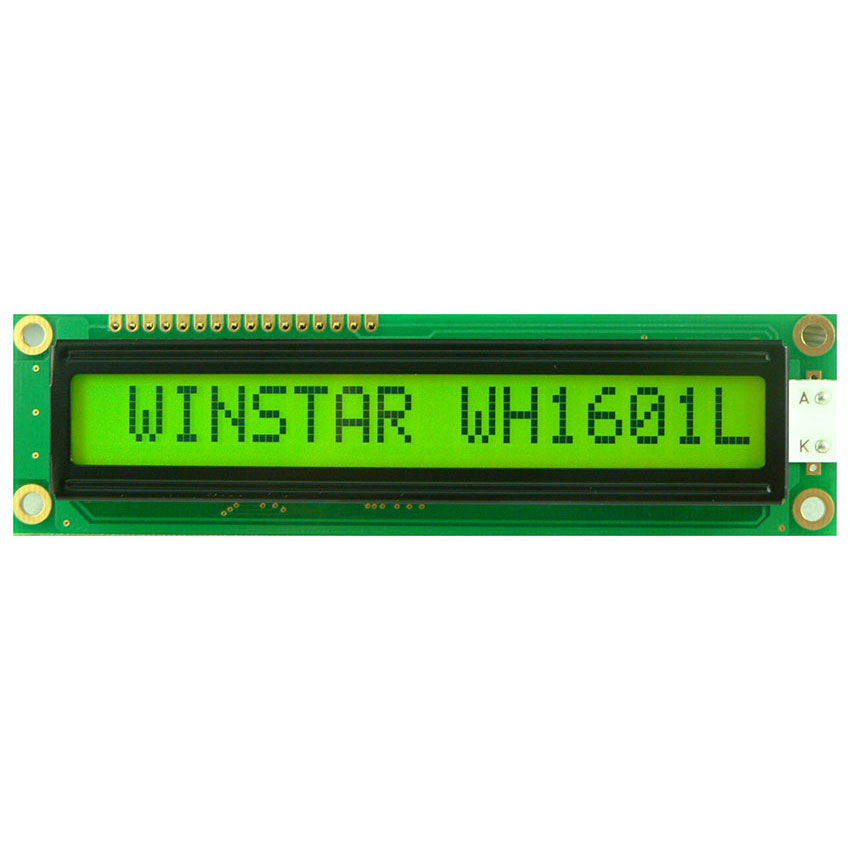

WH1601L is a 16x1 alphanumeric LCD display module with a 3.75-inch diagonal, displaying 16 characters in a single line with a 5x8 dot matrix character format. The module measures 122.0 x 33.0 x 13.5 mm, with an active area of 94.84 x 9.66 mm. It operates from a 5V supply and is compatible with 3V operation, with the negative voltage limited to 3V. The module is built on a PCB with mounting holes for mechanical integration.
The WH1601L uses a 6800 4/8-bit parallel interface by default with the ST7066 controller IC or equivalent. SPI and I2C interface configurations are also available using the RW1063 controller IC. The available interface versions include:
The ST7066 controller is available with multiple character sets, including English/Japanese, Western European, Eastern European, Scandinavian European, Cyrillic (Russian), and Hebrew/Arabic.
LED backlight options include yellow-green, white, red, blue, green, and amber, and a version without a backlight is also available. The LED backlight can be driven through PIN1, PIN2, PIN15, PIN16, or the A and K terminals. If you have specific interface, character set, backlight color, or backlight configuration requirements, click “ADD TO INQUIRY” above and specify them in the “Message” field.
| Item | Dimension | Unit |
|---|---|---|
| Number of Characters | 16 Characters x 1 Lines | － |
| Module dimension | 122.0 x 33.0 x 13.5 (MAX) | mm |
| View area | 99.0 x 13.0 | mm |
| Active area | 94.84 x 9.66 | mm |
| Dot size | 0.92 x 1.1 | mm |
| Dot pitch | 0.98 x 1.16 | mm |
| Character size | 4.84 x 8.06 | mm |
| Character pitch | 6.0 x 8.56 | mm |
| Duty | 1/16 | |
| Backlight Type | LED | |
| IC | ST7066U | |
| Interface | 6800 | |
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
| Input Voltage | VI | VSS | － | VDD | V |
| Supply Voltage For Logic | VDD-VSS | -0.3 | － | 7 | V |
| Supply Voltage For LCD | VDD-Vo | -0.3 | － | 13 | V |
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For Logic | VDD-VSS | － | 4.5 | 5.0 | 5.5 | V |
| Supply Voltage For LCD | VDD-V0 | Ta=-20℃ Ta=25℃ Ta=70℃ |
－ 4.2 3.5 |
－ 4.35 － |
5.5 4.5 － |
V V V |
| Input High Volt. | VIH | － | 0.7 VDD | － | VDD | V |
| Input Low Volt. | VIL | － | Vss | － | 0.6 | V |
| Output High Volt. | VOH | － | 3.9 | － | VDD | V |
| Output Low Volt. | VOL | － | 0 | － | 0.4 | V |
| Supply Current | IDD | VDD=5.0V | 1.0 | 1.2 | 1.5 | mA |
| Pin No. | Symbol | Level | Description |
|---|---|---|---|
| 1 | VSS | 0V | Ground |
| 2 | VDD | 5.0V | Supply Voltage for logic |
| 3 | VO | (Variable) | Operating voltage for LCD |
| 4 | RS | H/L | H: DATA, L: Instruction code |
| 5 | R/W | H/L | H: Read L: Write |
| 6 | E | H,H→L | Chip enable signal |
| 7 | DB0 | H/L | Data bit 0 |
| 8 | DB1 | H/L | Data bit 1 |
| 9 | DB2 | H/L | Data bit 2 |
| 10 | DB3 | H/L | Data bit 3 |
| 11 | DB4 | H/L | Data bit 4 |
| 12 | DB5 | H/L | Data bit 5 |
| 13 | DB6 | H/L | Data bit 6 |
| 14 | DB7 | H/L | Data bit 7 |
| 15 | A | － | Power supply for B/L(+) |
| 16 | K | － | Power supply for B/L(-) |
