8.8-inch STM32N6 Edge AI Development Board

Model No. WL0F00088000BGXAANA00

►LCD Display Size: 8.8 inch
►Resolution: 1920×480 dots
►View Direction: 85/85/85/85(IPS)
►Communication Interface: CAN FD, RS485, RS232, Ethernet, USB-C, UART, SPI, I2C, GPIO
►Camera Interface: MIPI CSI-2 / Parallel
►Touch Panel: Capacitive Touch Panel
►Brightness(cd/m²): 450
►Operating Voltage: 9-36V
►Support ST TouchGFX
►64 MB External Flash
►Product status: Reliability validation is in progress. Mass production sample available in October

DATASHEET

DEMO CODE

ADD TO INQUIRY

BACK to LIST NEXT

Description

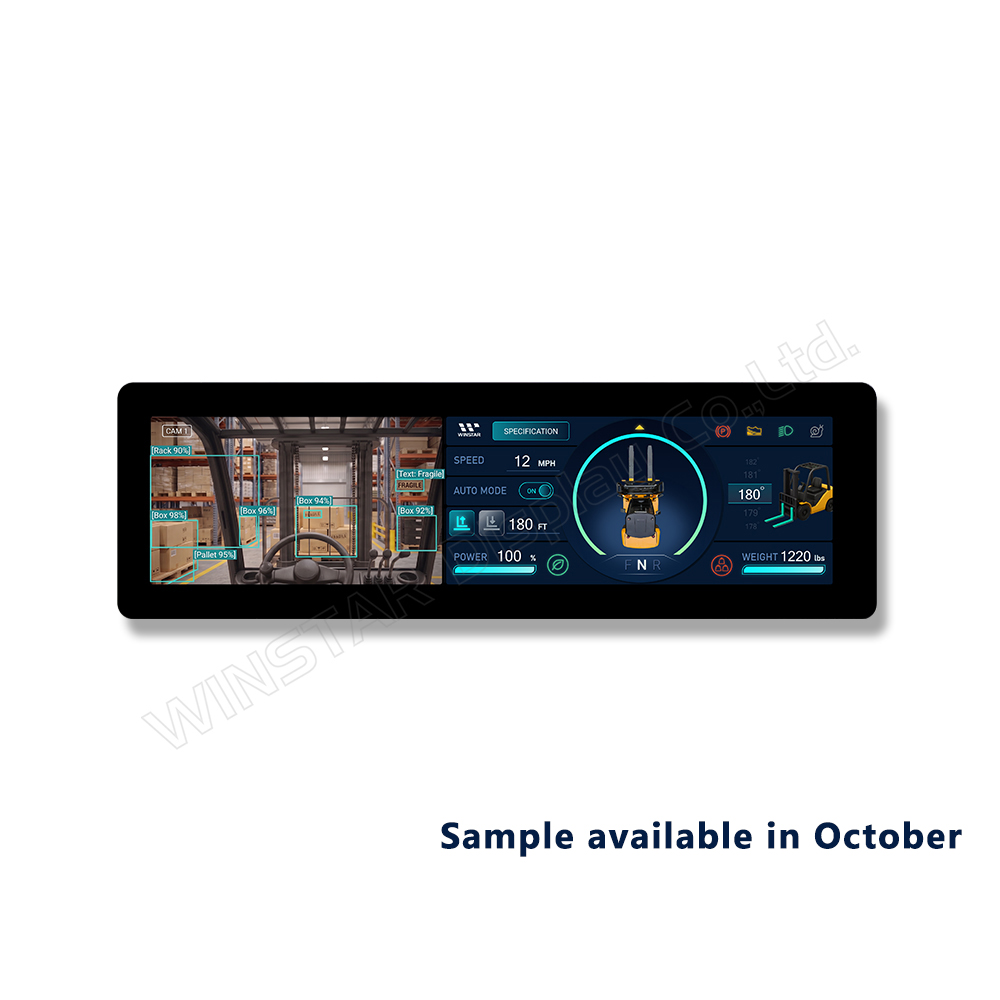

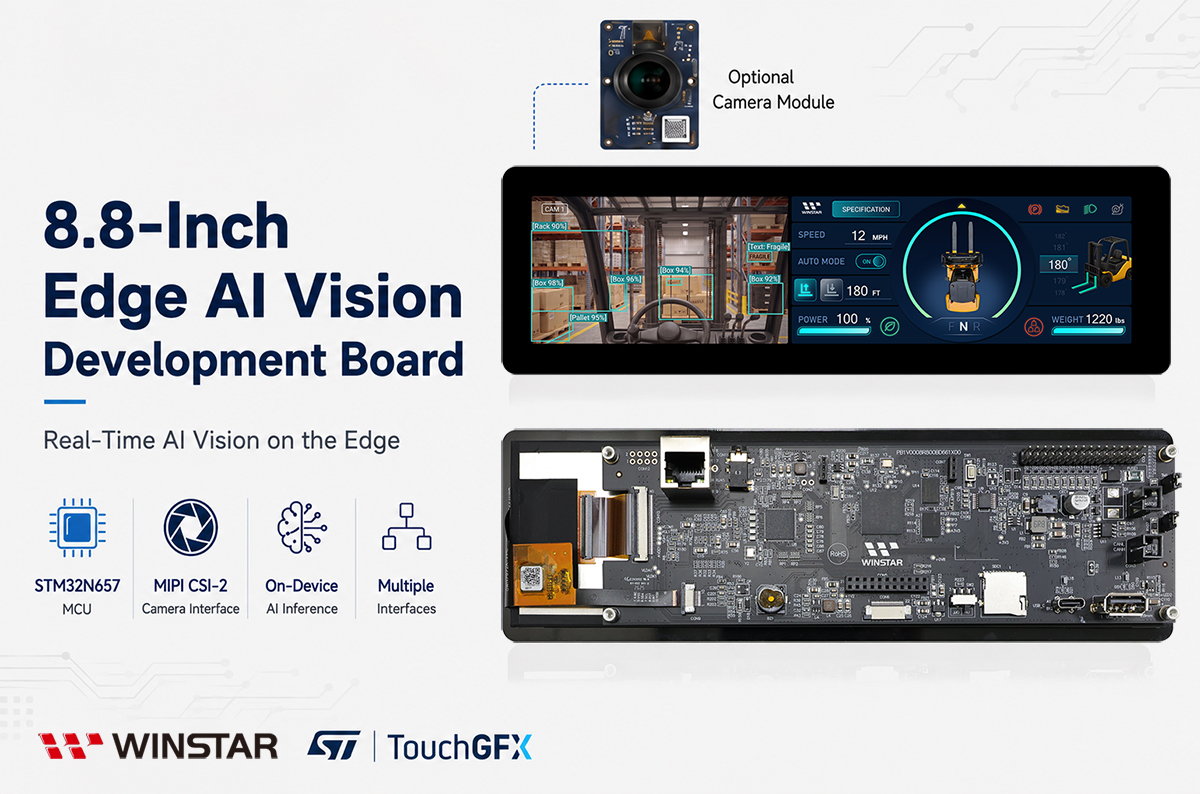

WINSTAR's WL0F00088000BGXAANA00 is the industry's first 8.8-inch bar-type AI development board based on the STM32N6 MCU. Designed for embedded AI and STM32 AI development, it integrates an ultra-wide IPS touch display, MIPI CSI-2 and parallel camera interfaces, and on-device AI processing into a validated MCU-based platform.

Edge AI Processing on an MCU Platform

For embedded AI applications that do not require a Linux operating system, the STM32N657 enables developers to implement vision AI and advanced graphical HMI on an MCU architecture, shortening boot time, and lowering overall system cost. Supporting both MIPI CSI-2 and parallel camera interfaces, it enables real-time image recognition, object detection, anomaly detection, while enhancing data privacy. Beyond camera vision, the platform also supports audio input, enabling offline wake-word detection and speech recognition on the HMI.

Optimized for AI Vision and Ultra-Wide HMI Applications

Unlike conventional displays sizes, the 8.8-inch IPS display with PCAP touch is specifically designed for space constraint 2U rack applications. Featuring a 1920 × 480 resolution and a 4:1 bar-type aspect ratio, it is optimized for AI vision on ultra-wide HMI applications where installation height is limited but wide information layouts are required. It enables live camera streaming with AI inference results, system status, controls, and alerts to be presented simultaneously on a single screen.

Typical applications include smart appliances, industrial control panels, off-highway vehicles dashboards, equipment monitoring systems, and embedded AI vision systems.

To accelerate AI vision development, WINSTAR offers a complete Demo Kit that combines the 8.8" HMI development board, validated camera module, and essential accessories into a ready-to-evaluate platform for embedded AI applications.

8.8-inch STM32N6 Edge AI Development Board - WL0F00088000BGXAANA00

DRAWING

Block Diagram

SPECIFICATIONS

General Specifications

Item	Standard Value	Unit
Operating voltage	9V~36V dynamic	Vdc
Communication Interface	CANFD / RS485 / RS232 / UART / LAN / SPI / I2C / USB	N/A
MCU	STM32N657	N/A
RAM	32	MB
Flash Memory	64	MB
LCD display size	8.8	inch
Dot Matrix	1920 x RGB x 480(TFT)	dot
Module dimension	241.3(W) x 74.3(H) x 28.7(D)	mm
Active area	218.88 (H) x 54.72(V)	mm
Pixel pitch	0.114(W) x 0.114(H)	mm
Brightness	Min:350; Typ:450	cd/m2
LCD type	TFT, Normally Black, Transmissive
View Direction	85/85/85/85
Aspect Ratio	1:4 (Bar Type)
Touch Panel	With Projected Capacitive Touch Panel (PCAP)
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VIN	－	9	12	36	V
Supply LCM Current	I(mA)	－	420	300	105	mA

BOM

Item	Description
LCM	WF88BTYA8MNG10#
PCBA	PB4V0008R800BD661X00

Interface Pin Function

CON1 definition:

Pin	Symbol	Function	Remark
1	VIN	Power supply input V+	Input
2	+3V3	3.3V power for JTAG interface	Output
3	VIN	Power supply input V+	Input
4	SWCLK	CLK pin for JTAG interface	I/O
5	GND	Power supply GND input	GND
6	GND	Power supply GND input	GND
7	GND	Power supply GND input	GND
8	SWDIO	Data pin for JTAG interface	I/O
9	SPI_CS	SPI Chip select interface	Input
10	NRST	Reset pin for JTAG interface	Input
11	SPI_CLK	SPI Clock interface	I/O
12	BOOT0	Power supply GND input	Input
13	SPI_MOSI	SPI MOSI interface	Output
14	IO_0	Timer, Event, I/O	PB5
15	SPI_MISO	SPI MISO interface	Input
16	IO_1	ADC, Timer, Event, I/O	PA9
17	I2C_SDA	I2C SDA interface	I/O
18	IO_2	ADC, Timer, Event, I/O	PA10
19	I2C_SCL	I2C SCL interface	I/O
20	IO_3	ADC, Timer, Event, I/O	PB10
21	UART1_TX	UART TX interface	Output
22	IO_4	DAC, Timer, Event, I/O	PB3
23	UART1_RX	UART RX interface	Input
24	IO_5	PWM, Timer, Event, I/O	PE7
25	UART2_TX	UART TX interface	Output
26	IO_6	PWM, Timer, Event, I/O	PE8
27	UART2_RX	UART RX interface	Input
28	IO_7	PWM, Timer, Event, I/O	PE9
29	RS232_TX	RS232 TX interface	Output
30	IO_8	PWM, Timer, Event, I/O	PE10
31	RS232_RX	RS232 RX interface	Input
32	IO_9	PWM, Timer, Event, I/O	PE12

CON3 definition:

Pin	Symbol	Function	Remark
1	CAN_H	CAN BUS High interface	I/O
2	CAN_L	CAN BUS Low interface	I/O

CON4 definition:

Pin	Symbol	Function	Remark
1	RS485_A	RS485 A interface	I/O
2	RS485_B	RS485 B interface	I/O

CON6 definition:

Pin	Symbol	Function	Remark
1	GND	Power GND	GND
2	CSI_D0_N	MIPI CSI D0 negative signal	I/O
3	CSI_D0_P	MIPI CSI D0 positive signal	I/O
4	GND	Power GND	GND
5	CSI_D1_N	MIPI CSI D1 negative signal	I/O
6	CSI_D1_P	MIPI CSI D1 positive signal	I/O
7	GND	Power GND	GND
8	CSI_CLK_N	MIPI CSI clock negative signal	I/O
9	CSI_CLK_P	MIPI CSI clock positive signal	I/O
10	GND	Power GND	GND
11	TOF_LPn	TOF LPn interface	I/O
12	TOF_INT	TOF INT interface	Input
13	GND	Power GND	GND
14	IMU_INT1	IMU INT1 interface	Input
15	IMU_INT2	IMU INT2 interface	Input
16	GND	Power GND	GND
17	CAM_NRST	Camera Reset	Input
18	CAM_EN	Camera Enable	Input
19	GND	Power GND	GND
20	CAM_SCL	Camera SCL interface	I/O
21	CAM_SDA	Camera SDA interface	I/O
22	VDD_CAM	Power supply +3.3V	Input
