1.54 inch 128x64 COG OLED Graphic with PCB

Model No. WEA012864A

►Type: Graphic
►Structure: COG+PCB
►Size: 1.54"
►Suitable for Wearable Device
►128 x 64 Dot Matrix
►Built-in controller SSD1309
►3V Power supply
►1/64 duty
►Interface: 4-wire SPI / I2C Option

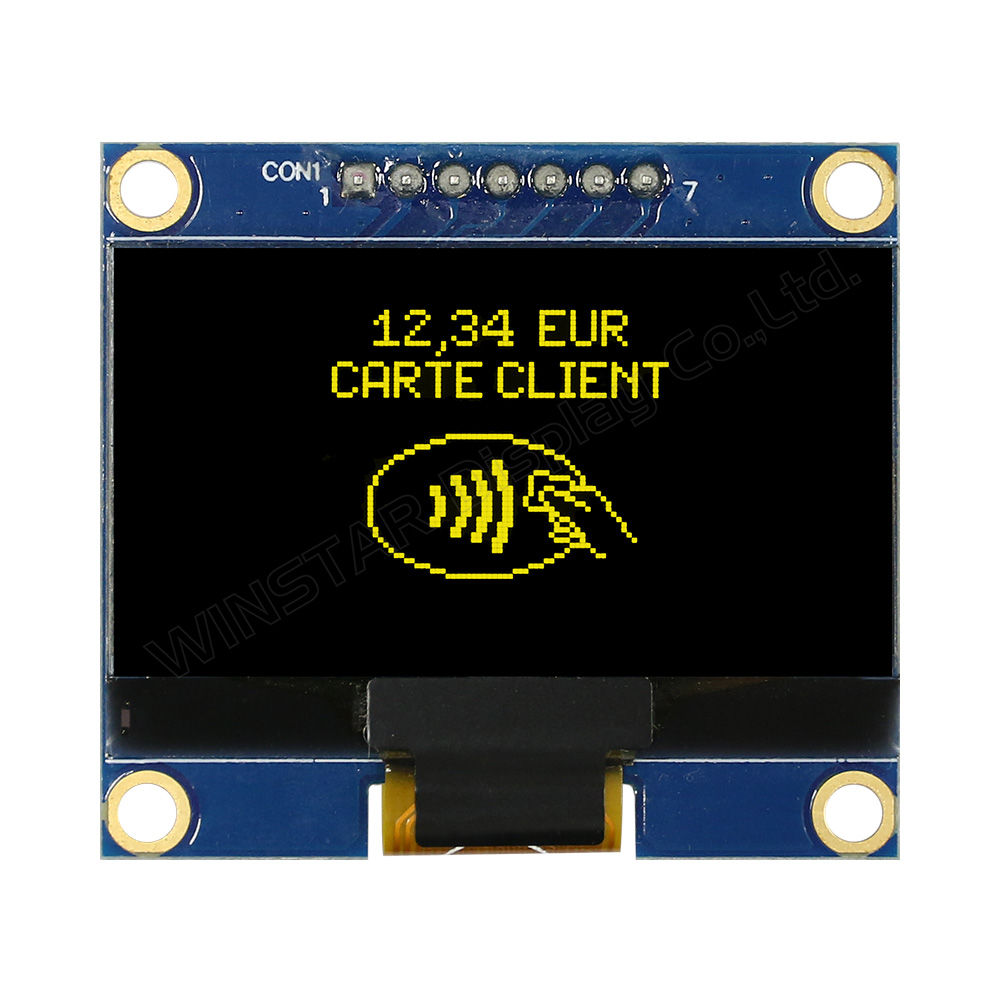

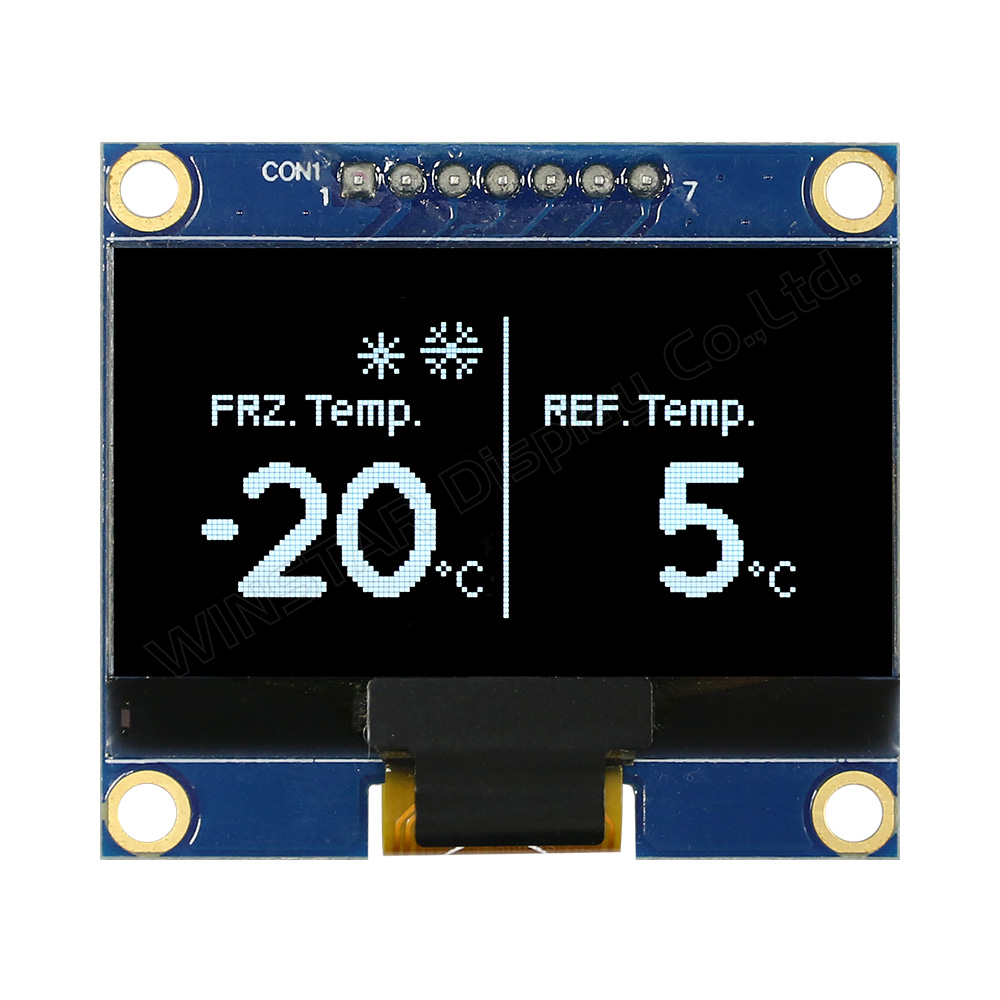

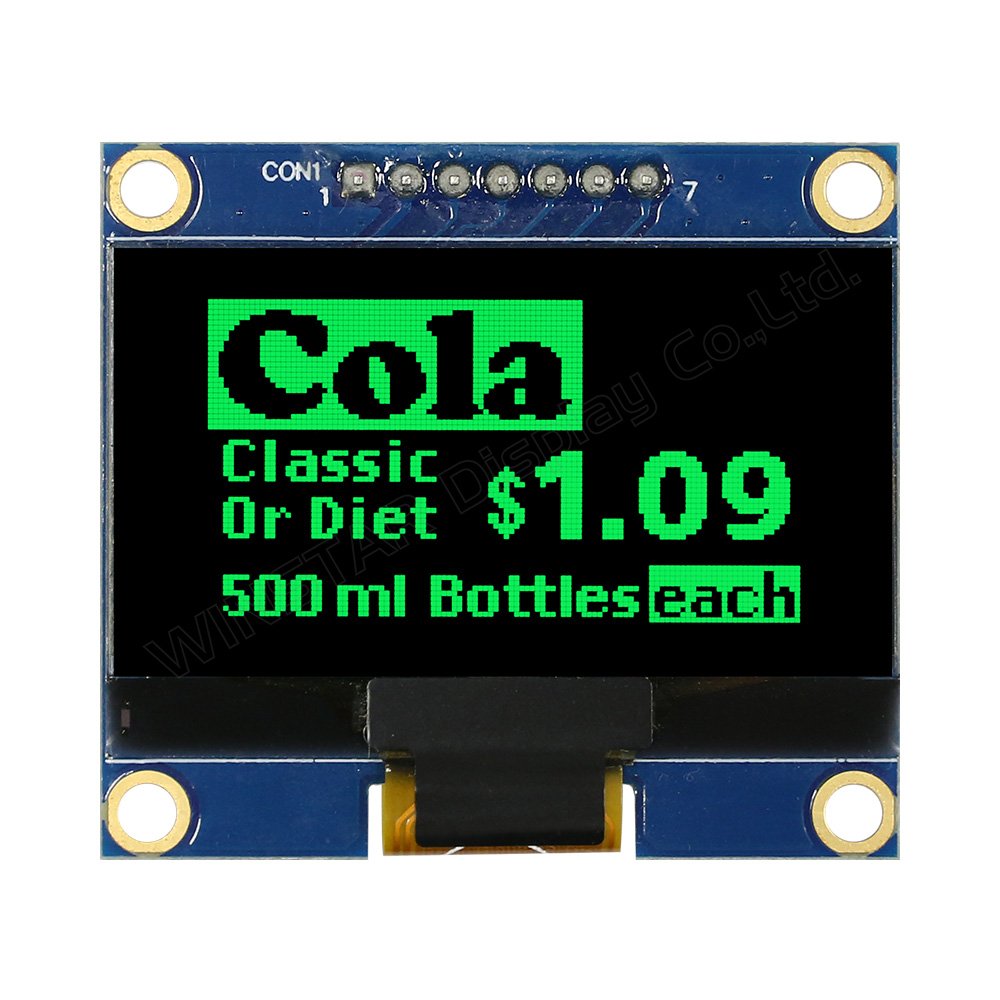

►Display Color: White / Yellow / Green

DESCRIPTION

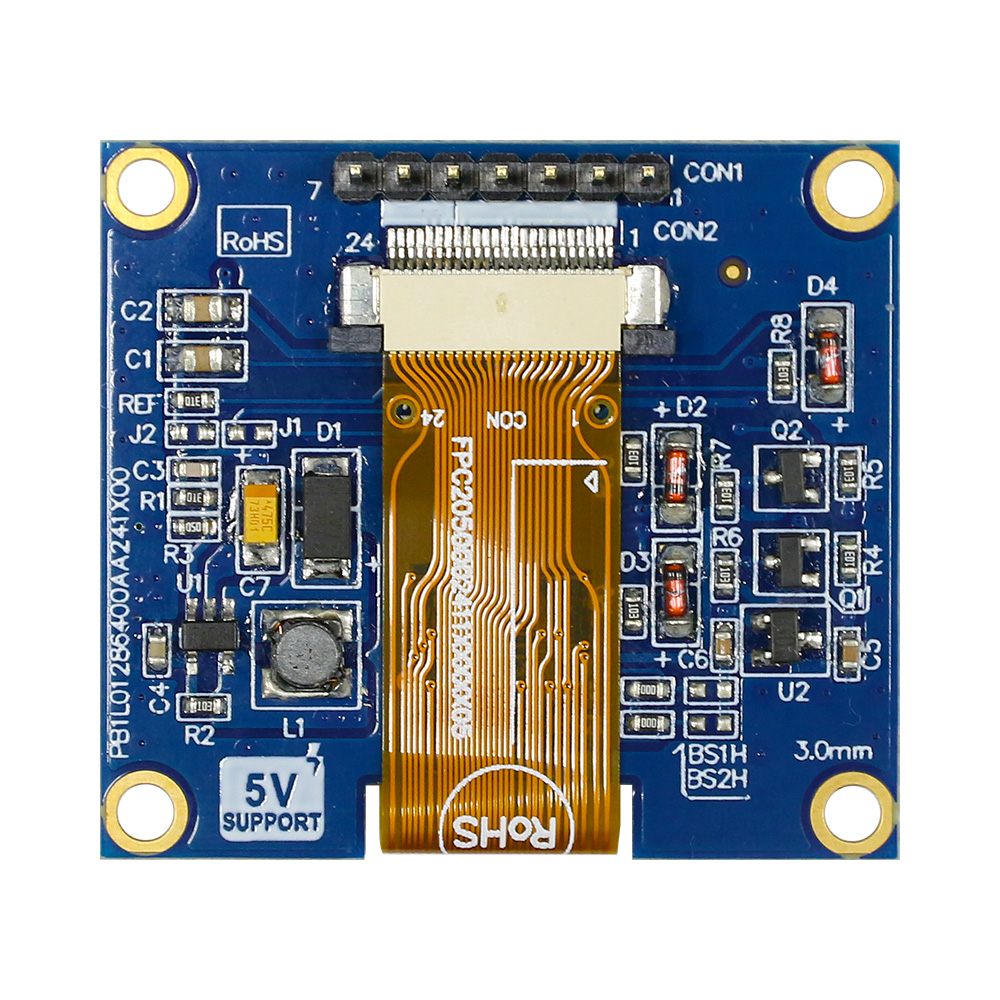

WEA012864A model is the extension item of WEO012864A which is having a PCB board on module; it's diagonal size 1.54 inch, made of 128x64 pixels. This PCB board with four mounting holes is an easy method for customers to fix modules on their applications. WEA012864A module is built in with SSD1309 IC; it supports 4-wire SPI interface; optional I2C interface, driving duty 1/64, supply voltage for logic is from 3.3V ~5V, I/O level 5V to 3V with conversion circuit, the display with 50% check board current is 80mA @3.3VDD (typical value).

This OLED module is suitable for smart home application, medical device, smart control, meter, etc. WEA012864A module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.

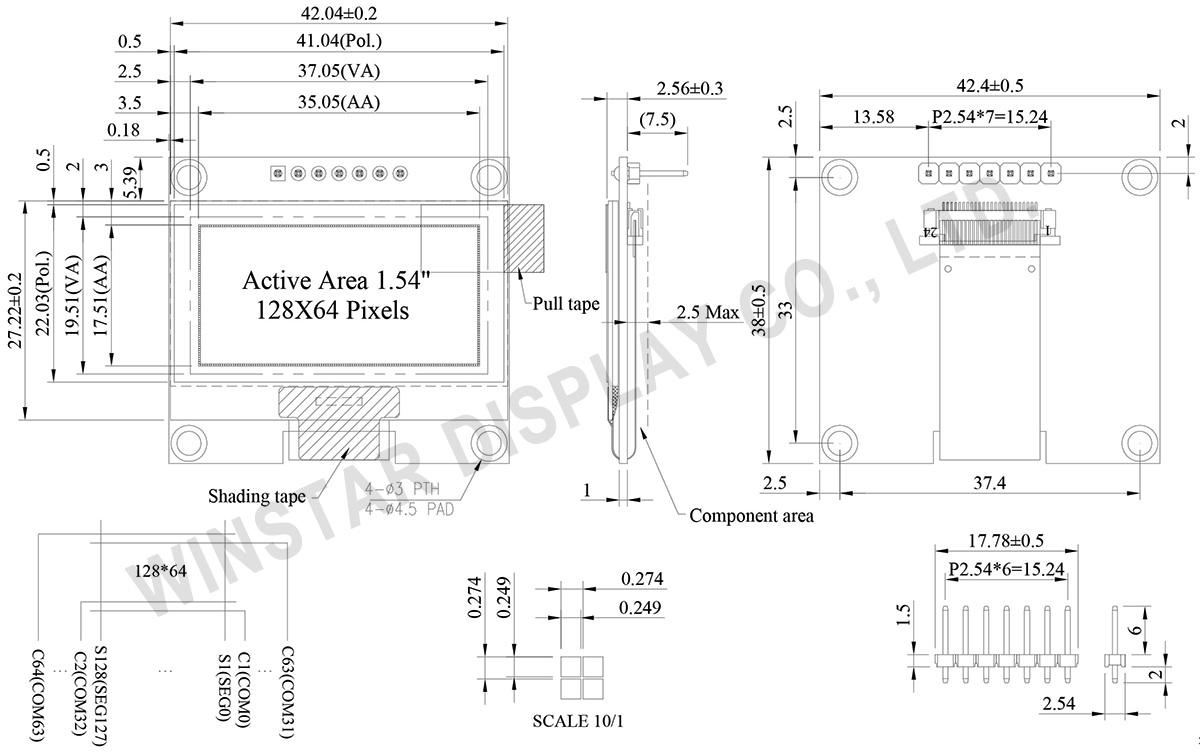

DRAWING

1.54 inch 128x64 COG OLED Graphic with PCB - WEA012864A
Data source ref: WEA012864AWAP3N00000

SPECIFICATIONS

Interface Pin Function

No. Symbol Function
1 GND Ground pin.
2 VCC Power supply pin for core logic operation.
3 D0 The serial clock input
4 D1 The serial data input
5 RES# This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.
6 D/C# This pin is Data/Command control pin connecting to the MCU.
When the pin is pulled HIGH, the data at D1 will be interpreted as data.
When the pin is pulled LOW, the data at D1 will be transferred to a command register.
7 CS# This pin is the chip select input connecting to the MCU.
The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).

Mechanical Data

Item Dimension Unit
Dot Matrix 128 × 64 -
Module dimension 42.4 × 38 × 2.56 mm
Active Area 35.05 × 17.51 mm
Pixel Size 0.249 × 0.249 mm
Pixel Pitch 0.274 × 0.274 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC SSD1309
Interface 4-Wire SPI / I2C Option
Size 1.54 inch

Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Supply Voltage for Display VCC 2 6 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C

Electronical Characteristics

Item Symbol Condition Min Typ Max Unit
Supply Voltage for Logic VCC 2.8 3.3 5.5 V
High Level Input VIH 0.8×VCC V
Low Level Input VIL 0.2×VCC V
High Level Output VOH 0.9×VCC V
Low Level Output VOL 0.1×VCC V
50% Check Board operating Current VCC =3.3V 80 160 mA
