Dual Color OLED Display COG+PCB 128x64, 0.96"

Model No. WEA012864MX

►Dual Color OLED, Dual Color Display
►Type: Graphic (Without Frame)
►Structure: COG+PCB
►Size: 0.96 inch
►128 x 64 Dot Matrix
►IC:SSD1306
►3V/5V Power supply
►1/64 duty
►Interface: I2C
►Display Color: Dual Color (have High MOQ)

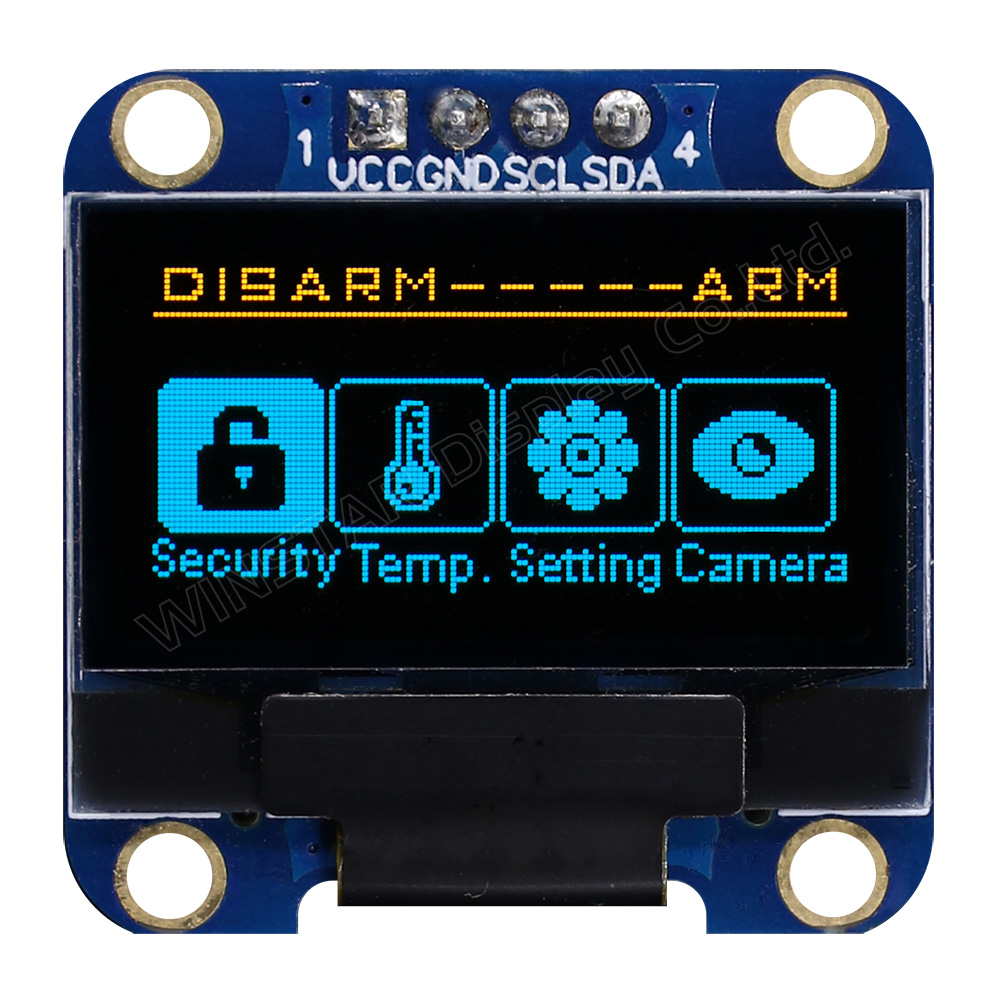

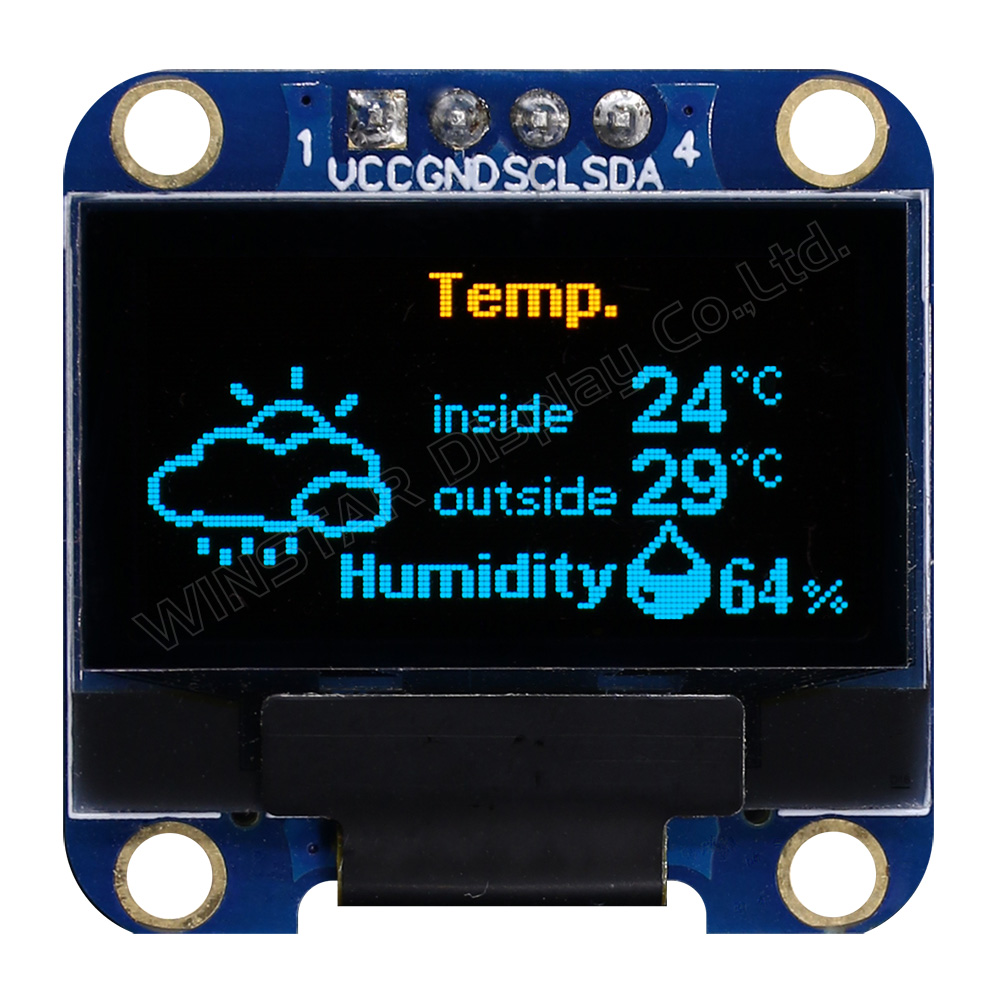

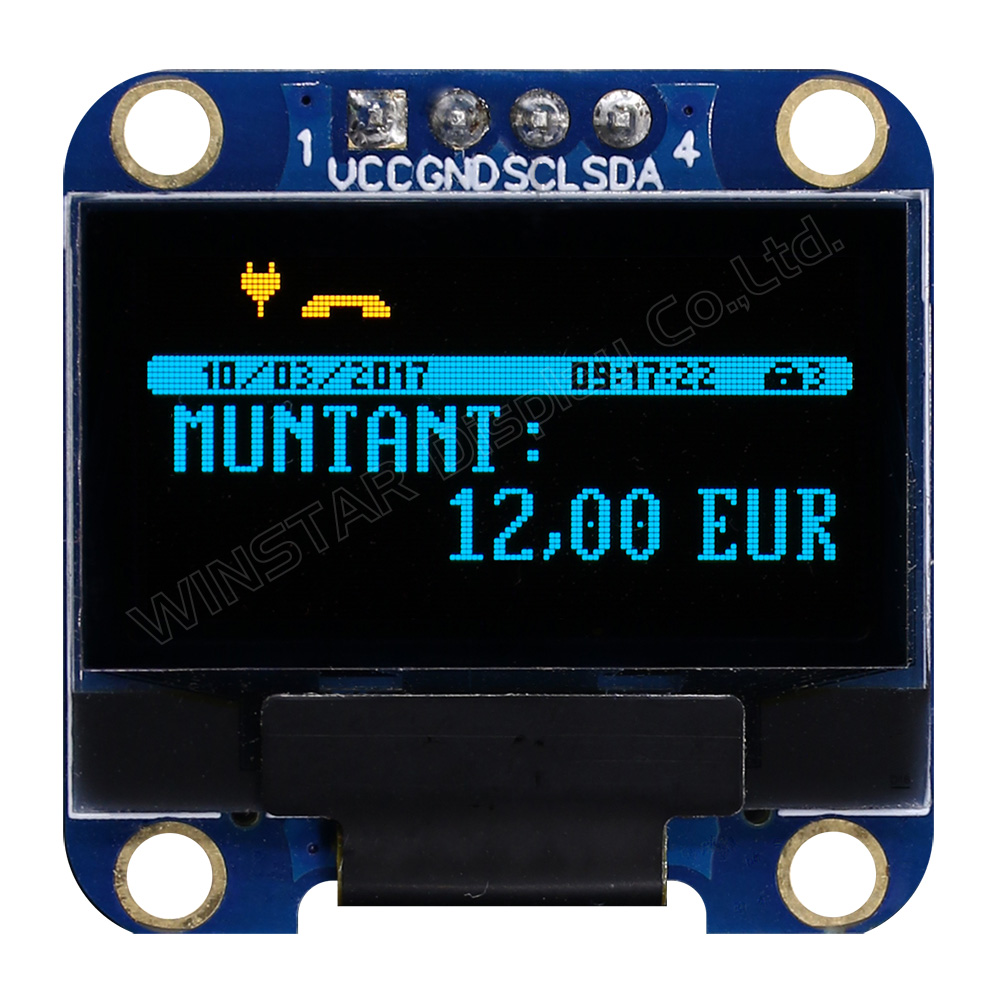

Description

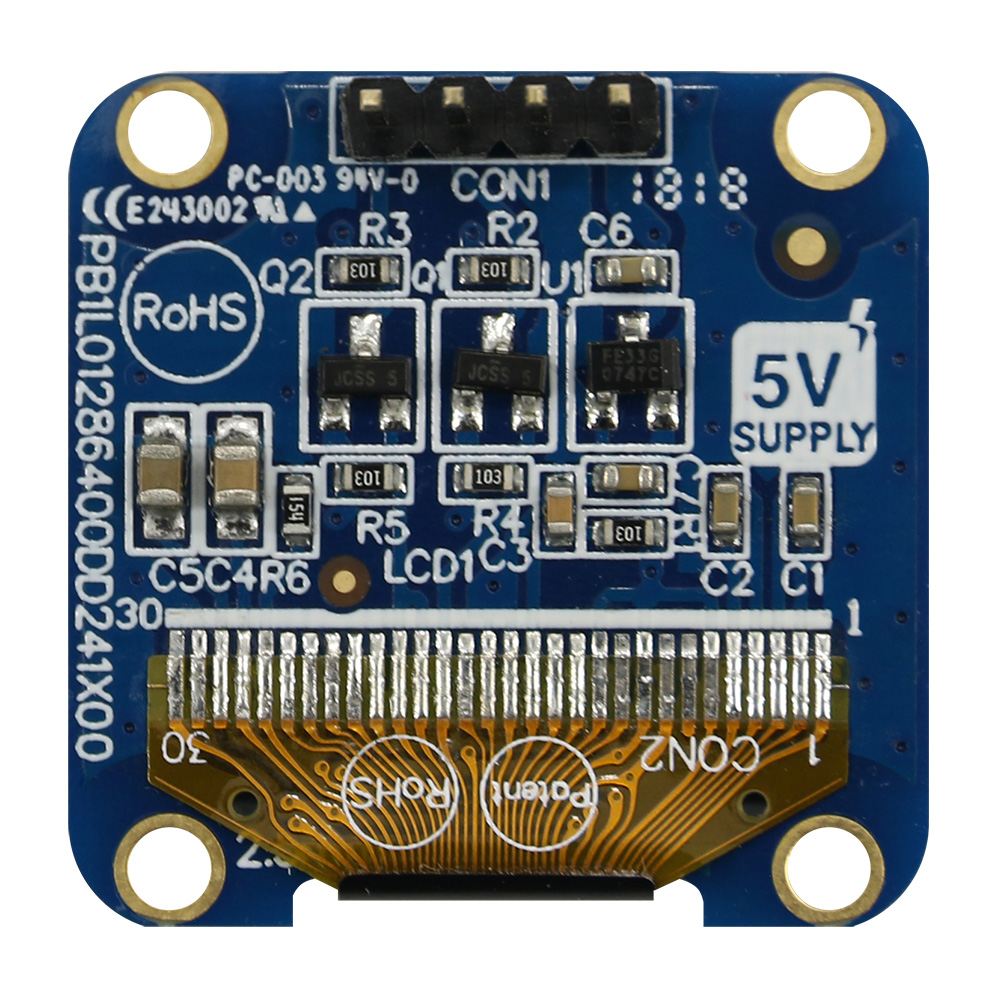

WEA012864MX is a COG 0.96" Dual Color OLED with PCB board on module. The module is built in with SSD1306 IC; it supports I2C interface, 1/64 driving duty, supply voltage for Logic 5V, optional 3.3V, with conversion circuit. WEA012864MX model is having PCB outline size 27.3 × 27.3 mm with mounting holes on board and 4x1 metal pins on module. The standard color is yellow/sky blue only, without any other color options.WEA012864MX module supports internal Charge Pump supply and external VCC supply.

WEA012864MX OLED module is suitable for smart home application, medical device, smart control, meter, etc. This module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.

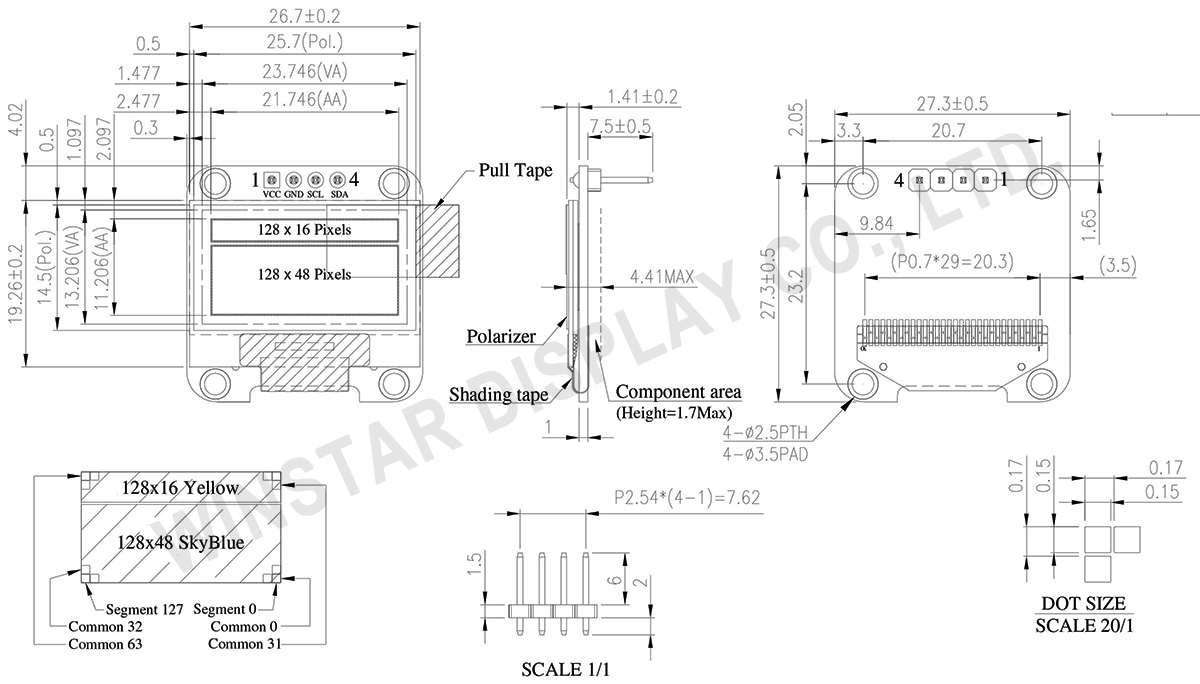

DRAWING

Dual Color OLED, Dual Color Display - WEA012864MX

Data source ref: WEA012864MXPP3N00000

SPECIFICATIONS

Interface Pin Function

No. Symbol Function
1 VCC Power supply input
2 GND Ground
3 SCL The serial clock input
4 SDA The serial data input

Mechanical Data

Item Dimension Unit
Dot Matrix 128 × 64 Dots
Module dimension 27.3× 27.3 × 1.41 mm
Active Area 21.746× 11.206 mm
Pixel Size 0.15 × 0.15 mm
Pixel Pitch 0.17 × 0.17 mm
Display Mode Passive Matrix
Display Color Dual Color (Yellow / Sky Blue)
Drive Duty 1/64 Duty
IC SSD1306
Interface I2C
Size 0.96 inch

Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Supply Voltage for Logic VCC 2 5.5 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C

Electronical Characteristics

DC Electrical Characteristics

Item Symbol Condition Min Typ Max Unit
Supply Voltage for Logic VCC 2.8 3.3 5.2 V
Input High Volt. VIH 0.8×VCC VCC V
Input Low Volt. VIL 0 0.2×VCC V
Output High Volt. VOH 0.9×VCC VCC V
Output Low Volt. VOL 0 0.1×VCC V
50% Check Board operating Current ICC VCC=3.3V 15.0 23.0 mA
