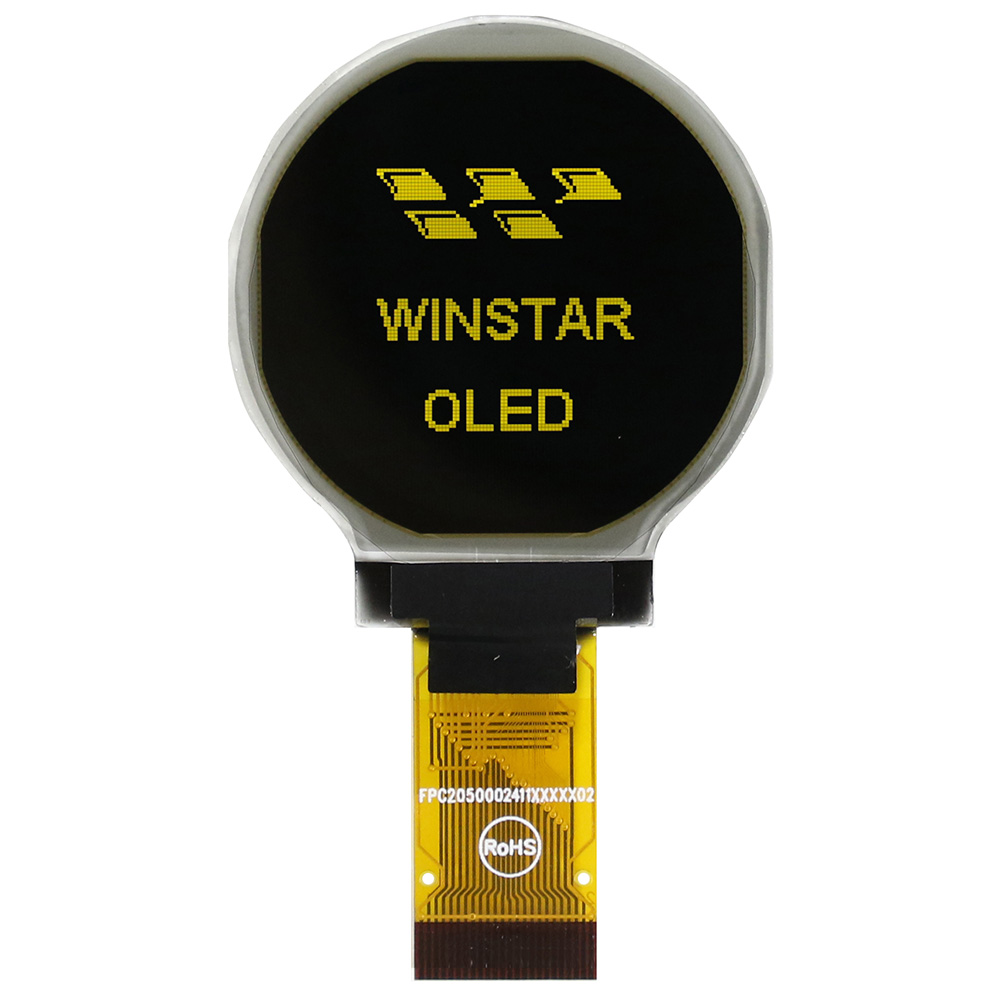

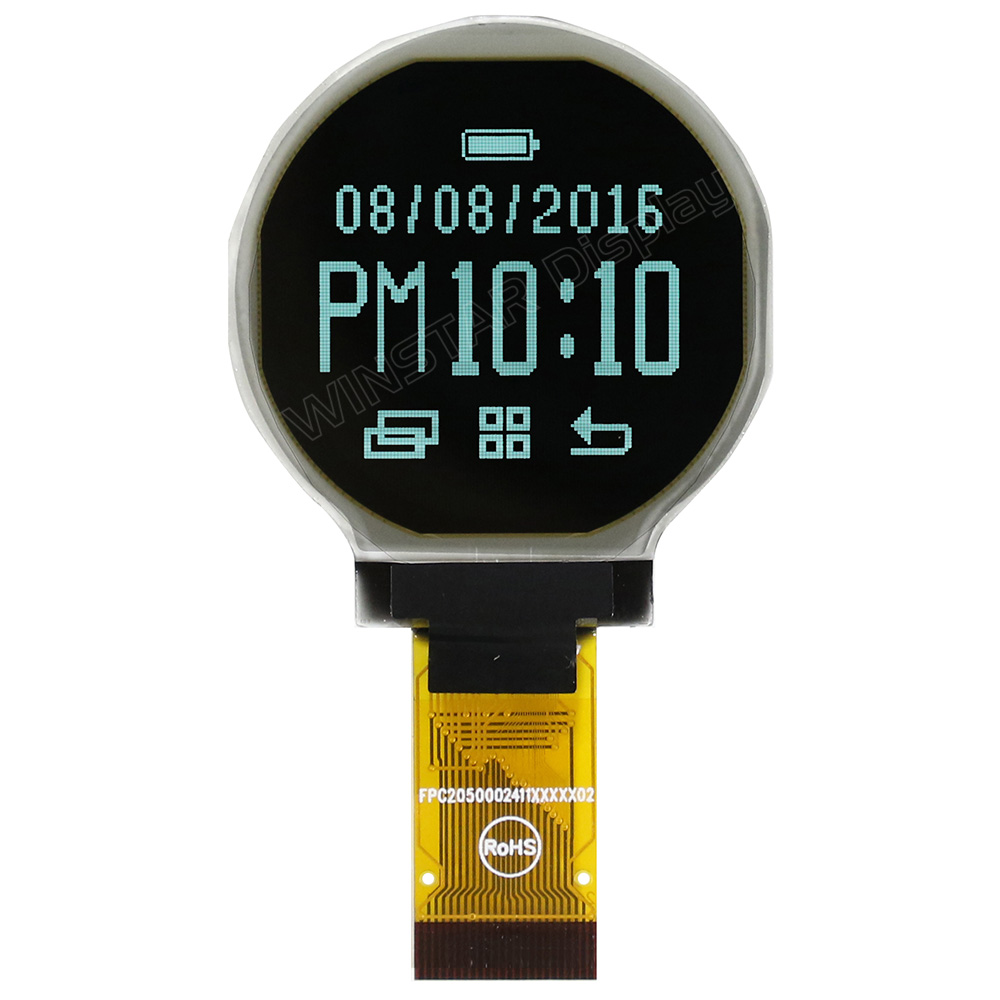

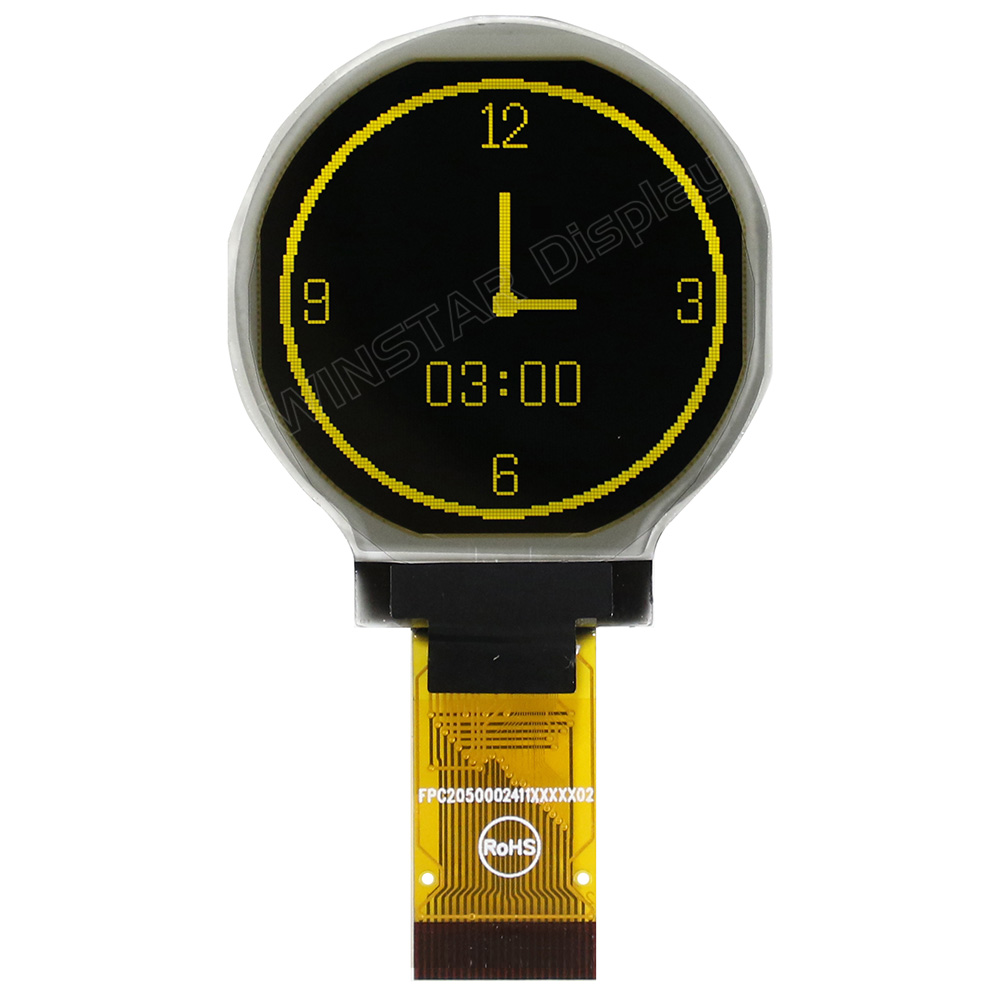

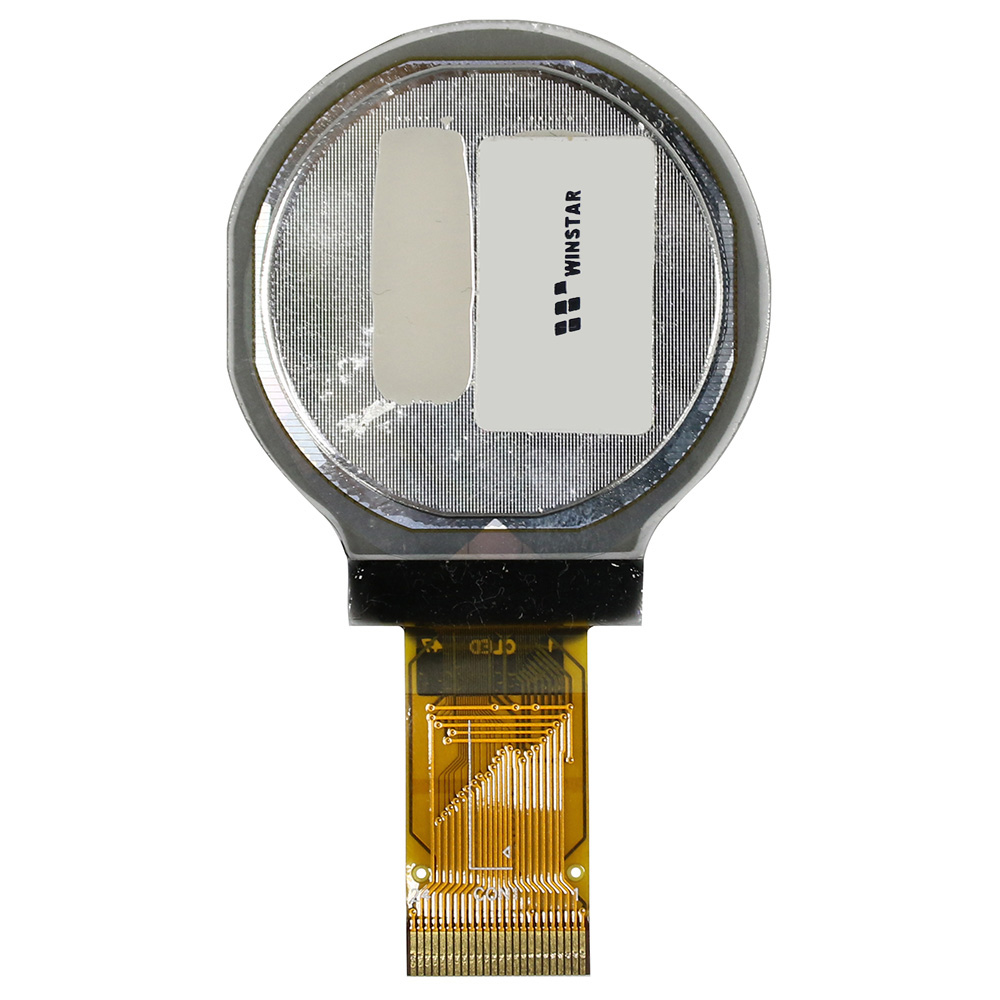

WEO128128B 是一款圓形直徑1.18吋的單色被動式PMOLED顯示器模組,解析度為128x128 pixels。WEO128128B內建SSD1327ZB controller控制器, 支援多種傳輸介面: 6800 8-bite, 8080 8-bit 平行介面, I2C 與4線SPI串列介面,使用3V驅動。 WEO128128B的模組尺寸為37.18 × 41.23× 2.05 mm, AA區尺寸為 Ø30 mm。
WEO128128B為COG結構的OLED顯示器模組,為有機自發光,無須背光源,模組輕薄且低耗電流,此款圓形OLED模組非常適合手持式產品、量測儀器、穿戴裝置、家用產品與車載等等。WEO128128B標準顏色有黃色、白色與天空藍,有其他顏色需求請洽我們的業務人員。 此模組的工作溫度是-40℃至 +80℃,儲存溫度-40℃至 +85℃,如有樣品需求或是更詳細的產品資訊請與我們聯繫。
項目 | 尺寸 | 單位 |
---|---|---|
點陣(解析度) | 128 x 128 | Dots |

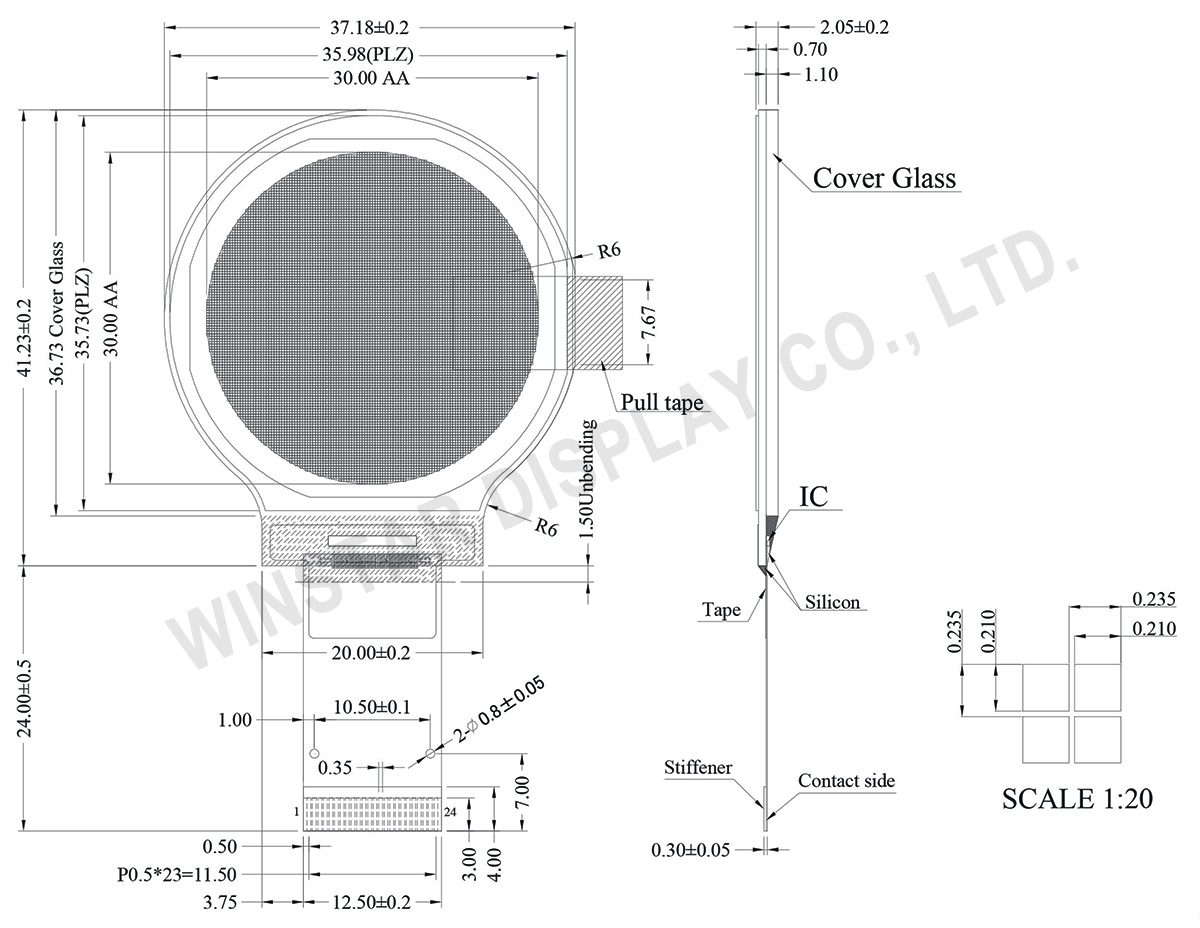

模組尺寸 | 37.18× 41.23 × 2.05 | mm |
檢視區域 | Ø30 | mm |
點大小 | 0.210 × 0.210 | mm |
點間距 | 0.235 × 0.235 | mm |
顯示模式 | 被動矩陣 | |
發光顏色 | 單色 | |
驅動方式 | 1/128 Duty | |

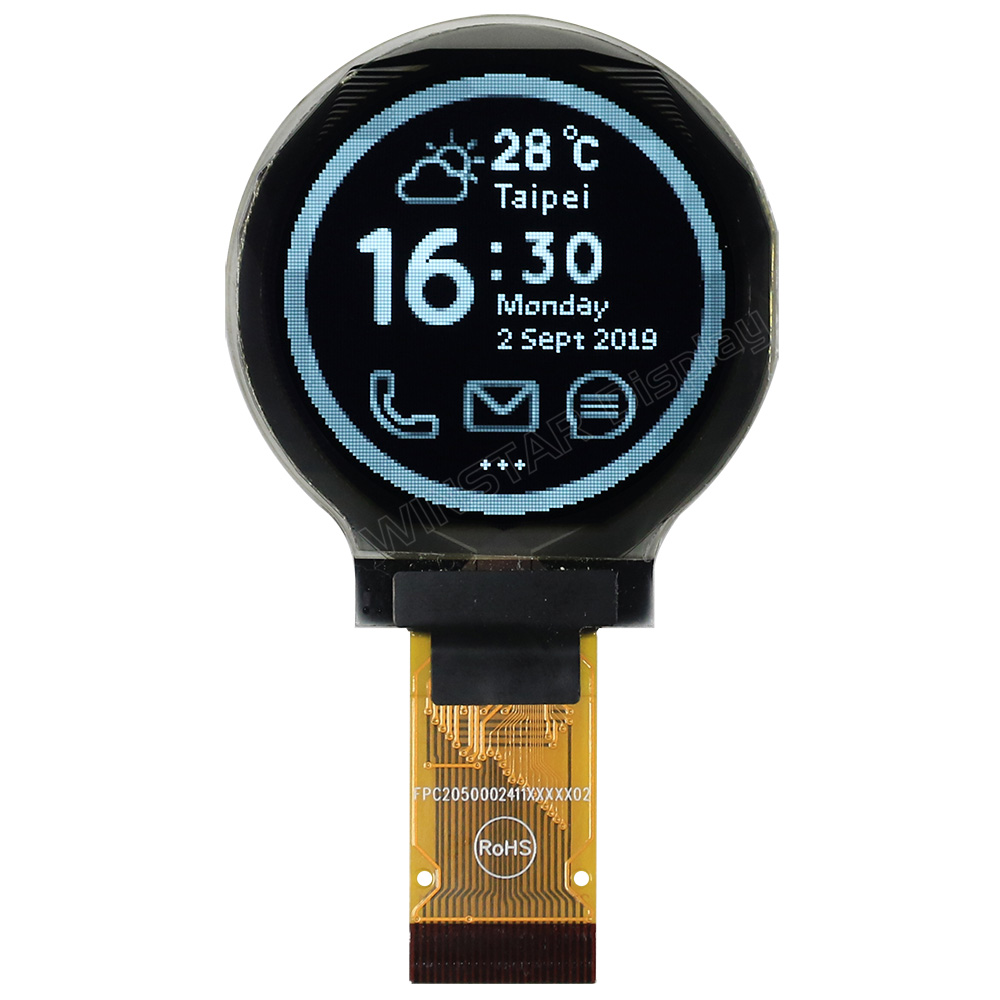

灰階 | 4 bits | |
IC | SSD1327 | |
介面 | 6800, 8080, 4線SPI, I2C | |
尺寸 | 1.18吋 |
參數 | 符號 | 最小值 | 最大值 | 單位 |
---|---|---|---|---|
低壓電源,輸入/輸出針腳(Pin)電源 | VCI | -0.3 | 4.0 | V |
邏輯電源電壓 | VDD | -0.5 | 2.75 | V |
顯示電源電壓 | VCC | -0.5 | 19.0 | V |
工作溫度 | TOP | -40 | +80 | °C |
儲存溫度 | TSTG | -40 | +85 | °C |
項目 | 符號 | 條件 | 最小值 | 典型值 | 最大值 | 單位 |
---|---|---|---|---|---|---|
低壓電源,輸入/輸出針腳(Pin)電源 | VCI | Note | 2.8 | 3 | 3.3 | V |
顯示電源電壓 | VCC | - | 14 | 14.5 | 15 | V |
邏輯電源電壓 | VDD | - | 2.4 | - | 2.6 | V |
輸入高準位 | VIH | - | 0.8×VCI | - | VCI | V |
輸入低準位 | VIL | - | 0 | - | 0.2×VCI | V |
輸出高準位 | VOH | - | 0.9×VCI | - | VCI | V |
輸出低準位 | VOL | - | 0 | - | 0.1×VCI | V |
50%顯示畫面耗電流 | VCC =14.5V | - | 24 | 26 | mA |
Note: VCI must be larger than or equal to VDD
No. | 符號 | 功能說明 | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | VSS | Ground pin. It must be connected to external ground. | ||||||||||
2 | VCC | Power supply for panel driving voltage. This is also the most positive power voltage supply pin. It is supplied by external high voltage source. | ||||||||||
3 | VCOMH | COM signal deselected voltage level. A capacitor should be connected between this pin and VSS. No external power supply is allowed to connect to this pin. |
||||||||||
4 | VCI | Low voltage power supply and power supply for interface logic level. It should match with the MCU interface voltage level and must be connected to external source. VCI must always set to be equivalent to or higher than VDD. |
||||||||||
5 | VDD | Power supply pin for core logic operation. VDD can be supplied externally (within the range of 2.4V to 2.6V) or regulated Internally from VCI. A capacitor should be connected between VDD and VSS under all circumstances. |
||||||||||
6 | BS1 |
MCU bus interface selection pins. Select appropriate logic setting as described in the following table. BS2 and BS1 are pin select.
|
||||||||||
7 | BS2 | |||||||||||
8 | VSS | Ground pin. It must be connected to external ground. | ||||||||||
9 | IREF | This pin is the segment output current reference pin | ||||||||||
10 | CS# | This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW). |
||||||||||
11 | RES# | This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin pull HIGH during normal operation. |
||||||||||
12 | D/C | This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data. When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register. In I2C mode, this pin acts as SA0 for slave address selection. When 3-wire serial interface is selected, this pin must be connected to VSS. |
||||||||||
13 | W/R# | This pin is read / write control input pin connecting to the MCU interface. When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW. When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected. |
||||||||||
14 | RD# | This pin is MCU interface input. When 6800 interface mode is selected, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled HIGH and the chip is selected. When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS. |
||||||||||
15 | D0 | These pins are bi-directional data bus connecting to the MCU data bus. Unused pins are recommended to tie LOW. When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC. When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL. |
||||||||||
16 | D1 | |||||||||||
17 | D2 | |||||||||||
18 | D3 | |||||||||||
19 | D4 | |||||||||||
20 | D5 | |||||||||||
21 | D6 | |||||||||||
22 | D7 | |||||||||||
23 | VCC | Power supply for panel driving voltage. This is also the most positive power voltage supply pin. It is supplied by external high voltage source. | ||||||||||
24 | VSS | Ground pin. |
圖示 | FPC長度 | PIN | Pitch | ZIF / HOTBAR FPC | 介面 | FPC No. | 建立日期 |
---|---|---|---|---|---|---|---|
![]() |
25.05 | 24 | 0.5 | ZIF | 6800,8080,SPI,I2C | FPC2050002411XXXXX02 | 20160511 |
![]() |
91 | 18 | 0.5 | ZIF | 4-line SPI , I2C | FPC2050001811XXXXX04 | 20180705 |
