Model No. WFN0520A2S0YADNC000
►Size : 5.2”
►Resolution : 480x128 pixels
►View Direction : IPS
►Interface : RGB
►Driver IC : ILI6485D
►Control-Board : No
►Brightness (cd/m²) : 880
►Frame Through Hole : No
►Touch Screen : Projected capacitive touch screen (PCAP)
►Touch Points: 5

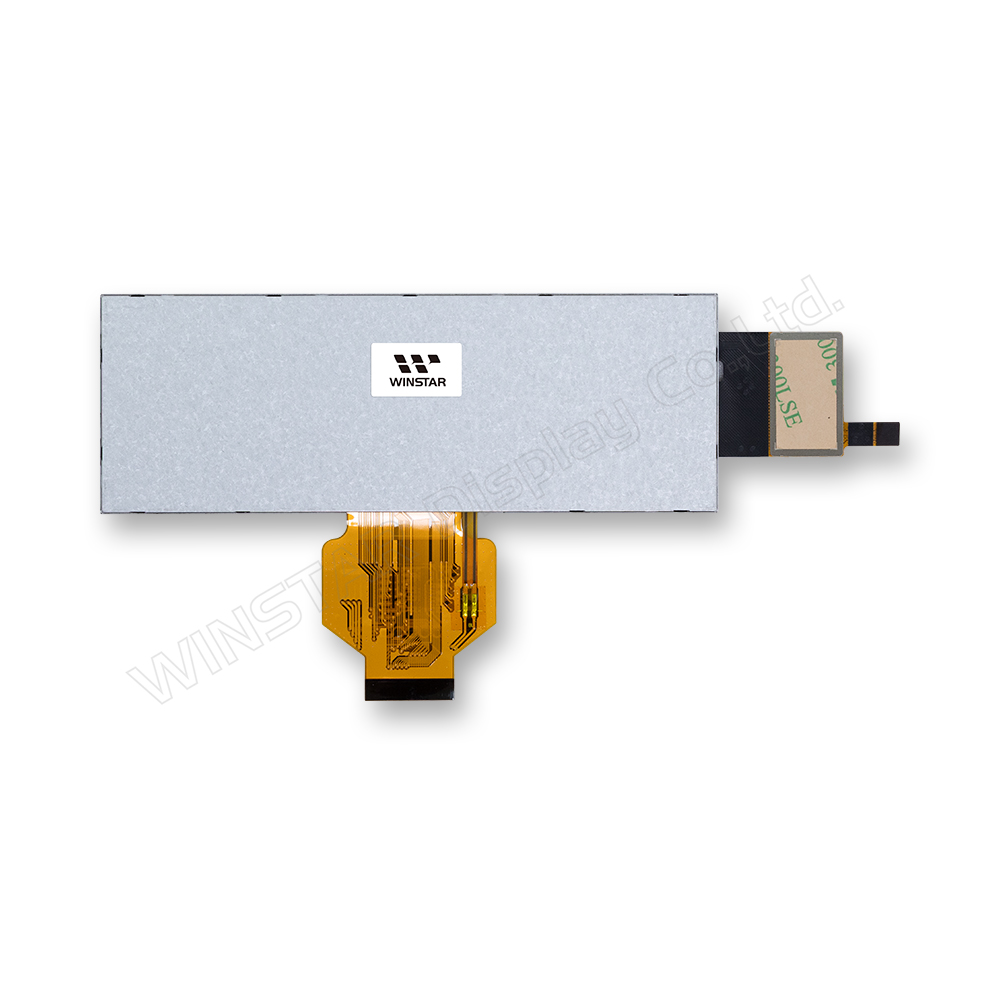

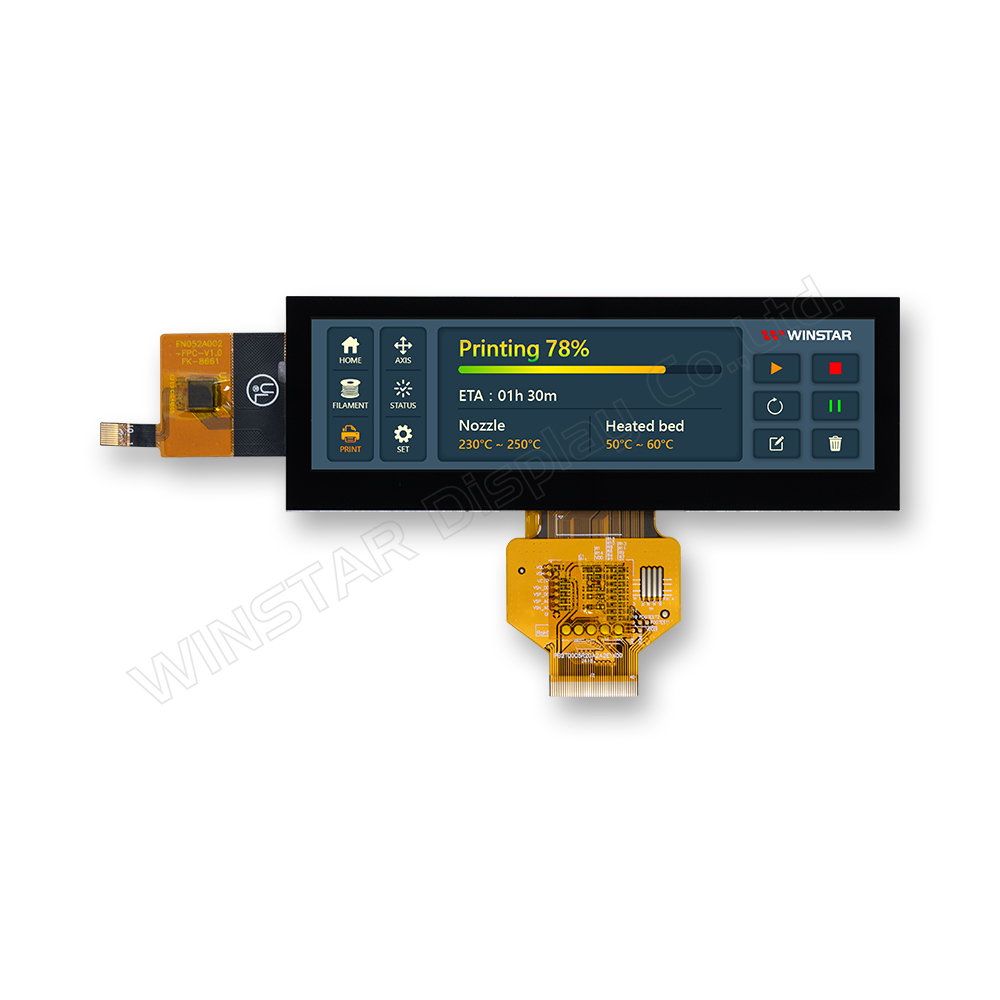

WFN0520A2S0YADNC000 is a 5.2-inch bar type TFT LCD featuring an IPS panel, 480 x 128 resolution, and a projected capacitive touch panel (PCAP) with 5-point multi-touch support. With a typical brightness of 880 cd/m² and wide viewing angles of 85/85/85/85 degrees, the display is designed for wide-format HMI applications that require high brightness, wide viewing angles, and multi-touch operation.
The module measures 140.4 x 49.87 x 4.96 mm and provides an active area of 132.48 x 35.328 mm. It features the ILI6485D TFT driver IC and supports a 24-bit RGB interface. The PCAP touch panel uses the GT911 touch controller with an I²C interface. The module operates from a typical 3.3V supply, with an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C.

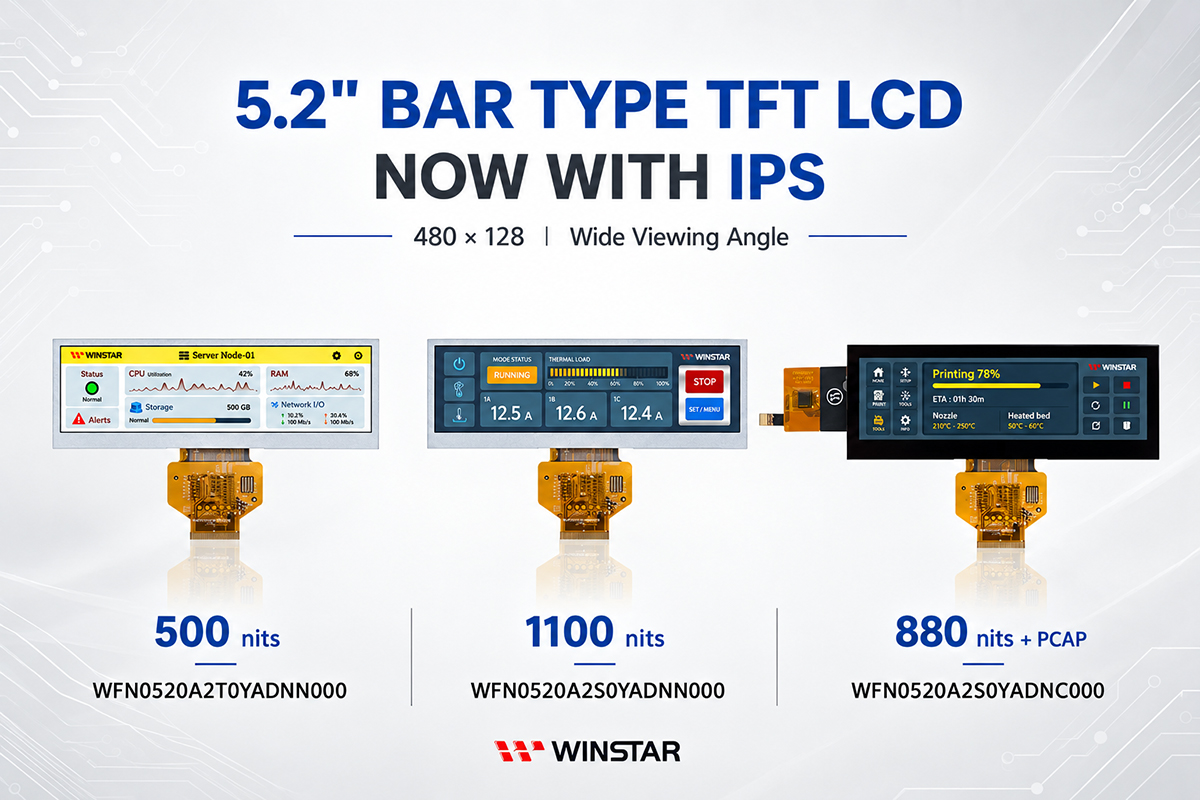

Developed as an IPS-based option to the WF52A TN series, WFN0520A2S0YADNC000 provides a larger active area while retaining the 480 x 128 wide-format resolution. Its bar type format is well suited for audio mixing consoles, industrial equipment, server systems, control panels, and other wide-format HMI applications. The WFN0520A2 series is also available in 500 cd/m² and 1100 cd/m² non-touch configurations to support different application requirements.
| Item | Dimension | Unit |
|---|---|---|
| Size | 5.2 | inch |
| Dot Matrix | 480 x RGB x 128 | dots |

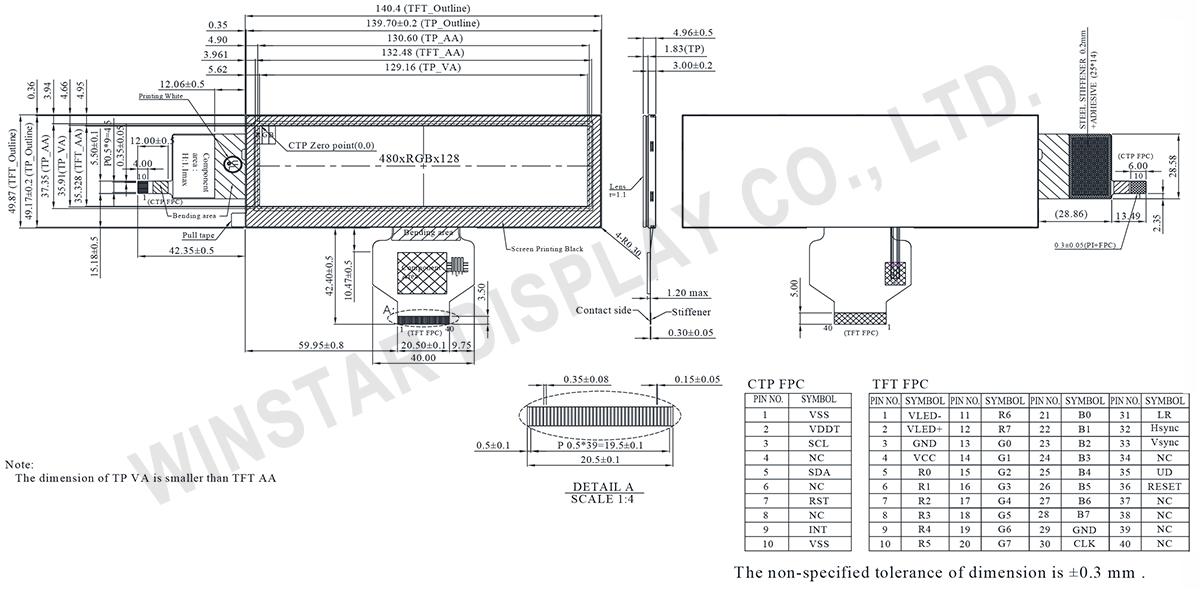

| Module dimension | 140.4 x 49.87 x 4.96 | mm |
| Active area | 132.48 x 35.328 | mm |
| Pixel pitch | 0.276 x 0.276 | mm |
| LCD type | TFT, Normally black, Transmissive | |
| View Angle | 85/85/85/85 | |
| Aspect Ratio | Bar Type | |
| Backlight Type | LED, Normally White | |
| TFT Driver IC | ILI6485D or Equal | |
| TFT Interface | RGB 24bit | |
| CTP Driver IC | GT911 or equivalent | |
| CTP Interface | I2C | |
| CTP FW Version | 0x95 | |
| CTP Resolution | 480*128 | |
| Touch Panel | Projected capacitive touch panel (PCAP) | |
| Surface | Glare | |
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Supply Voltage For LCM | VCC | 3.0 | 3.3 | 3.6 | V |
| Supply Current For LCM | ICC | － | 17.0 | 26.0 | mA |
| Supply Voltage For Touch | VDDT | 2.8 | － | 3.3 | V |
| Supply Current For Touch | IDDT | 9.0 | 14.0 | mA |
| Pin | Symbol | Function |
|---|---|---|
| 1 | VLED- | Power for LED backlight cathode |
| 2 | VLED+ | Power for LED backlight anode |
| 3 | GND | Power ground |
| 4 | VCC | Power voltage |
| 5 | R0 | Red data (LSB) |
| 6 | R1 | Red data |
| 7 | R2 | Red data |
| 8 | R3 | Red data |
| 9 | R4 | Red data |
| 10 | R5 | Red data |
| 11 | R6 | Red data |
| 12 | R7 | Red data (MSB) |
| 13 | G0 | Green data (LSB) |
| 14 | G1 | Green data |
| 15 | G2 | Green data |
| 16 | G3 | Green data |
| 17 | G4 | Green data |
| 18 | G5 | Green data |
| 19 | G6 | Green data |
| 20 | G7 | Green data (MSB) |
| 21 | B0 | Blue data (LSB) |
| 22 | B1 | Blue data |
| 23 | B2 | Blue data |
| 24 | B3 | Blue data |
| 25 | B4 | Blue data |
| 26 | B5 | Blue data |
| 27 | B6 | Blue data |
| 28 | B7 | Blue data (MSB) |
| 29 | GND | Power ground |
| 30 | CLK | Pixel clock (DCLK) |
| 31 | LR | Right /Left selection; Default R/L is Pull High |
| 32 | HSYNC | Horizontal sync signal; negative polarity |
| 33 | VSYNC | Vertical sync signal; negative polarity |
| 34 | NC | No connection |
| 35 | UD | Up/down selection; Default U/D is Pull High |
| 36 | RESET | Reset signal |
| 37 | NC | No connection |
| 38 | NC | No connection |
| 39 | NC | No connection |
| 40 | NC | No connection |
| Pin | Symbol | Function |
|---|---|---|
| 1 | VSS | Ground for analog circuit |
| 2 | VDDT | Power Supply : +3.3V |
| 3 | SCL | I2C clock signal |
| 4 | NC | No connect |
| 5 | SDA | I2C data signal |
| 6 | NC | No connect |
| 7 | RST | External reset signal, active low |
| 8 | NC | No connect |
| 9 | INT | Interrupt signal, active low, asserted to request Host start a new transcation. |
| 10 | VSS | Ground for analog circuit |
